| Dimensions:: | Ø 165 x 94 mm |
|---|---|
| Energy gain :: | Max. 3 dB |
| Frequency range:: | 806 ... 960 MHz1710 ... 2500 MHz |
| Impedance:: | 50 Ω |

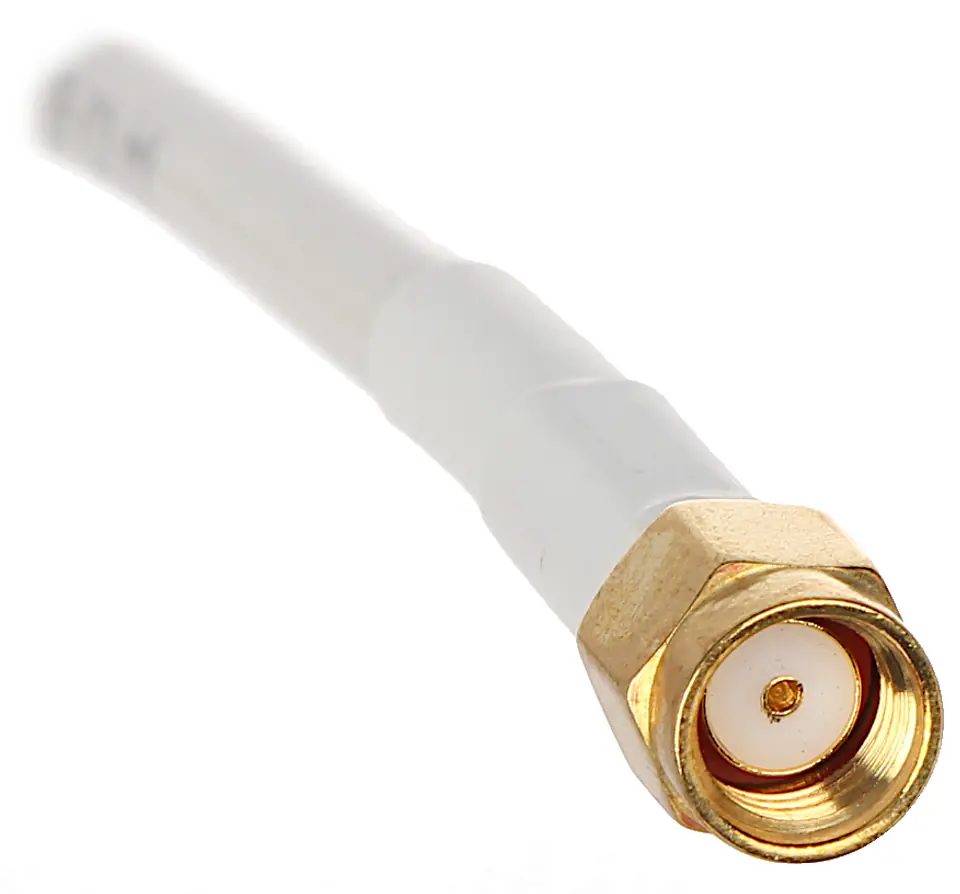

| Joint:: | SMA-RP Plug |
| Polarity:: | Vertical |
| Scales:: | 0.150 kg |
| Selected features:: | Small size |
| Warranty:: | 2 years |

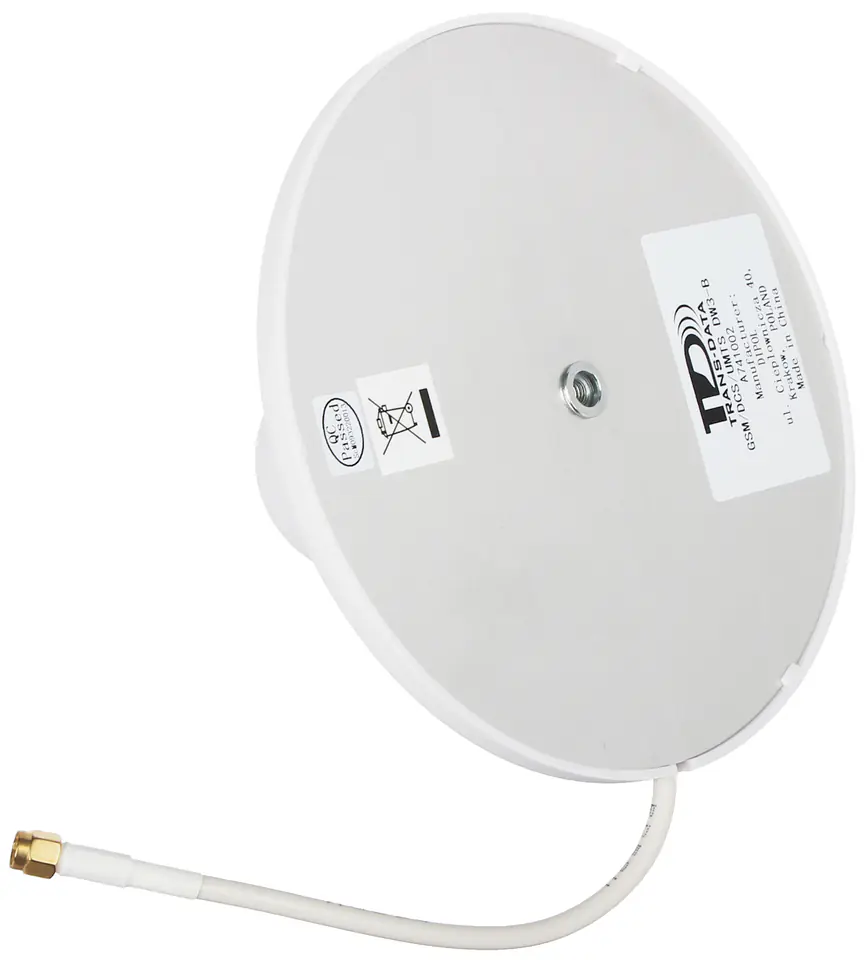

ATK-D2/SMA is an indoor omnidirectional antenna designed to distribute amplified signal from the GSM repeaterThe small dimensions and streamlined shape make the antenna blend in nicely with the environment
In the case of installing a GSM repeater in a large facility, in order to increase the range of the amplified GSM signal, several internal antennas should be used
