| Dimensions:: | Ø 165 x 94 mm |
|---|---|
| Energy gain :: | Max. 3 dB |
| Frequency range:: | 806 ... 960 MHz, 1710 ... 2500 MHz |
| Impedance:: | 50 Ω |

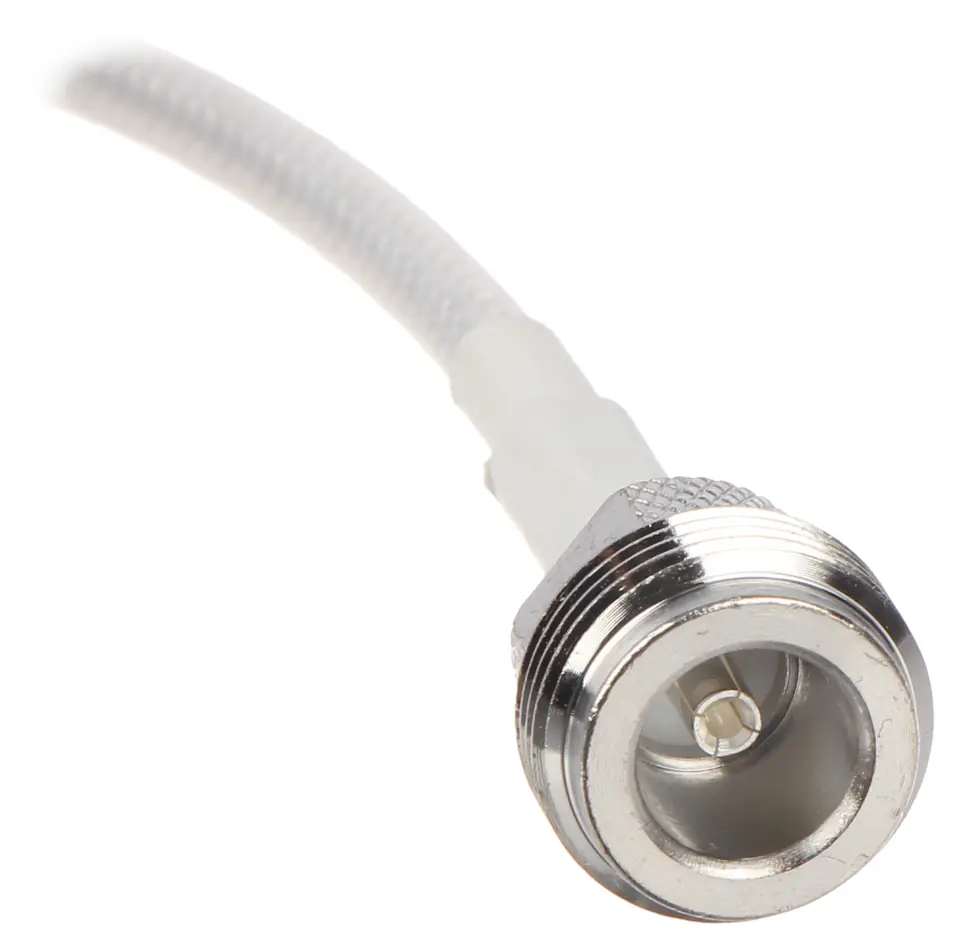

| Joint:: | "N" Socket |
| Polarity:: | Vertical |
| Scales:: | 0.26 kg |
| Selected features:: | Small size |
| Warranty:: | 2 years |

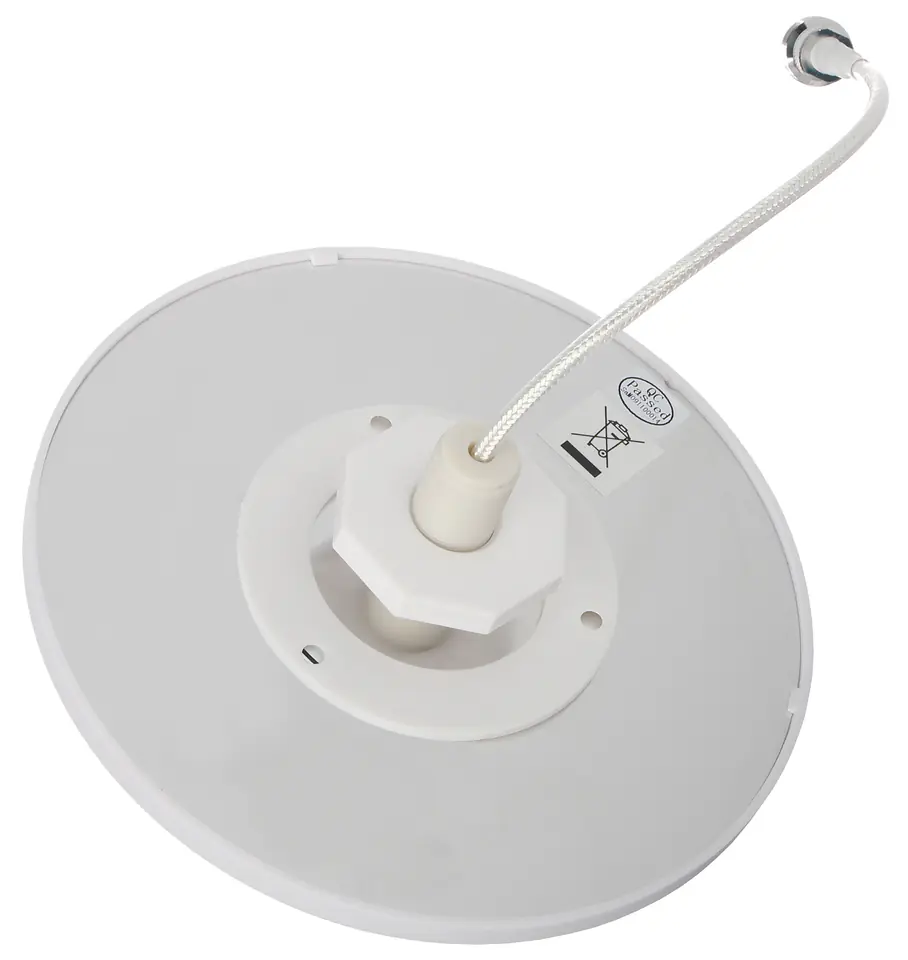

ATK-D2/N is an indoor omnidirectional antenna designed for distribution of amplified signal from a GSM repeaterThe small dimensions and streamlined shape make the antenna blend in nicely with the environment
In the case of installing a GSM repeater in a large facility, in order to increase the range of the amplified GSM signal, several internal antennas should be used
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
