OM2-SM SINGLE MODE MEDIA CONVERTER

€16.95
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Product code:
OM2-SM / 5902887009181

Specification

Baud::10 / 100 Mbps
Dimensions::120 x 72 x 27 mm
Lan port::1 pc. (RJ-45. UTP/STP)
Number of fibers::2 pcs.
Operating temperature::-10 °C ... 50 °C
Optical connector type::2 pcs. SC / PC
Optical wavelength::1310 nm
Permissible relative humidity::5 % ... 95 %

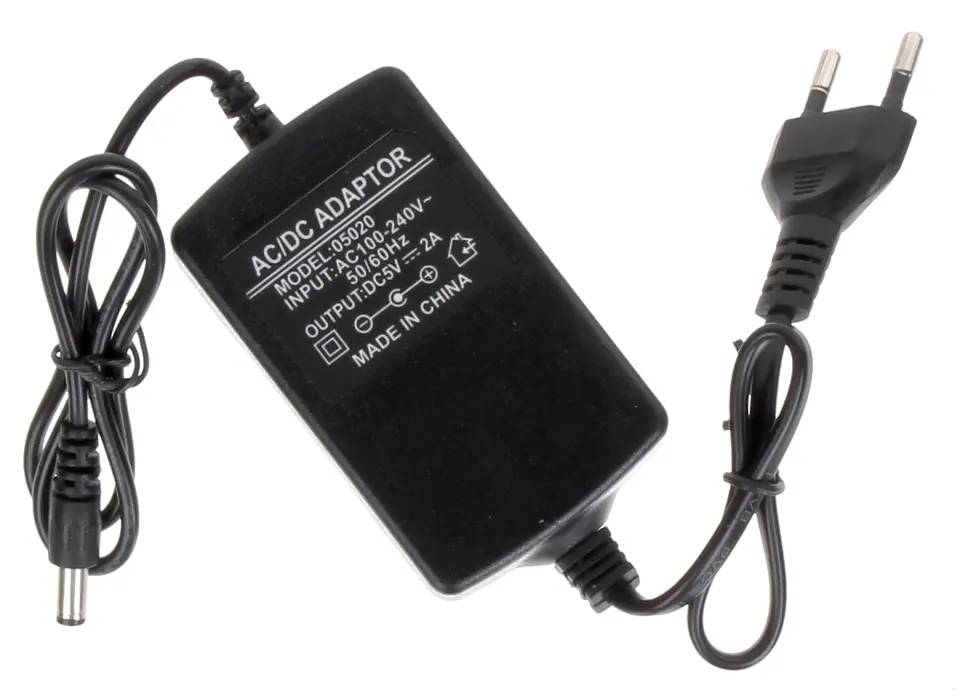

Power::5 V DC / 2 A (power supply included)
Scales::0.140 kg
Selected features::Auto MDI/MDI-X Detection - Automatically Detects Data Transmission Mode Auto Bit Speed Detection Bidirectional Transmission Via Two Fibers LEDs Indicating Correct Operation of the Device
Supported standards::IEEE 802.3, IEEE 802.3u, 802.3z
Transmission range::25 km - Single-mode fiber
Warranty::2 years

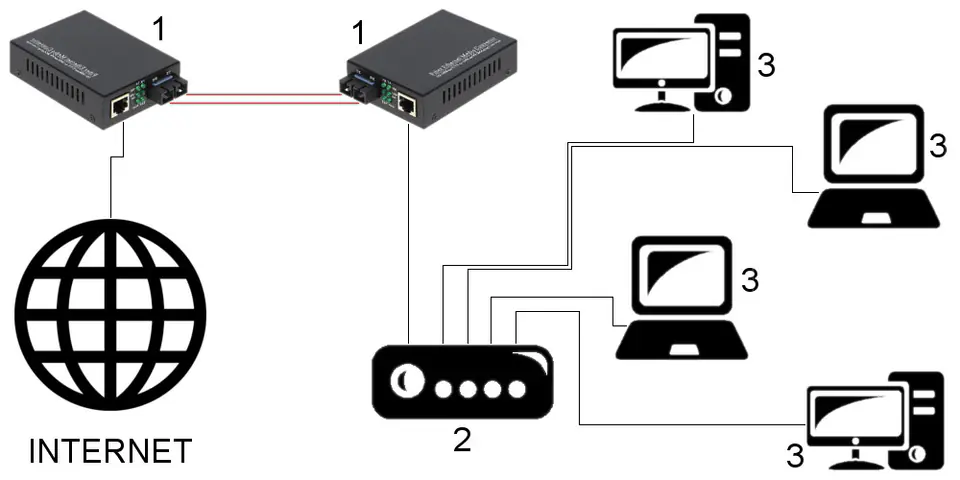

The OM2-SM converter allows you to change the conductive medium of the data stream from a standard STP/UTP twisted pair cable to a single-mode fiber optic cable

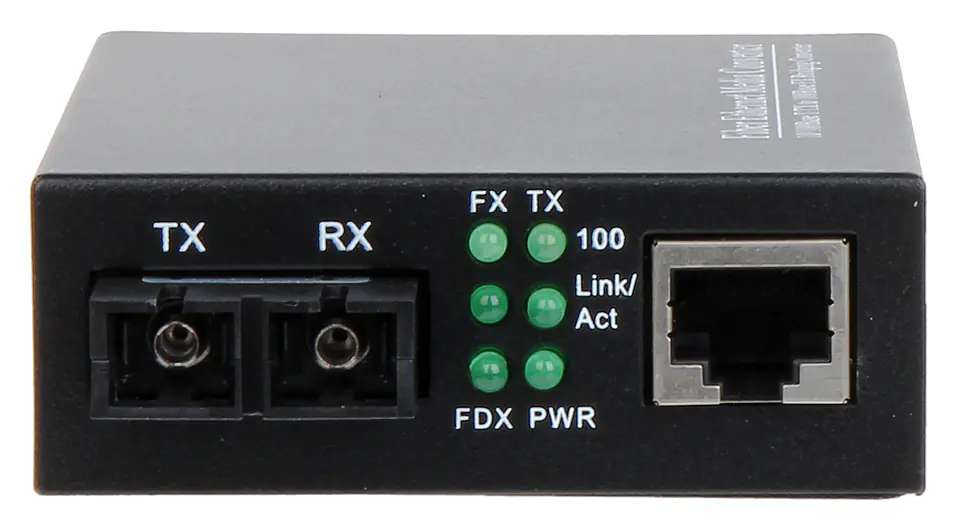

The media converter has two SC connectors. One is used to transmit (TX) and the other to receive the signal (RX)The optical signal is transmitted and received in the second transmission window 1310 nm

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
