The device protects all pairs of wires in a four-pair cable Within each pair, the elimination of surges between the lines is ensured and the emerging charge is discharged to the ground through the PE protective wireThe condition for proper operation of AXON-NET-PROTECTOR is to connect it to an efficient ground or PE protective wire

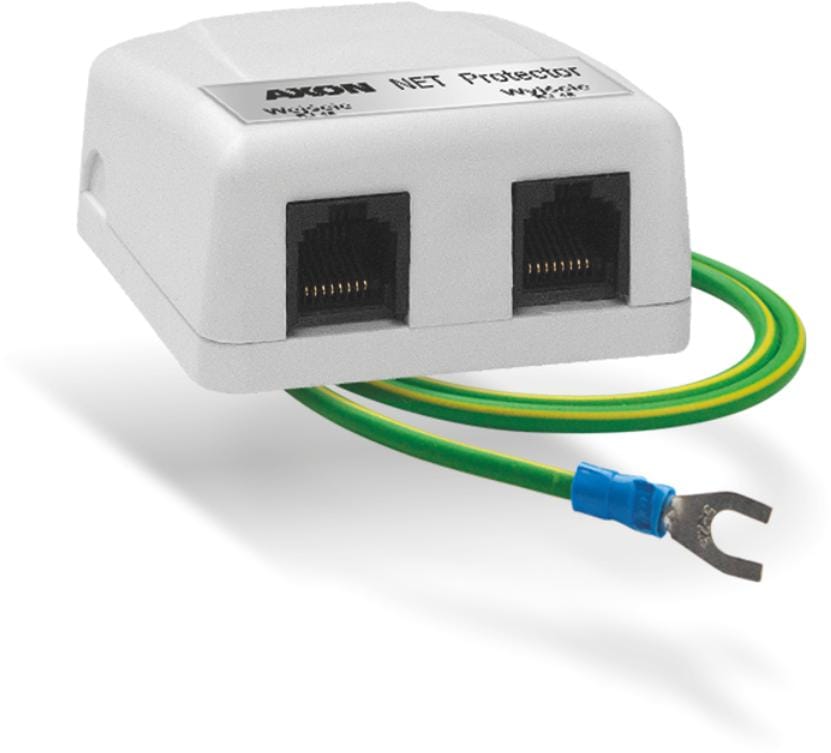

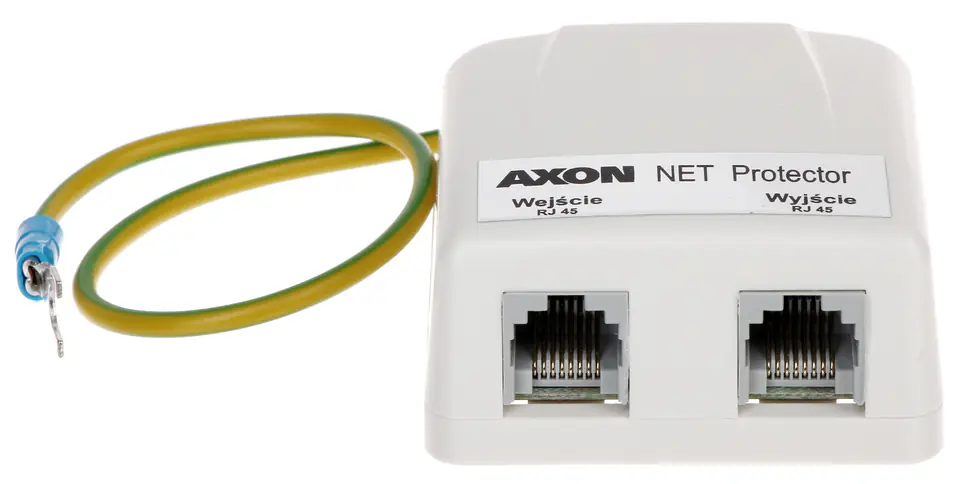

OGRANICZNIK PRZEPIĘĆ AXON-NET-PROTECTOR
€30.47
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- AXON-NET-PROTECTOR / 5904743330057
Share this product:
Specification
| Case:: | Plastic |
|---|---|
| Colour:: | white |
| Dimensions:: | 67 x 60 x 29 mm |
| Line-to-ground protection voltage:: | 600 V ... 1 kV/μs |
| Line-to-line protection level:: | 40 V ... 1 kV/μs |
| Maximum voltage:: | 6 volts |
| Nominal discharge current (line to line):: | 20 A (10/1000μs) |
| Nominal discharge current (line-ground):: | 20 A (10/1000μs) |
| Protected cable pairs:: | 1-2, 3-6, 4-5, 7-8 |
| Scales:: | 0.052 kg |
| Socket type:: | RJ45 (8P8C) |
| Standard:: | Complies with PN-EN61643-21 |
| Voltage:: | 5 volts |
| Warranty:: | 2 years |
