Manufacturer number: MSW 10060668
An efficient winch of the German brand MSW created for pulling vehicles or other objects out of difficult terrain. It will work well in mountainous places or when driving off-road. It fits almost any ATV, trailer and can also be used in households when, for example, removing tree trunks, logs and the like.
The 1 hp (750 W) motor, together with a large drum, magnet (brushless design) and a strong steel rope, achieves a pulling force of 2000 lbs (907 kg). This allows you to quickly and easily extract the vehicle from a ditch or other terrain obstacle. Installation of the winch is facilitated by the use of a special mounting plate.
A three-stage planetary gearbox (forward, reverse and manual clutch for quick unwinding of the rope) allows you to adjust the transmission of power using a special transmission. The reduction factor is 153:1. In turn, the intermittent duty cycle allows the engine to operate on the principle of intervals, so that it does not reach the temperature at most.
In order to increase the durability of the device, the set includes a rope made of galvanized steel (15 m long / 4 mm in diameter), which, thanks to the four-track guide, is resistant to most mechanical damage, even during frequent changes in the angle of retraction. An automatic braking system is responsible for safety, which will keep the object pulled out even if there is no electricity. In addition, the winch design is resistant to overloads and rain, snow or dirt.
Product features:
- - Efficiency - the motor with a power of 750 W generates a pulling force of up to 907 kg,
- - Speed - pull 3.2 m / min,
- - Precision - Three-speed gearbox with a reduction ratio of 153:1,
- - Durability - rope made of galvanized steel,
- - Safety - protection against overheating, overload and automatic braking system,
- - Convenience - remote control with long cable and compact size.
- - Model - PROPULLATOR 2000-C
- - Catalogue number - 10060668
- - Article status - New
- - Housing material - Aluminum
- - Rope material - Galvanized steel
- - Engine power - 1.0 hp / 750 W
- - Voltage - 12 V
- - Motor type - Permanent magnet motor
- - Duty cycle - Intermittent
- - Gearbox - 3-speed planetary transmission
- - Gear ratio - 153:1
- - Pull force - 907 kg / 2000 lbs
- - Pulling speed - 3.2 m/min
- - Rope length - 15 m
- - Rope diameter - 4 mm
- - Drum diameter - 32 mm
- - Braking system - Automatic
- - Clutch type - Slip ring
- - Remote control type - Wired
- - Dimensions (LxWxH) - 27.7 x 10 x 10.5 cm
- - Weight - 5.06 kg
- - Shipping dimensions (LxWxH) - 33 x 23 x 17.5 cm
- - Shipping weight - 8 kg

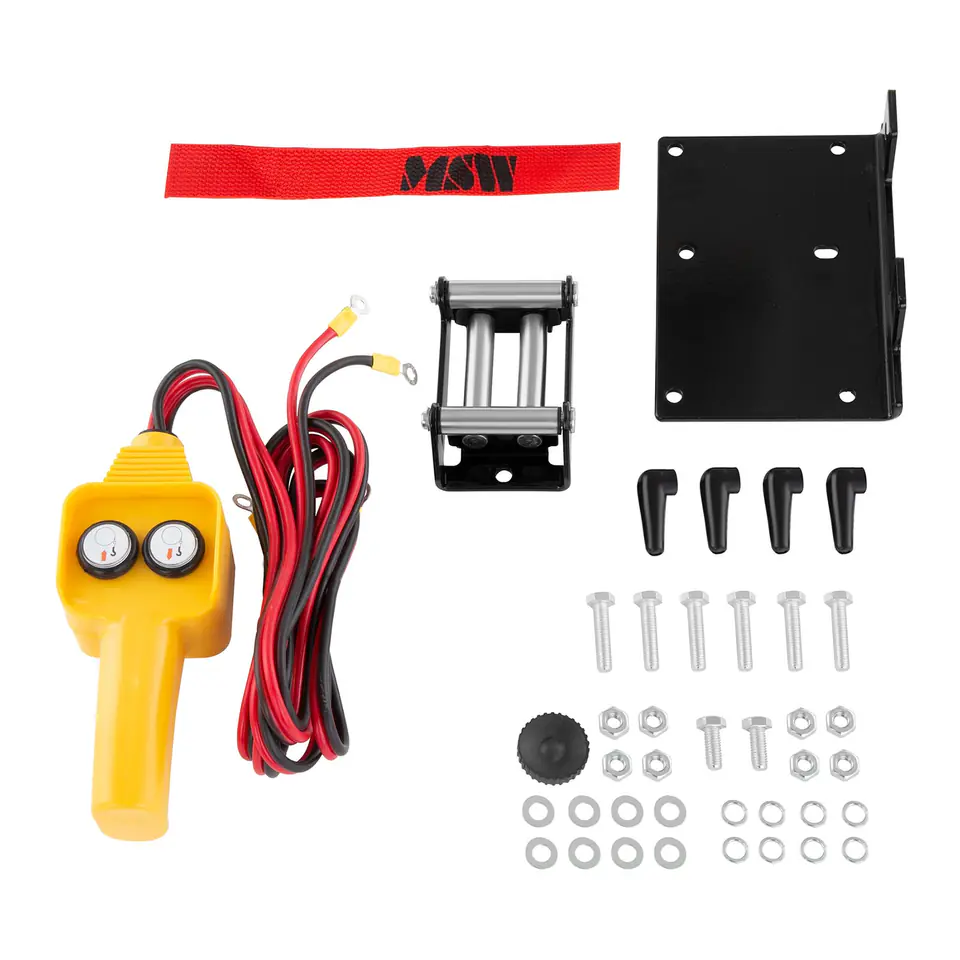

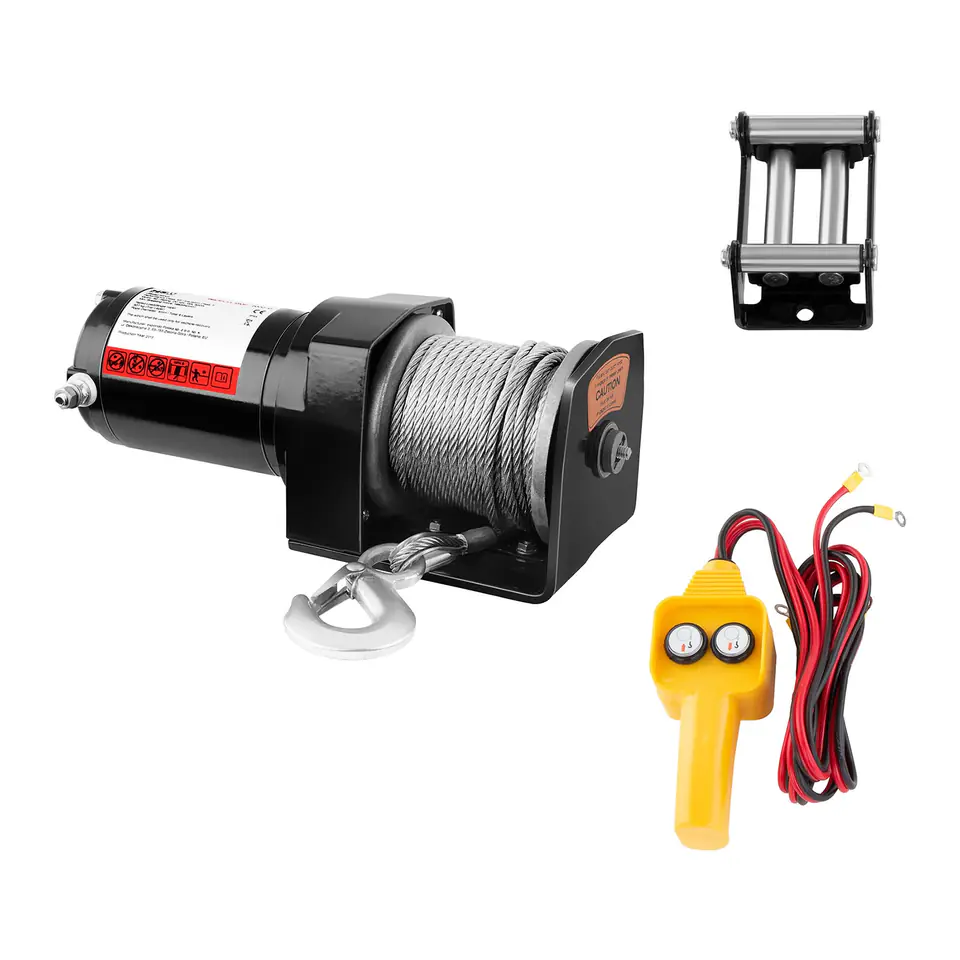

- - Winch,
- - Wired remote control,
- - Hook,
- - Mounting accessories,
- - Instruction PL.
