Manufacturer number: MSW 10060673

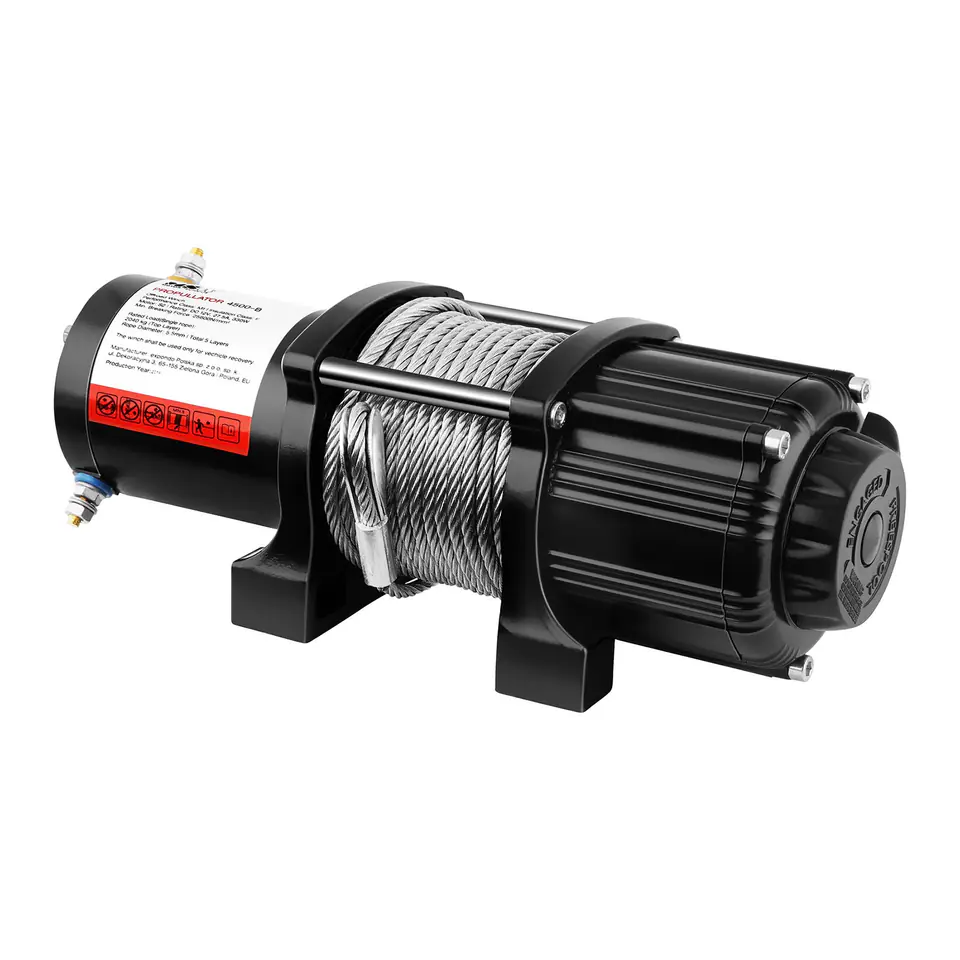

An efficient winch of the German brand MSW created for pulling vehicles or other objects out of difficult terrain. It will work in mountainous places or when driving off-road. It fits almost any ATV, trailer and can also be used in households when removing tree trunks, logs and the like.
The 1.3 hp (1000 W) motor, together with a large drum, magnet (brushless design) and a powerful steel rope, achieves a pulling force of 4500 lbs (2040 kg). This allows you to quickly and easily extract the vehicle from a ditch or other terrain obstacle. Installation of the winch is facilitated by the use of a special mounting plate.
A three-stage planetary gearbox (forward, reverse and manual clutch for quick unwinding of the rope) allows you to adjust the transmission of power using a special transmission. The reduction factor is 153:1. In turn, the intermittent duty cycle allows the engine to operate on the principle of intervals, so that it does not reach the temperature at most.

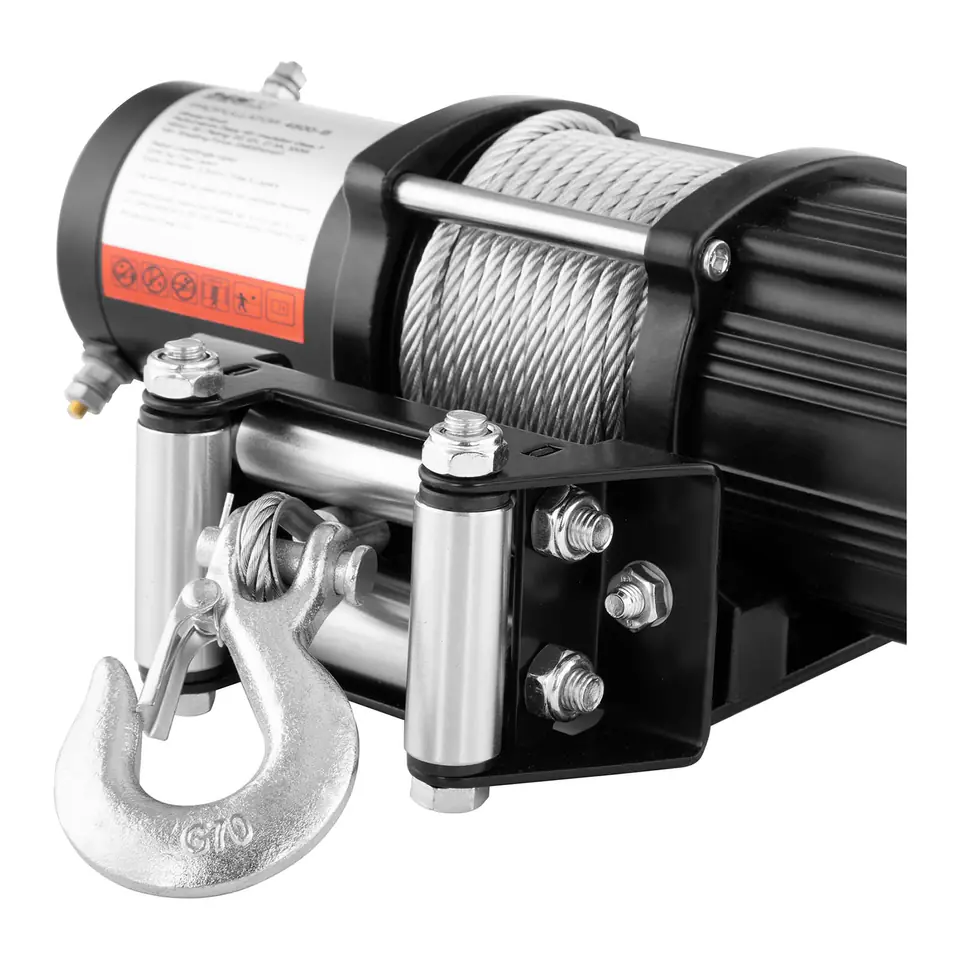

In order to increase the durability of the device, the set includes a strong steel rope (12.5 m long / 5.5 mm in diameter), which, thanks to the four-track guide, is resistant to most mechanical damage, even during frequent changes in the angle of retraction. An automatic braking system is responsible for safety, which will keep the object pulled out even if there is no electricity. In addition, the winch design is resistant to overloads and rain, snow or dirt.
Product features:
- - Efficiency - the motor with a power of 1000 W generates a pulling force of up to 2040 kg,
- - Speed - pull 8 m / min,
- - Precision - Three-speed gearbox with a reduction ratio of 153:1,
- - Durability - strong steel rope,
- - Safety - protection against overheating, overload and automatic braking system,
- - Convenience - remote control with long cable, convenient mounting plate and compact size.
- - Model - PROPULLATOR 4500-B
- - Catalogue number - 10060673
- - Article status - New
- - Housing material - Aluminum
- - Rope material - Steel
- - Engine power - 1.6 hp / 1200 W
- - Voltage - 12 V
- - Motor type - Permanent magnet motor
- - Duty cycle - Intermittent
- - Gearbox - 3-speed planetary transmission
- - Gear ratio - 153:1
- - Pull force - 2040 kg / 4500 lbs
- - Pulling speed - 8 m/min
- - Rope length - 12.5 m
- - Rope diameter - 5.5 mm
- - Rope protection system - 4-stage guide
- - Drum diameter - 41 mm
- - Braking system - Automatic
- - Clutch type - Slip ring
- - Remote control type - Wired
- - Mounting plate included - Yes
- - Dimensions (LxWxH) - 32.7 x 11.5 x 11.5 cm
- - Weight - 8.48 kg
- - Shipping dimensions (LxWxH) - 41 x 28 x 18 cm
- - Shipping weight - 12.8 kg

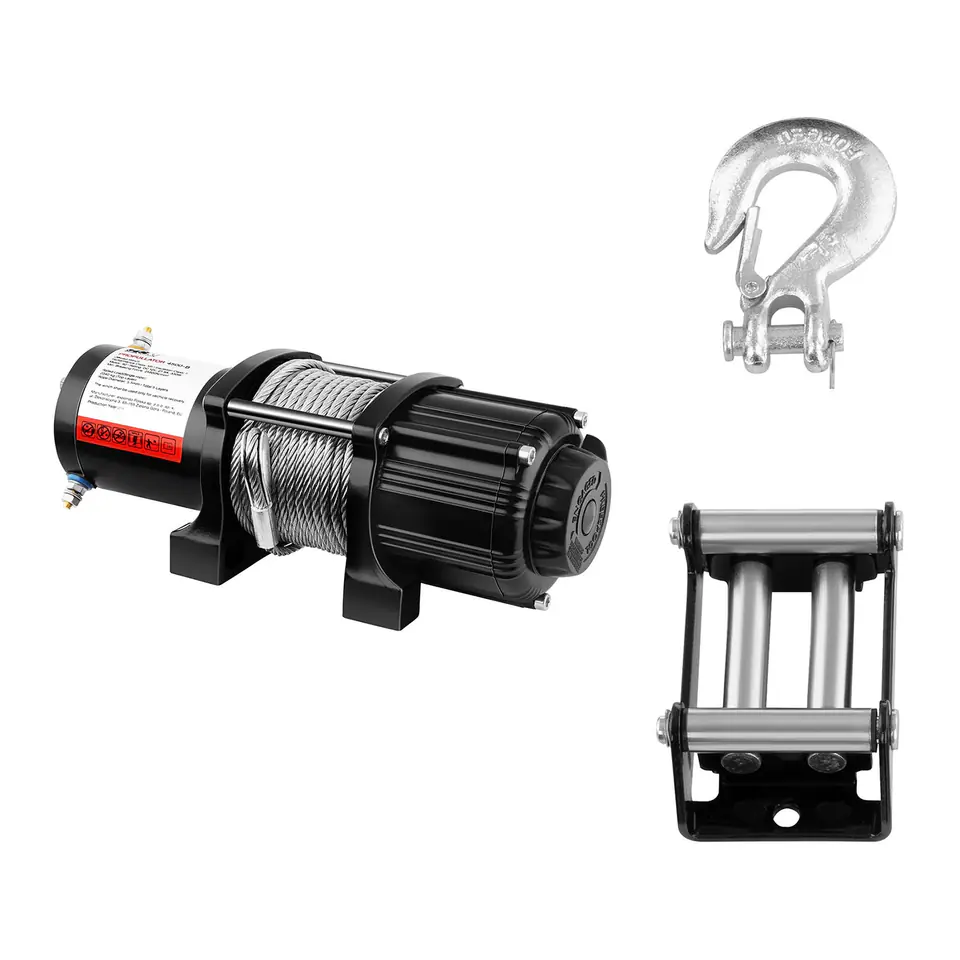

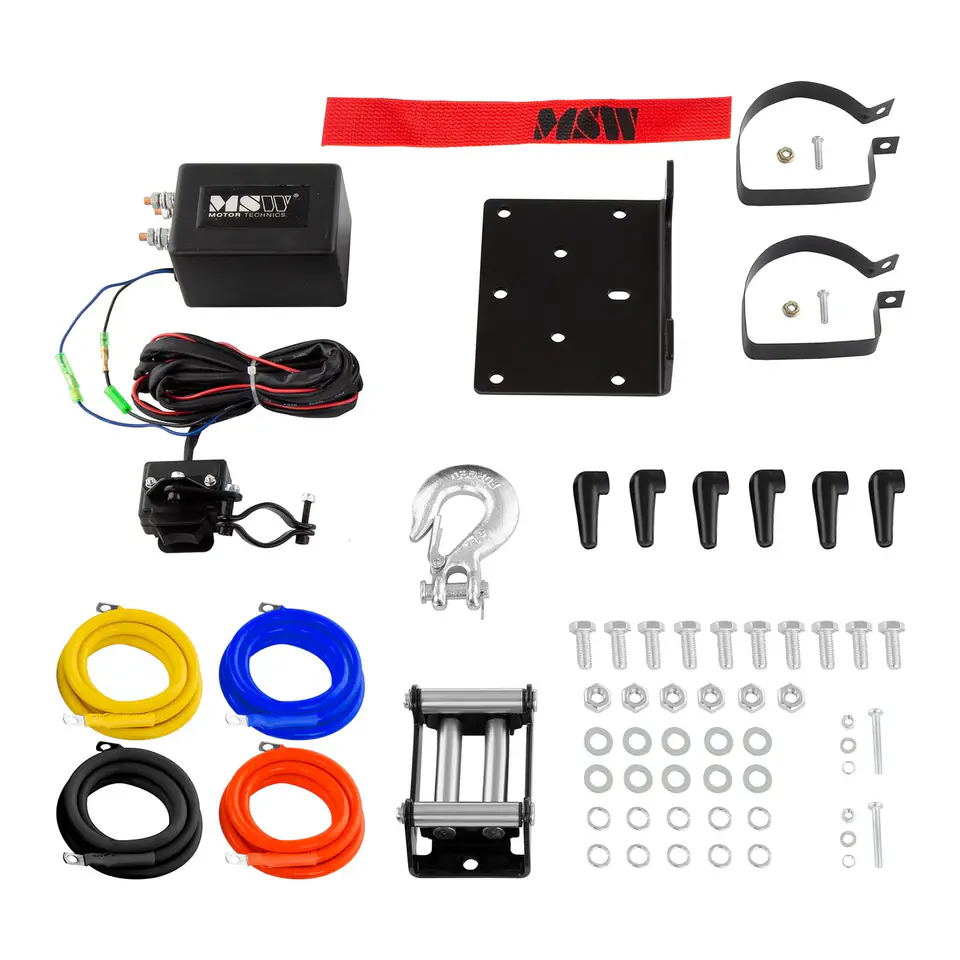

- - Winch,
- - Control box with wires,
- - Mounting buckle for the box – 2 pcs.,
- - Wired remote control,
- - Mounting plate,
- - 4-track rope roller guide,
- - Hook,
- - Mounting accessories,
- - Instruction PL.
