Hexagon nut
Material: height 1,5 d. One end is spherical to the DIN 6319 D or G tapered washer, the other end is flat to the DIN 6340 disc.
Material: heat-treated steel up to strength class 10.

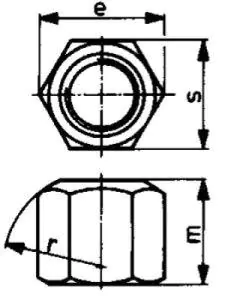

Flange diameter e: | 37.7 mm |
---|---|
Height m: | 33 mm |
Key size: | 34 mm |
Radius r: | 30 mm |
Thread: | M22 |
Hexagon nut
Material: height 1,5 d. One end is spherical to the DIN 6319 D or G tapered washer, the other end is flat to the DIN 6340 disc.
Material: heat-treated steel up to strength class 10.
