Hexagon nut
Material: height 1,5 d. One end is spherical to the DIN 6319 D or G tapered washer, the other end is flat to the DIN 6340 disc.
Material: heat-treated steel up to strength class 10.
Nut 6-cat. DIN6330B M14/22 AMF
€1.88
Shipping from warehouse: B6
Estimated shipping: Mon, Dec 30 - Tue, Dec 31
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- AMF
- Product code:
- 82404 / 4020772082406
Share this product:

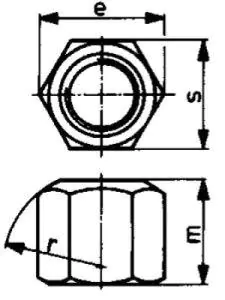

Specification
| Execution: | * Old DIN standard |
|---|---|
| Flange diameter e: | 24.5 mm |
| Height m: | 21 mm |
| Key size: | 22 mm |
| Radius r: | 20 mm |
| Thread: | M14* |
