Hexagon nut
Material: height 1,5 d. One end is spherical to the DIN 6319 D or G tapered washer, the other end is flat to the DIN 6340 disc.
Material: heat-treated steel up to strength class 10.
Nut 6-cat. DIN6330B M10/17 AMF
€1.00
Shipping from warehouse: B6
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- AMF
- Product code:
- 82388 / 4020772082383
Share this product:

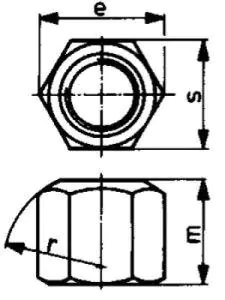

Specification
| Execution: | * Old DIN standard |
|---|---|
| Flange diameter e: | 18.9 mm |
| Height m: | 15 mm |
| Key size: | 17 mm |
| Radius r: | 15 mm |
| Thread: | M10* |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
