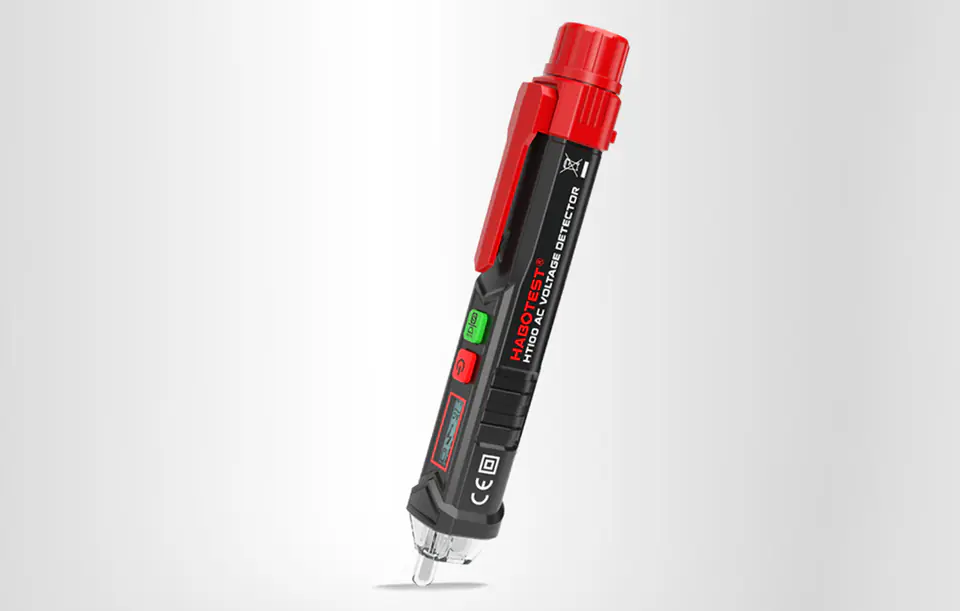

This non-contact voltage detector (NCV) and phase detector ensures precise measurement and safe operation. Equipped with LCD display and sensitivity adjustment button - it is very convenient to use. It offers breakpoint checking, as well as active and inactive cable detection. After 5 minutes of inactivity, it turns off automatically. Built-in LED flashlight will make your work easier. The device is powered by 2 AAA 1.5V batteries.
The HT100P enables accurate, non-contact measurement. Its sensitivity can be adjusted using the built-in button. The voltage measures in the range of 12-1000 V. It also allows you to check the rotation of 3 phases. The detector also detects breakpoints. It will therefore work in many applications.

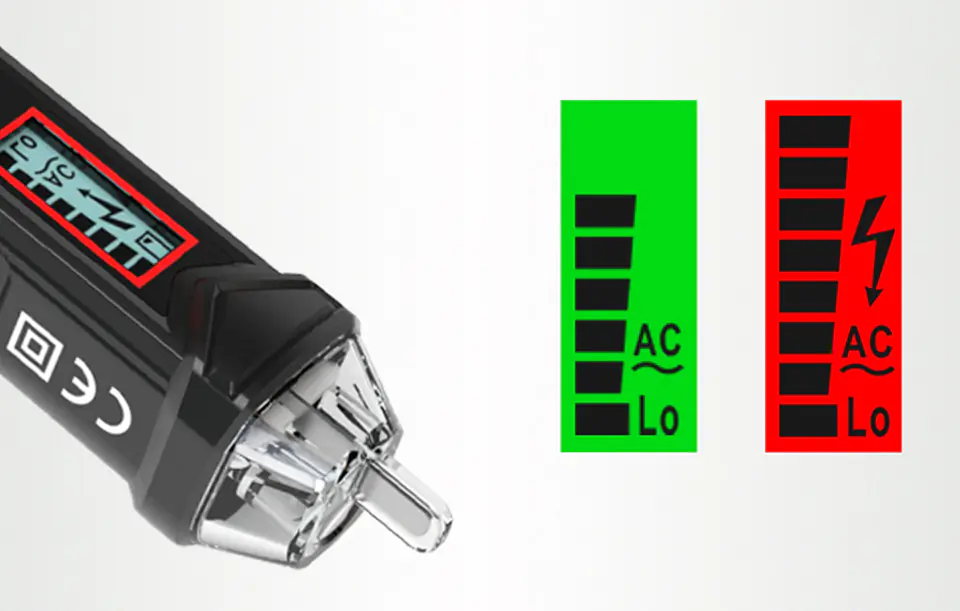

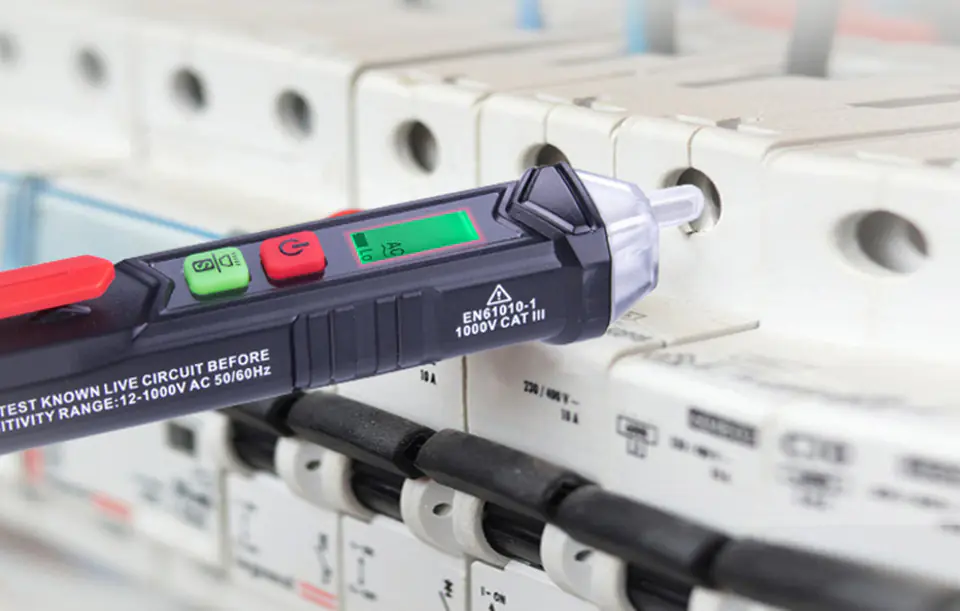

The detector intelligently detects active and inactive cables. It has also been equipped with a double alarm - visual and audible. Simply place the device on the surface of the wire. A green display color and a slow beep indicate that the cable is inactive. The red color of the display and a very fast alarm indicate an active cable.

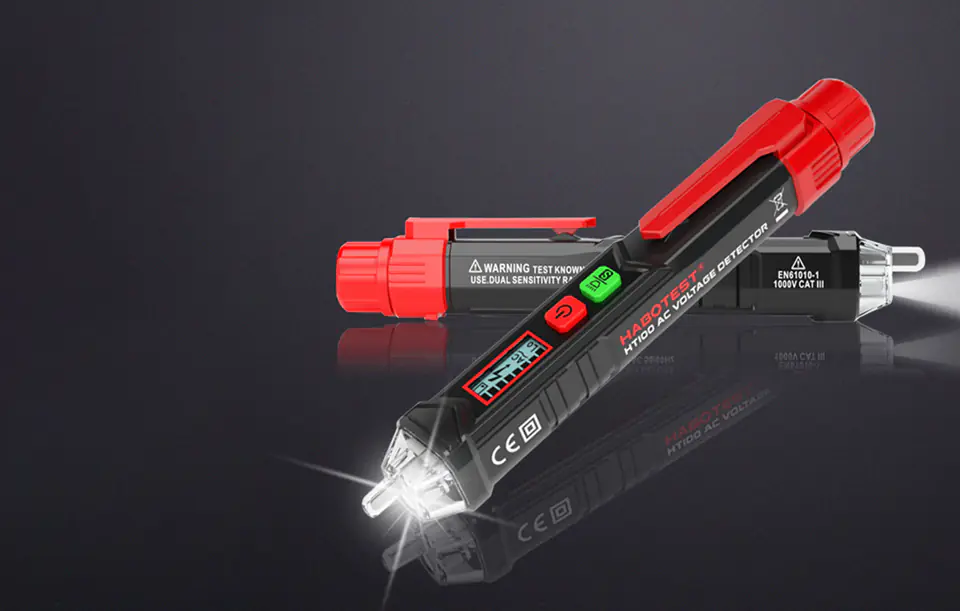

An easy-to-read LCD display will provide you with the most important information. The HT100P also has a built-in LED flashlight. Thanks to it, you can use the device even in dark rooms. You also do not have to worry about draining the battery too quickly if you forget to turn off the detector - after 5 minutes of inactivity, it will automatically stop working.

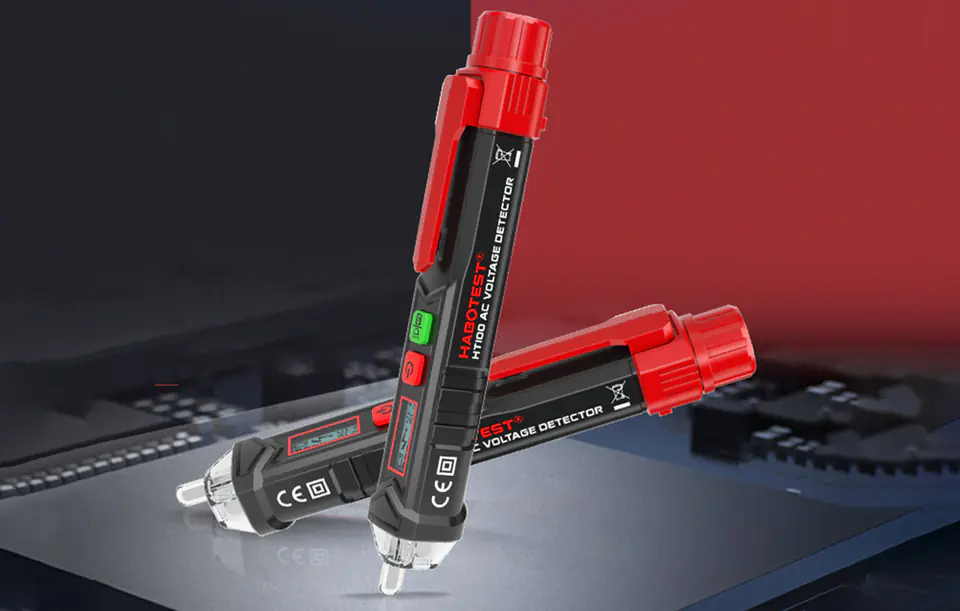

The device is compact, portable and convenient to use. Buttons in easily accessible places allow you to quickly and easily turn the detector on, turn it off and adjust the sensitivity. The built-in clip allows you to attach the HT100P to clothes, a bag or a backpack, for example, so it's easy to transport.
| Habotest | Producent |
|---|---|
| HT100P | Model |
| Wysoka czułość: AC 12-1000 V;Niska czułość: AC 48-1000 V | Zakres wykrywania napięcia |
| Wydłużony | Kształt próbnika |
| 50/60 Hz | Częstotliwość |
| Dźwięk i światło | Rodzaj alarmu |
| Tak | Bezkontaktowe wykrywanie fazy |
| Podwójne, czerwone i zielone | Podświetlenie |
| Tak | Testowanie aktywności kabli |
| 4-poziomowy wykres słupkowy | Wyświetlanie intensywności sygnału |
| Dźwięk: od wolnego do szybkiego;Podświetlenie: od zielonego do czerwonego;Wykres słupkowy: od niskiego do wysokiego | Sposób wskazywania intensywności sygnału |
| Tak | Latarka |
| Tak, po 5 minutach bezczynności | Automatyczne wyłączanie |
| Tak | Wskaźnik niskiego poziomu baterii |
| 2x bateria AAA 1,5 V (w zestawie) | Zasilanie |
| Ok. 32 g | Waga |
| 157x27x23 mm | Wymiary |
| EN61010-1,-2-030;EN61326-1, CAT III 1000V | Bezpieczeństwo |
