Non-contact button to trigger the door opening signal in access control systems
NON-CONTACT DOOR OPENING BUTTON ATLO-NB-18
€8.81
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- ATLO
- Product code:
- ATLO-NB-18 / 5902887063572
Share this product:
Specification
| Colour:: | Silver + Black |
|---|---|
| Contact load capacity:: | 3 A / 30 V DC |
| Contact type:: | NO, NC |
| Current consumption:: | 20 mA (standby) 40 mA (Operating) |
| Detection range:: | 0 mm ... 120 mm |

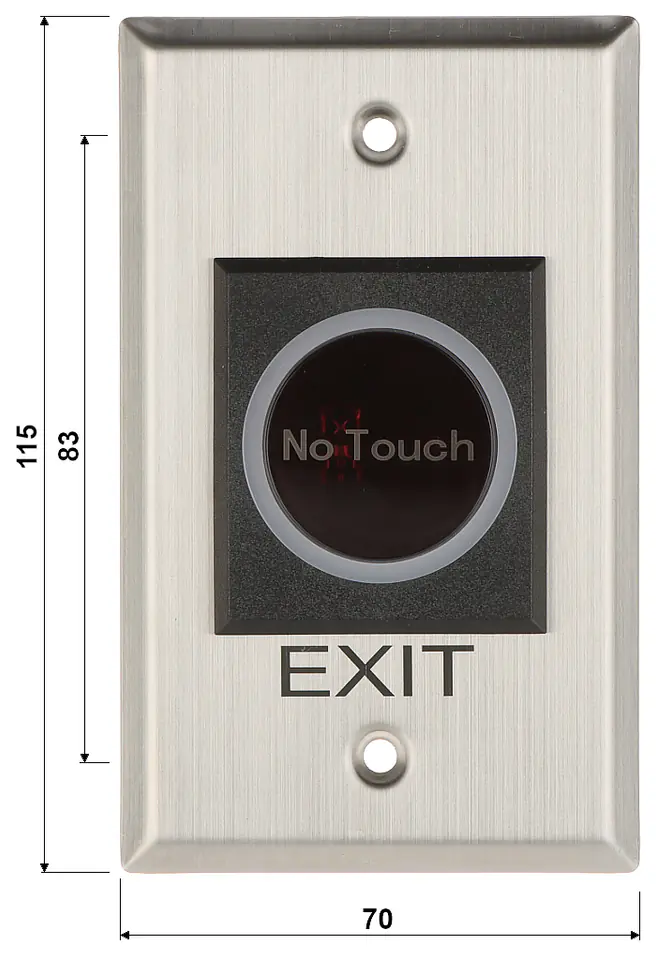

| Dimensions:: | 70 x 115 x 28 mm |
| Manufacturer / brand:: | ATLO |
| Material:: | Aluminum + Plastic |
| Power:: | 12 VDC |
| Scales:: | 0.07 kg |
| Sealing:: | IP40 |
| Selected features:: | Blue + Green Backlight |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
