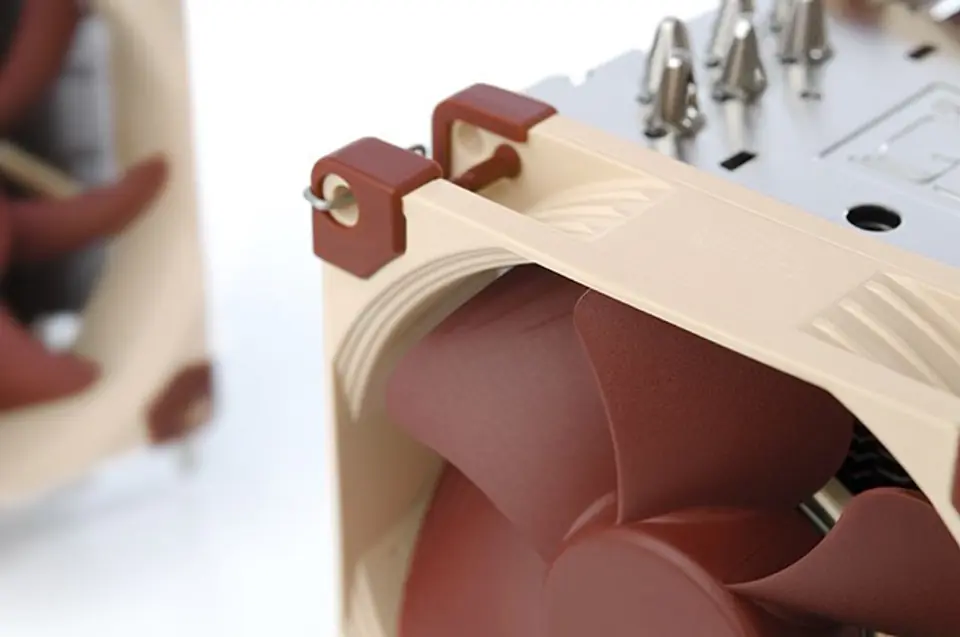

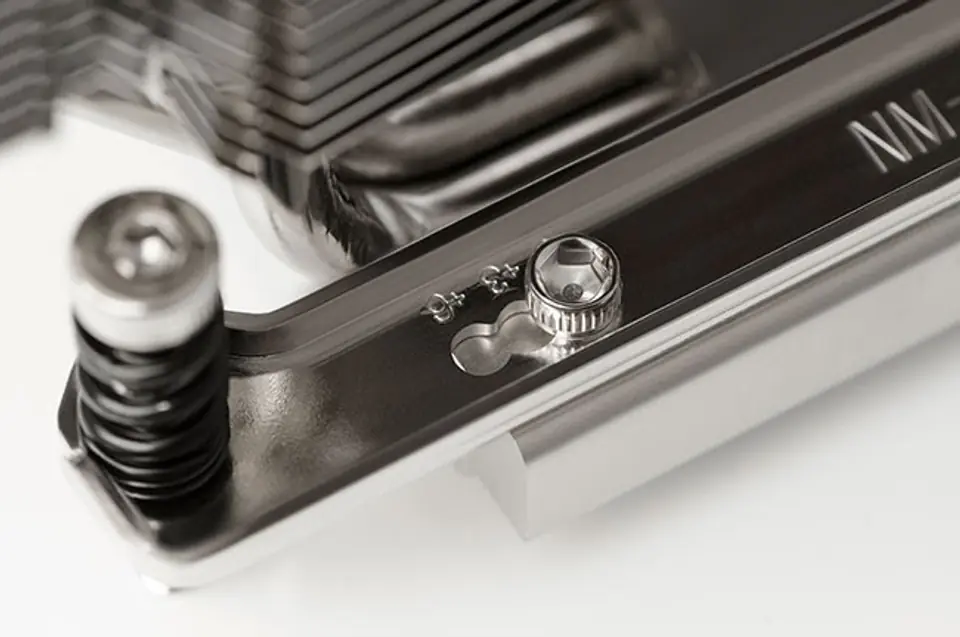

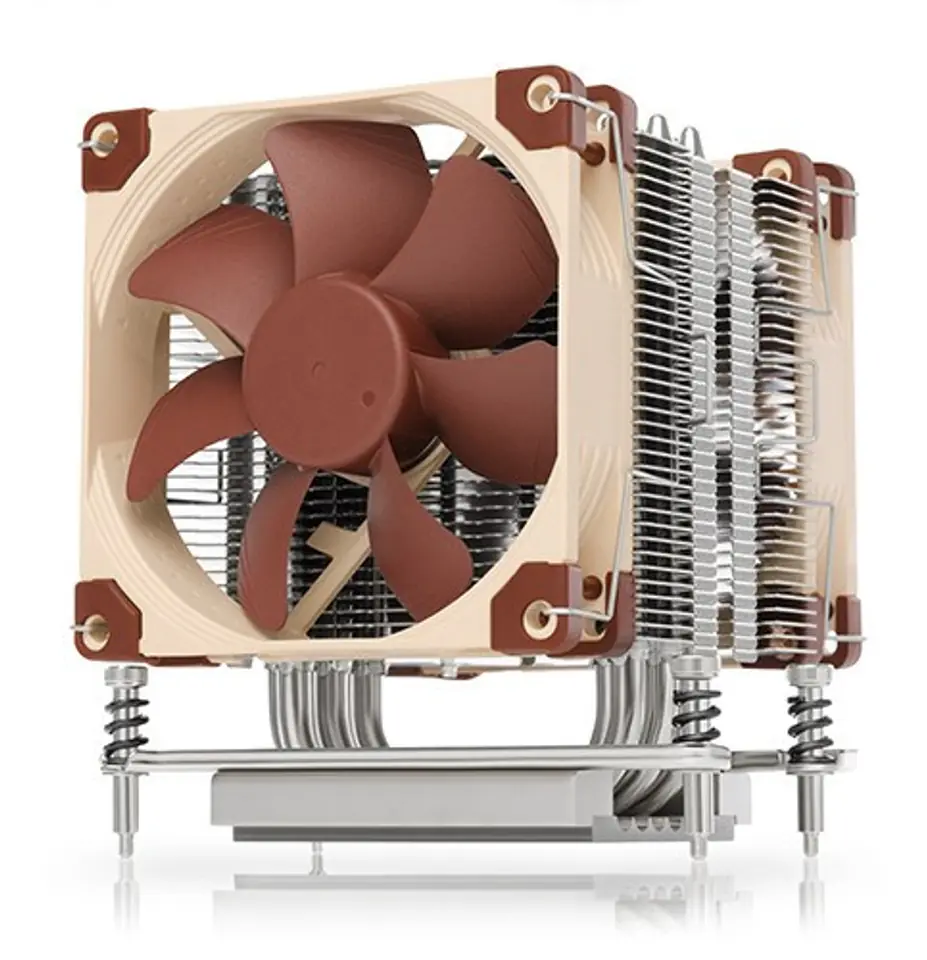

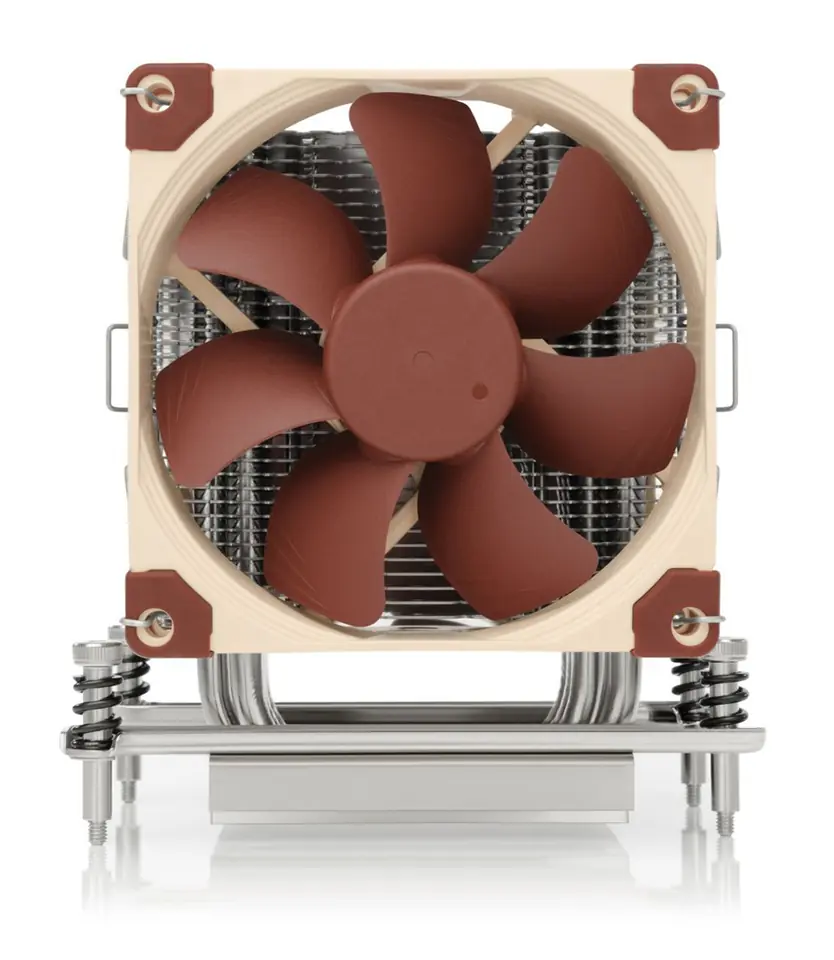

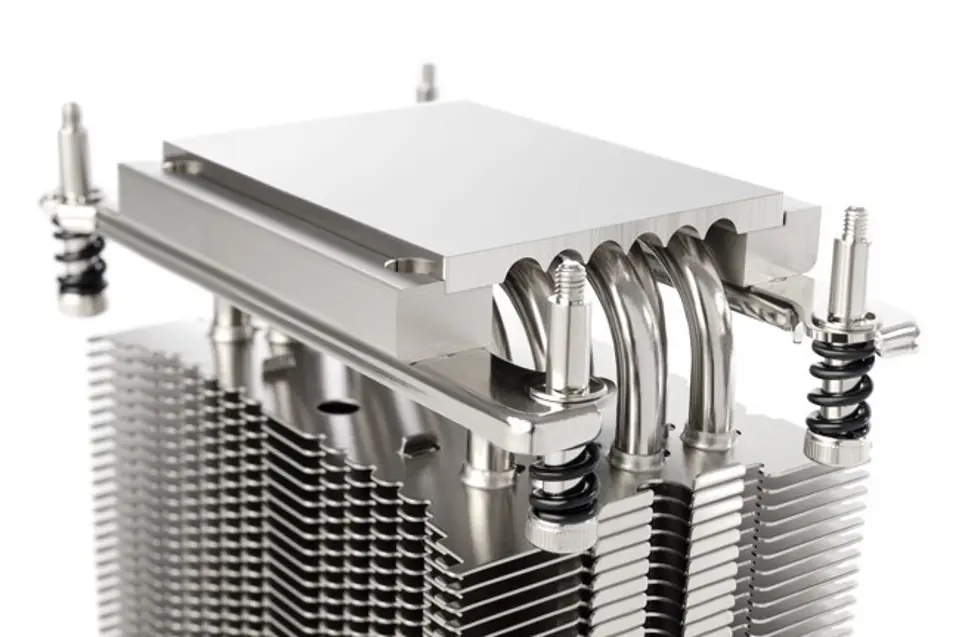

Noctua NH-U9 TR4-SP3 computer cooling component Processor Cooler 9.2 cm Aluminium, Beige
This product is not available
- Availability:
- expected delivery
- Brand:
- noctua
- Product code:
- NH-U9 TR4-SP3 / 9010018000122
Share this product:
Specification
| Airflow: | 78.9 m³/h |
|---|---|
| Airflow with lna (max): | 62.6 m³/h |
| Bearing type: | Self-Stabilising Oil-pressure Bearing (SSO) |
| Compatible processor series: | AMD Ryzen |
| Depth: | 119 mm |
| Fan connector: | 4-pin |
| Fan diameter: | 9.2 cm |
| Fan dimensions (w x d x h): | 92 x 92 x 25 mm |
| Heatsink dimensions (w x d x h): | 125 x 71 x 95 mm |
| Heatsink weight: | 660 g |
| Height: | 95 mm |
| Low-noise adaptor (lna): | Yes |
| Master (outer) case gross weight: | 15.5 kg |
| Material: | Copper |
| Mean time to failure (mttf): | 150000 h |
| Noise level (high speed): | 22.8 dB |
| Noise level with lna (max): | 16.3 dB |
| Number of fan blades: | 7 |
| Number of fans: | 2 fan(s) |
| Package depth: | 135 mm |
| Package height: | 185 mm |
| Package weight: | 1.2 kg |
| Package width: | 175 mm |
| Power supply: | 1.2 W |
| Product colour: | Aluminium, Beige |
| Products per master (outer) case: | 12 pc(s) |
| Pulse-width modulation (pwm) support: | Yes |
| Rotational speed (max): | 2000 RPM |
| Rotational speed (min): | 400 RPM |
| Rotational speed with lna (max): | 1550 RPM |
| Suitable for: | Processor |
| Supported processor sockets: | Socket TR4, Socket SP3 |
| Type: | Cooler |
| Voltage: | 12 V |
| Weight: | 855 g |
| Width: | 125 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
