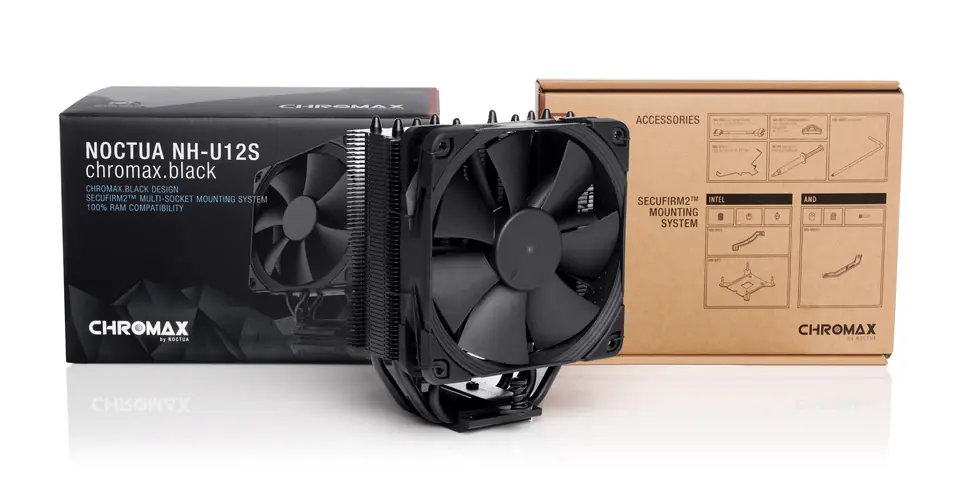

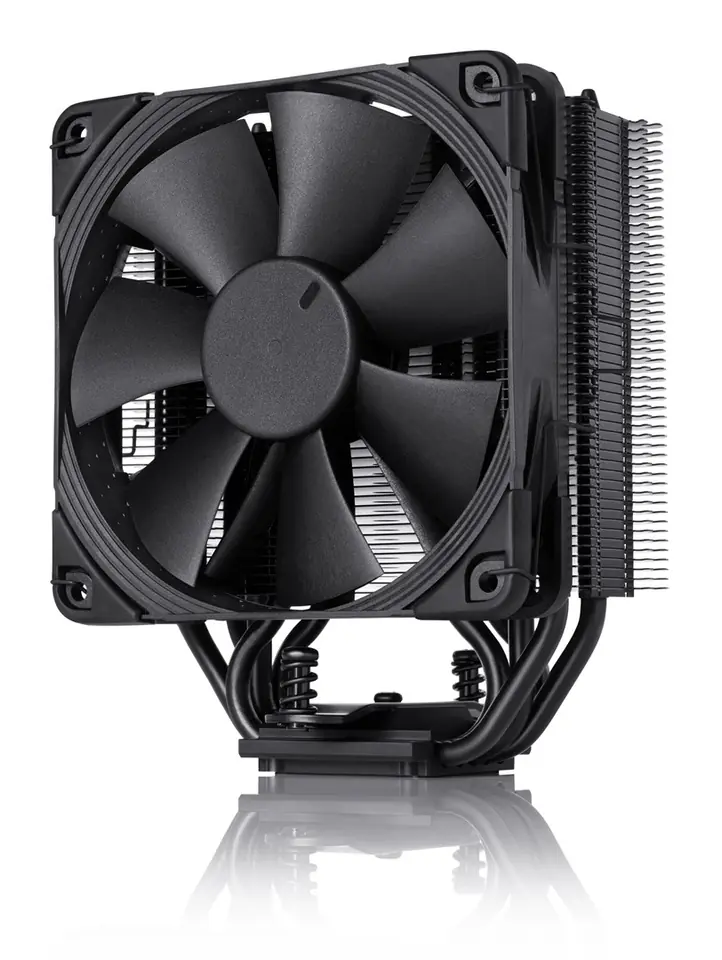

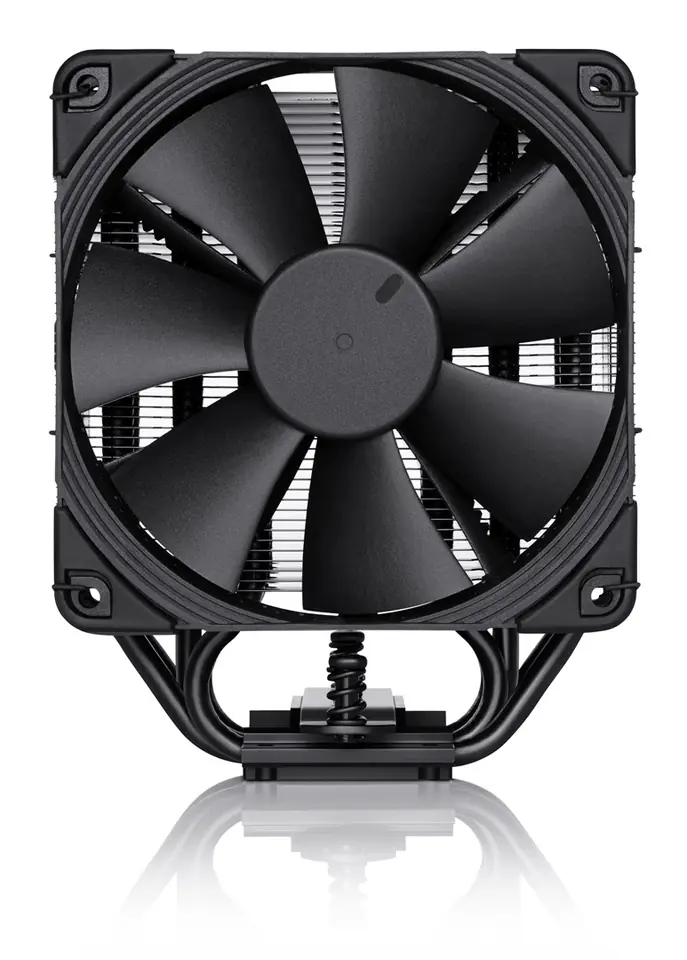

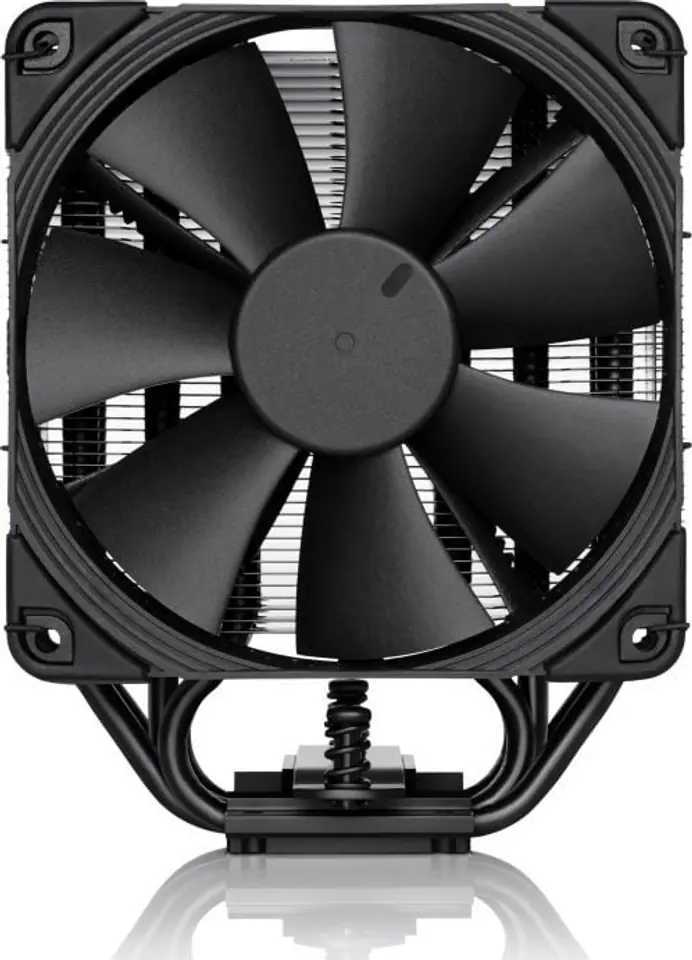

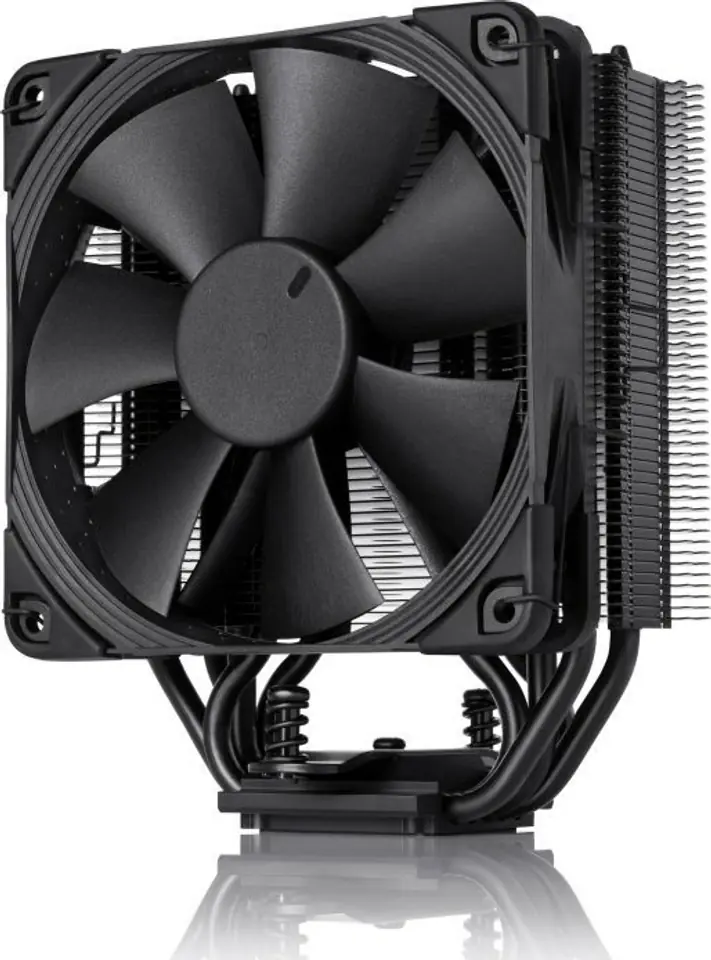

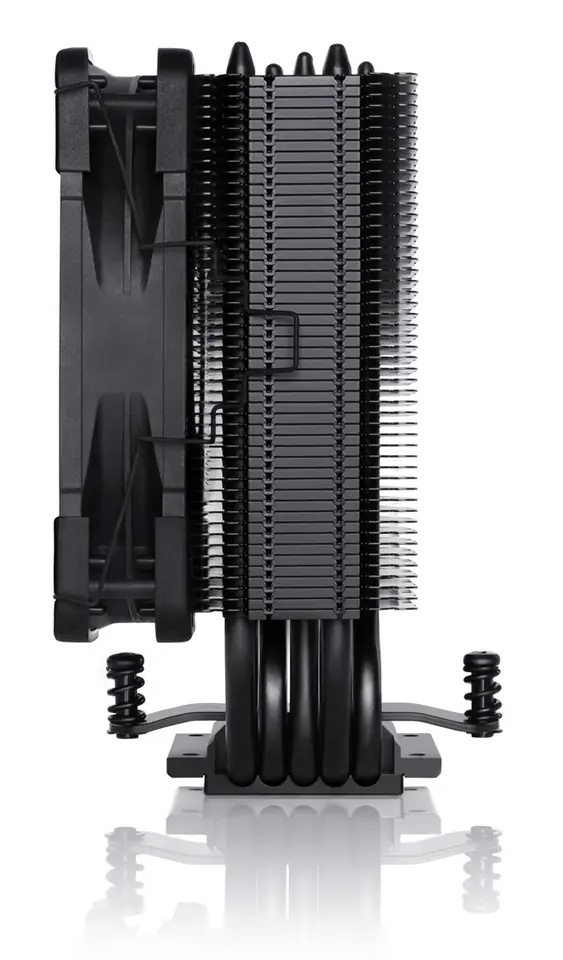

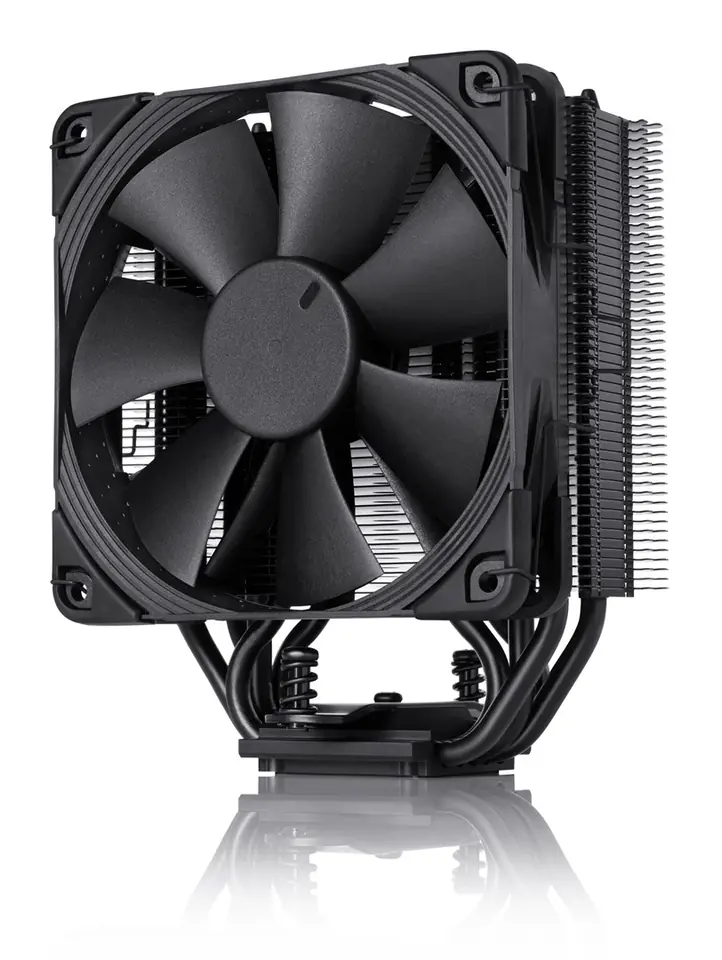

Noctua NH-U12S chromax.black Processor Cooler 12 cm
€180.63
Shipping from warehouse: E12
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- noctua
- Product code:
- NH-U12S CH.BK / 9010018000177
Share this product:
Specification
| Airflow: | 93.4 m³/h |
|---|---|
| Airflow with lna (max): | 74.3 m³/h |
| Base plate material: | Copper |
| Bearing type: | Self-Stabilising Oil-pressure Bearing (SSO) |
| Compatible processor series: | Intel® Core™ i7, Intel® Pentium®, Intel® Core™ i3, AMD A, Intel® Core™ i9, Intel® Core™ i5, Intel® Celeron® |
| Depth: | 71 mm |
| Fan connector: | 4-pin |
| Fan diameter: | 12 cm |
| Fan dimensions (w x d x h): | 120 x 120 x 25 mm |
| Fins material: | Aluminium |
| Heatsink dimensions (w x d x h): | 125 x 45 x 158 mm |
| Heatsink weight: | 580 g |
| Height: | 158 mm |
| Master (outer) case gross weight: | 18.5 kg |
| Master (outer) case height: | 460 mm |
| Master (outer) case length: | 440 mm |
| Master (outer) case width: | 355 mm |
| Maximum air pressure: | 2.61 mmH2O |
| Maximum air pressure with lna: | 1.83 mmH2O |
| Mean time to failure (mttf): | 150000 h |
| Noise level (high speed): | 22.4 dB |
| Noise level with lna (max): | 18.6 dB |
| Number of fans: | 1 fan(s) |
| Package depth: | 145 mm |
| Package height: | 212 mm |
| Package type: | Box |
| Package weight: | 1.44 kg |
| Package width: | 169 mm |
| Power supply: | 0.6 W |
| Product colour: | Black |
| Products per master (outer) case: | 12 pc(s) |
| Pulse-width modulation (pwm) support: | Yes |
| Rated voltage: | 12 V |
| Rotational speed (max): | 1500 RPM |
| Rotational speed (min): | 300 RPM |
| Rotational speed with lna (max): | 1200 RPM |
| Suitable for: | Processor |
| Supported processor sockets: | Socket AM4, LGA 2011 (Socket R), Socket AM3+, Socket FM2+, Socket FM2, LGA 1151 (Socket H4), LGA 2011-v3 (Socket R), Socket AM2+, Socket AM2, LGA 1156 (Socket H), LGA 1150 (Socket H3), LGA 1155 (Socket H2), Socket AM3, LGA 2066, Socket AM1, Socket FM1 |
| Type: | Cooler |
| Weight: | 755 g |
| Width: | 125 mm |
