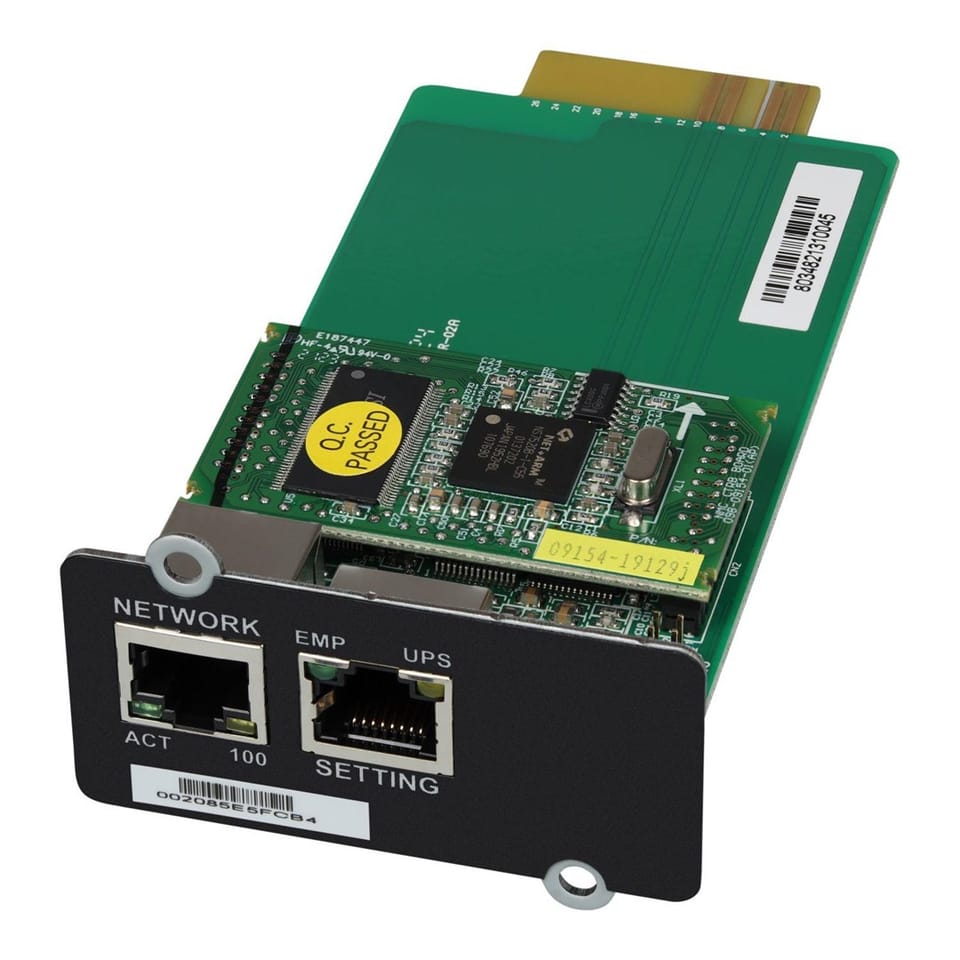

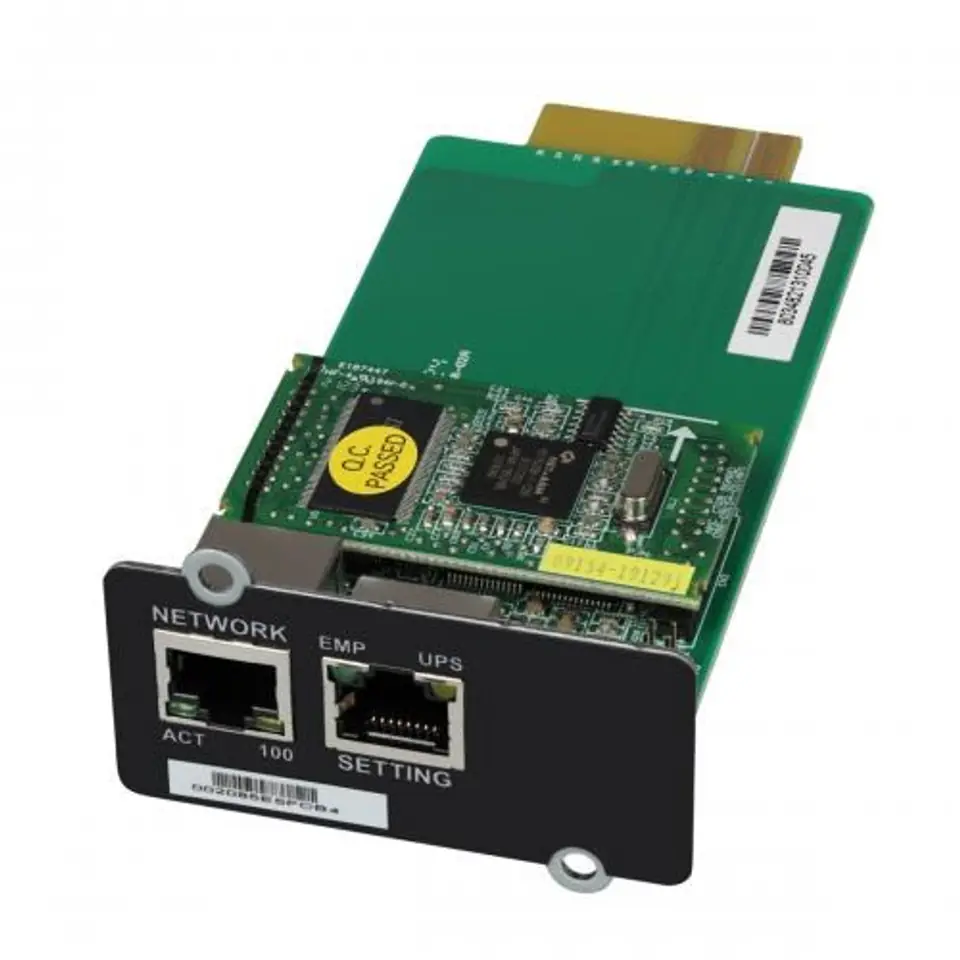

The NMC (Network Management Card) allows you to remotely monitor and control the UPS. The user can manage the power supply with the NMC card via a web browser or using software supporting the SNMP protocol.
- UPS management via LAN (RJ45 connector).
- The user can monitor and manage the status of the UPS from a web browser by logging in to the device's website.
- Configuration of the UPS and management card using the SNMP protocol.
- The user can configure card parameters and control the UPS using the SNMP protocol from any station.
- Company MIB object database (CPS-MIB.mib) and UPS-MIB database (RFC1628.mib standard).
- Possibility of connecting an environmental parameters monitoring system with air temperature and humidity measurement to the card.
- Support for SSL encryption.
- Supports TCP/IP, UDP, SNMP, HTTP/HTTPS, NTP, DNS, SMTP protocols
- Event notifications via email and SNMP trap
