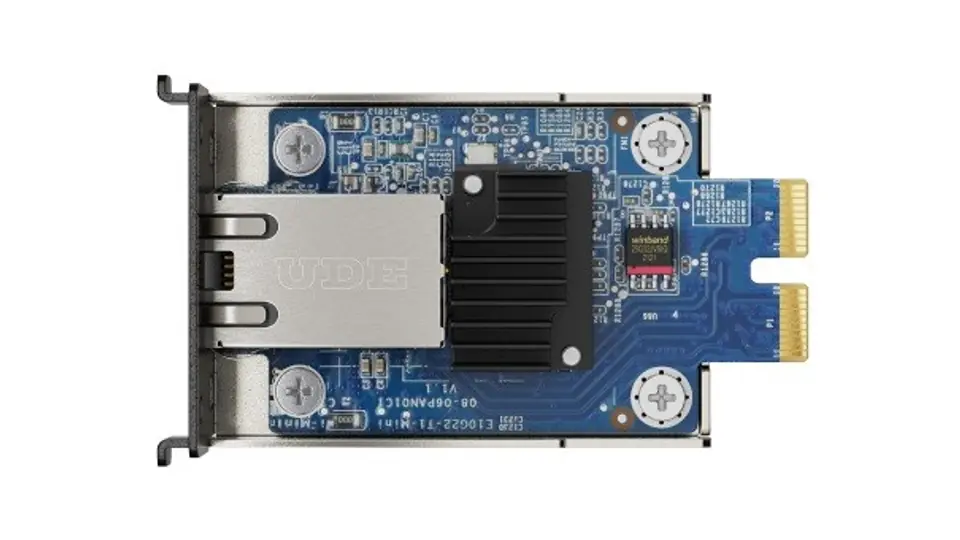

Network expansion module E10G22-T1-Mini 10GbE RJ45

€166.60
Shipping from warehouse: ⁨A3⁩
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Synology
Product code:
E10G22-T1-Mini / 4711174724482

Specification

Auto-negotiation:Yes
Cabling technology:10GBase-T
Component for:NAS/storage server
Connectivity technology:Wired
Depth:75.7 mm
Ethernet interface type:10 Gigabit Ethernet
Ethernet lan:Yes
Ethernet lan (rj-45) ports:1
Ethernet lan data rates:10000 Mbit/s, 100, 2500 Mbit/s, 5000, 1000 Mbit/s
Full duplex:Yes
Height:26.4 mm
Host interface:PCI Express
Interface:Ethernet
Interface type:PCIe 3.0 x2
Internal:Yes
Jumbo frames:9000
Jumbo frames support:Yes
Maximum data transfer rate:10000 Mbit/s
Networking standards:IEEE 802.3bz, IEEE 802.3x, IEEE 802.3an, IEEE 802.3u, IEEE 802.3ab
Operating relative humidity (h-h):5 - 95%
Operating temperature (t-t):0 - 40 °C
Product colour:Blue
Storage temperature (t-t):-20 - 60 °C
Wi-fi:No
Width:45.4 mm

E10G22-T1-Mini 10GbE RJ4 expansion card

Improved connectivity for bandwidth intensive applications

The E10G22-T1-Mini network expansion module adds 10GbE RJ-45 connectivity to compatible Synology systems, allowing small businesses and home users to maximise the efficiency potential of their deployments with high bandwidth networking.

A cost-effective and compact solution for bandwidth expansion

The E10G22-T1-Mini's compact form factor instantly increases the bandwidth availability of Synology servers, eliminating bandwidth constraints on the network with simple installation and low deployment cost. The E10G22-T1-Mini is also compatible with 5/2.5/1 Gbps networks and can be easily integrated with any RJ-45 device.

High throughput

Enhances system capabilities with 10GbE connectivity for higher resolution video editing, simultaneous backup and more.

Flexible integration

Supports 10/5/2.5/1GbE connections that work with almost any RJ-45 network environment.

For Synology, from Synology

Designed to ensure maximum performance and reliability for Synology systems.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
