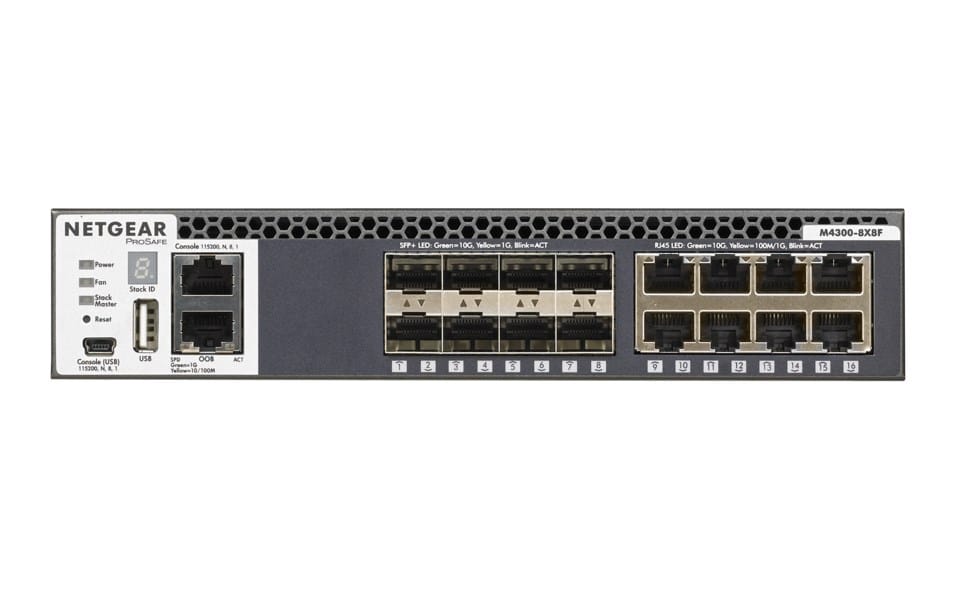

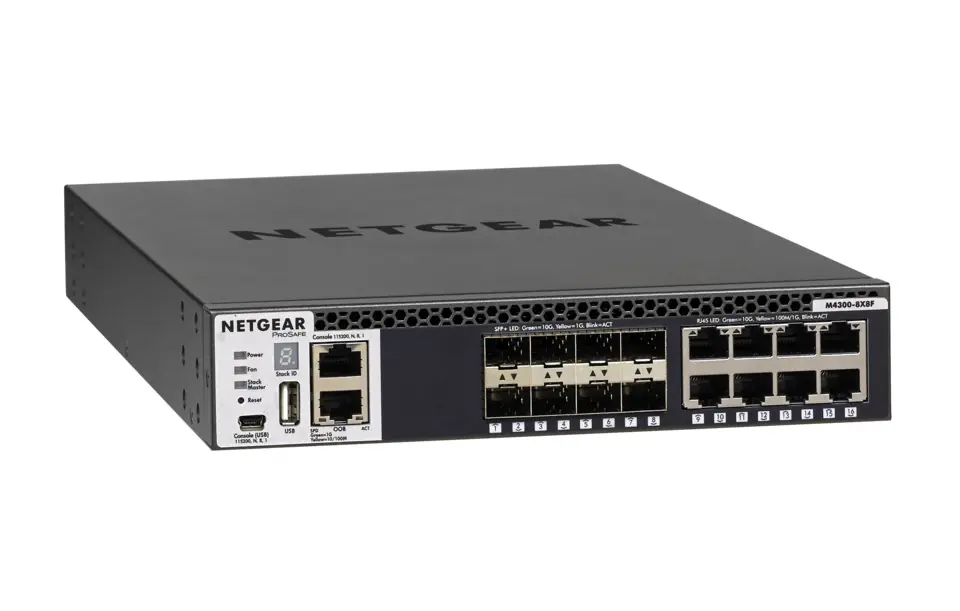

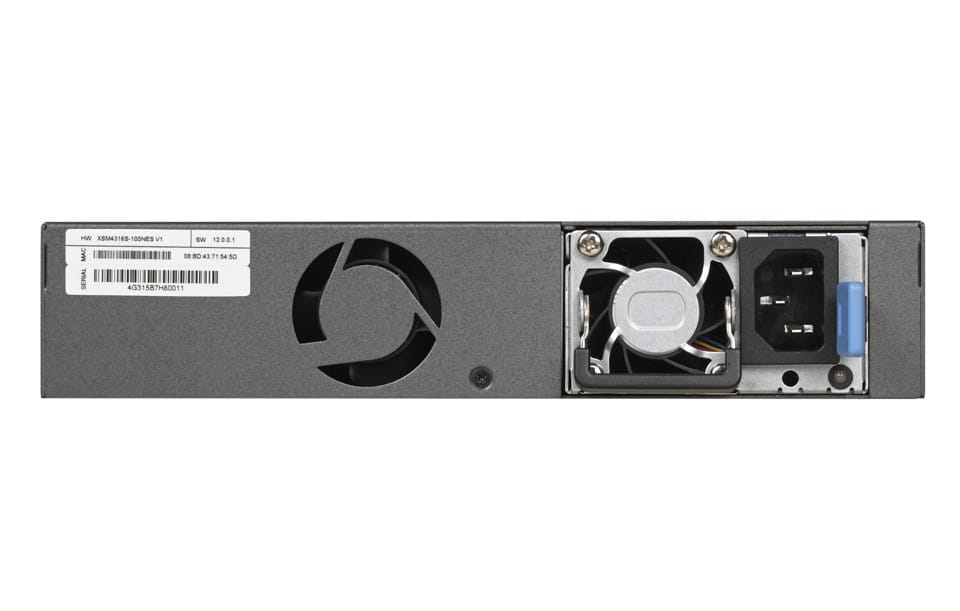

NETGEAR M4300-8X8F Managed L3 10G Ethernet 100/1000/10000) 1U Blac
€3,060.62
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Netgear
- Product code:
- XSM4316S-100NES / 0606449110005
Share this product:
Specification
| 10g support: | Yes |
|---|---|
| Ac input voltage: | 120 - 230 V |
| Access control list (acl): | Yes |
| Arp inspection: | Yes |
| Auto mdi/mdi-x: | Yes |
| Auto-negotiation: | Yes |
| Auto-sensing: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 8 |
| Basic switching rj-45 ethernet ports type: | 10G Ethernet (100/1000/10000) |
| Bpdu filtering/protection: | Yes |
| Built-in processor: | Yes |
| Cable types supported: | Cat7, Cat5, Cat5e, Cat6 |
| Cables included: | AC, LAN (RJ-45), Mini-USB |
| Console port: | RJ-45/Mini-USB |
| Depth: | 345 mm |
| Dhcp features: | DHCP server, DHCP client |
| Electromagnetic compatibility: | CE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024 |
| Fiber ethernet cabling technology: | 10GBASE-SR, 10GBASE-LR, 10GBASE-LRM |
| Fiber optic connector: | SFP+ |
| Flash memory: | 256 MB |
| Flow control support: | Yes |
| Form factor: | 1U |
| Forwarding rate: | 357 Mpps |
| Harmonized system (hs) code: | 85176990 |
| Heat dissipation: | 18577 BTU/h |
| Height: | 44 mm |
| Internal memory: | 1024 MB |
| Ip routing: | Yes |
| Jumbo frames: | 9000 |
| Jumbo frames support: | Yes |
| Led indicators: | Power, Speed, Activity |
| Link aggregation: | Yes |
| Mac address table: | 16000 entries |
| Mean time between failures (mtbf): | 196120 h |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.11az, IEEE 802.3ad, IEEE 802.3az, IEEE 802.11ad |
| Noise level: | 36.9 dB |
| Non-operating altitude: | 0 - 3000 m |
| Number of multicast groups filtered: | 4000 |
| Number of power supply units: | 1 |
| Number of static routes: | 64 |
| Operating altitude: | 0 - 3000 m |
| Operating relative humidity (h-h): | 0 - 90% |
| Operating temperature (t-t): | 0 - 50 °C |
| Port mirroring: | Yes |
| Power consumption (max): | 49 W |
| Power over ethernet (poe): | No |
| Power supply included: | Yes |
| Processor frequency: | 800 MHz |
| Product colour: | Black |
| Quality of service (qos) support: | Yes |
| Rack mount kit: | Yes |
| Rack mounting: | Yes |
| Rate limiting: | Yes |
| Resource cd: | Yes |
| Rubber feet: | Yes |
| Safety: | CSA 22.2 #950, UL 1950)/cUL IEC 950/EN 60950 |
| Security algorithms: | SSH, HTTPS, SNMP |
| Sfp+ module slots quantity: | 8 |
| Spanning tree protocol: | Yes |
| Ssh/ssl support: | Yes |
| Stackable: | Yes |
| Storage relative humidity (h-h): | 0 - 95% |
| Storage temperature (t-t): | -20 - 70 °C |
| Store-and-forward: | Yes |
| Switch layer: | L3 |
| Switch type: | Managed |
| Switching capacity: | 320 Gbit/s |
| Usb 2.0 ports quantity: | 1 |
| User guide: | Yes |
| Virtual lan features: | Private VLAN |
| Vlan support: | Yes |
| Web-based management: | Yes |
| Weight: | 3.32 kg |
| Width: | 212 mm |
