Neomounts video wall mount

Name: Neomounts video wall mount
Brand: NEWSTAR
SKU: 1871867
Price: 201.9 EUR
Availability: InStock

€201.90

Shipping from warehouse: ⁨A3⁩

Estimated shipping: Tue, Nov 26 - Fri, Nov 29

14 days returnUnconditional return policy

Availability:: large quantity
Brand:: NEWSTAR
Product code:: 2303520 / 8717371440541

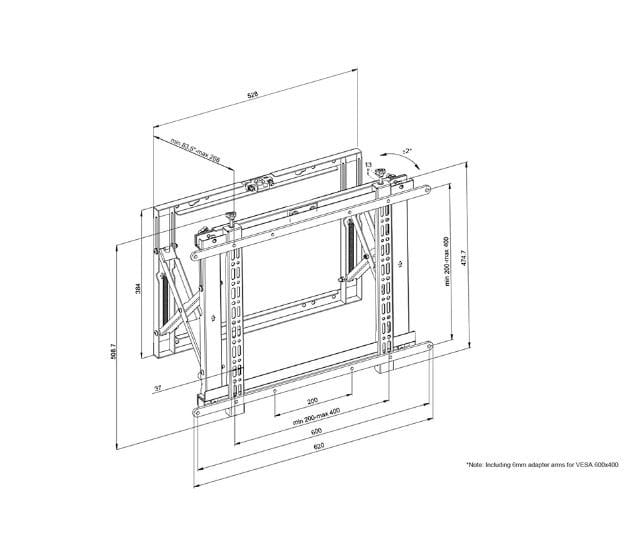

Specification

Accepts padlock:	No
Cable management:	No
Country of origin:	China
Depth:	84 mm
Depth adjustment:	4 mm
Distance to the wall (max):	17.2 cm
Distance to the wall (min):	7.8 cm
Easy to install:	Yes
Harmonized system (hs) code:	7326909890
Height:	510 mm
Height adjustment:	Yes, 1.3 cm
Height adjustment type:	Manual
Housing material:	Steel
Master (outer) case gross weight:	9.8 kg
Master (outer) case height:	620 mm
Master (outer) case length:	110 mm
Master (outer) case net weight:	8.5 kg
Master (outer) case width:	570 mm
Maximum screen size:	177.8 cm (70")
Maximum vesa mount:	600 x 400 mm
Maximum weight capacity:	35 kg
Minimum screen size:	106.7 cm (42")
Minimum vesa mount:	200 x 200 mm
Mounting type:	Wall
Number of displays supported:	1
Orientation:	Landscape/Portrait
Package depth:	110 mm
Package height:	620 mm
Package net weight:	9.8 kg
Package type:	Box
Package width:	570 mm
Panel mounting interface:	600 x 400 mm, 400 x 400 mm, 300 x 200 mm, 350 x 350, 200 x 300, 600 x 200, 600 x 300 mm, 400 x 200, 300 x 300 mm, 200 x 200 mm, 400 x 300 mm, 200 x 400 mm, 400 x 600, 300 x 100
Product colour:	Black
Products per master (outer) case:	1 pc(s)
Products per pallet (eu):	24 pc(s)
Quantity per master (outer) case:	1 pc(s)
Swivelling:	Yes
Tilt adjustment:	Yes
Warranty period:	5 year(s)
Width:	620 mm
Width adjustment:	4 cm

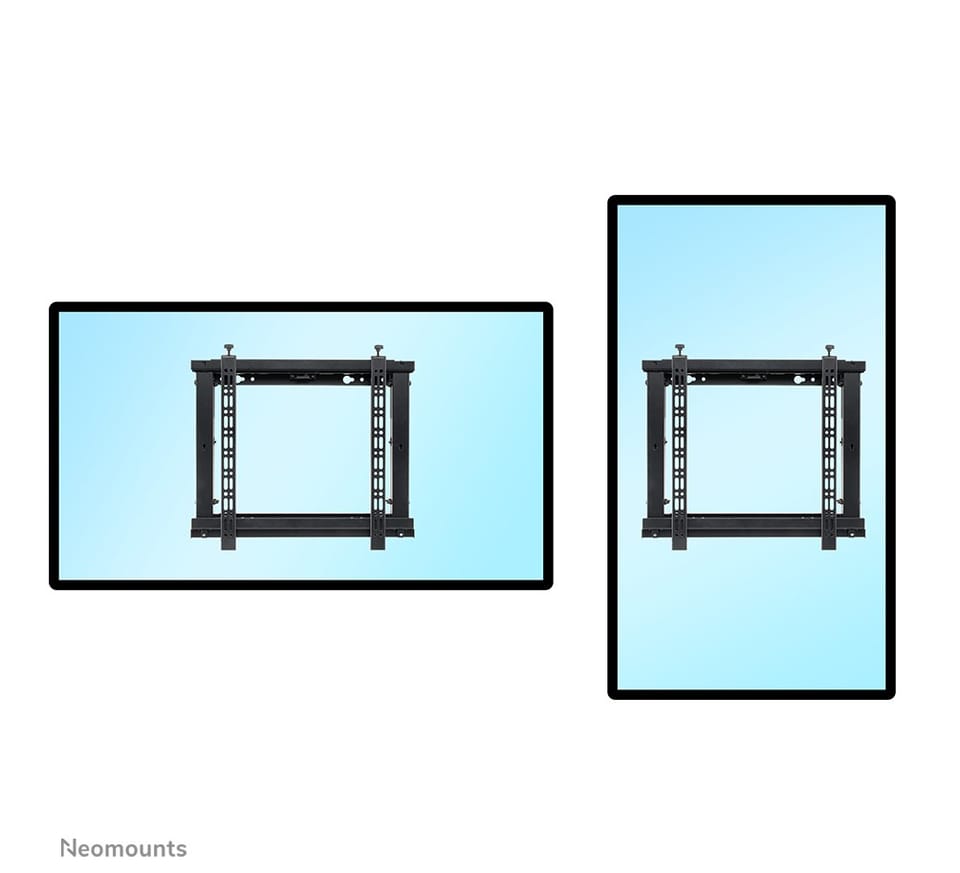

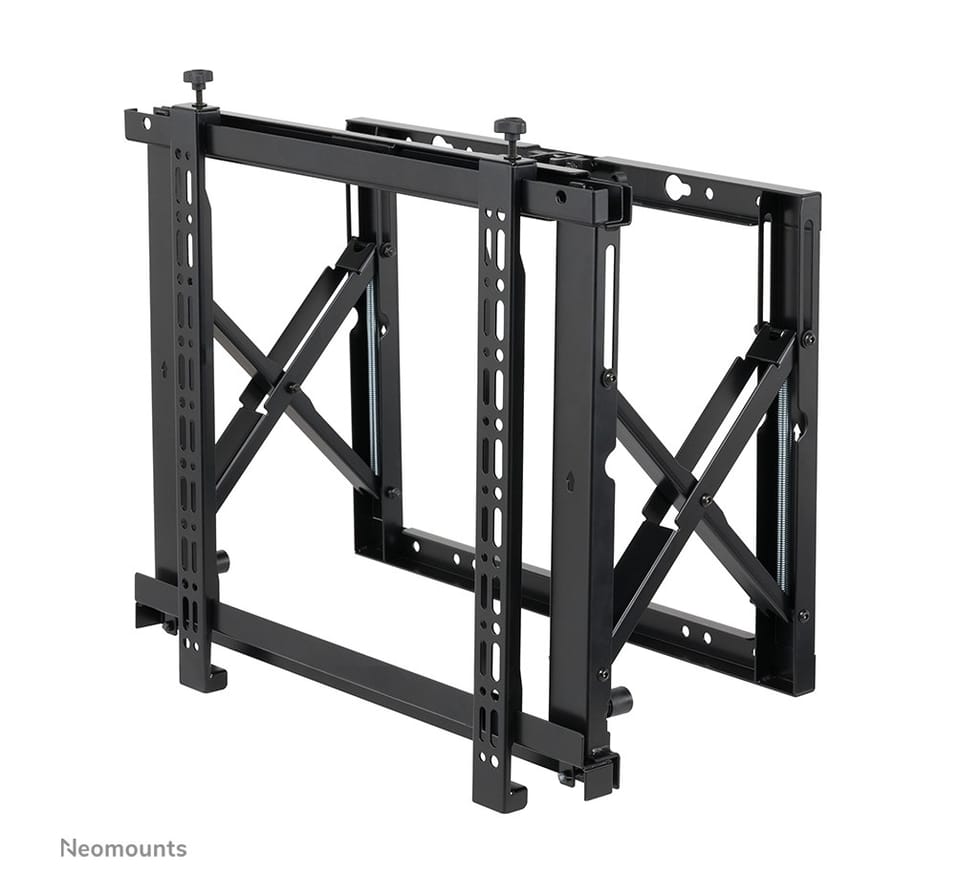

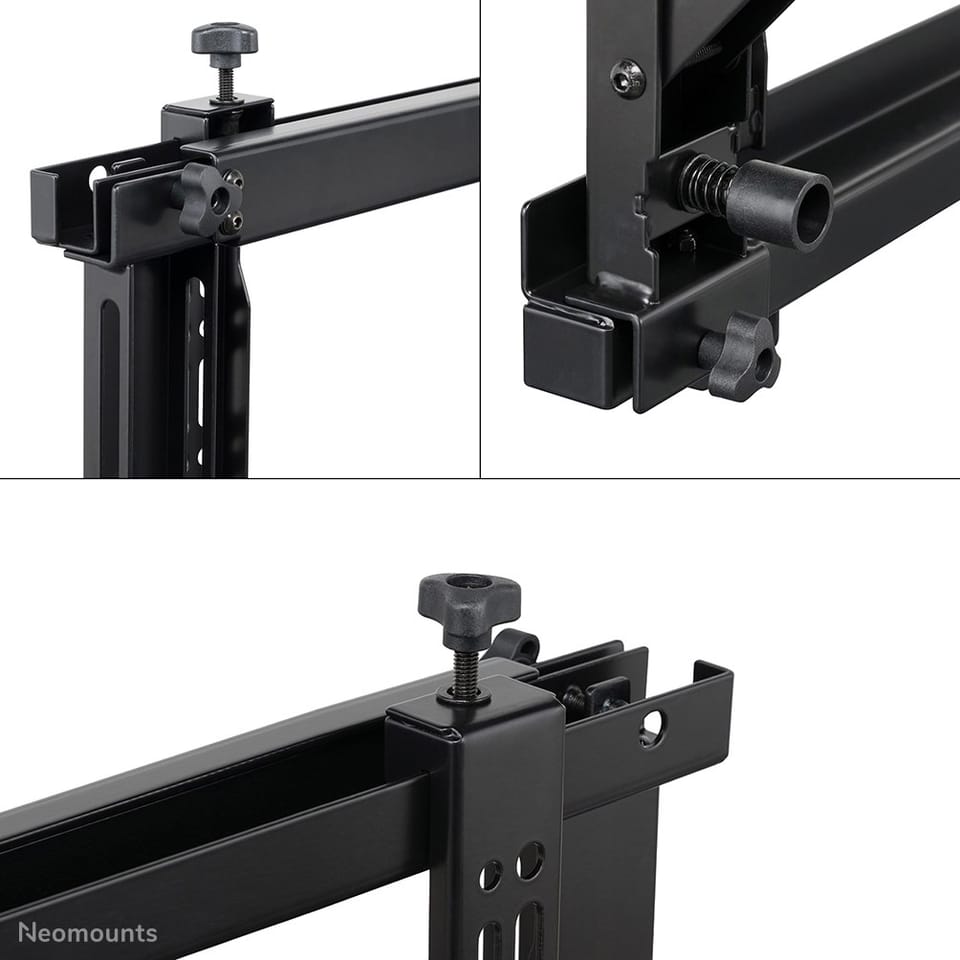

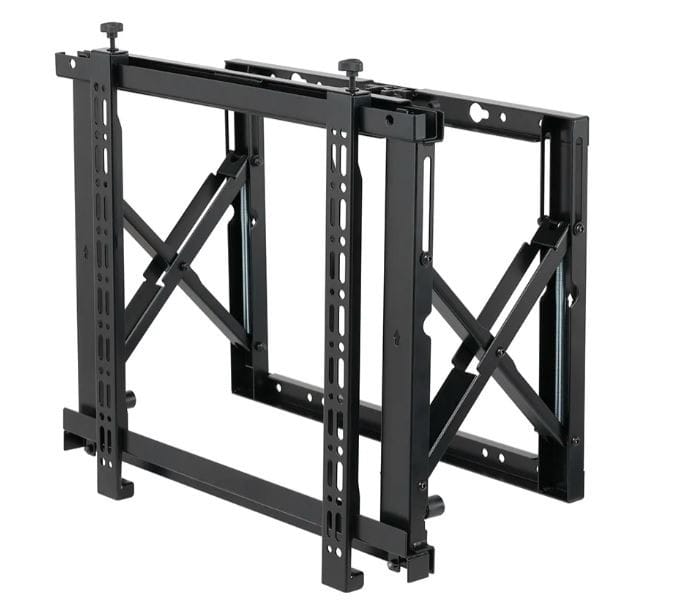

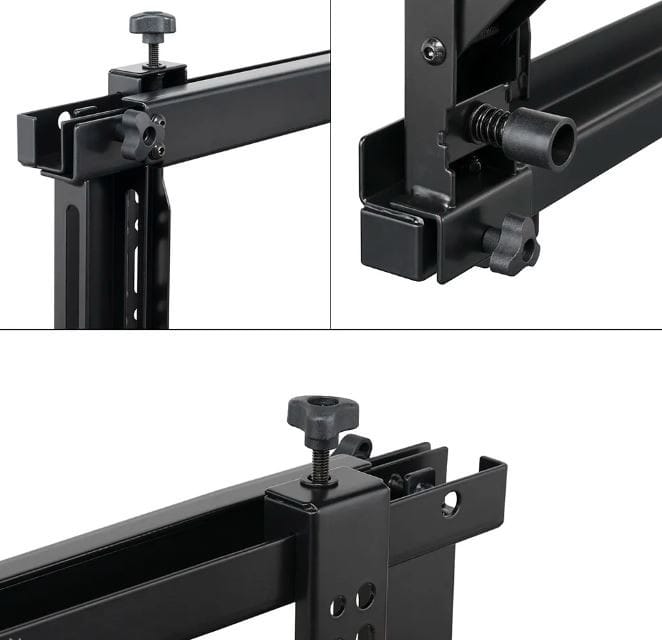

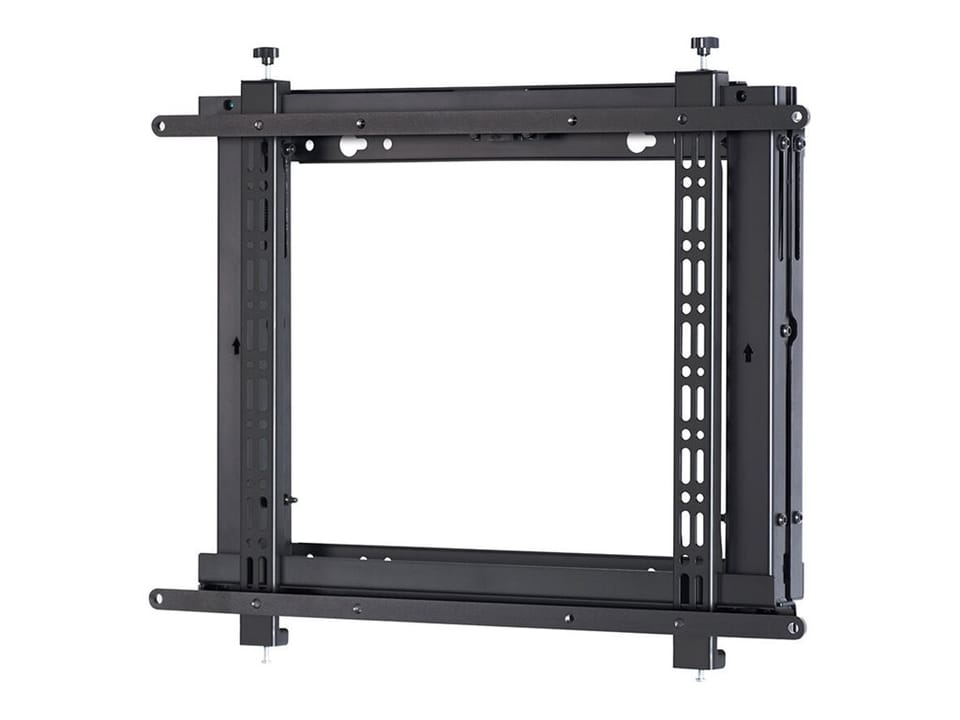

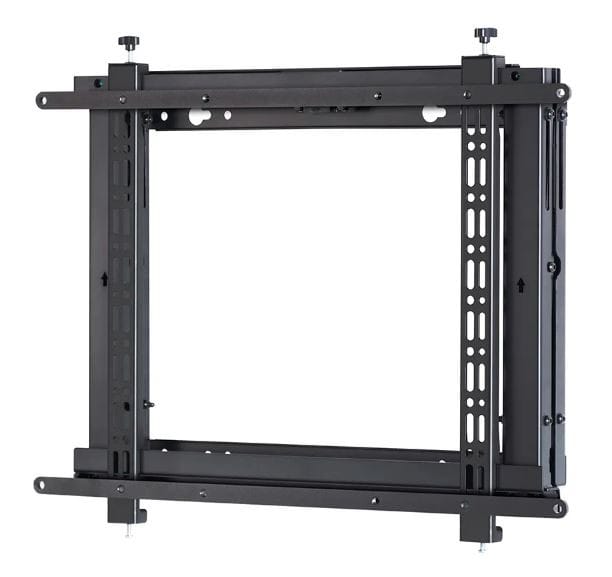

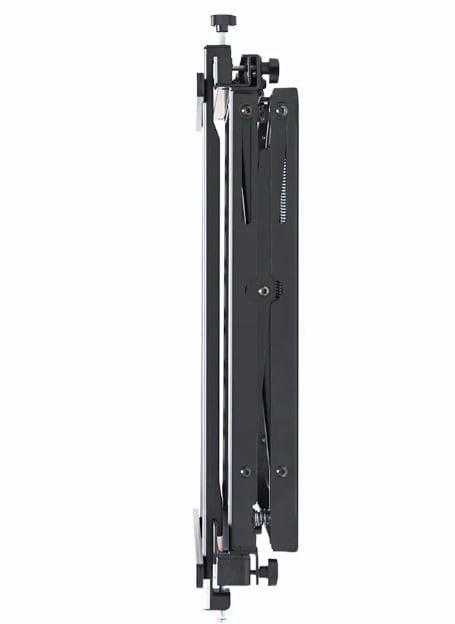

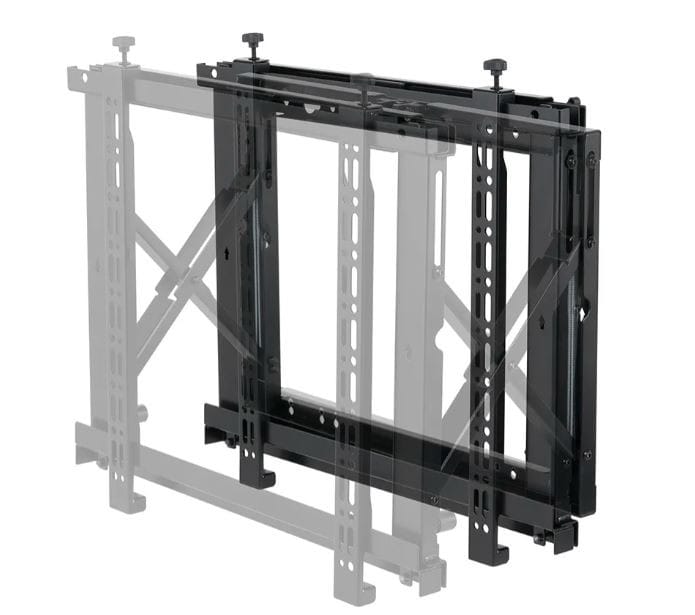

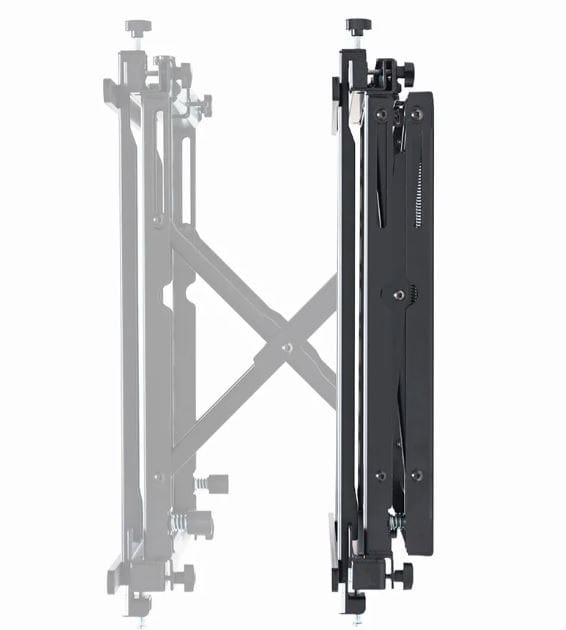

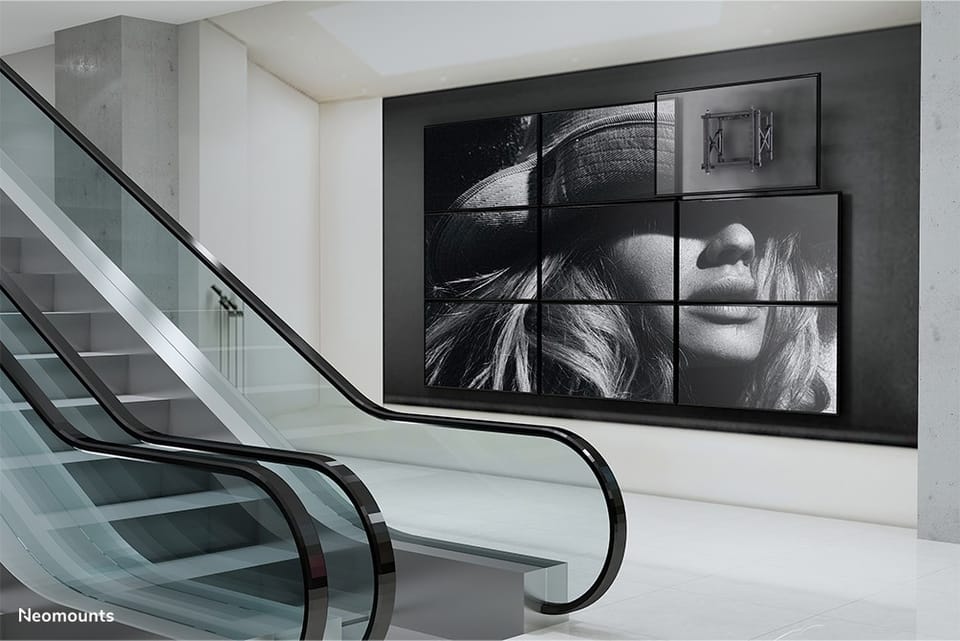

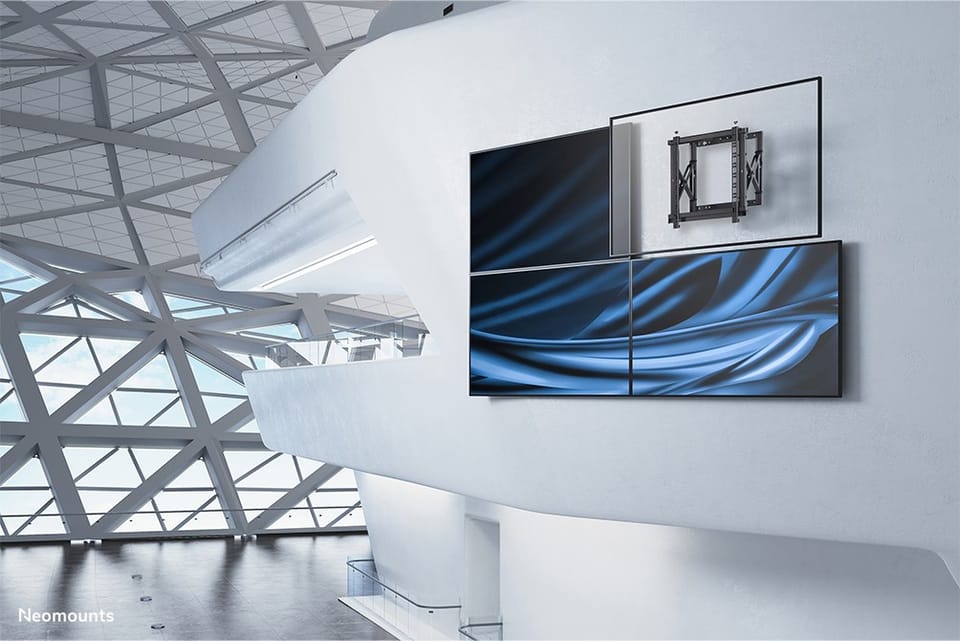

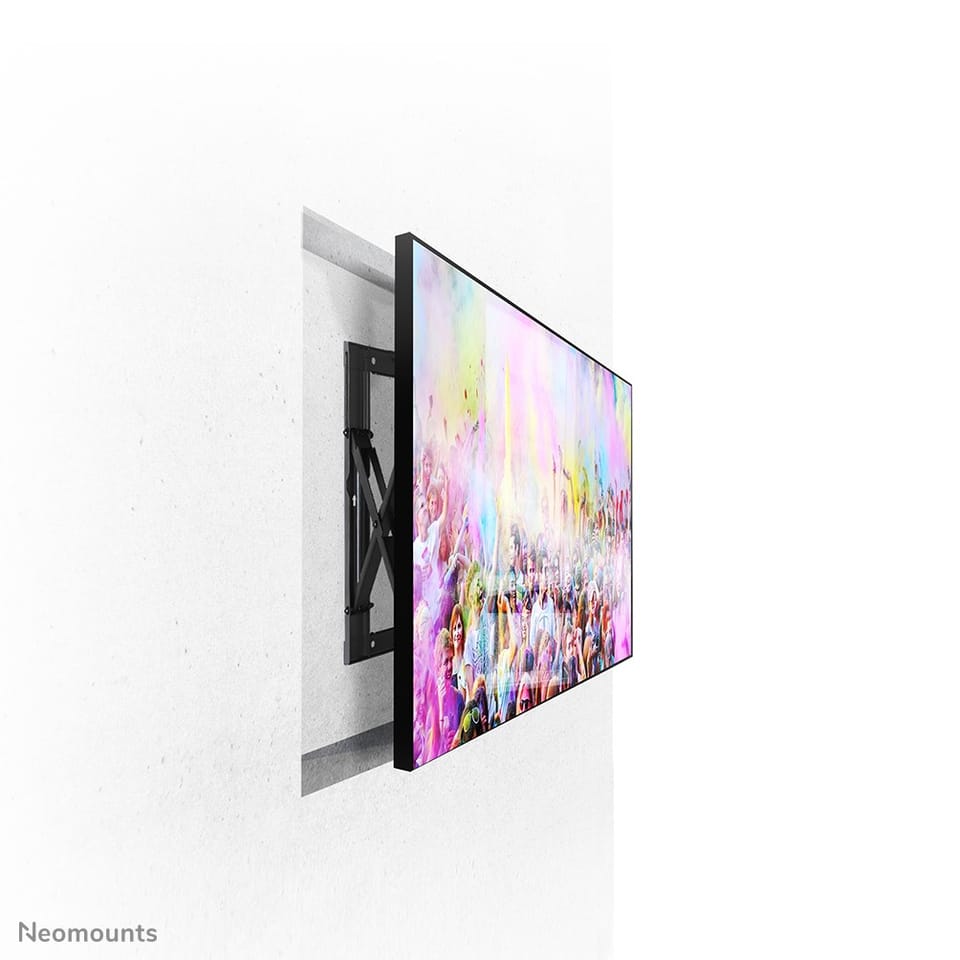

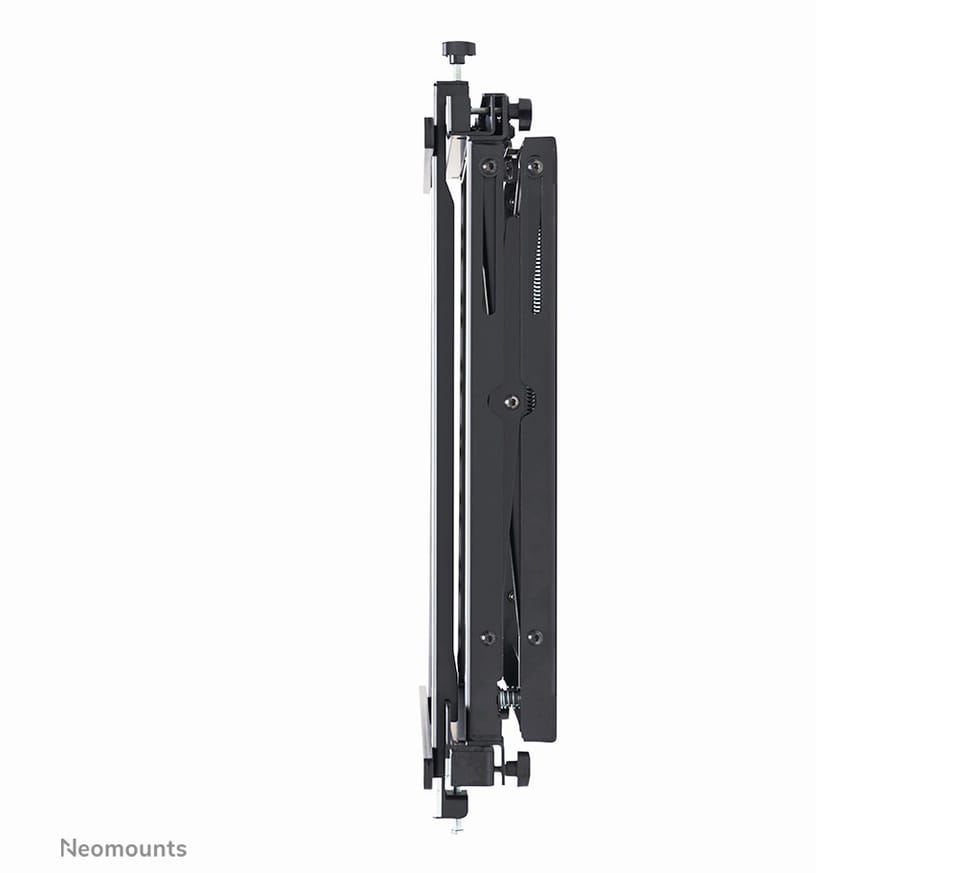

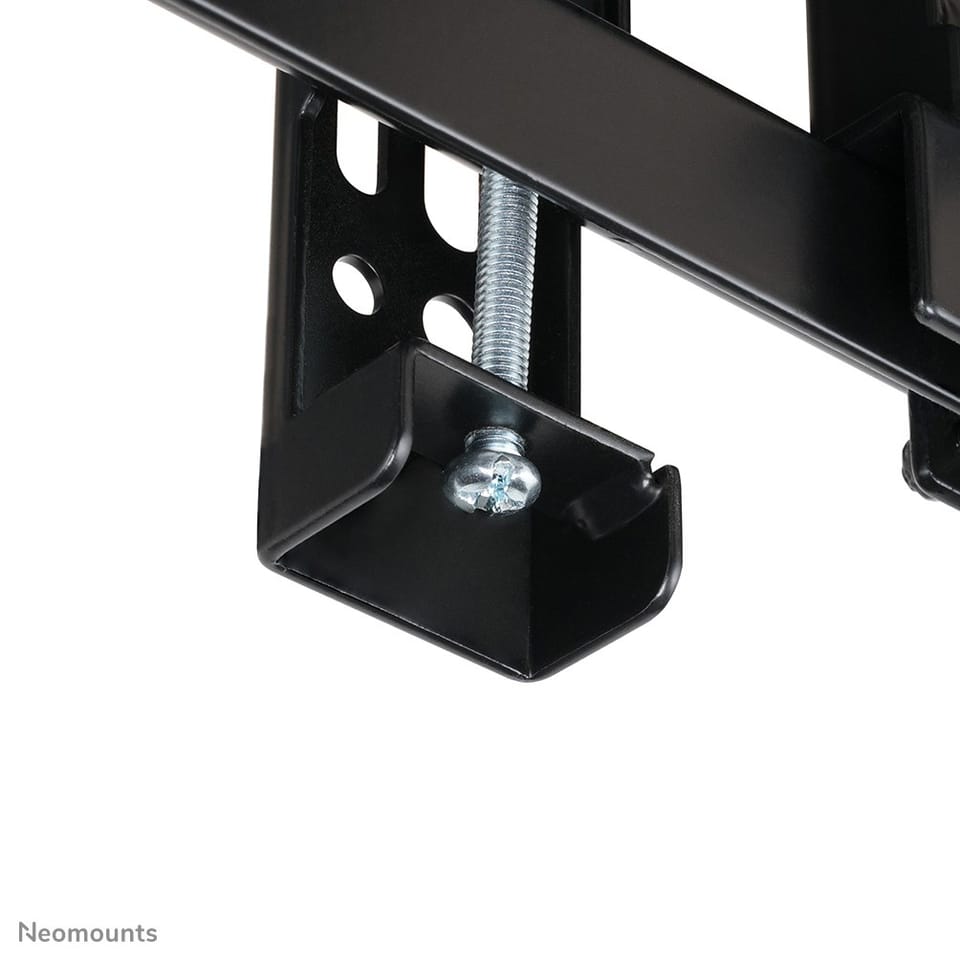

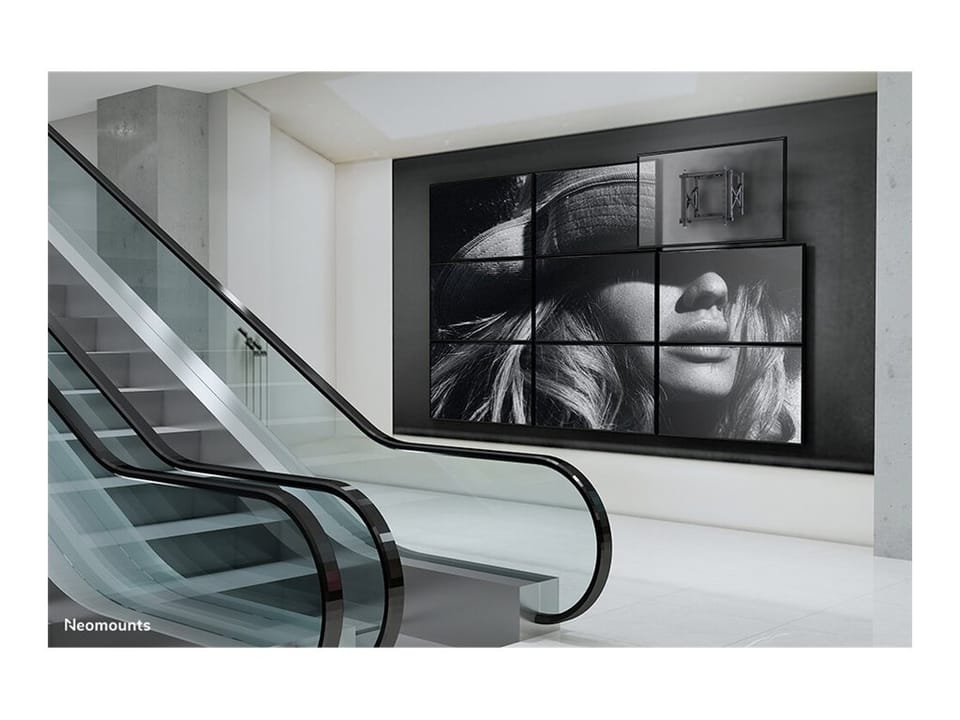

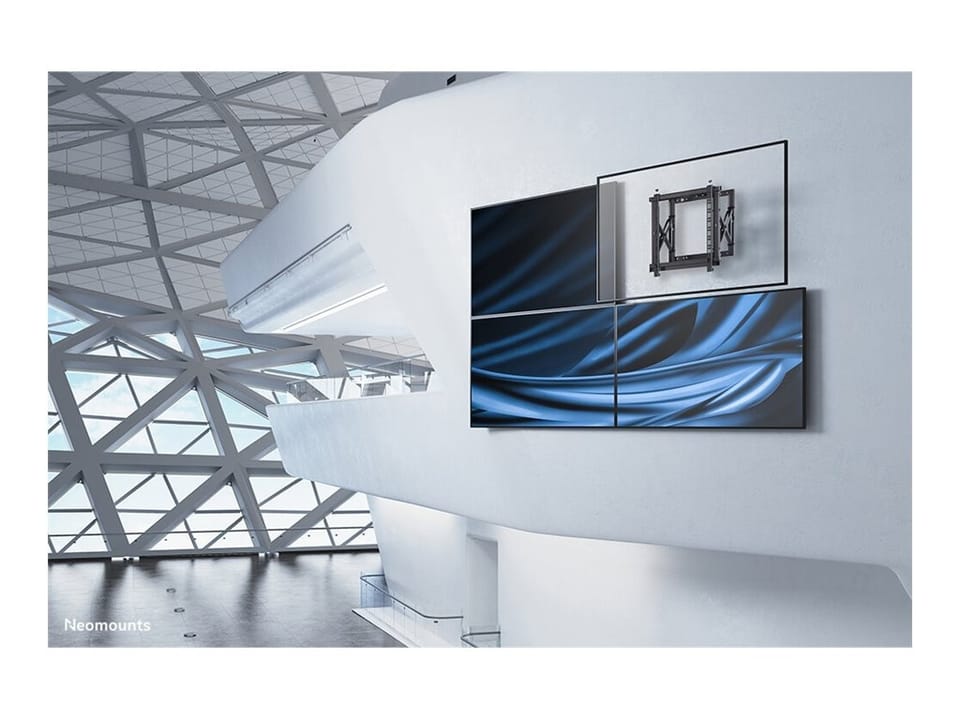

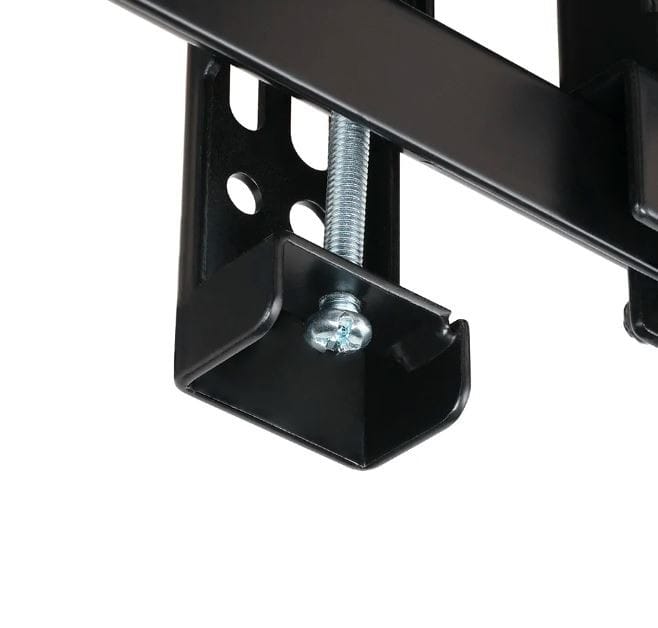

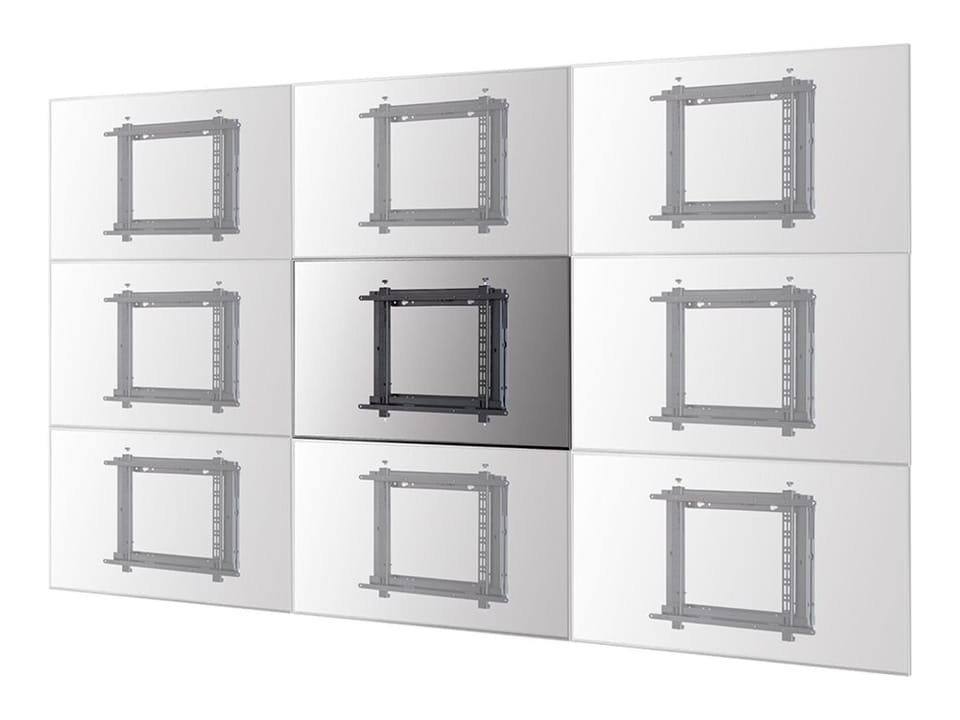

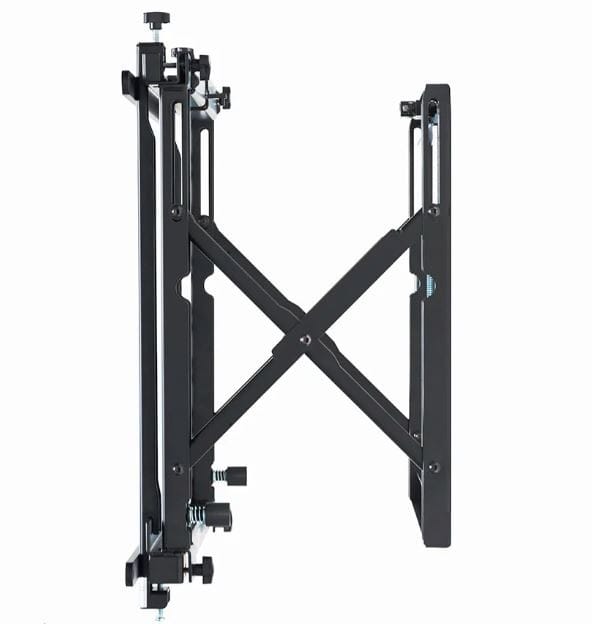

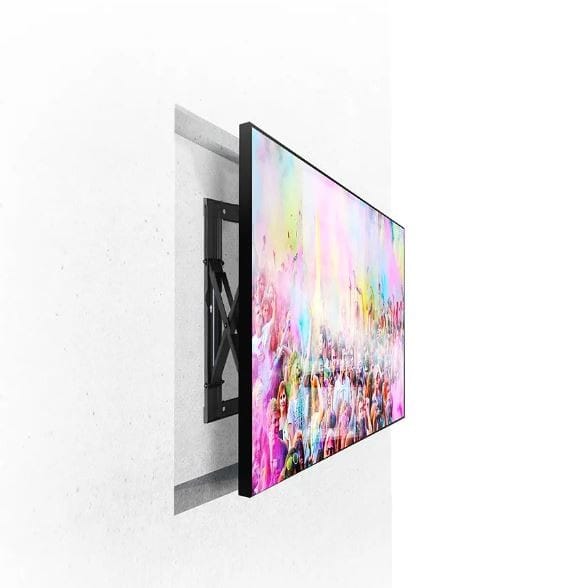

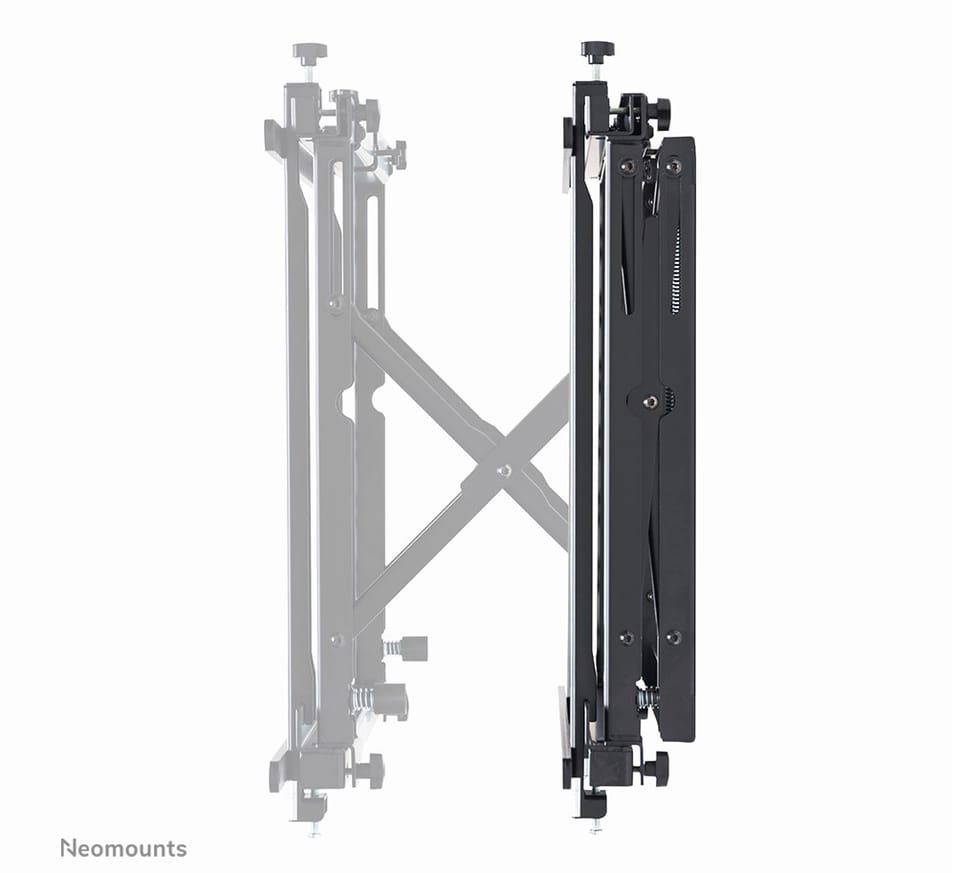

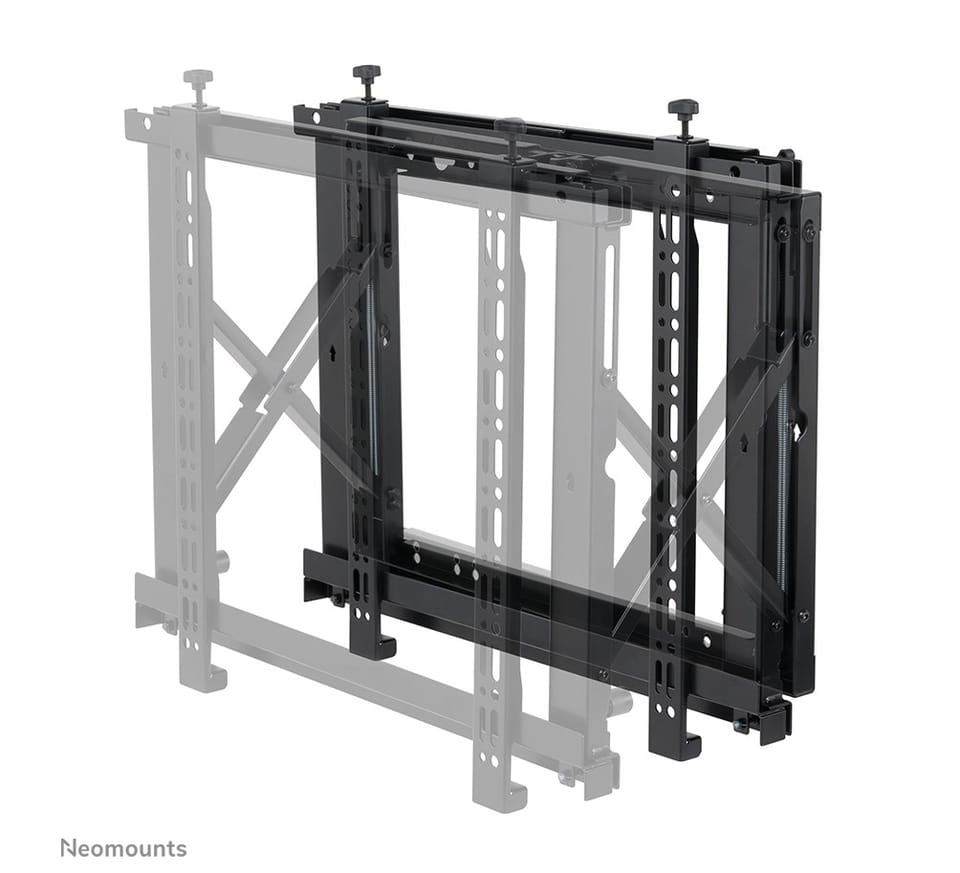

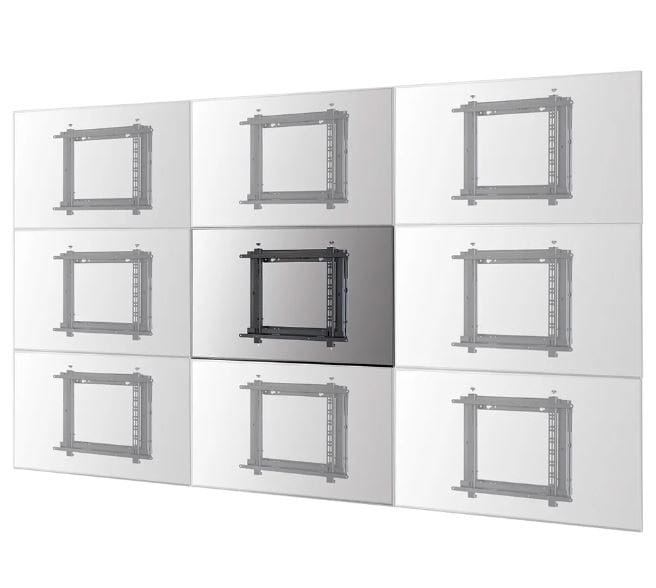

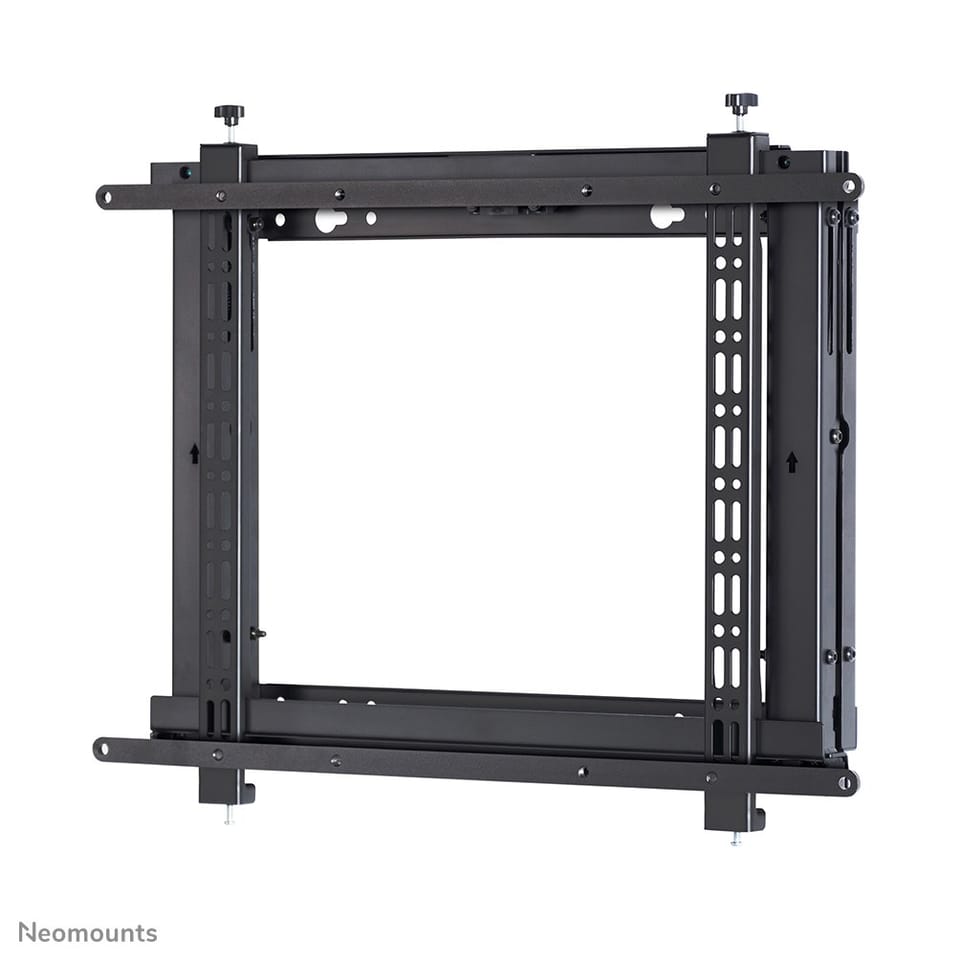

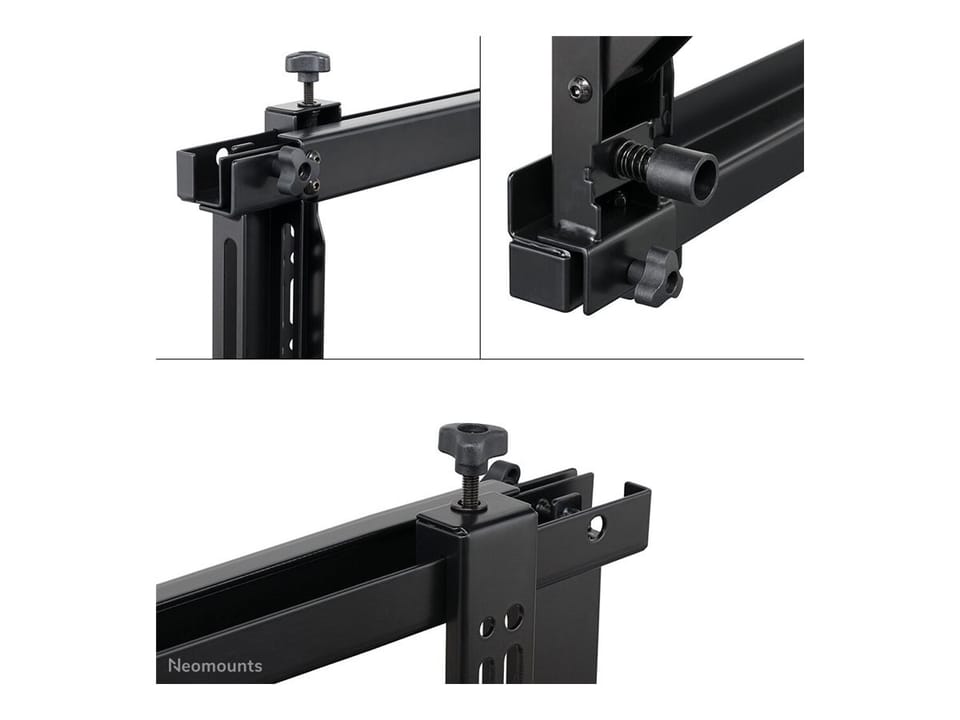

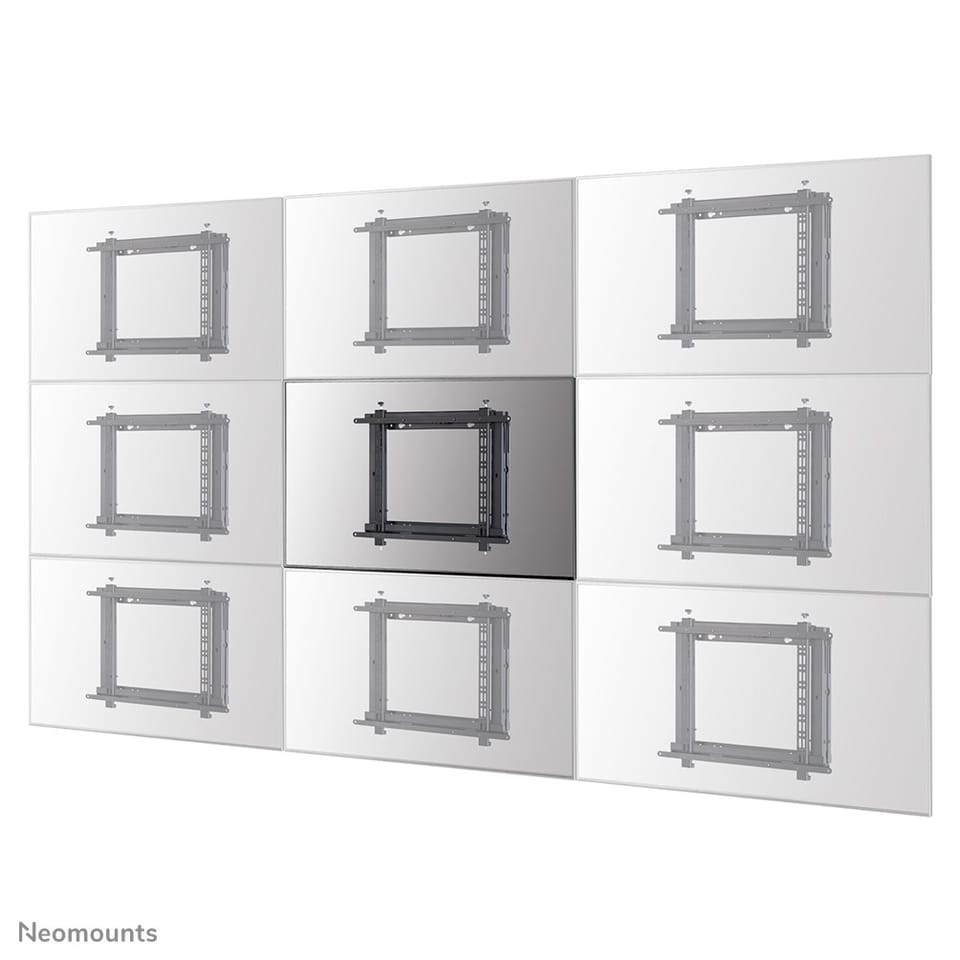

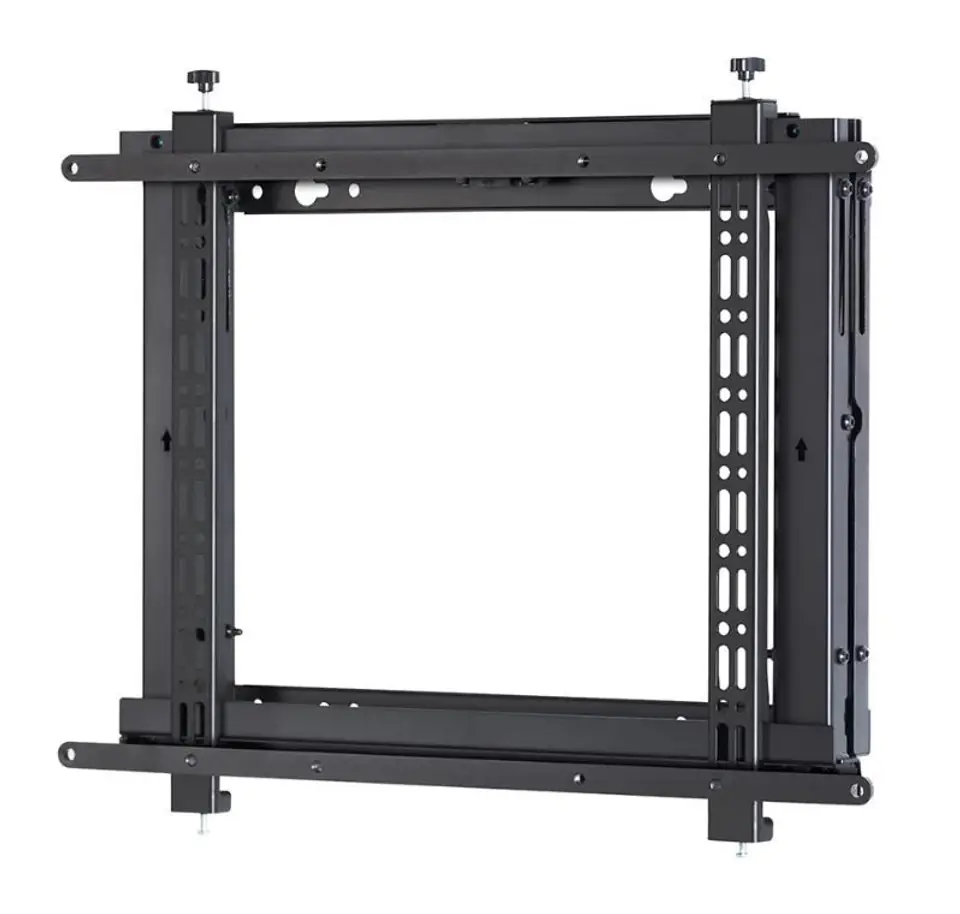

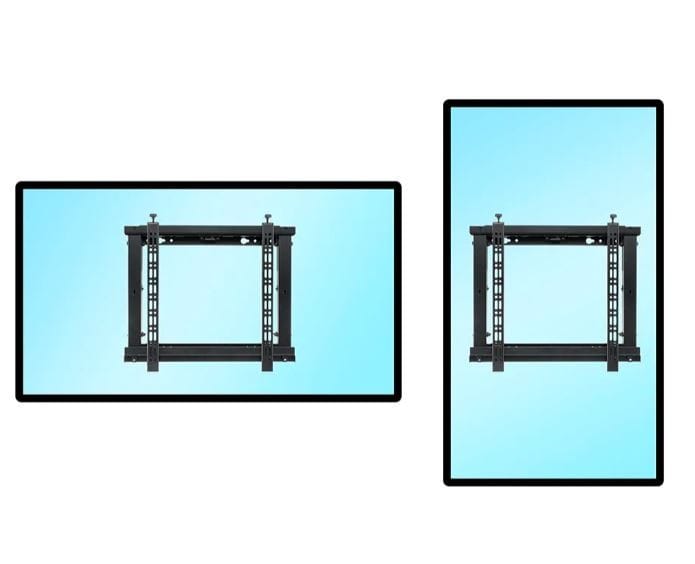

The Neomounts by Newstar WL95-800BL1 is a push to pop out video wall mount for screens up to 70 inches. The screen can be installed both in portrait and landscape orientation and additionally, toolless micro adjustment in height, depth, tilt and swivel is available for the perfect alignment.

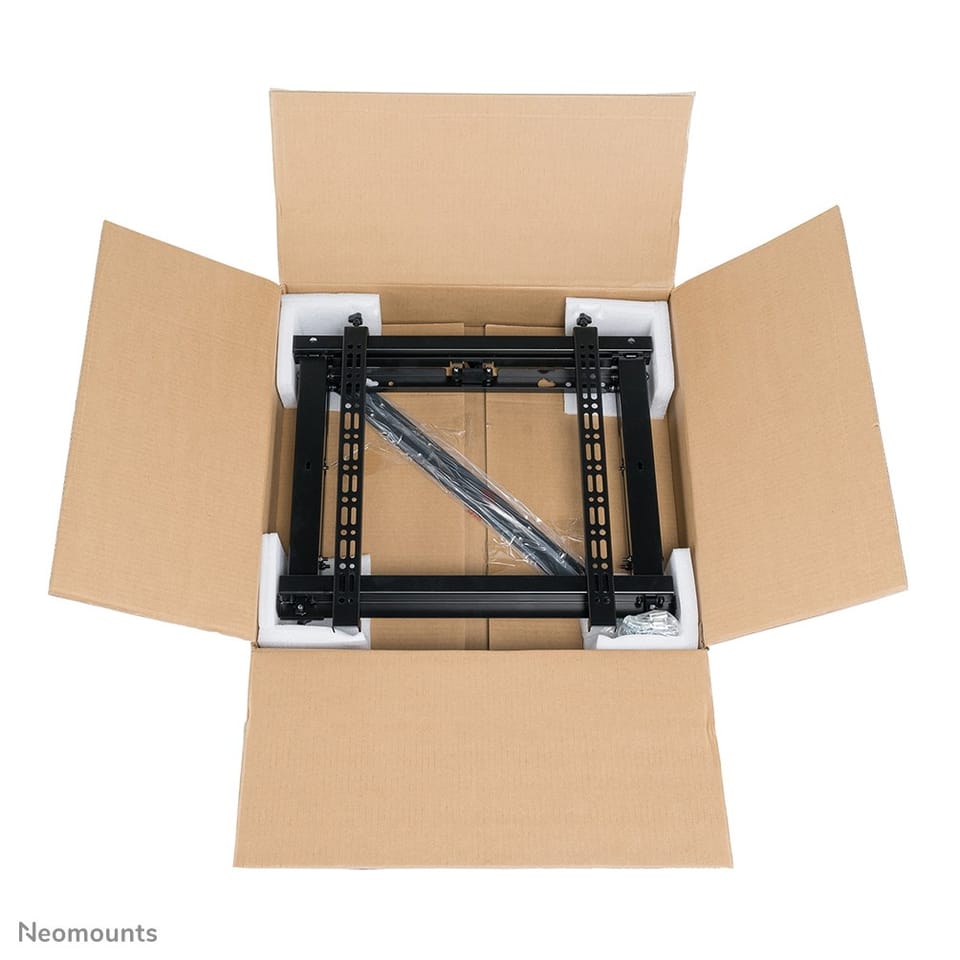

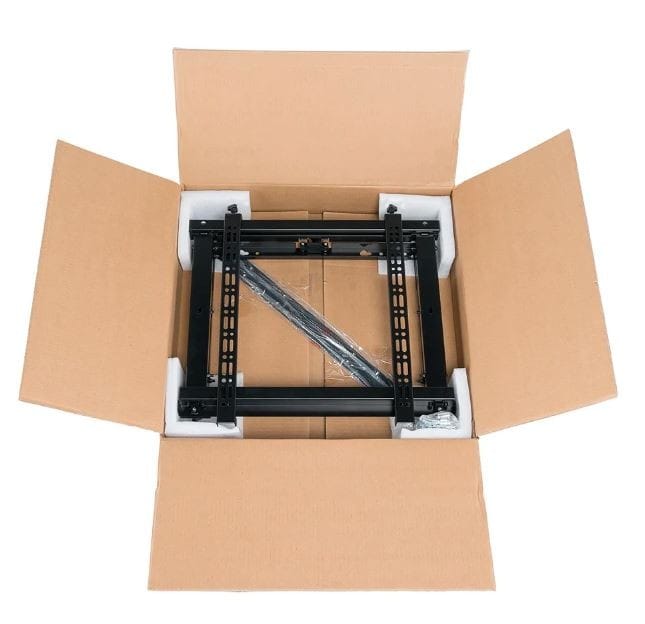

The WL95-800BL1 has a depth of 7,8-26 cm and is suitable for screens that meet VESA hole pattern 200x200 up to 600x400 mm (landscape) or 400x600 mm (portrait). The video wall mount is packed pre-assembled and features keyhole slots to ensure fast and easy installation.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
