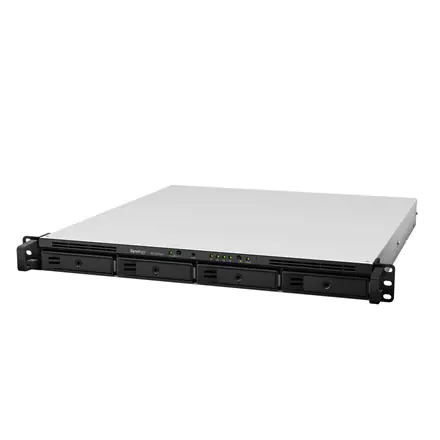

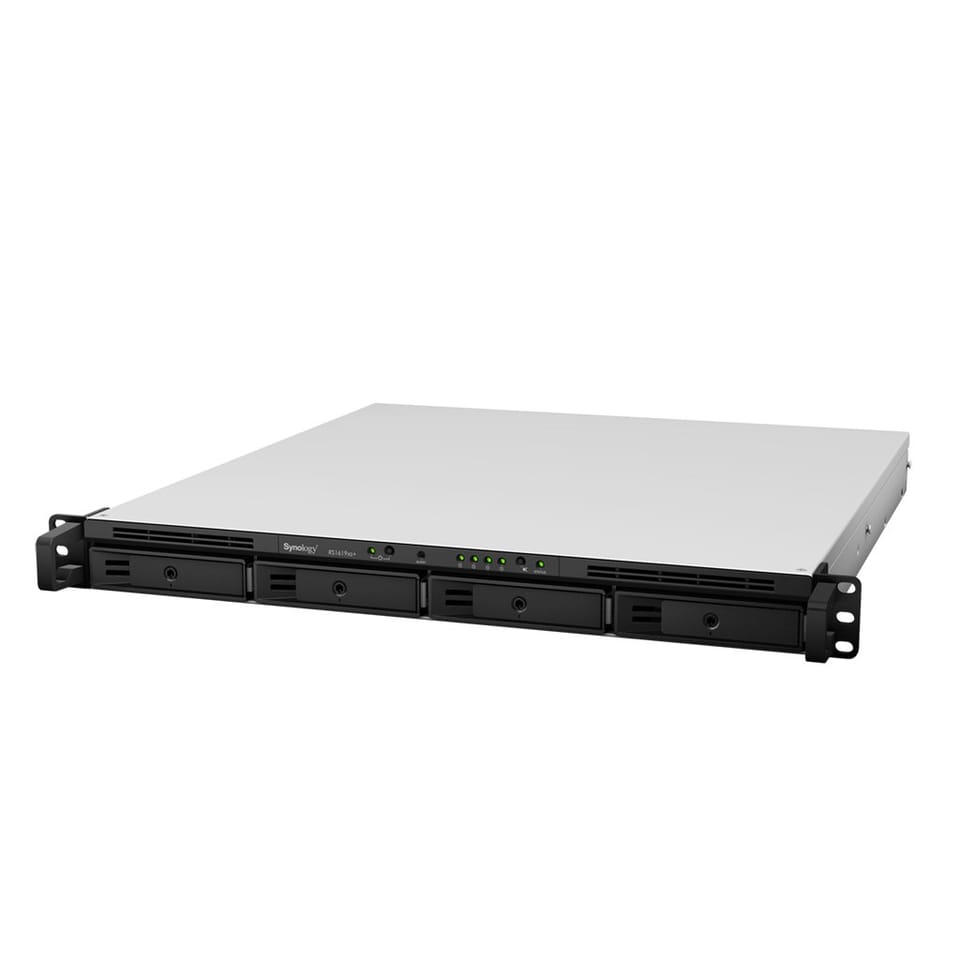

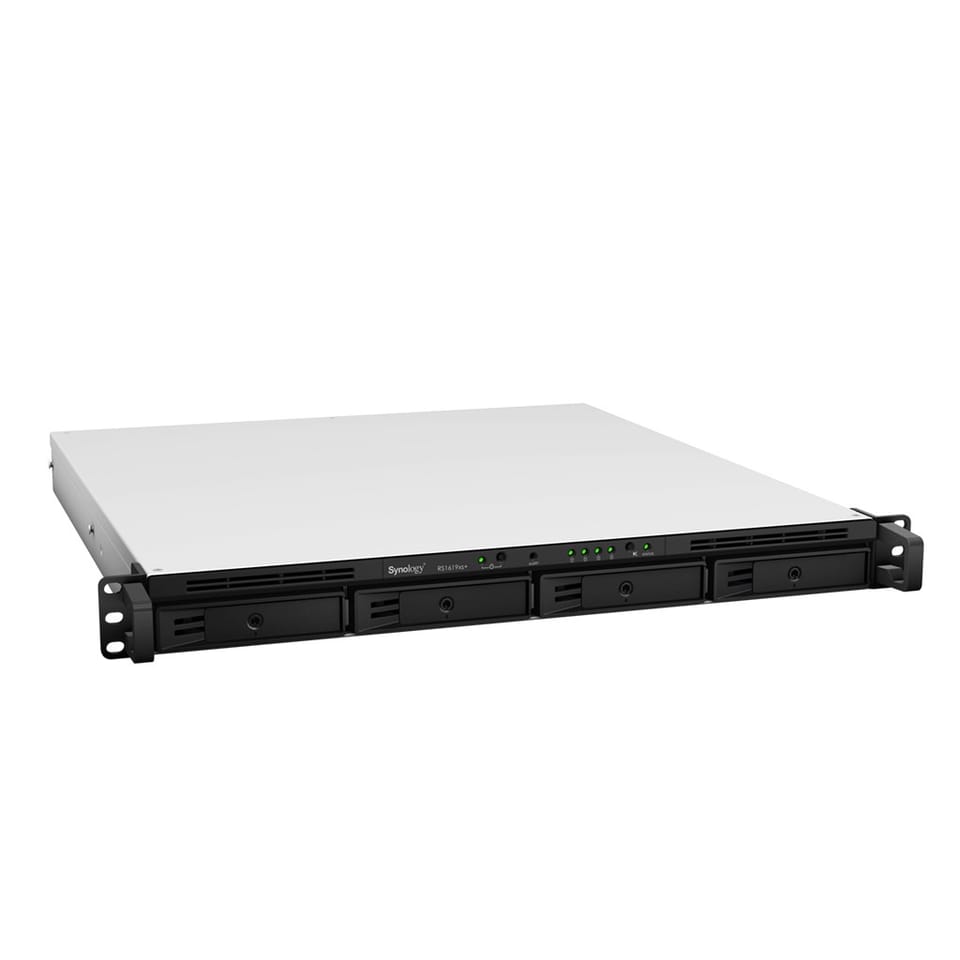

Synology RackStation RS1619xs + is a powerful 1U NAS rack with comprehensive storage, data backup and collaboration applications, suitable for small and medium businesses. RS1619xs + simplifies data management, optimizes virtualization environments and quickly increases memory capacity with minimal time to install and maintain.
NAS RS1619xs+ 4x0HDD 3.5/2.5 2xM2 8GB 2,2GHz 2xUSB3.0 4xRJ45
€2,608.36
Shipping from warehouse: M7
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Synology
- Product code:
- RS1619xs+ / 4711174723065
Share this product:
Specification
Ac input frequency: | 50 - 60 Hz |
---|---|
Ac input voltage: | 100 - 240 V |
Access control list (acl): | Yes |
Backup features: | Cloud, iSCSI LUN |
Backup function: | Yes |
Browser supported: | Chrome, Firefox, Internet Explorer 10+, Safari 10+ |
Cables included: | AC |
Chassis type: | Rack (1U) |
Compliance certificates: | RoHS |
Conflict-free processor: | Yes |
Cooling type: | Active |
Cpu configuration (max): | 1 |
Depth: | 518.6 mm |
Device class: | Small & Medium Business |
Ecc supported by processor: | Yes |
Embedded options available: | Yes |
Enhanced intel speedstep technology: | Yes |
Ethernet lan: | Yes |
Ethernet lan (rj-45) ports: | 4 |
Ethernet lan data rates: | 1000, 100, 10 |
Execute disable bit: | Yes |
Expansion ports quantity: | 1 |
Fan diameter: | 4 cm |
Harmonized system (hs) code: | 84714100 |
Height: | 44 mm |
Hot-swap drive bays: | Yes |
Idle states: | Yes |
Installed storage drive type: | No |
Intel 64: | Yes |
Intel enhanced halt state: | Yes |
Intel secure key technology version: | 1.00 |
Intel trusted execution technology: | Yes |
Intel tsx-ni: | Yes |
Intel tsx-ni version: | 1.00 |
Intel virtualization technology (vt-x): | Yes |
Intel virtualization technology for directed i/o (vt-d): | Yes |
Intel vt-x with extended page tables (ept): | Yes |
Intel® aes new instructions (intel® aes-ni): | Yes |
Intel® hyper threading technology (intel® ht technology): | Yes |
Intel® os guard: | Yes |
Intel® secure key: | Yes |
Intel® turbo boost technology: | 2.0 |
Internal memory: | 8 GB |
Internal memory type: | DDR4 |
Iscsi support: | Yes |
Led indicators: | Alarm, Status, Power, HDD |
Link aggregation: | Yes |
Mac operating systems supported: | Mac OS X 10.14 Mojave, Mac OS X 10.11 El Capitan, Mac OS X 10.13 High Sierra, Mac OS X 10.12 Sierra |
Maximum internal memory supported by processor: | 128 GB |
Maximum number of pci express lanes: | 32 |
Maximum ram supported: | 64 GB |
Memory channels supported by processor: | Dual |
Memory slots: | 4 |
Memory types supported by processor: | DDR4-SDRAM, DDR3-SDRAM |
Multilingual support: | Yes |
Noise level: | 39.3 dB |
Number of fans: | 2 fan(s) |
Number of m.2 (m & b) slots: | 2 |
Number of power supply units: | 2 |
Number of storage drives supported: | 4 |
On-board graphics card model: | Not available |
On/off switch: | Yes |
Operating altitude: | 0 - 5000 m |
Operating relative humidity (h-h): | 5 - 95% |
Operating system installed: | DiskStation Manager |
Operating temperature (t-t): | 5 - 35 °C |
Pci express configurations: | 1x16, 1x4, 1x8 |
Pci express slots version: | 2.0, 3.0 |
Pci express x8 (gen 3.x) slots: | 1 |
Power consumption (hdd standby): | 34.78 W |
Power consumption (typical): | 68.68 W |
Power supply location: | Built-in |
Power supply unit (psu) capacity: | 150 W |
Processor ark id: | 91195 |
Processor boost frequency: | 2.7 GHz |
Processor cache: | 6 MB |
Processor cache type: | L3 |
Processor code: | SR2DK |
Processor codename: | Broadwell |
Processor cores: | 4 |
Processor family: | Intel® Xeon® D |
Processor frequency: | 2.2 GHz |
Processor lithography: | 14 nm |
Processor manufacturer: | Intel |
Processor model: | D-1527 |
Processor operating modes: | 64-bit |
Processor package size: | 37.5 x 37.5 mm |
Processor series: | Intel Xeon D-1500 |
Processor socket: | BGA 1667 |
Processor threads: | 8 |
Product colour: | Black |
Quick installation guide: | Yes |
Raid levels: | 1, 0, 10, JBOD, 5, 6 |
Raid support: | Yes |
Reset button: | Yes |
Scalability: | 1S |
Security algorithms: | SSL/TLS, SSH, HTTPS |
Server operating systems supported: | Windows Server 2016 |
Stepping: | V2 |
Storage drive interface: | Serial ATA, Serial ATA II, Serial ATA III |
Storage drive sizes supported: | 2.5, 3.5" |
Storage drives installed: | No |
Storage temperature (t-t): | -20 - 60 °C |
Supported file systems: | BTRFS, HFS+, ext3, NTFS, ext4, Fat |
Supported network protocols: | CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP) |
Supported storage drive types: | HDD & SSD |
Sustainability certificates: | RoHS |
Thermal design power (tdp): | 35 W |
Thermal monitoring technologies: | Yes |
Type: | NAS |
Uart: | Yes |
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 2 |
Usb port: | Yes |
Wake-on-lan ready: | Yes |
Web-based management: | Yes |
Weight: | 8.16 kg |
Wi-fi: | No |
Width: | 480 mm |
Windows operating systems supported: | Windows 7, Windows 10 |
