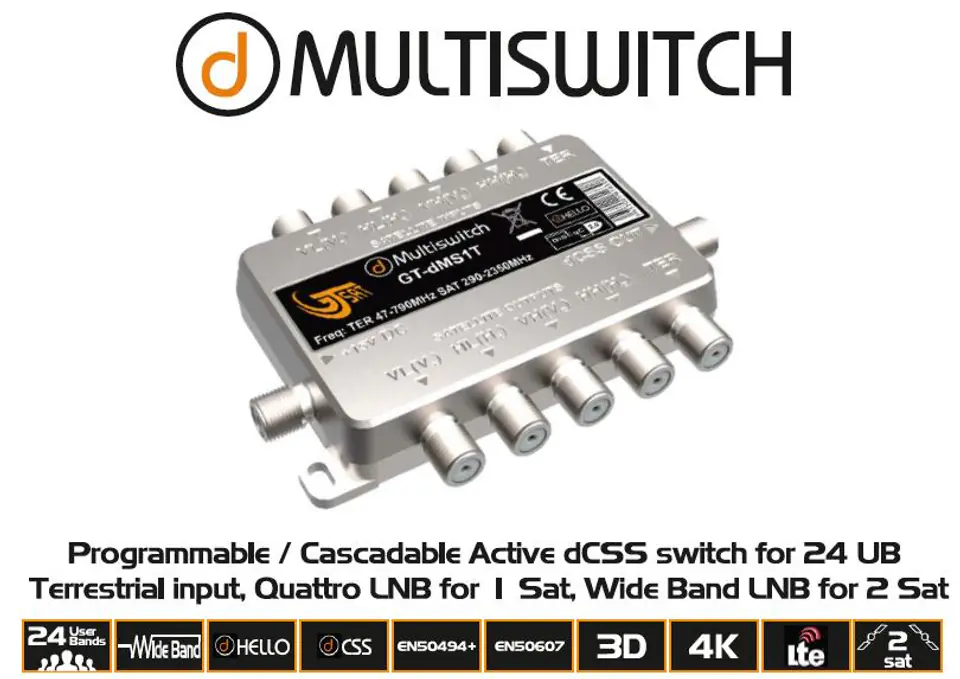

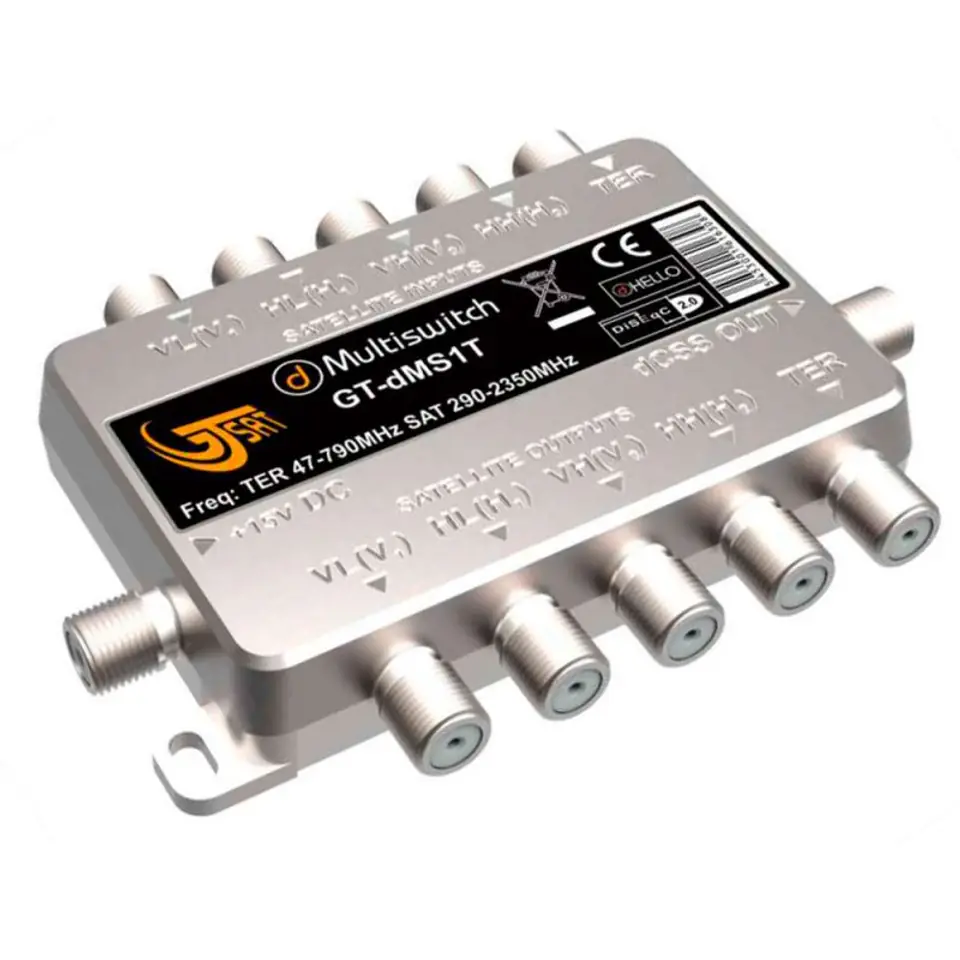

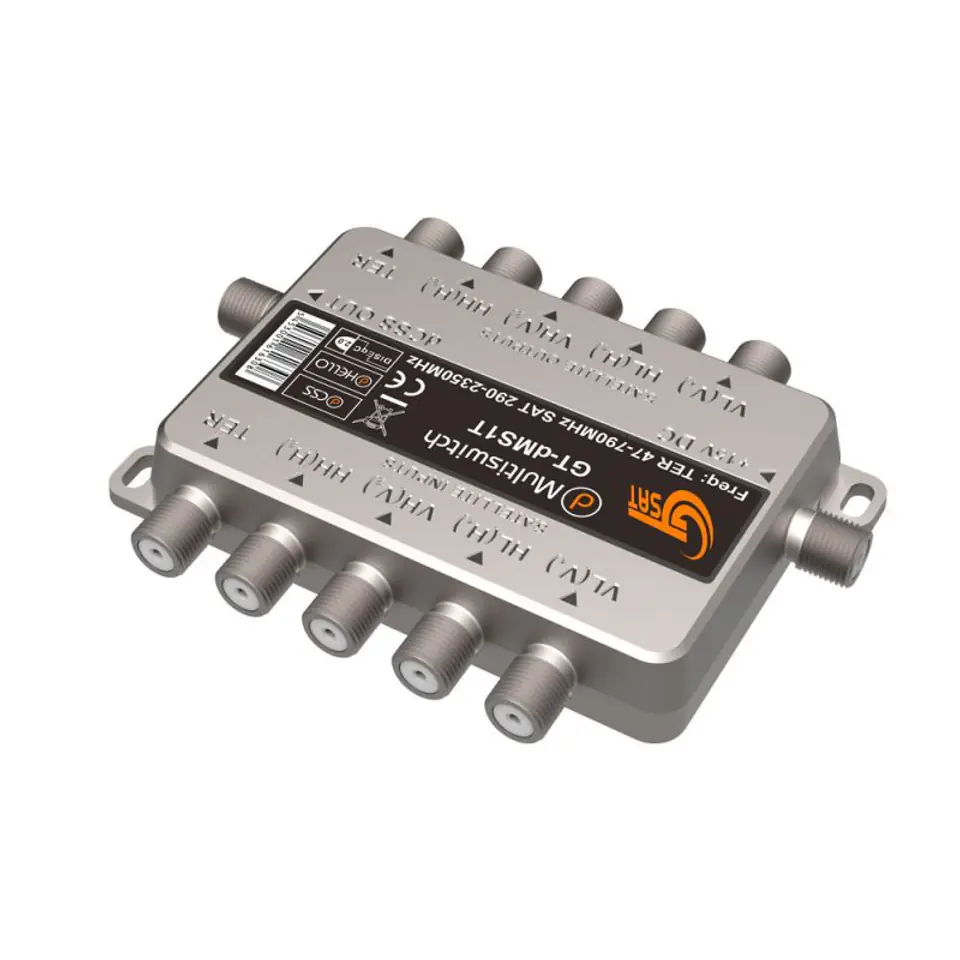

The programmable multiswitch UNICABLE dCSS from GT-SAT model GT-dMTS1T.Multiswitch operates in the new Wilde Band technology. The technology to operate the multiswitch uses two cables routed from special LNB GT-SAT GT-WB1 H+V. support up to max. two satellites via multiswitch, e.g. Hotbird + Astra. We can also connect four cables from the standard Quattro type LNB to the multiswitch. The multiswitch has a Quattro output for connecting end multiswitches or extending the system with cascade multiswitches. dCSS OUT unicable output supports two modes of operation:- DYNAMIC mode:Supports up to 24 set-top boxes they support:Unicable I EN50494- CH 01 975 MHz (EN50494 + EN50607)
- CH 02 1025 MHz (EN50494 + EN50607)
- CH 03 1075 MHz (EN50494 + EN50607)
- CH 04 1125 MHz (EN50494 + EN50607)
- CH 05 1175 MHz (EN50494 + EN50607)
- CH 06 1225 MHz (EN50494 + EN50607)
- CH 07 1275 MHz (EN50494 + EN50607)
- CH 08 1325 MHz (EN50494 + EN50607)Unicable II EN50607- CH 09 1375 MHz (EN50607)
- CH 10 1425 MHz (EN50607)
- CH 11 1475 MHz (EN50607)
- CH 12 1525 MHz (EN50607)
- CH 13 1575 MHz (EN50607)
- CH 14 1625 MHz (EN50607)
- CH 15 1675 MHz (EN50607)
- CH 16 1725 MHz (EN50607)
- CH 17 1775 MHz (EN50607)
- CH 18 1825 MHz (EN50607)
- CH 19 1875 MHz (EN50607)
- CH 20 1925 MHz (EN50607)
- CH 21 1975 MHz (EN50607)
- CH 22 2025 MHz (EN50607)
- CH 23 2075 MHz (EN50607)
- CH 24 2125 MHz (EN50607) - STATIC mode programmable using a programmer. Supporting a total of 34 selected satellite transponders from any satellites, it is important that the frequencies do not repeat it works on an unlimited number of recipients, who can have the most ordinary satellite tuner.
Everything connected in a serial topology.

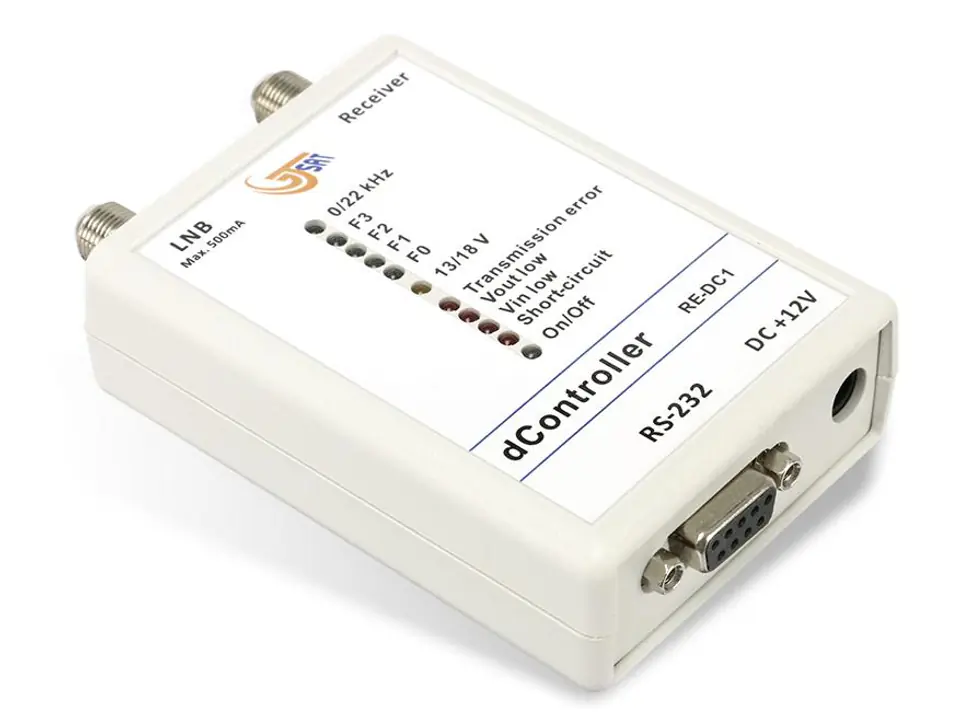

The most important feature of the new system is "manageability", setting the parameters of the channels is made using a computer program

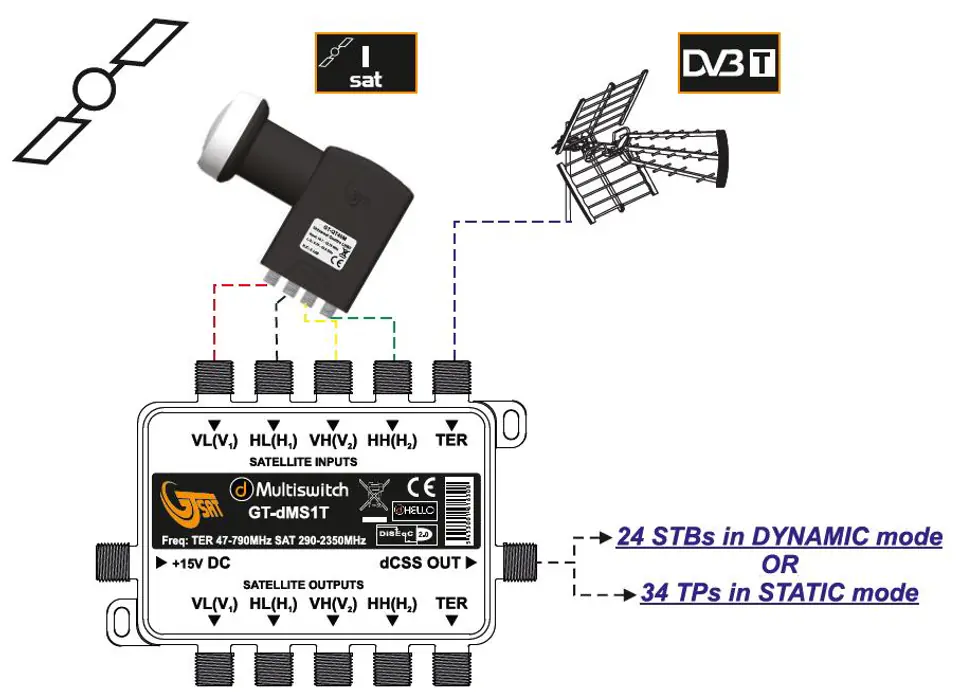

Installation Solution Examples:1. Standard installation LNB type Quattro + DVB-T

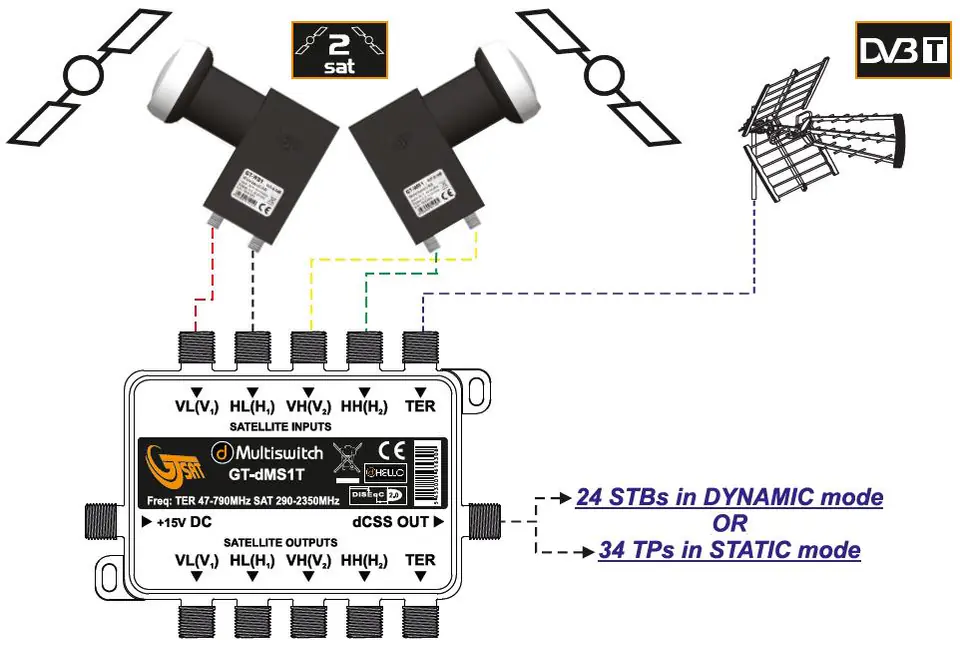

2. Installation in Wide Band technology for two satellites with dvb-t TV

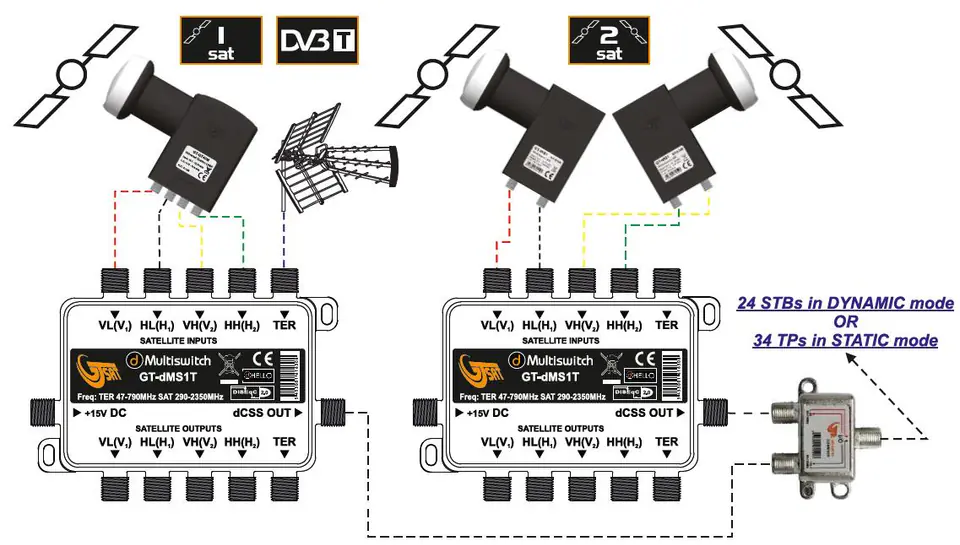

3. Installation in mixed technology: standard LNB Quattro and Wide Band for three satellites with dvb-t TV and diseqc switch for dCSS output

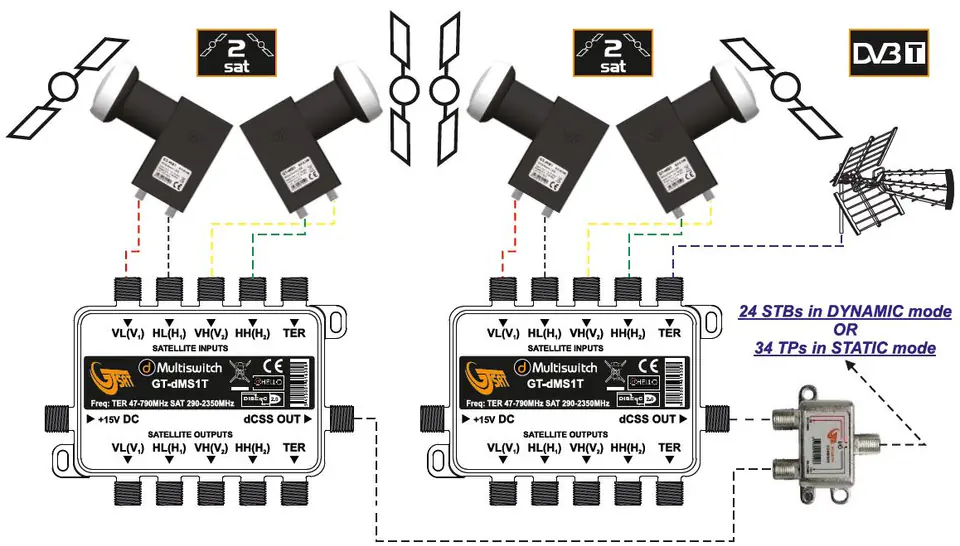

4. Installation in Wide Band for four satellites with dvb-t TV and diseqc switch for dCSS output

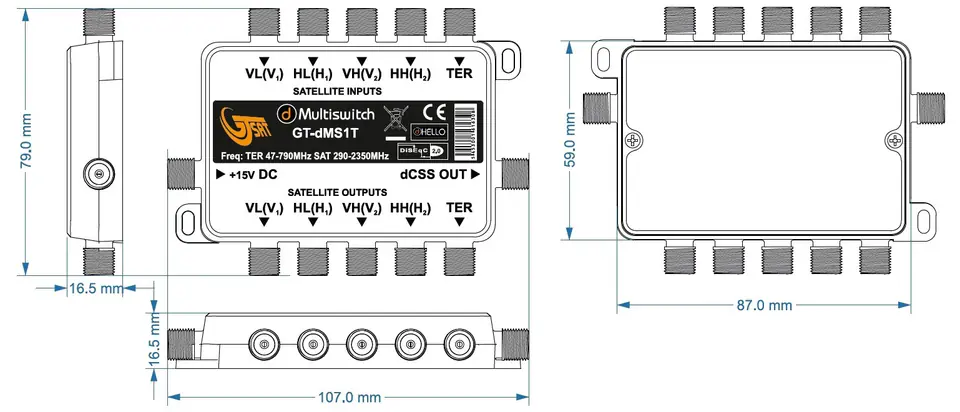

Technical data:
| Input frequency range: | 300 – 2350 MHz |
| Output frequency range: | 950 – 2150 MHz (sat) and 47 – 790 MHz (ter) |
| Power consumption: | < 4W (max. with all UBs active) |
| Power: | +12V DC (from external PSU) |
| Satellite frequency: | 300 – 2350 MHz |
| Terrestrial signal frequency: | 47 – 790 MHz |
| Output frequency: | 3 dB (typ.) |
| Satellite attenuation: | 24V, 400 mA max |
| Terrestrial signal attenuation: | 10 dB (typ.) |
| Entrance insulation | 20 dB (min.) |
| Maximum satellite input level: | -25 dBm |
| Maximum terrestrial signal input level: | -15 dBm |
| Maximum output level: | -22 dBm |
| Operating temperature range: | -30 to +60 °C |
| Protocol support: | EN50494, EN50607 or dHello |
Kit contents:
- GT-SAT GT-dMTS1T multiswitch
- Power supply 15V 0.8A
- Tee barrel connecting subsequent multisiwtche in case of reception from more than two satellites.
