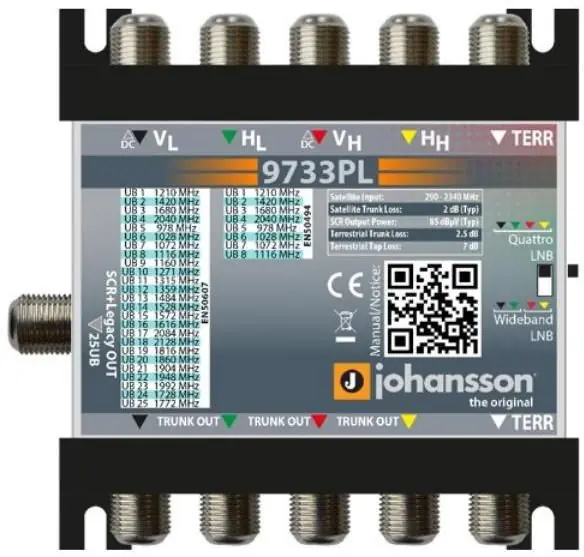

Multiswitch Unicable II Johansson 9733PL ver.2 - 5/1 dCSS/dSCR
Multiswitch Unicable II 5/1, 9733 Johansson, PL version. List of channels compatible with Cyfrowy Polsat receivers.
4 satellite inputs + 1 DVB-T input, 4 satellite pass-through outputs + 1 DVB-T output, 1 SCR output. Standard Unicable I / Unicable II.
The device is especially recommended in situations where we would like to expand the existing multiswich installation at the lowest possible cost of up to 16 independent signals supporting single-cable technology.

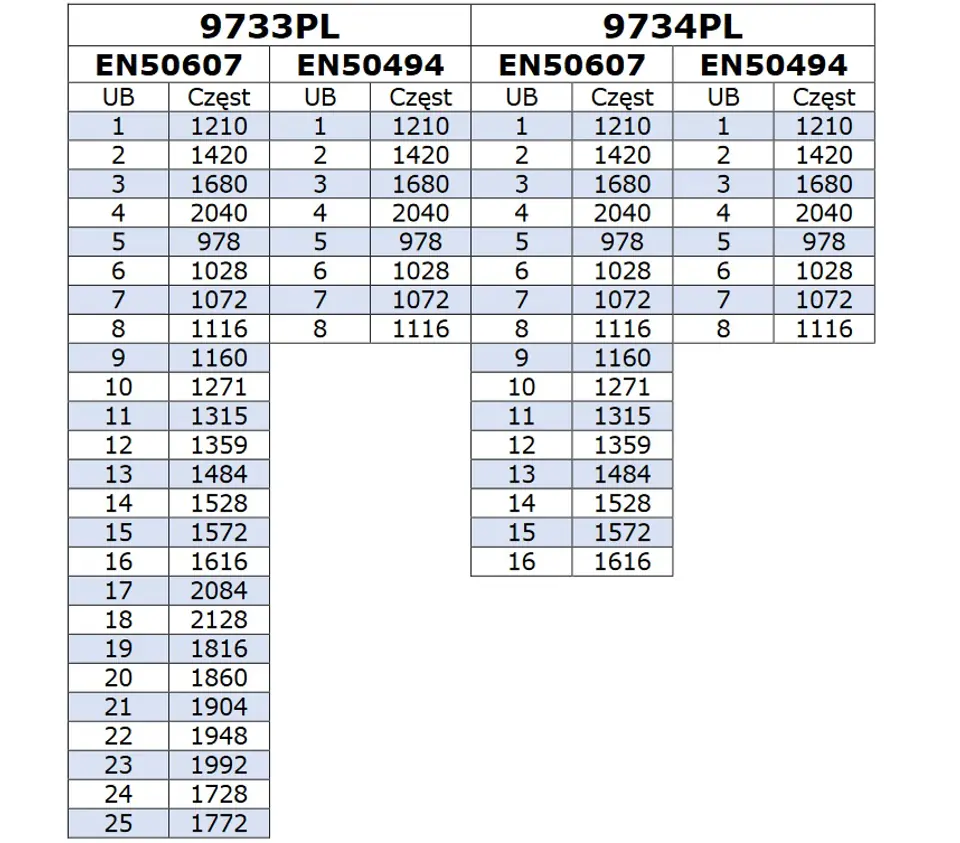

- List of UNICABLE channels compatible with Cyfrowy Polsat and Canal+ receivers
- Support for 16 bands at one output
- Support for converters: Quattro and WideBand
- Automatic AGC gain level
- Support for Unicable I and Unicable II standards
REMARK! We sell the latest version 9733 version 2 with increased reduction of signal loss!

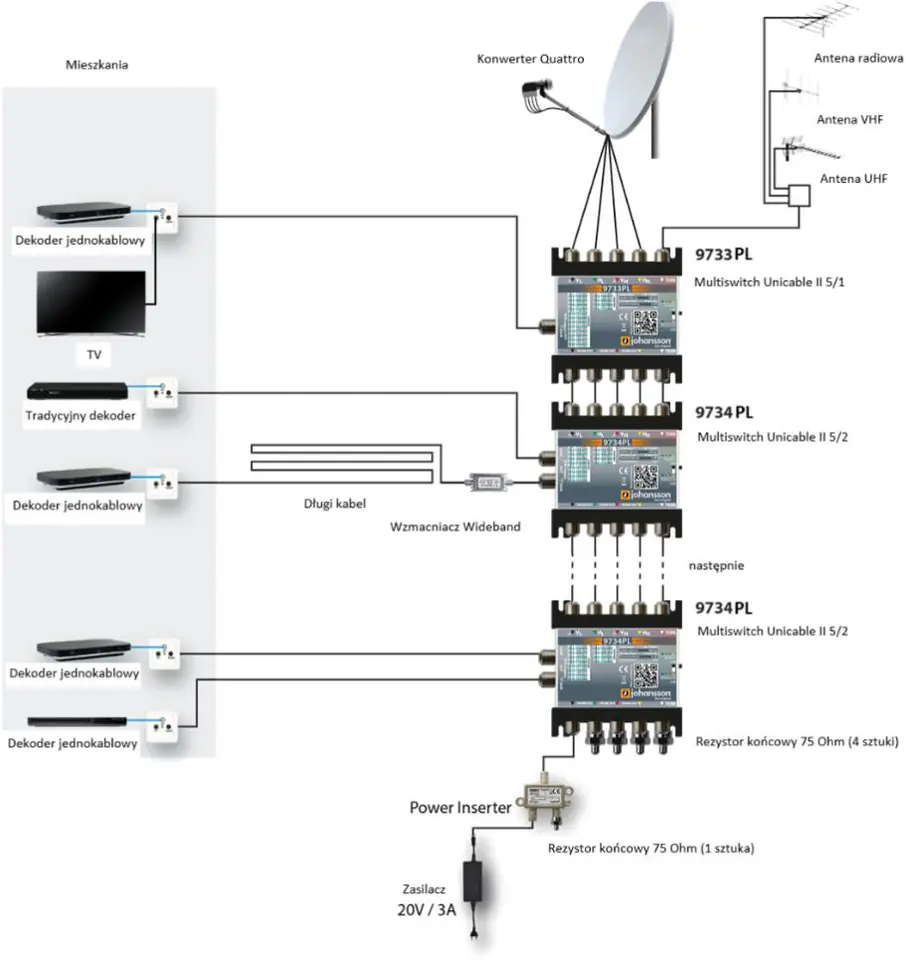

Example installation using Johansson Unicable II Multiswitch :
User manual in POLISH version available >>HERE<<
https://dmtrade.pl/katalogi/johansson/9733PLPOL.pdfThe data sheet in ENGLISH is available >>HERE<<https://dmtrade.pl/katalogi/johansson/katalogowaunicable2.pdf
