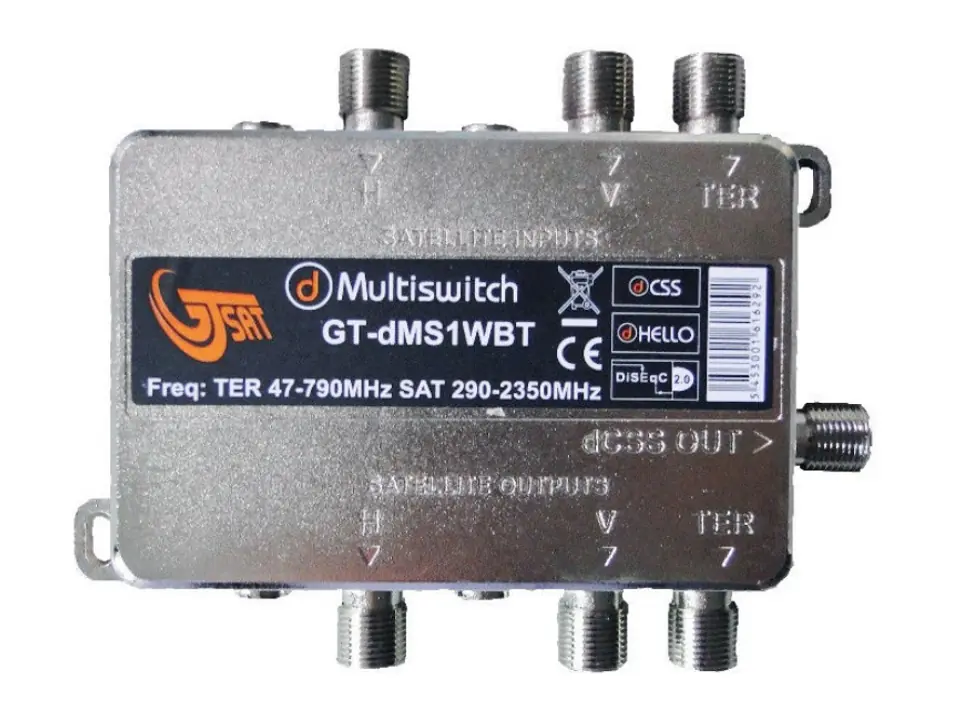

The GT-dMS1TWBT programmable multiswitch model GT-dMS1TWBT operates in the new Wilde Band technology. The technology to operate the multiswitch uses two cables from special Wide Band converters. The multiswitch allows you to expand the installation in the Wide Band system by another additional 24 channels. Ideal solution when I have installed LNB Type Wide Band on the satellite antenna and the signal is indirectly supplied to the receiver and we want to expand the installation with more, e.g. multiroom receivers. Then only the multiswitch is plugged in between the LNB Wide Band and the receiver. GT-dMS1TWBT has a Unicable I/II output that supports 24 operating frequencies.
Programmed for the following receivers:
Cyfrowy Polsat:
- Unicable I/II technology (EN50494 + EN50607): Evobox PVR
- Tedchnology I Unicable I (EN50494): Mini HD 2000, HD 3000, HD 5000, HD 5500s, HD 6000, HD 7000 PVR
NC+:
- Unicable I/II technology (EN50494 + EN50607): 4K UltraBOX
- Technology I Unicable I (EN50494): mediaBOX+ (ADB ITI-3740SX), turboBOX+ (ADB ITI-5720SX), wifi PremiumBOX+ (ADB NCP-4740SF), BOX+ ADB ITI-2849/2850/2851S), PVR BOX+ (ITI-5800SX)
List of programmed 24 frequencies for nc+ receivers and Cyfrowy Polsat:
Unicable I EN50494
1 1210MHz (EN50494 + EN50607)
2 1420MHz (EN50494 + EN50607)
3 1680MHz (EN50494 + EN50607)
4 2040MHz (EN50494 + EN50607)
5,978MHz (EN50494+EN50607)
6 1028MHz (EN50494 + EN50607)
7 1072MHz (EN50494 + EN50607)
8 1116MHz (EN50494+ EN50607)
Unicable II EN50607
9 1160MHz (EN50607)
10 1271MHz (EN50607)
11 1315MHz (EN50607)
12 1359MHz (EN50607)
13 1484MHz (EN50607)
14 1528MHz (EN50607)
15 1572MHz (EN50607)
16 1616MHz (EN50607)
17 2084MHz (EN50607)
18 2128MHz (EN50607)
19 1816MHz (EN50607)
20 1860MHz (EN50607)
21 1904MHz (EN50607)
22 1948MHz (EN50607)
23 1992MHz (EN50607)
24 1728MHz (EN50607)
Below is a diagram showing an example of an installation solution.
Technical data:
- Input frequency 10.7~12.75GHz
- Output frequency 950~2150MHz
- FREQUENCY LO 10.4 GHz
- Number of user bands 2 outputs of 16 channels
- User frequency response up to 74 MHz
- Control signal EN50494, EN50607, dHello
- DiSEqC Communication 2.0
- Operating temperature range -30°C~+65°C
