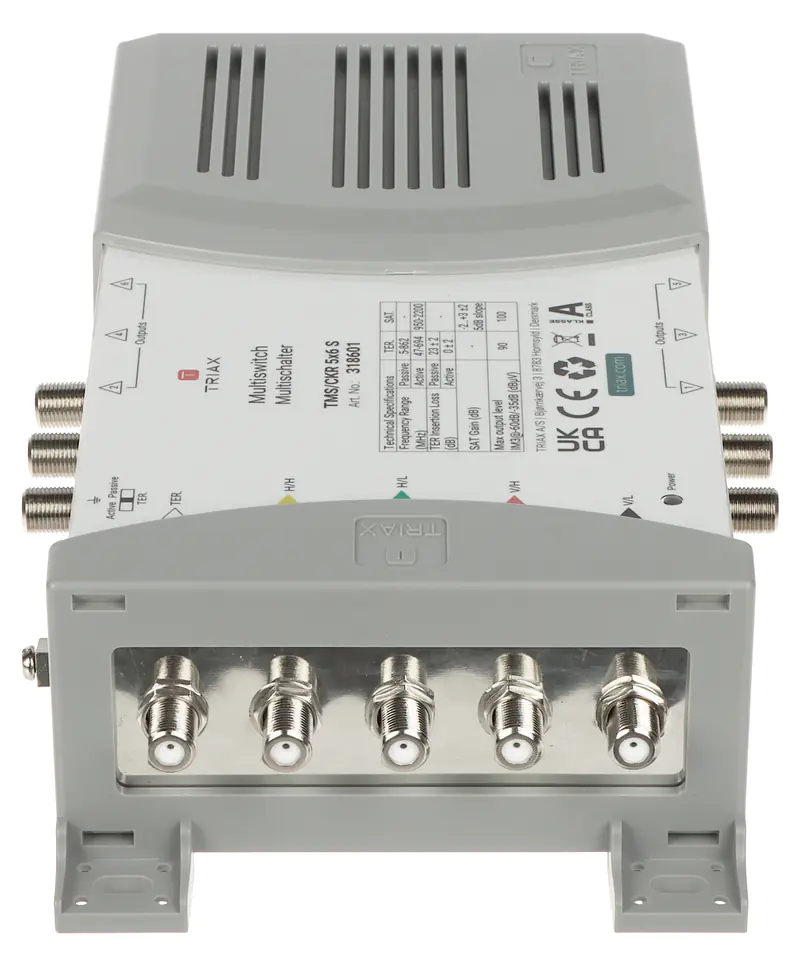

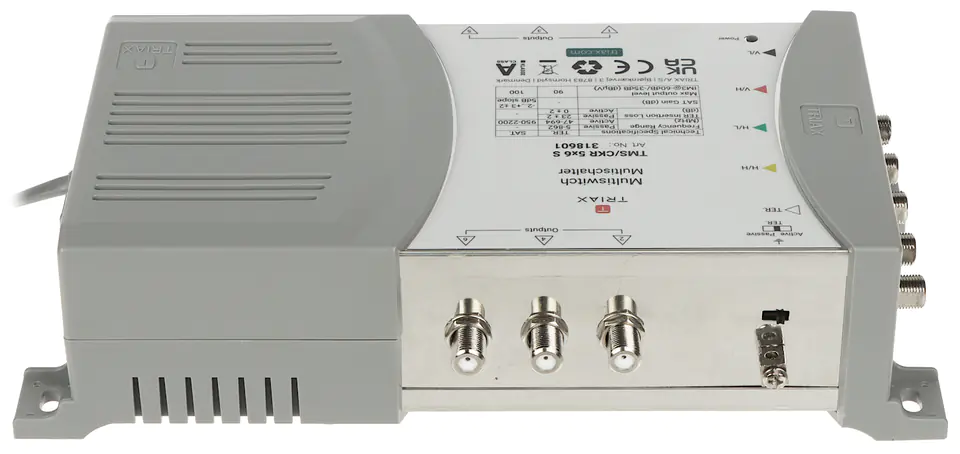

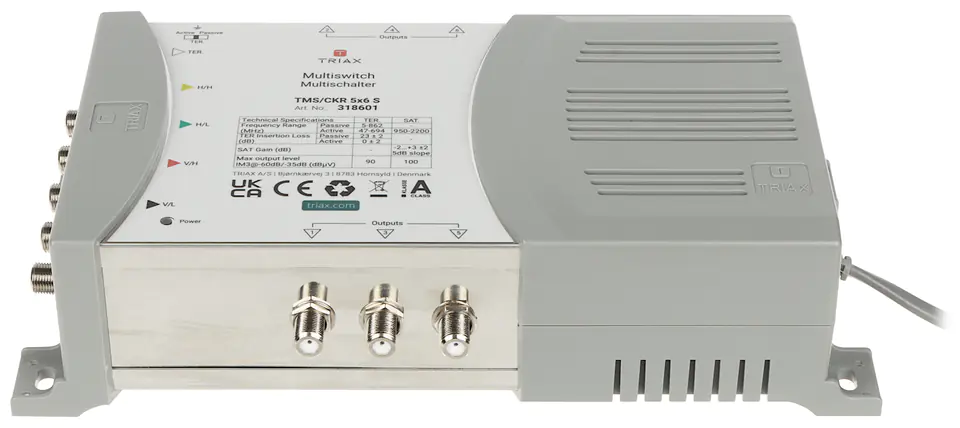

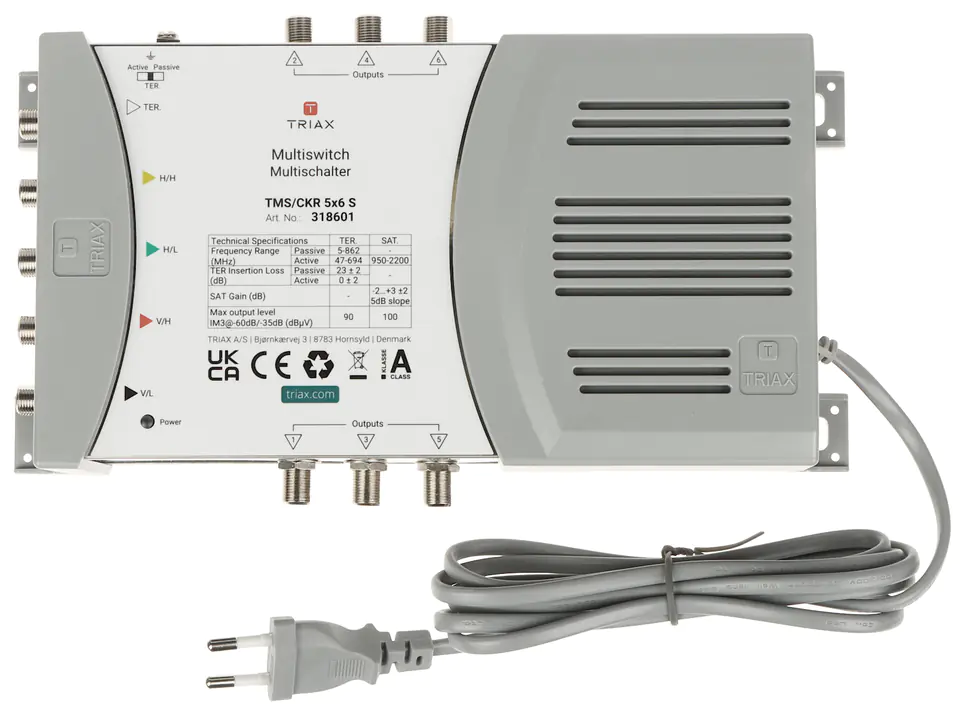

MULTISWITCH TMS-5/6S 5 INPUTS / 6 OUTPUTS TRIAX
€85.48
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- TRIAX
- Product code:
- TMS-5/6S / 5702663186019
Share this product:
Specification
| Bounce suppression: | TV input : > 10 dBWonnection : > 10 dBWying: > 10 dB |
|---|---|
| Dimensions: | 250 x 145 x 62 mm |
| Inputs: | 1 x 47 MHz ... 694 MHz - Active / 5 MHz ... 862 MHz - Passive, 4 x 950 MHz ... 2200 MHz |
| Lnb power supply: | .max. 1000 mA |
| Maximum sat output level: | 100 dBμV (-35dB IMD3) |
| Maximum tv output level: | 90 dBμV (-60dB IMD3) |
| Output: | 6 x 47 ... 2200 MHz |
| Power: | 180 ... 264 VAC |
| Producer / brand: | Triax |
| Sat gain (cable correction): | -2 ... 3 dB |
| Scales: | 0.74 kg |
| Separation: | Interpolarized H/V : 30 dB Between SAT/TV inputs : 30 dB Outputs : 30 dB - SAT Outputs : 25 dB - TV |
| Switching signals: | 13 V / 18 V, 0 / 22 kHz, DiSEqC 1.0, DiSEqC 2.0 |
| Tv gain (cable correction): | 0 dB |
| Warranty: | 6 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
