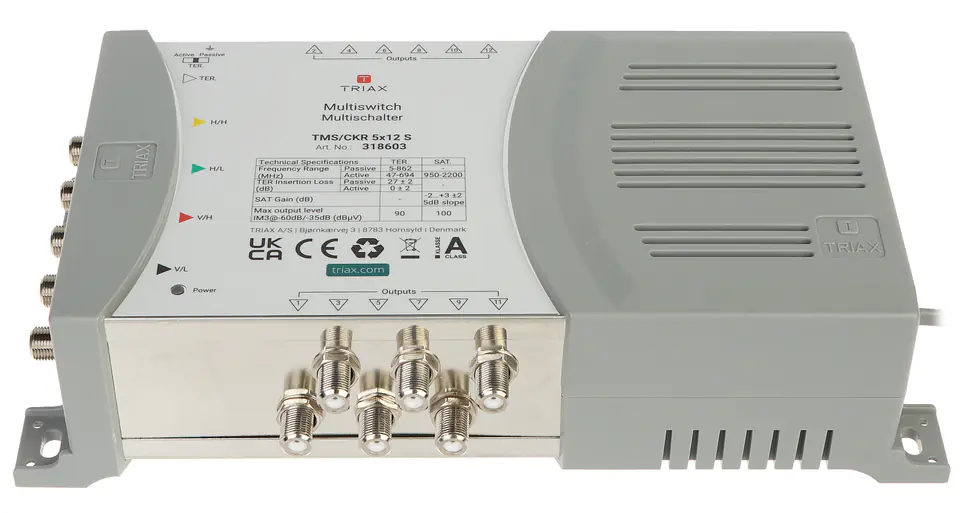

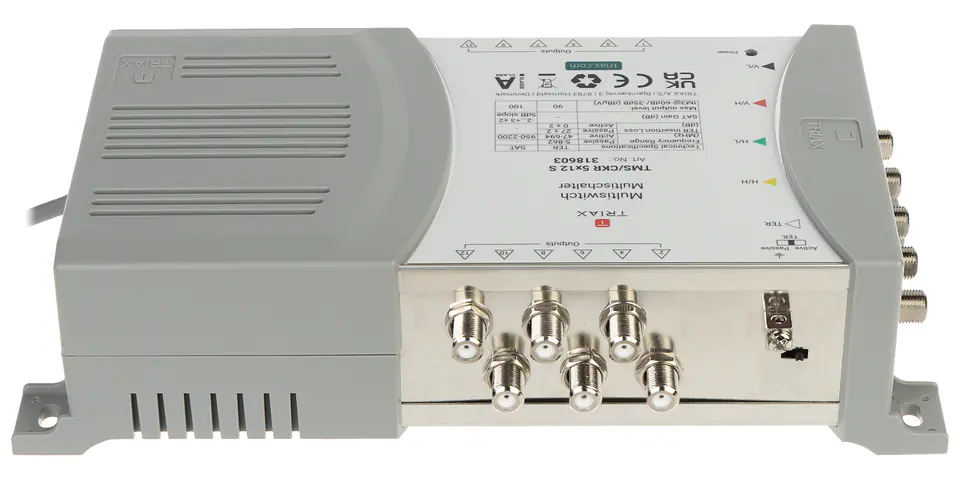

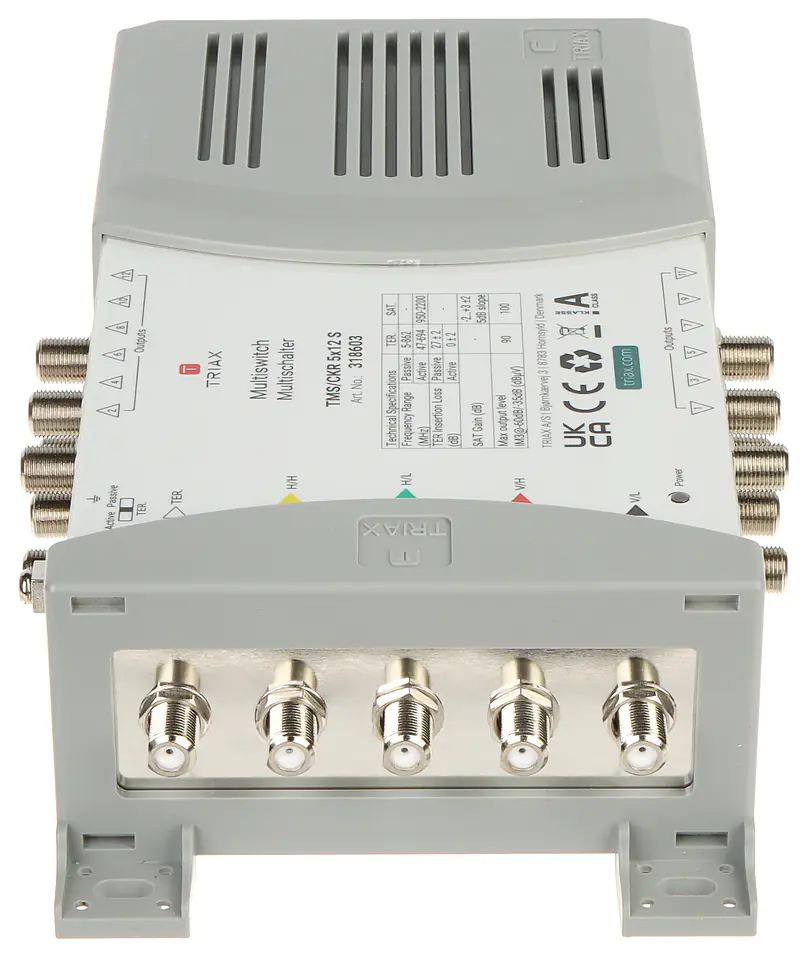

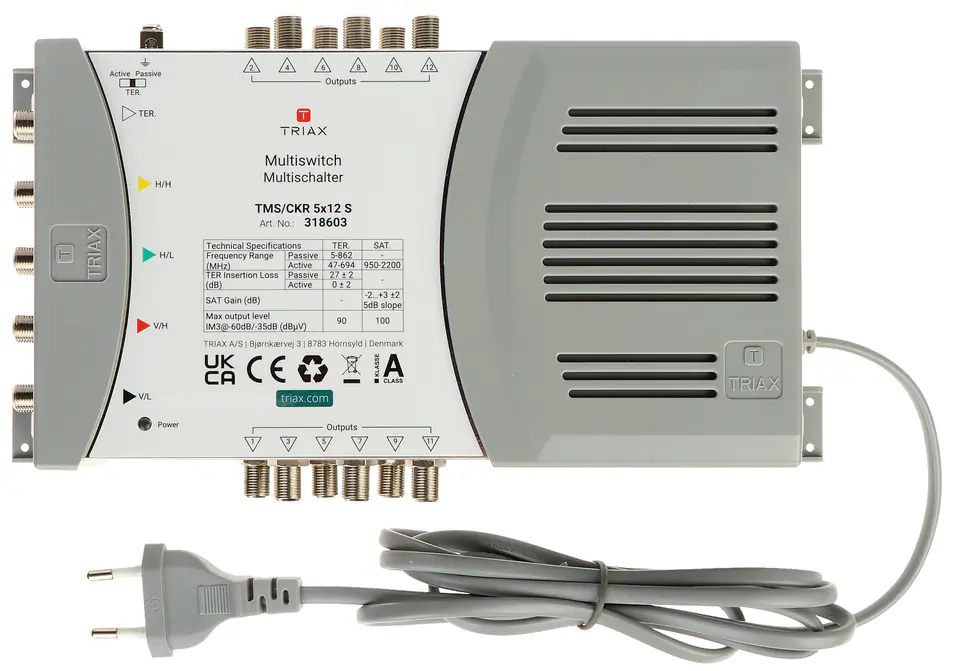

MULTISWITCH TMS-5/12S 5 INPUTS / 12 TRIAX OUTPUTS
€121.57
Shipping from warehouse: D4
Estimated shipping: Mon, Feb 24 - Tue, Feb 25
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- TRIAX
- Product code:
- TMS-5/12S / 5702663186033
Share this product:
Specification
| Converter power supply:: | Max. 1000 mA |
|---|---|
| Dimensions:: | 250 x 145 x 62 mm |
| Inputs:: | 1 x 47 MHz ... 694 MHz - Active / 5 MHz ... 862 MHz - Passive, 4 x 950 MHz ... 2200 MHz |
| Manufacturer / brand:: | TRIAX |
| Maximum sat output level:: | 100 dBμV (-35dB IMD3) |
| Maximum tv output level:: | 90 dBμV (-60dB IMD3) |
| Output:: | 12 x 47 ... 2200 MHz |
| Power:: | 180 ... 264 VAC |
| Reflection attenuation:: | TV Input : > 10 dBSAT Input : > 10 dBExtit : > 10 dB |
| Sat gain (cable correction):: | -2 ... 3 dB |
| Scales:: | 0.8 kg |
| Separation:: | Interpolarization H/V : 30 dB Between SAT/TV inputs : 30 dB Outputs : 30 dB - SAT Outputs : 25 dB - TV |
| Switching signals:: | 13 V / 18 V, 0 / 22 kHz, DiSEqC 1.0, DiSEqC 2.0 |
| Tv gain (cable correction):: | 0 dB |
| Warranty:: | 6 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
