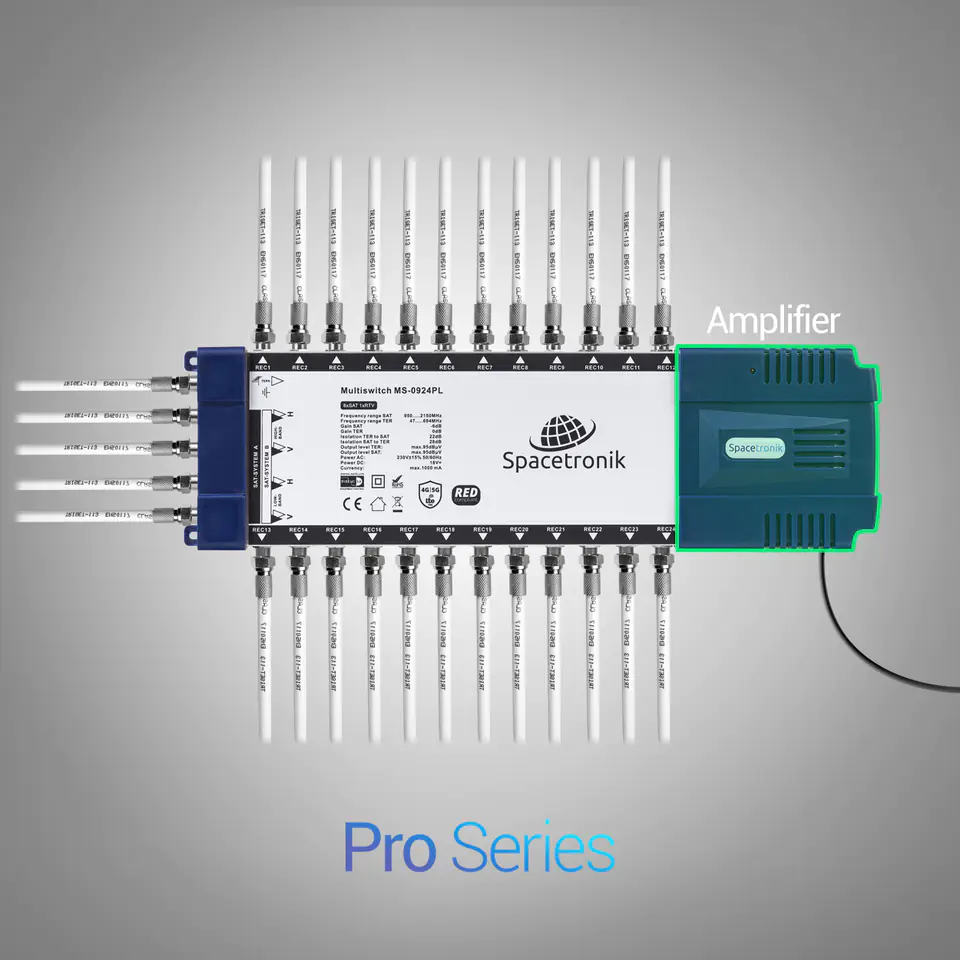

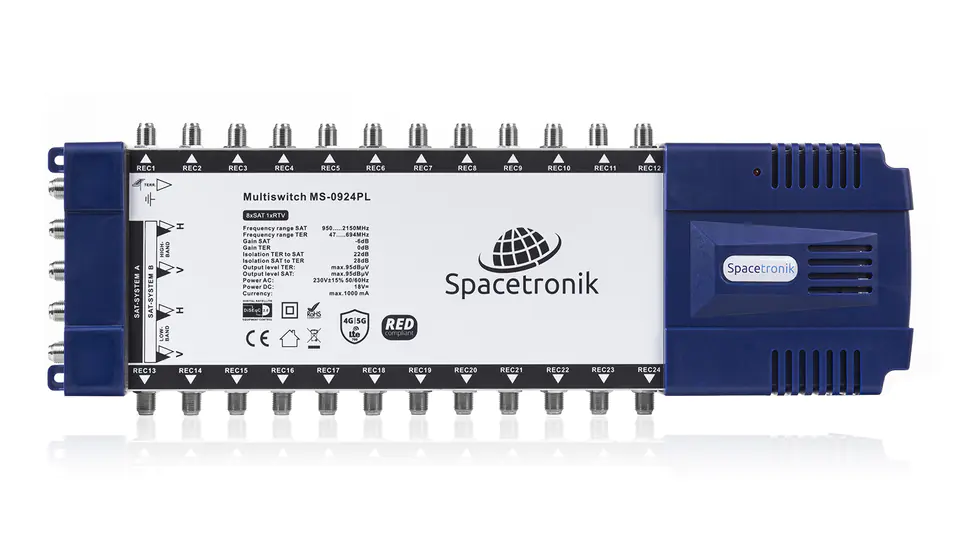

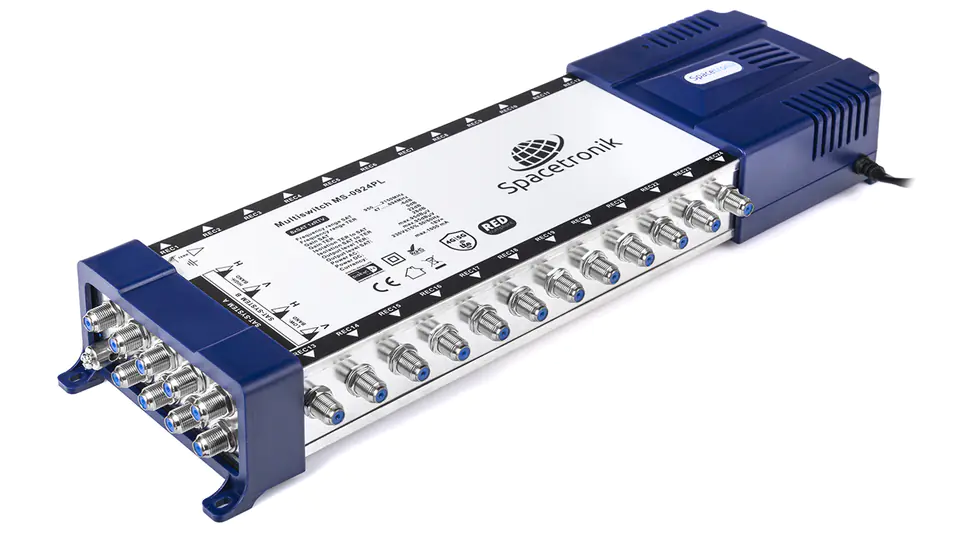

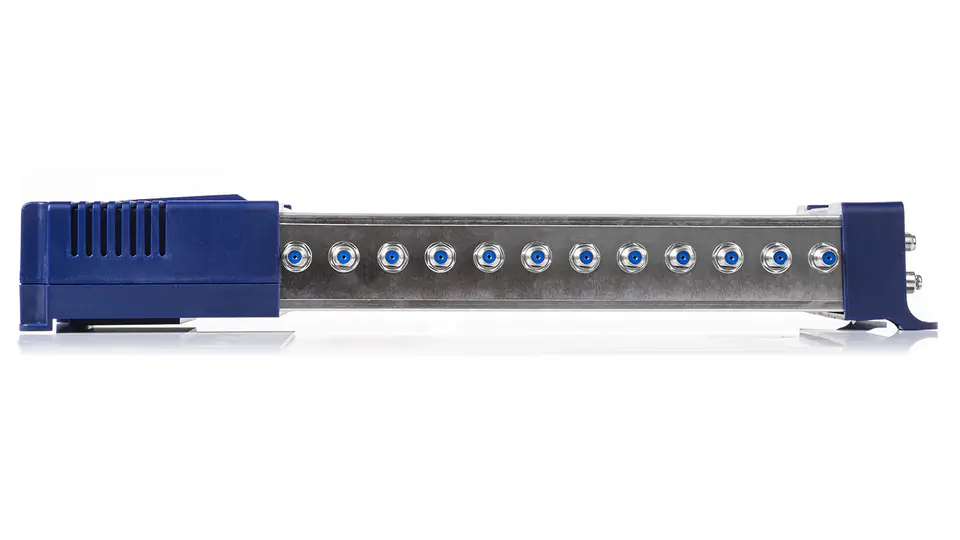

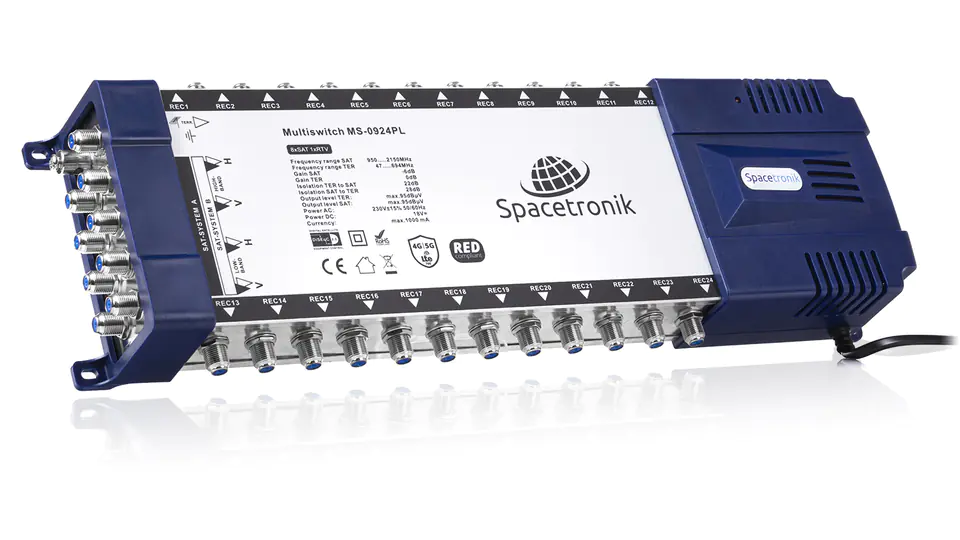

Spacetronik Pro Series MS-0924PL LTE end multiswitch with built-in power supply
Multiswitch Pro Series 9/24 with 8 SAT inputs + 1 terrestrial TV antenna input, allows to distribute satellite signals to 24 end users. The multiswitch has a built-in high-quality power supply, which enables stable operation of the device. Housing and handles made of the highest quality materials. Multiswitch for indoor use, designed for installation of antenna systems of satellite and terrestrial television. For parwidlow operation, it is recommended to connect a Quattro convent feeding a signal from four frequencies, which we lead to the appropriate inputs of the mutiswitch, and to the ground input, marked as TERR. we introduce a summed signal from terrestrial and radio TV. With such a connection, each output from the multiswitch outputs both satellite and terrestrial signals. The whole installation should be terminated with the R-TV-SAT terminal outlet. When connecting the Quattro LNB to individual inputs in the multiswitch, attention should be paid to the appropriate assignment of LOW BAND and HIGH BAND connectors as well as H (horizontal - horizontal) and V (vertical - vertical) polarization to the outputs from the LNB itself - Spacetronik multiswitches as well as LNB sold by us have correctly marked inputs. The multiswitch can be connected to many satellite and terrestrial receivers . The device automatically adjusts the type of signal that will be transmitted to a given receiver.
Number of inputs: 8 SAT, 1 TER
Number of outlets: 24

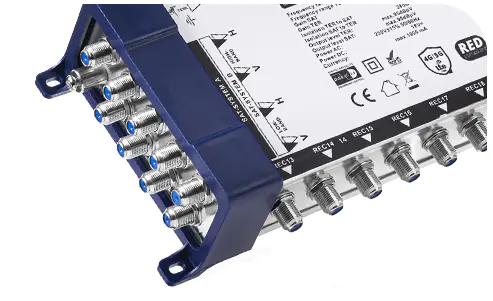

Connectors: F female
SAT Frequency Range: 950-2150MHz
TER frequency range: 47-694MHz
SAT gain: -3 to 6dB
TER gain: -7 to 2dB
TER to SAT isolation: 30dB
SAT to TER Isolation: 28dB
H/V polarization separation isolation: 25dB
Isolation out - out TER: 22dB
SAT out-out isolation: 30dB
SAT backprint loss input: 10dB
SAT Backprint Loss Output: 7dB
TER Reflection Attenuation input: 11dB
TER Reflection Attenuation Output: 8dB
SAT Output Level (IMD3 - 35dB): 100dBμV
TER Output Level (IMD3 - 60dB): 83dBμV
Input/output impedance: 75Ohm

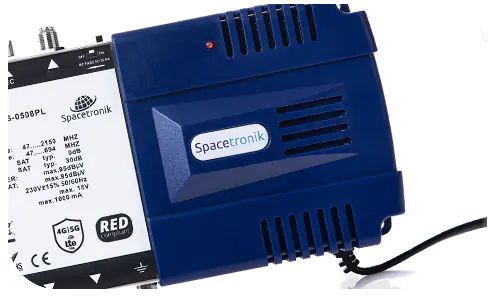

Built-in power supply
