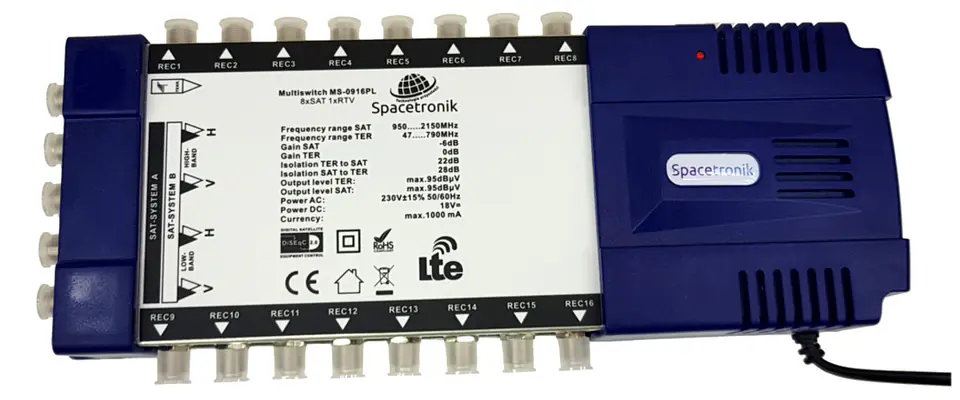

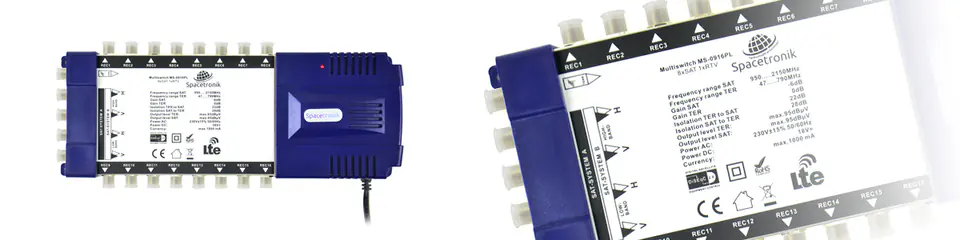

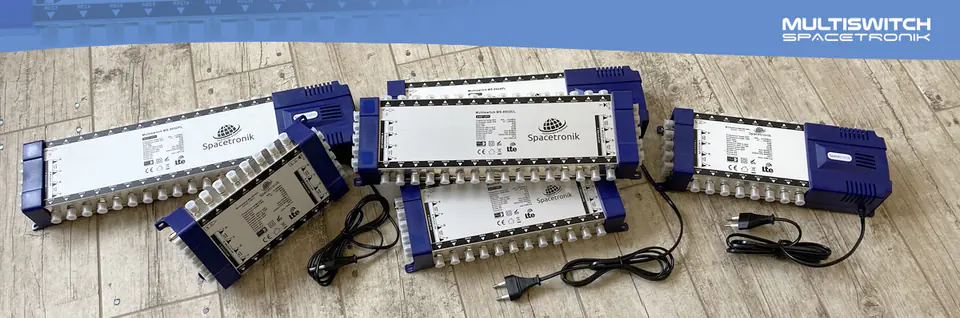

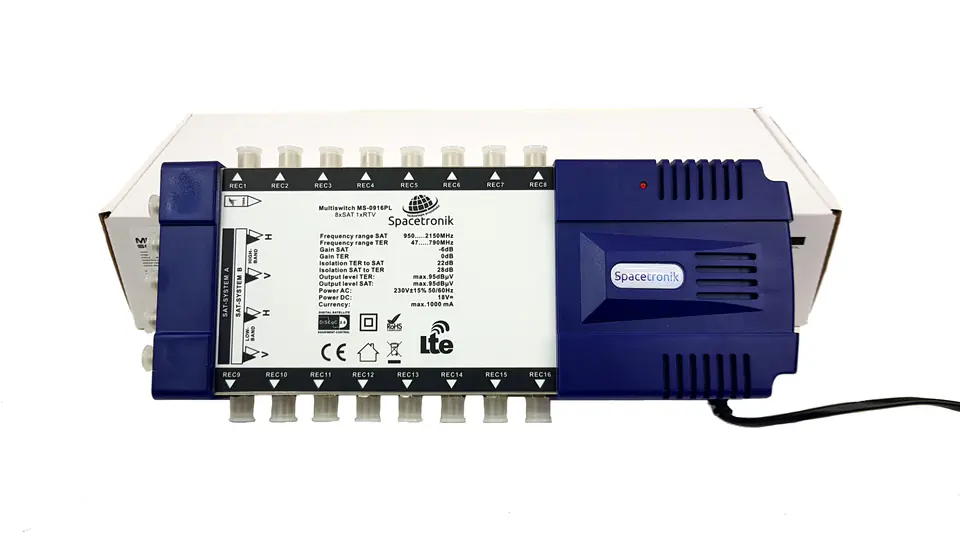

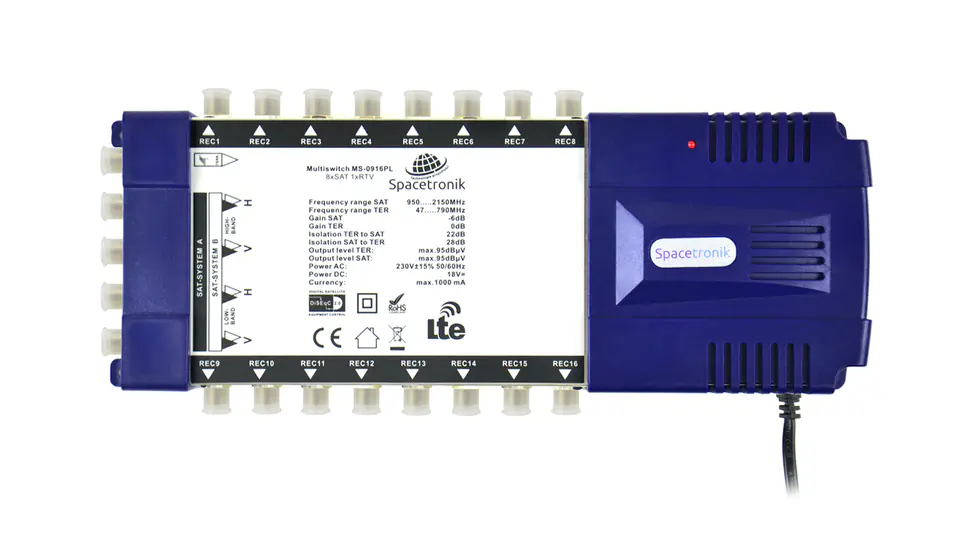

Spacetronik Pro Series MS-0916PL LTE end multiswitch
Multiswitch Pro Series 9/16 with 8 SAT inputs + 1 terrestrial TV antenna input, will allow to distribute the signal from the satellite to 16 end users. The multiswitch has a built-in high-class power supply, enabling stable operation of the device. Housing and handles made of the highest quality materials.
Multiswitch for internal use, designed for the construction of antenna systems for satellite and terrestrial television systems.

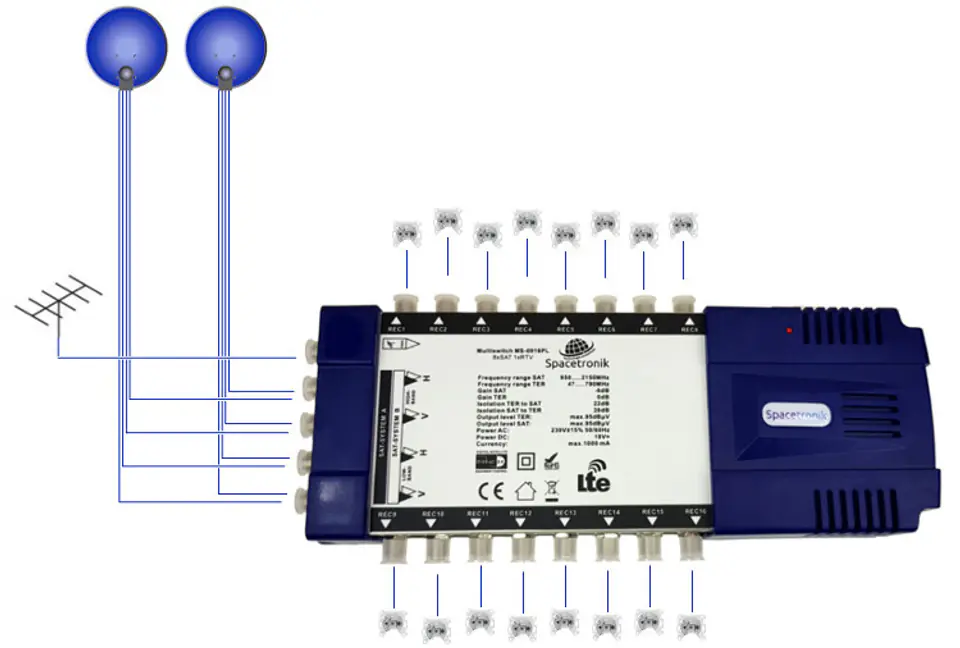

For steam operation, it is recommended to connect the Quattro converter giving a signal from four frequencies, which we bring to the appropriate mutiswitch inputs, and to the ground input, marked as TERR. we introduce a summed signal from terrestrial and radio TV. With such a connection, both satellite and terrestrial signals are output at each output of the multiswitch. The entire installation should be terminated with the R-TV-SAT end socket.
When connecting the Quattro converter to individual inputs in the multiswitch, attention should be paid to the appropriate assignment of LOW BAND and HIGH BAND connectors as well as H (horizontal - horizontal) and V (vertical - vertical) polarization to the outputs from the converter itself - Spacetronik multiswitches and LNB sold by us have correctly marked inputs. It is possible to connect multiple satellite and terrestrial receivers to the multiswitch. The device automatically adjusts the type of signal that will be transmitted to a given receiver.
- insulation in SAT and TV tracks
- I/O separation
- dBuV output signal level
- attenuation in the return channel
- parameters - power supply
- power supply - stability of the power supply and additional TER power supply
