| Adjustable sat gain:: | 12 dB in 4 dB increments |
|---|---|
| Dimensions:: | 267 x 135 x 50 mm |
| Inputs:: | 4x 950 MHz ... 2400 MHz, 1x 47 MHz ... 862 MHz - Active |
| Manufacturer / brand:: | TERRA |
| Maximum sat output level:: | 105 dBμV |
| Maximum tv output level:: | 80 ... 86 dBμV |
| Output:: | 32x 47 MHz ... 2400 MHz |
| Power:: | HL/HH inputsPower supply 18 V DC / 1 A (not included) |
| Sat gain (cable correction):: | 2 ... 14 dB |
| Scales:: | 1.52 kg |
| Separation:: | Between SAT/SAT inputs ≥ 30 dB Outputs ≥ 27 dB SAT outputs ≥ 35 dB DVB-T |
| Switching signals:: | 14 V / 18 V0 Hz / 22 kHz |
| Tv gain (cable correction):: | -4 ... 5 dB |
| Tv gain adjustment:: | 15 dB in 1 dB increments |
| Warranty:: | 2 years |
MV series radial multiswitches have been designed to work in medium and large SMATV systems, they can also be used in smaller home installations

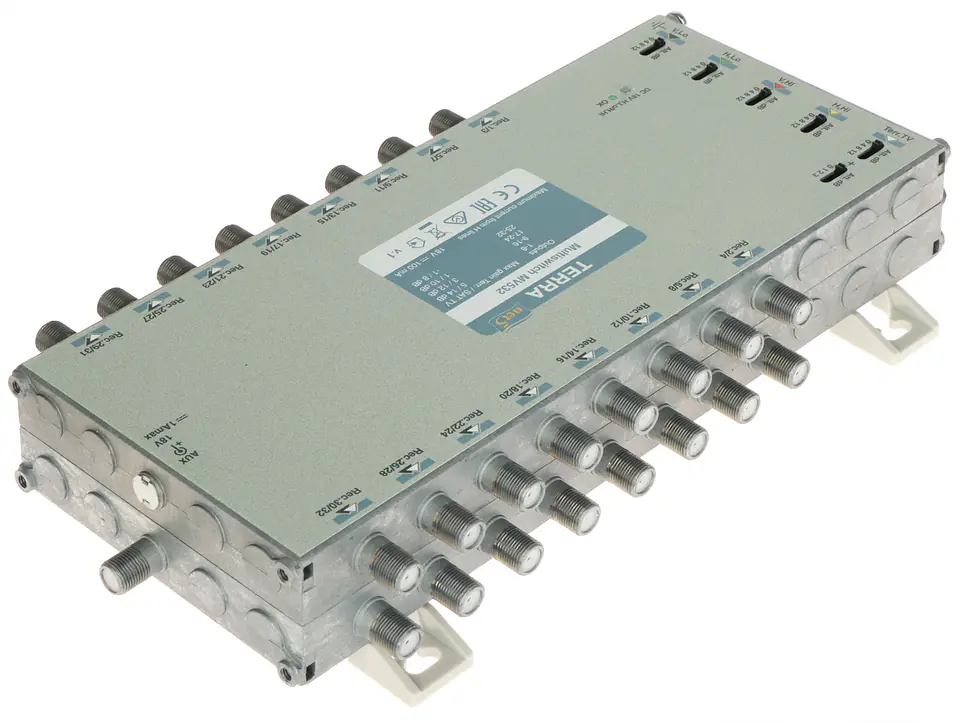

MV-532 multiswitch has an active (amplified) terrestrial and satellite TV pathRegulation of gain (signal level) for each of the satellite and DVB-T paths is carried out using dedicated switches
The die-cast housing guarantees a high level of shielding - class A
