| Dimensions:: | 293 x 135 x 52 mm |
|---|---|
| Inputs:: | 8x 950 MHz ... 2400 MHz1x 47 MHz ... 790MHz Active - Built-in LTE1x 5MHz filter ... 862 MHz Passive |
| Manufacturer / brand:: | TERRA |
| Maximum sat output level:: | 93 dBμV |
| Maximum tv output level:: | 81 ... 85 dBμV |
| Output:: | 24x 5 MHz ... 2400 MHz |
| Power supply for preamplifiers:: | 12 VDC |
| Power:: | 230 VAC |
| Sat gain (cable correction):: | 5 ... 12 dB |
| Scales:: | 1.6 kg |
| Separation:: | Between SAT/SAT inputs > 30 dB outputs > 30 dB SAT outputs > 30 dB DVB-T |
| Switching signals:: | 14 V / 18 V0 Hz / 22 kHzDiSEqC 1.0DiSEqC 2.0 |
| Tv gain (cable correction):: | -1 ... 4 dB |
| Warranty:: | 2 years |

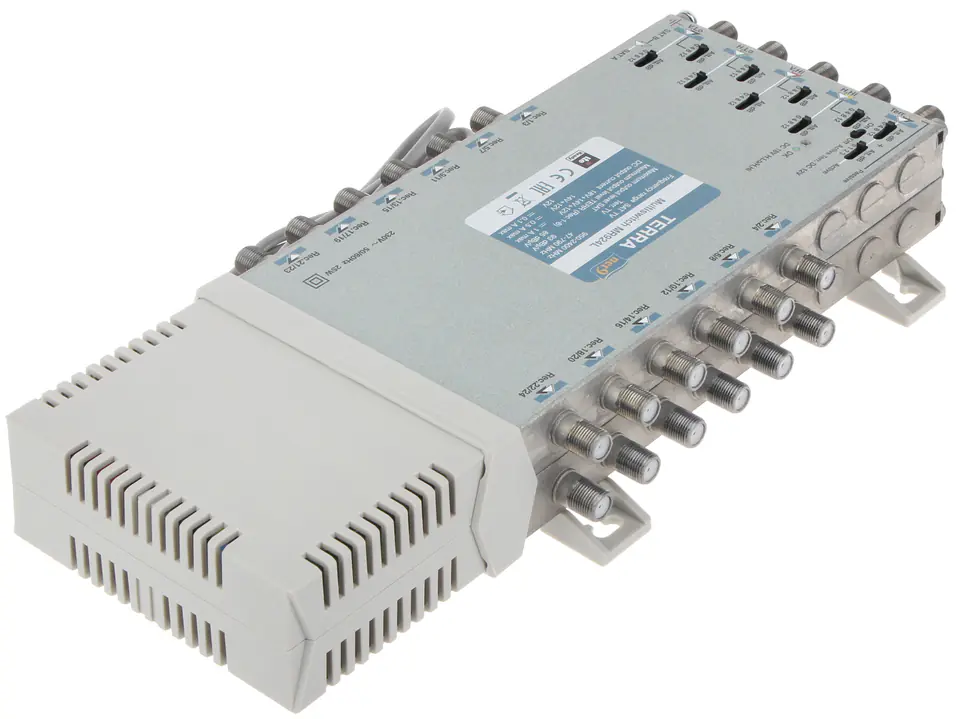

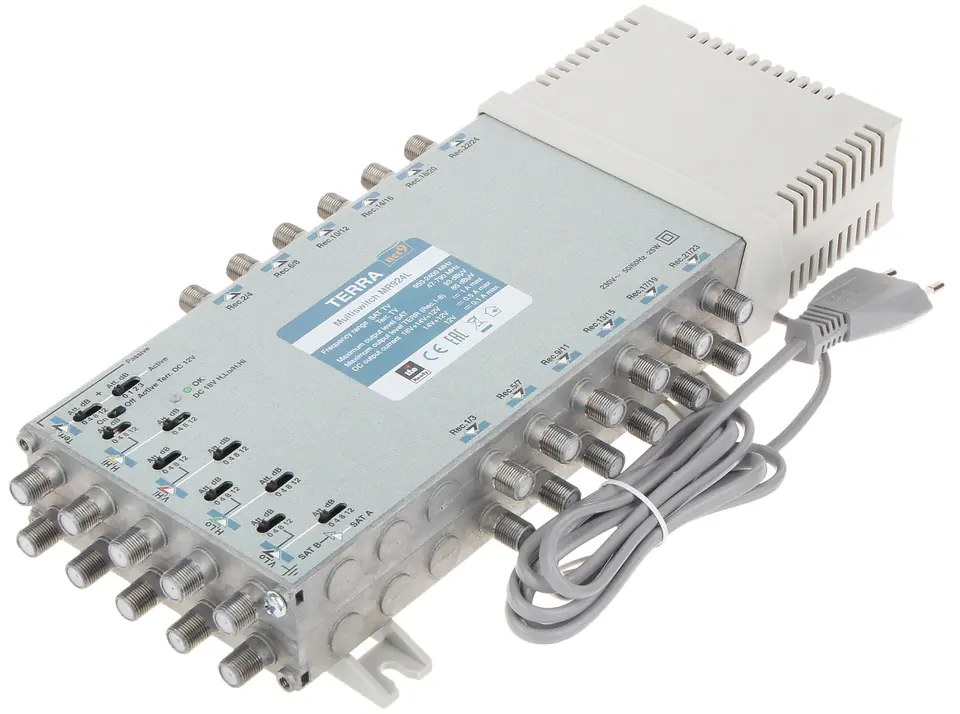

MR series radial multiswitches are dedicated for small and medium -sized (4-70 outlets) installations with distribution of sat intermediate frequency signal and terrestrial TV signal
The MR series is designed for installation in systems wholly or partly based on the star topology, in which the cables from the end sockets converge at the installation site of a multiswitch or a group of multiswitches. They are therefore ideal for use in single- or multi-family houses
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
