With OPTICUM dCSS multiswitch, we set a new path that significantly simplifies the procedure of installing single-cable TV systems. In addition to the EN50494 and EN5060 protocols, our system has additional setting options.

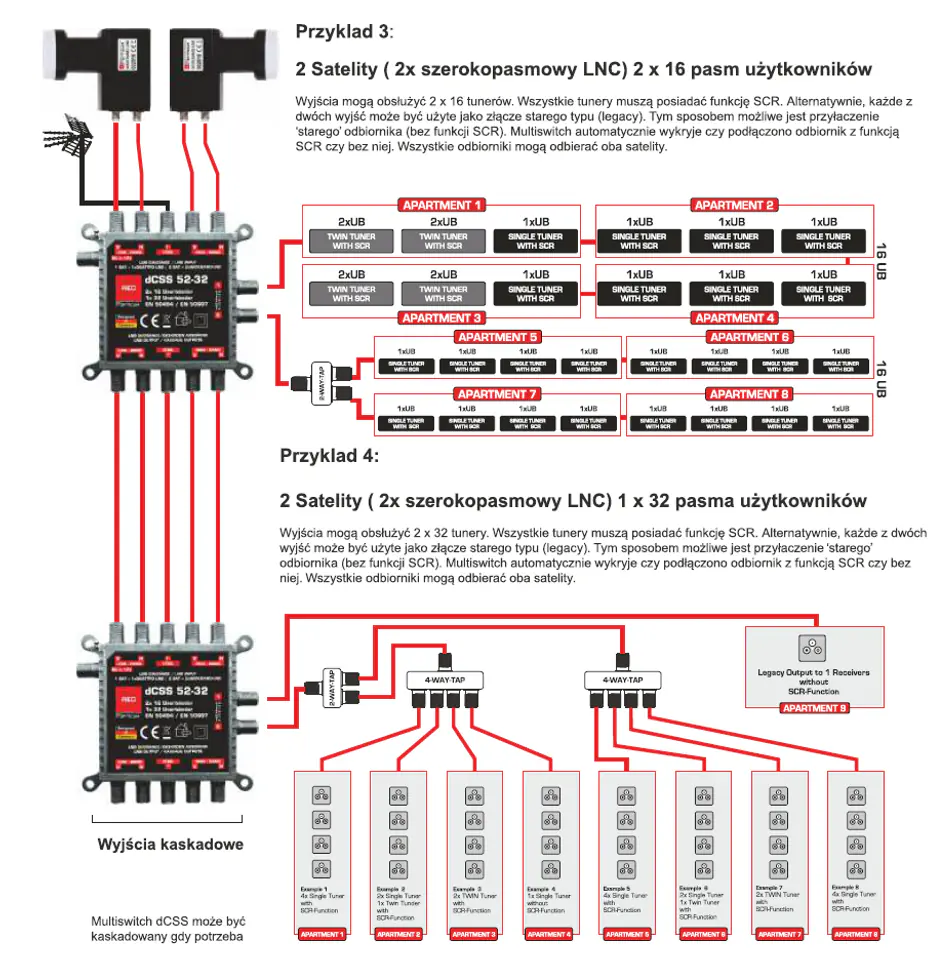

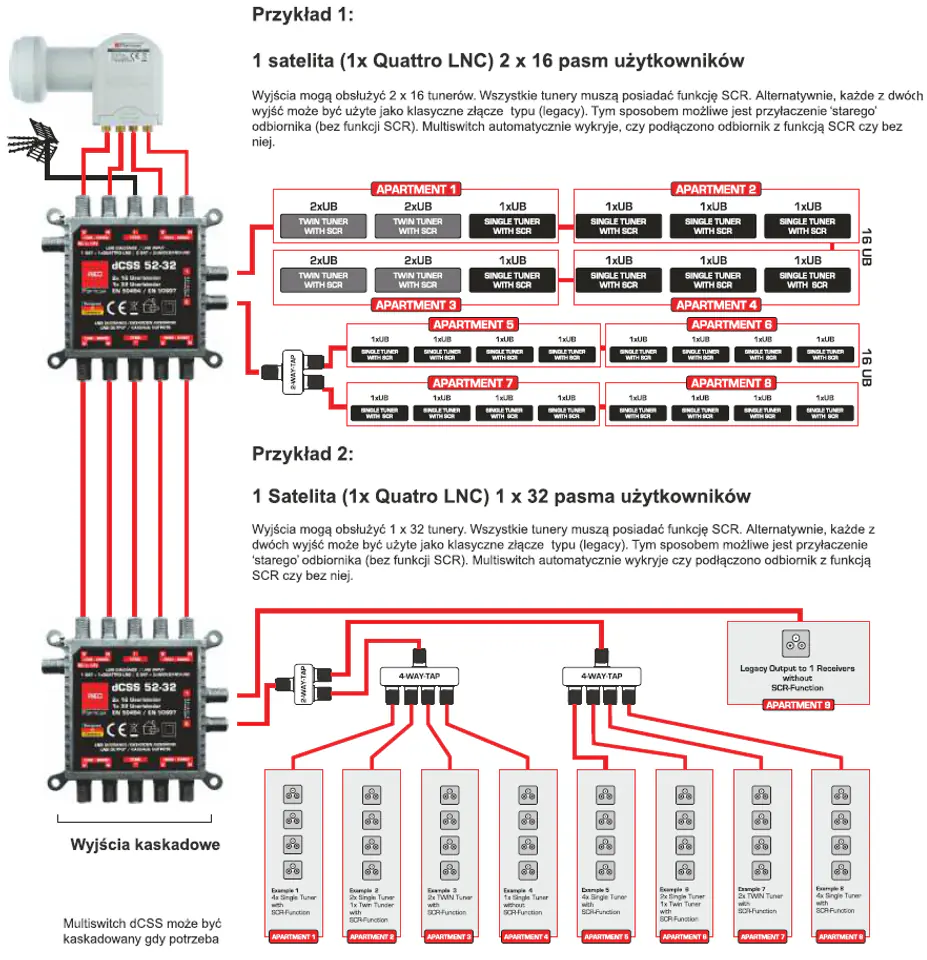

Regardless of whether it is SatCR with 4 in dynamic mode with 4 bands for users, or SkyQ (dSCR) with 8 user bands, or dCSS with 2 outputs with 16 user bands or 1 with 32 user bands, automatic legacy mode lun in static (ZF-IF headend)

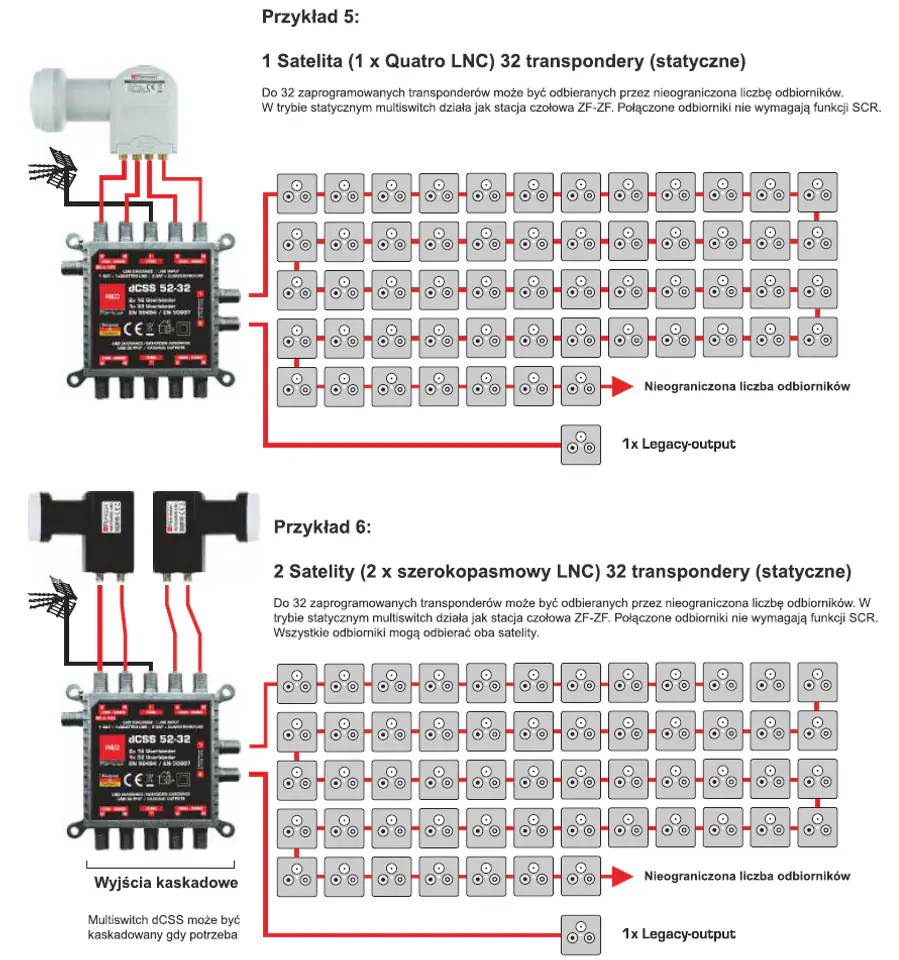

with up to 32 fixed transponders, the compact dCSS Multiswitch includes all these functions.
It does not matter whether 1 satellite is to be received with standard QUATRO LNC or 2 satellites with broadband LNCs (broadband frequency range 290-2340MHz)

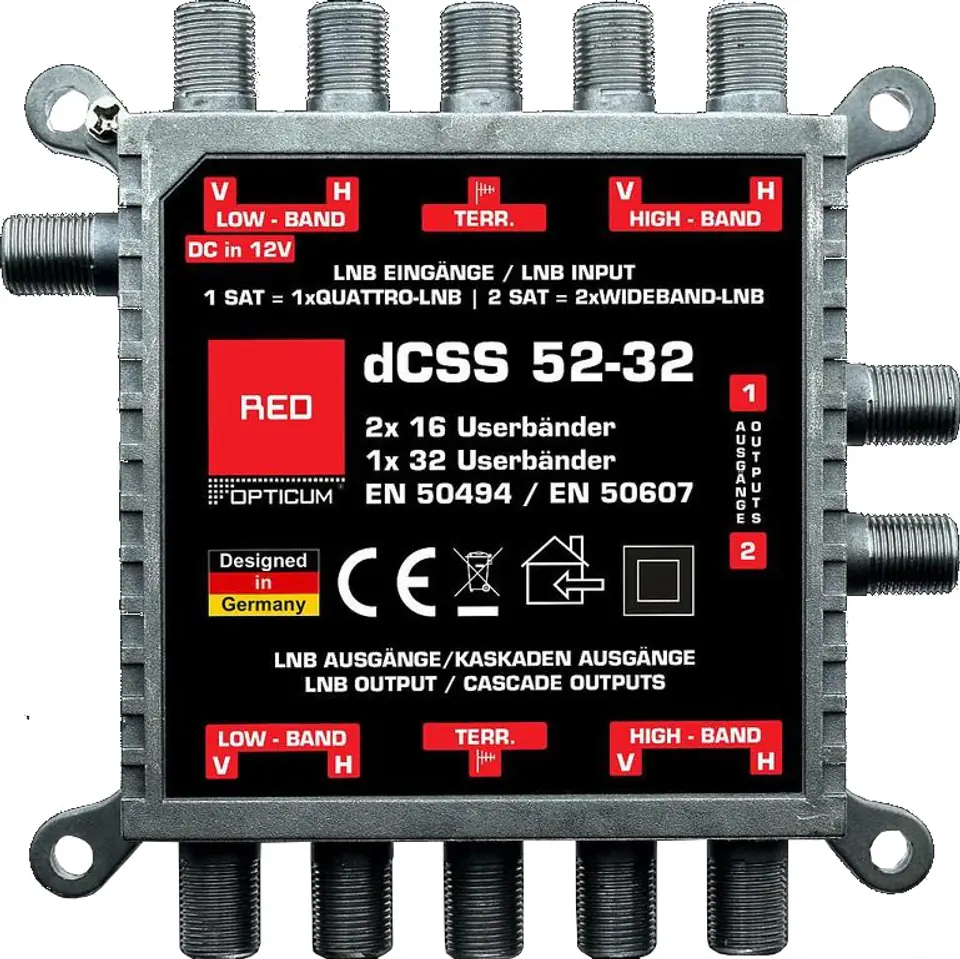

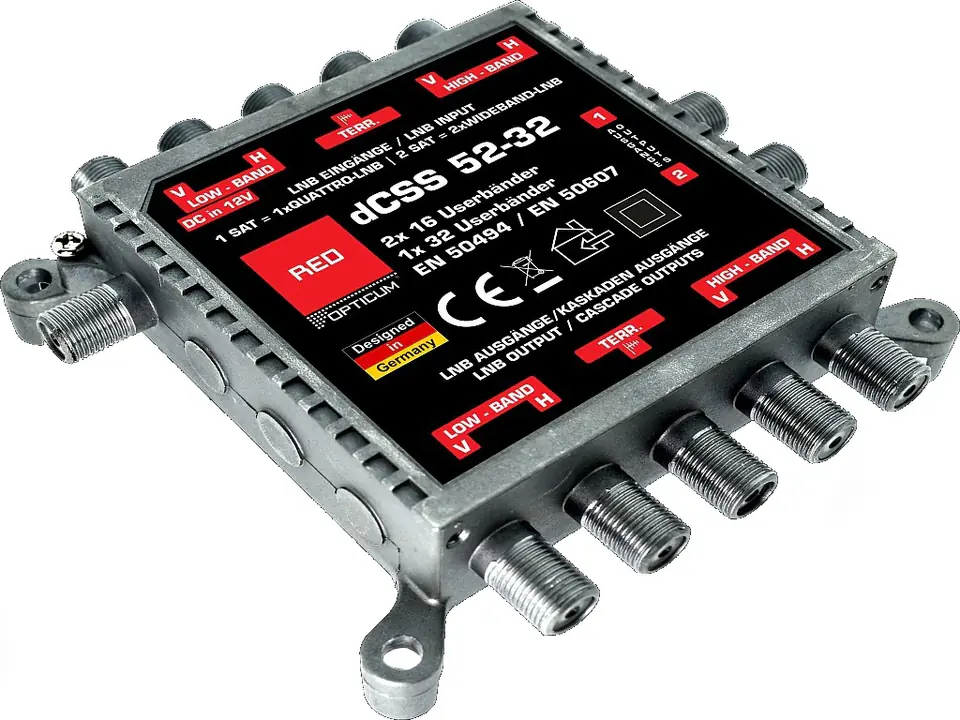

The small multiswitcvh dCSS comes in a strong die-cast aluminum housing and can be easily mounted.
The housing has built-in grounding terminals and provides good ventilation (rear) as well as installation thanks to the distance from the wall.
The highest quality connectors ensure consistent, high quality reception.
Power supply included 12V 1000mA.
At the customer's request, the multiswitch can of course be programmed with other parameters in static and dynamic mode! In static mode for operators: NC+ for UltraBox+ receivers, Cyfrowy Polsat Evobox 1 and Evobox 2.Dynamic mode, the multiswitch is equipped with 32 satellite transponders for an unlimited number of signal recipients.
Opticum DCSS 52-32 multiswitch programmed in configuration: Evobox 1 and Evobox 2 2x 16UB output:
1 1210MHz
2 1420MHz
3 1680MHz
4 2040MHz
5 978MHz
6 1028MHz
7 1072MHz
8 1116MHz
9 1160MHz
10 1271MHz
11 1315MHz
12 1359MHz
13 1484MHz
14 1528MHz
15 1572MHz
16 1616MHz
Of course, the multiswitch can be programmed with other parameters in static and dynamic mode!
