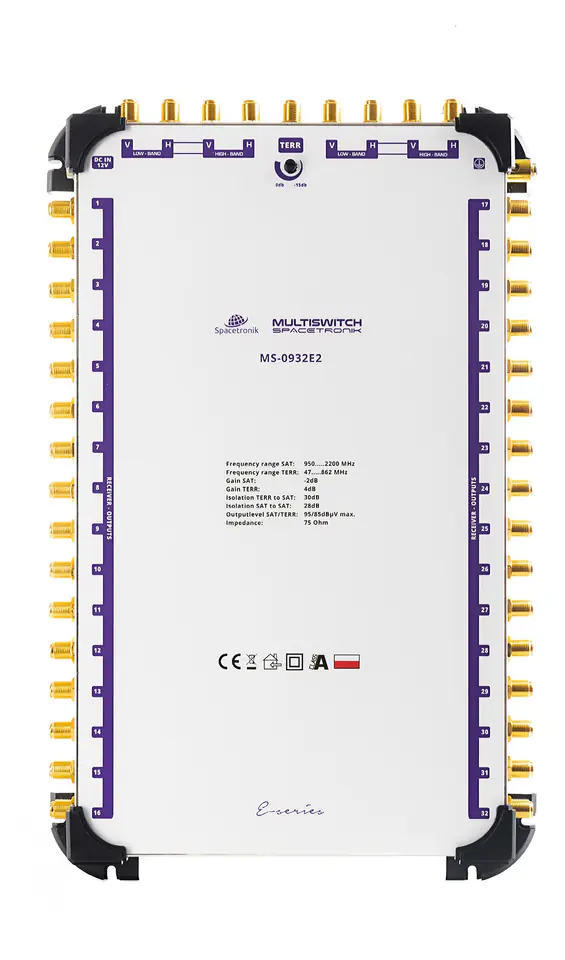

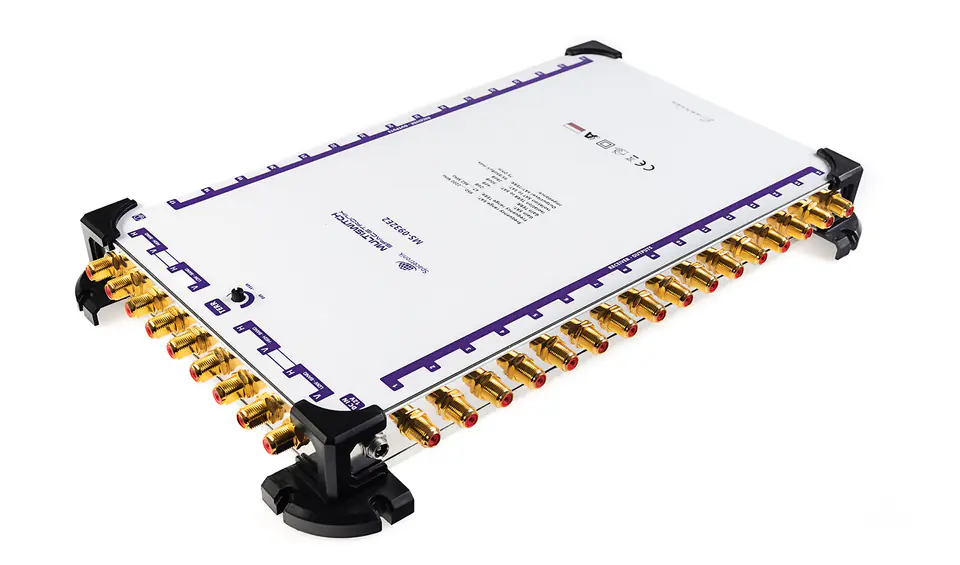

Multiswitch 9/32 Spacetronik E-Series MS-0932E2
The multiswitch has been designed for expansion of indoor antenna systems of satellite DVB-S2 and terrestrial DVB-T/T2 systems.
The device allows to distribute satellite signals from two different satellites, e.g. Hotbird + Astra, and terrestrial signal and connect to 32 subscriber outlets, satellite receivers, DVB-T receivers, etc.

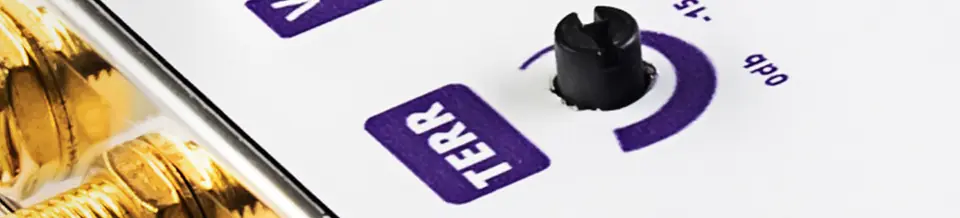

New version of Spacetronik E-Series V2 multiswitches characterized by the addition of attenuation adjustment options in TERR DVB-T/T2 path: 0 / -15 dB

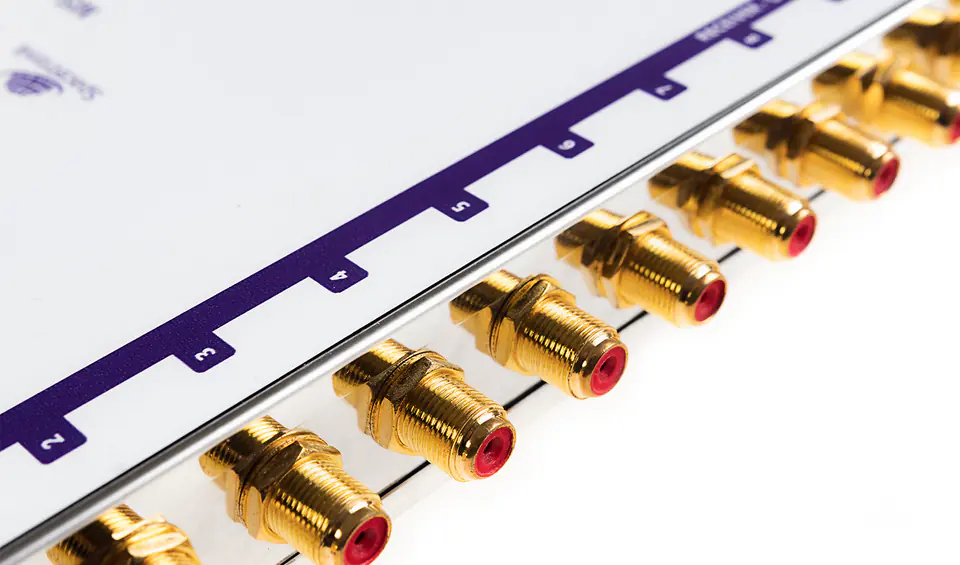

Gold-plated sockets significantly reduce signal loss at the antenna cable connection and the lack of oxidation.
The multiswitch automatically recognizes the type of signal that will be transmitted to the receivers.
The installation should include connecting the multiswitch to a satellite dish with a diameter of not less than 0.8 m, a Quattro or Quad LNB and terrestrial TV antenna.
The satellite and terrestrial signals coming from the multiswitch are separated by means of outlets.

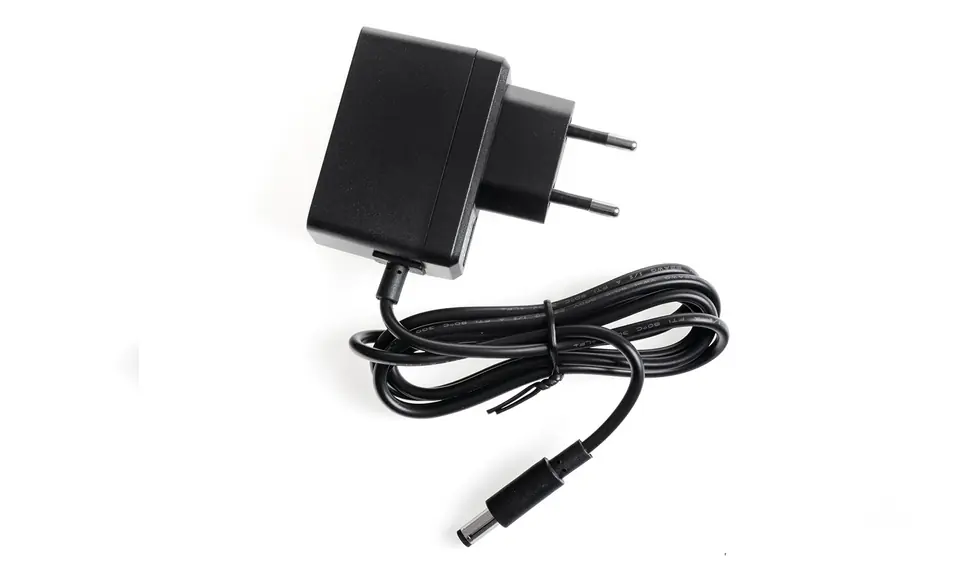

The multiswitch is powered via an external power supply, which eliminates the phenomenon of increased operating temperature, which is a frequent cause of damage to the device
When installing the device, it is necessary to take into account the existing installation conditions regarding the power supply:
- location away from the influence of weather conditions
- protection against access by third parties
- adequate ventilation
Connect:
- two signal inputs from SAT Quattro or QUAD converter
- one terrestrial DVB-T/T2 input
- 32 combined SAT+DVB-T/T2 outputs
Specifications:
- SAT frequency range: 950-2200 MHz
- TER frequency range: 47-862 MHz
- SAT gain (950-2150 MHz) : 2 dB
- TER gain (47-862 MHz) : 4 dB
- SAT to TER separation: 30 dB
- TER to SAT separation: 28 dB
- Separation between polarizations H/V: 25 dB
- Maximum SAT output level: 95 dBuV
- Maximum output level TER: 85 dBuV
- Input/output impedance: 75 Ohm
- Switching polarization/bandwidth: 13V/18V 13V/22kHz-18V/22kHz
- Power supply from mains: 230V AC 50Hz
- Operating temperature: 0...+55 oC
- Dimensions: 360 x 216 x 52 mm
User manual in POLISH - https://dmtrade.pl/katalogi/Spacetronik/e-series/instrukcjapl.pdf language
