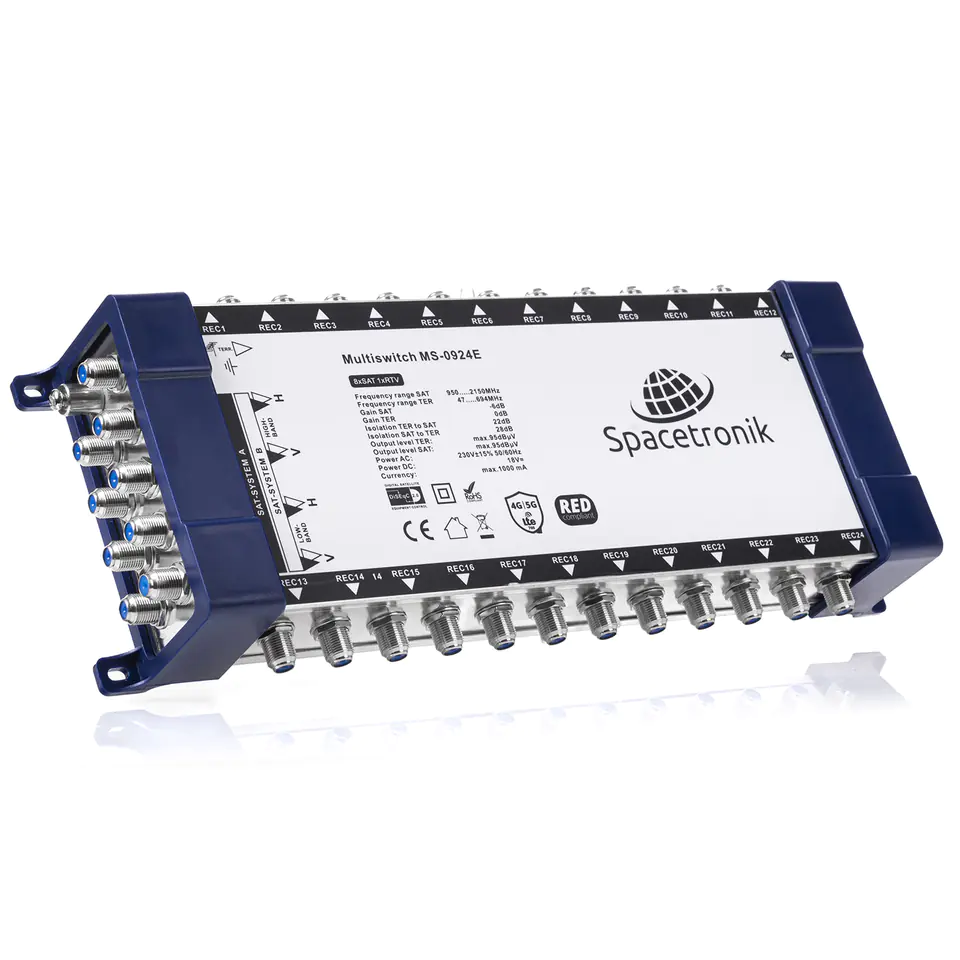

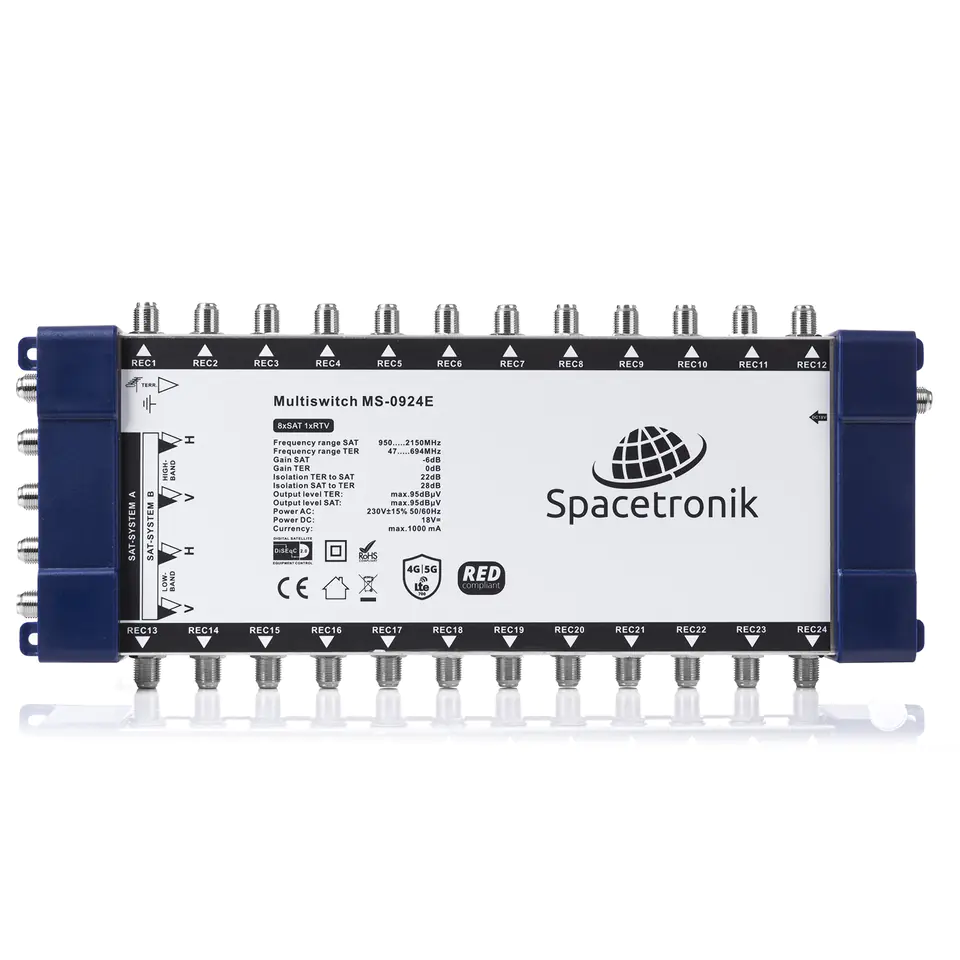

Spacetronik E-Series MS-0924E terminal multiswitch

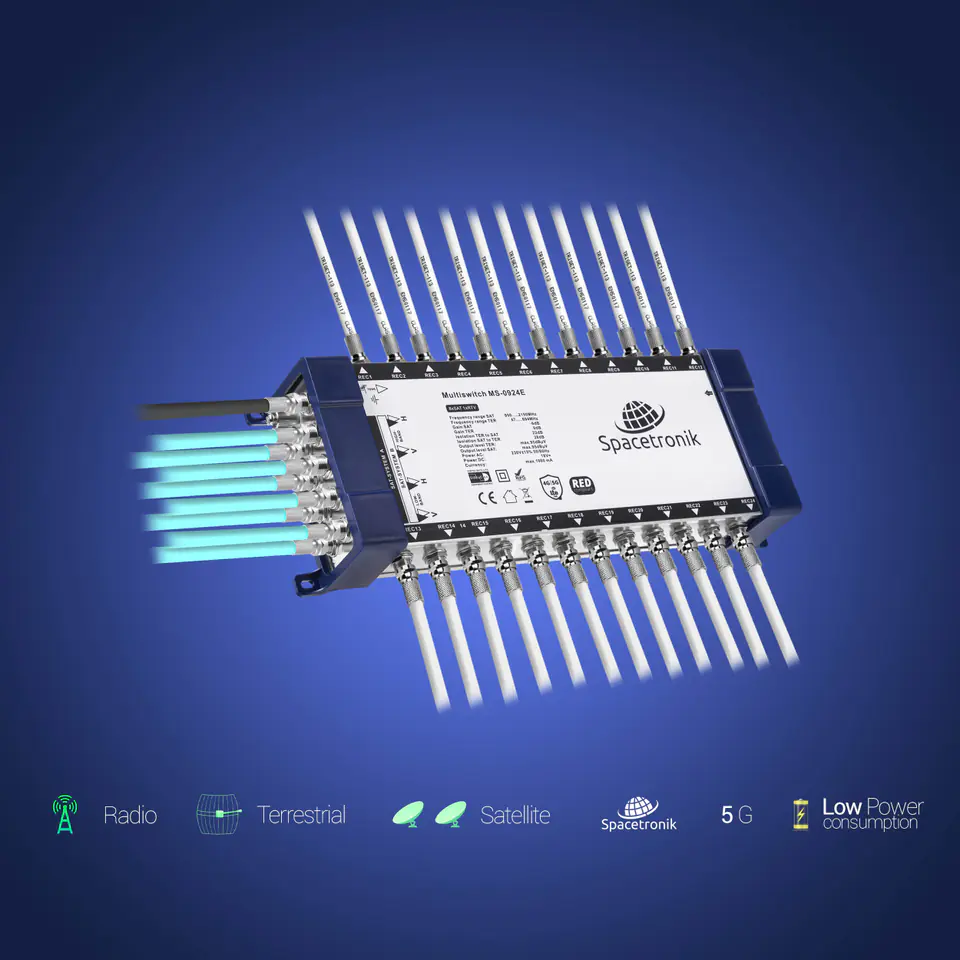

The multiswitch has been designed for expansion of indoor antenna systems of satellite DVB-S2 and terrestrial DVB-T/T2 systems. The device allows to distribute satellite-terrestrial signals and connect up to 24 subscriber outlets , satellite receivers, DVB-T receivers, etc.
Number of inputs: 8 SAT, 1 TER
Number of outlets: 24
Connectors: F female
SAT Frequency Range: 950-2150MHz
TER frequency range: 47-694MHz
SAT gain: -3 to 6dB
TER gain: -7 to 2dB
TER to SAT isolation: 30dB
SAT to TER Isolation: 28dB
H/V polarization separation isolation: 25dB
Isolation out - out TER: 22dB
SAT out-out isolation: 30dB
SAT backprint loss input: 10dB
SAT Backprint Loss Output: 7dB
TER Reflection Attenuation input: 11dB
TER Reflection Attenuation Output: 8dB
SAT Output Level (IMD3 - 35dB): 100dBμV
TER Output Level (IMD3 - 60dB): 83dBμV
Input/output impedance: 75Ohm

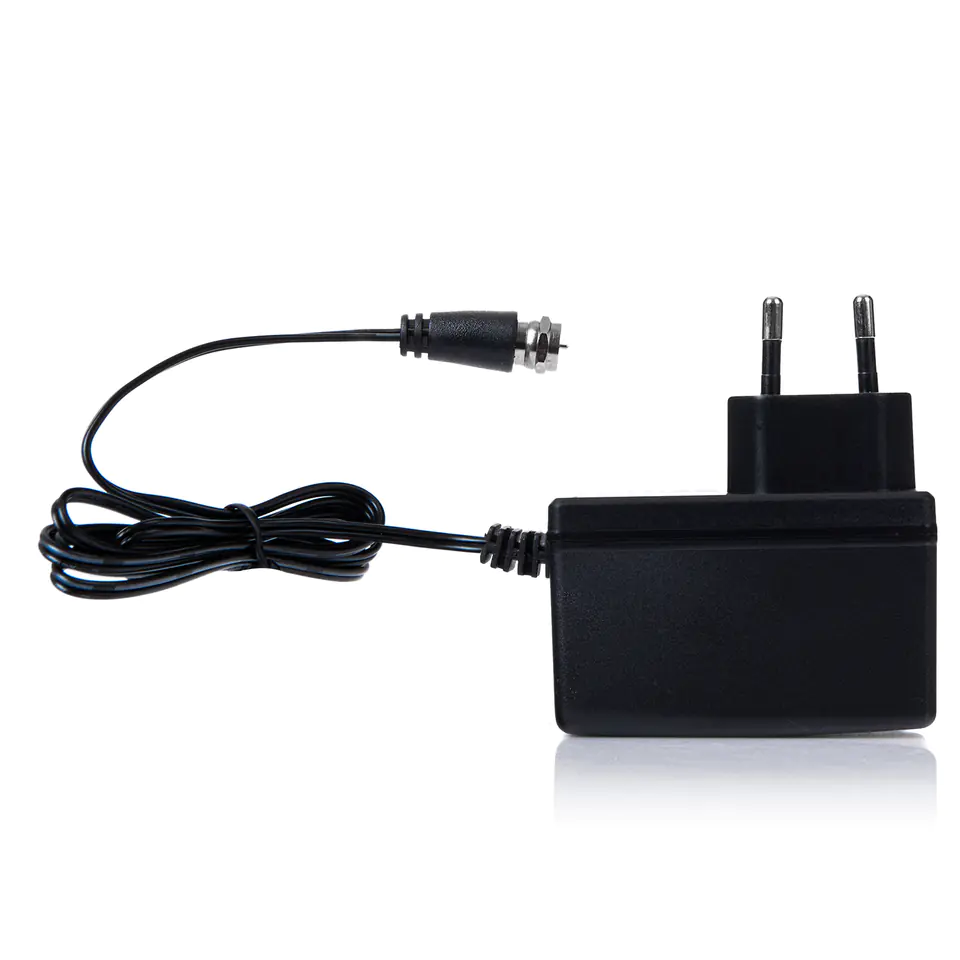

Power supply: max. 18V
