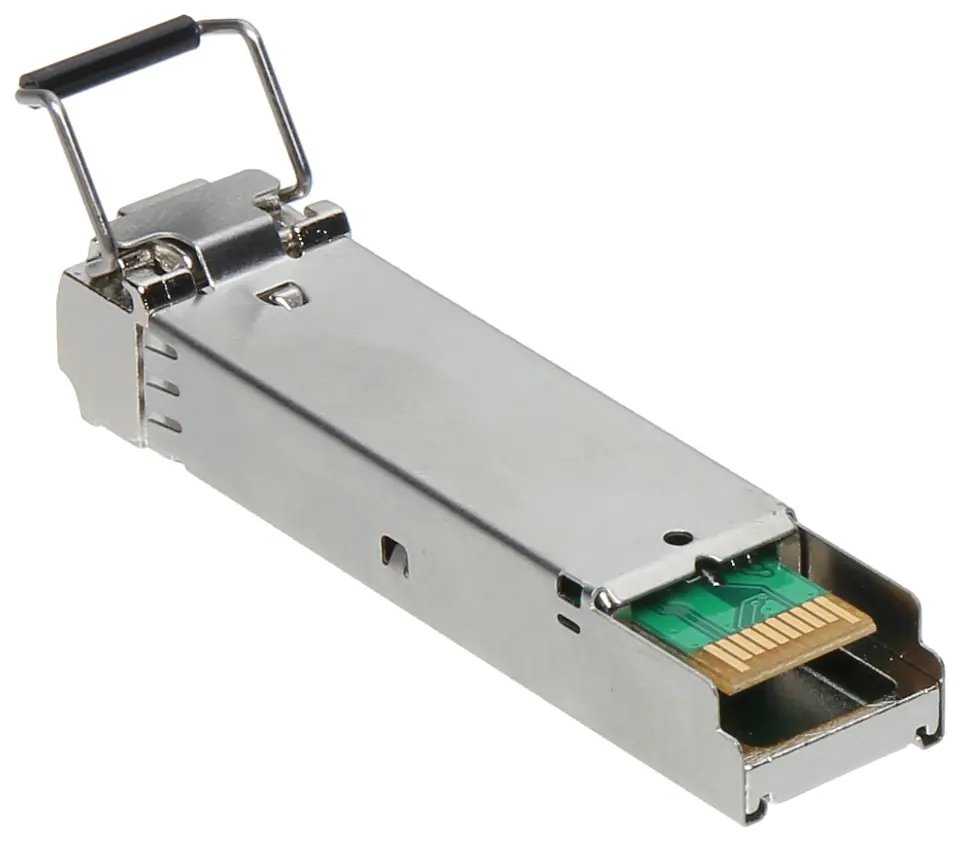

MULTIMODE MODULE SFP-011M

€9.51
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Product code:
SFP-011M / 5907634549149

Specification

Fiber type::50/125 μm, 62.5/125 μm - Multimode Fiber
Light source / optical wavelength::Laser FP / 850 nm
Maximum transmission range::0.5 km @ 50/125 μm 0.3 km @ 62/125 μm
Number of fibers needed::2
Operating temperature::0 °C ... 70 °C
Optical connectors::2 x LC/PC
Power::3.3 VDC
Receiver sensitivity::≥ -19 dB
Scales::0.016 kg
Transfer::Max. 155 Mbps
Transmission protocols::IEEE 802.3u 100Base-FX
Transmitter power::-8 ... -3 dB
Warranty::2 years

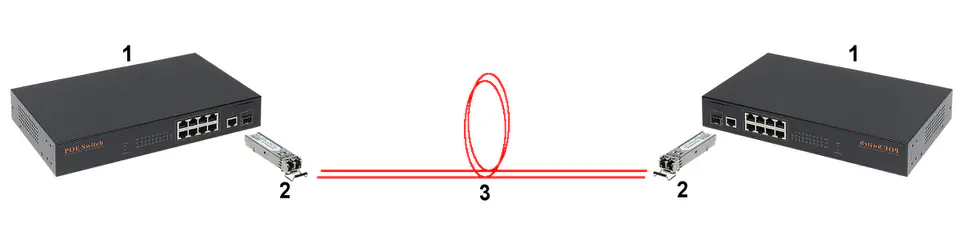

Optical modules compliant with the SFP (Small Form-factor Pluggable) standard are devices that convert electrical signals into optical and optical into electricalThe use of media converters with the possibility of replacing SFP modules is particularly beneficial due to their versatility, e.g. in the case of changing the network configuration, instead of replacing the entire device or adding new media converters, it is enough to choose the appropriate SFP module.

Modules work with most switches and routers with SFP socket

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
