| Baud: | 10 / 100 / 1000 Mbps |
|---|---|
| Dimensions: | 120 x 72 x 27 mm |
| Number of fibres: | 2 pcs. |
| Operating temperature: | -10 °C ... 50 °C |
| Optical wavelength: | 1310 nm |
| Permissible relative ambient humidity: | 5 % ... 95 % |
| Port lan: | 1 pc (RJ-45. UTP/STP) |

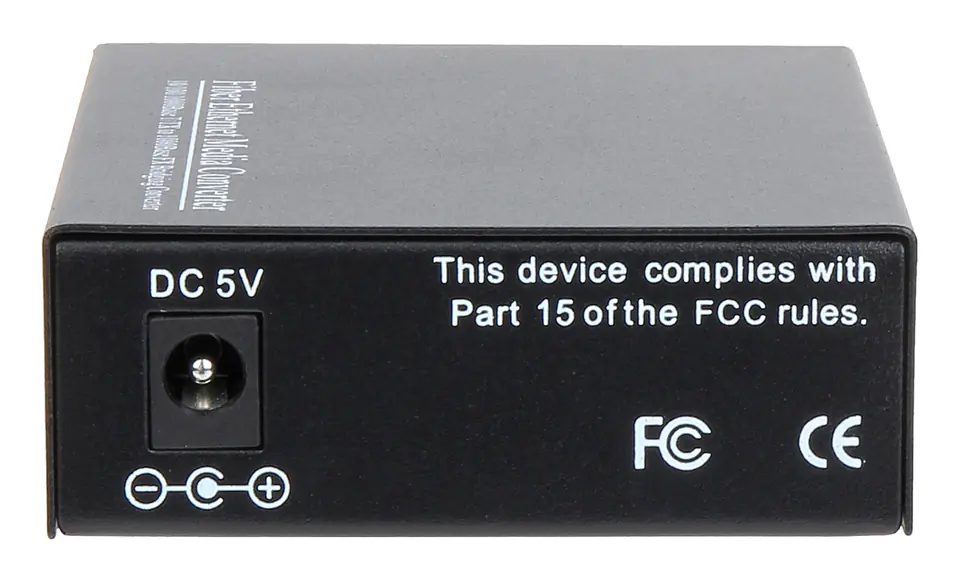

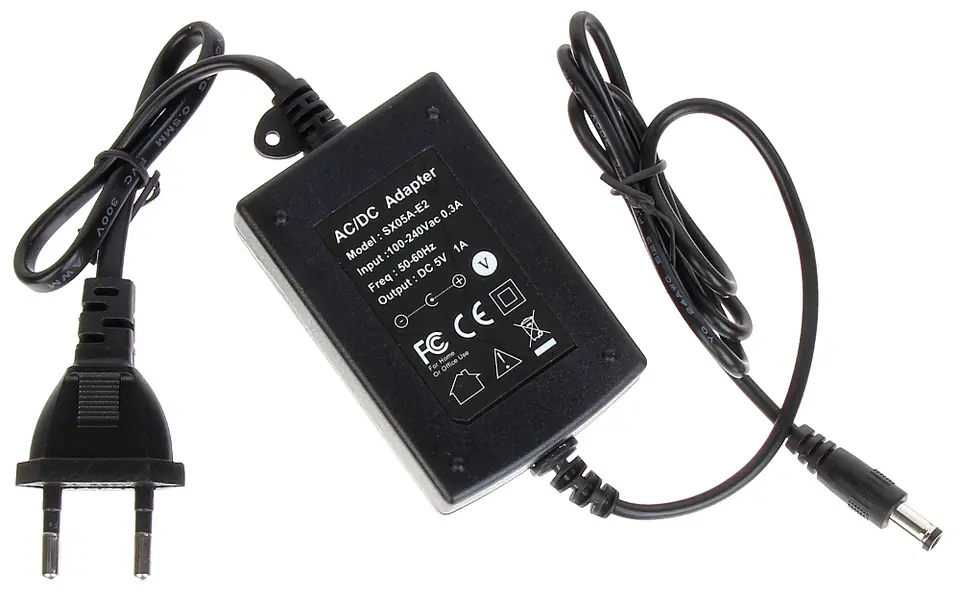

| Power: | 5 V DC / 1 A (power adapter included) |
| Scales: | 0.146 kg |
| Selected features: | Auto MDI/MDI-X detection - automatically detects data transmission mode Auto bit rate detection Two-way transmission via two optical fibers LEDs indicating correct operation of the device |
| Supported standards: | IEEE 802.3, IEEE 802.3u, 802.3z |
| Transmission range: | 2 km - Multimode fiber |
| Type of optical connector: | 2 pcs. SC / PC |
| Warranty: | 2 years |

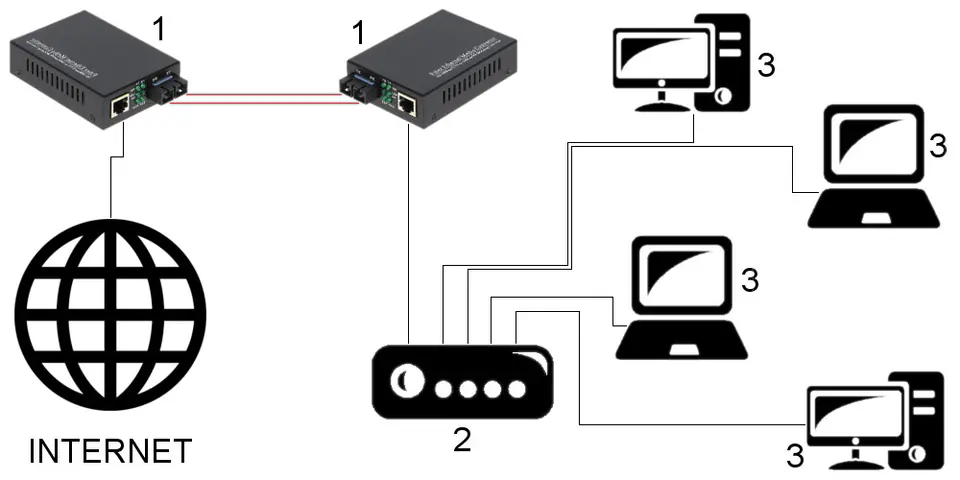

The OMG2-MM converter allows to change the conductive medium from standard STP/UTP cable to multimode fiber optic cable

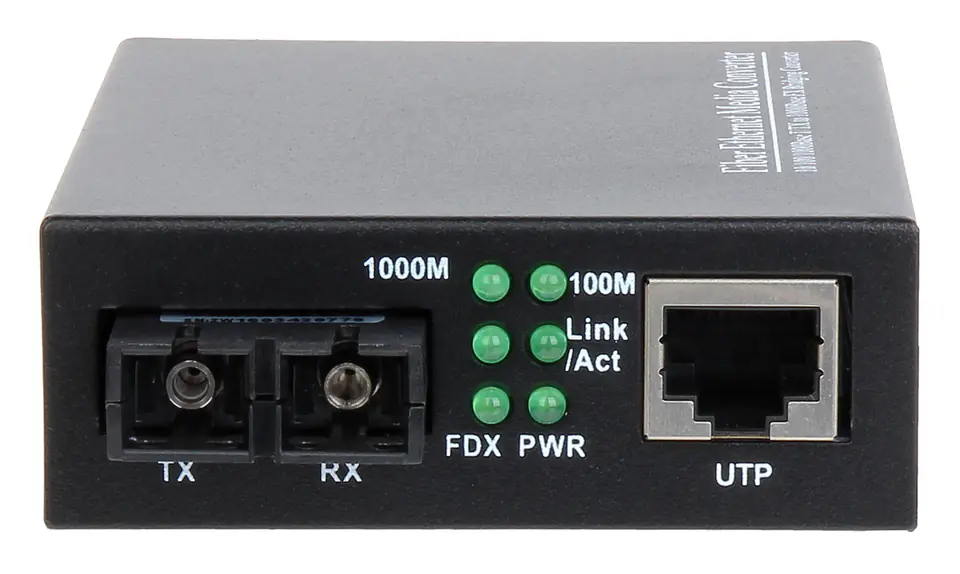

The media converter has two SC connectors. One is used for transmitting (TX) and the other for receiving the signal (RX)The optical signal is transmitted and received in the second transmission window 1310 nm
