| Baud:: | 10 / 100 / 1000 Mbps |
|---|---|
| Dimensions:: | 106 x 70 x 27 mm |
| Lan port:: | 1 pc. (RJ-45. UTP/STP) |
| Manufacturer / brand:: | ULTIMODE |
| Number of fibers:: | 2 pcs. |
| Operating temperature:: | 0 °C ... 50 °C |
| Optical connector type:: | 2 pcs. SC / PC |
| Optical wavelength:: | 1310 nm |

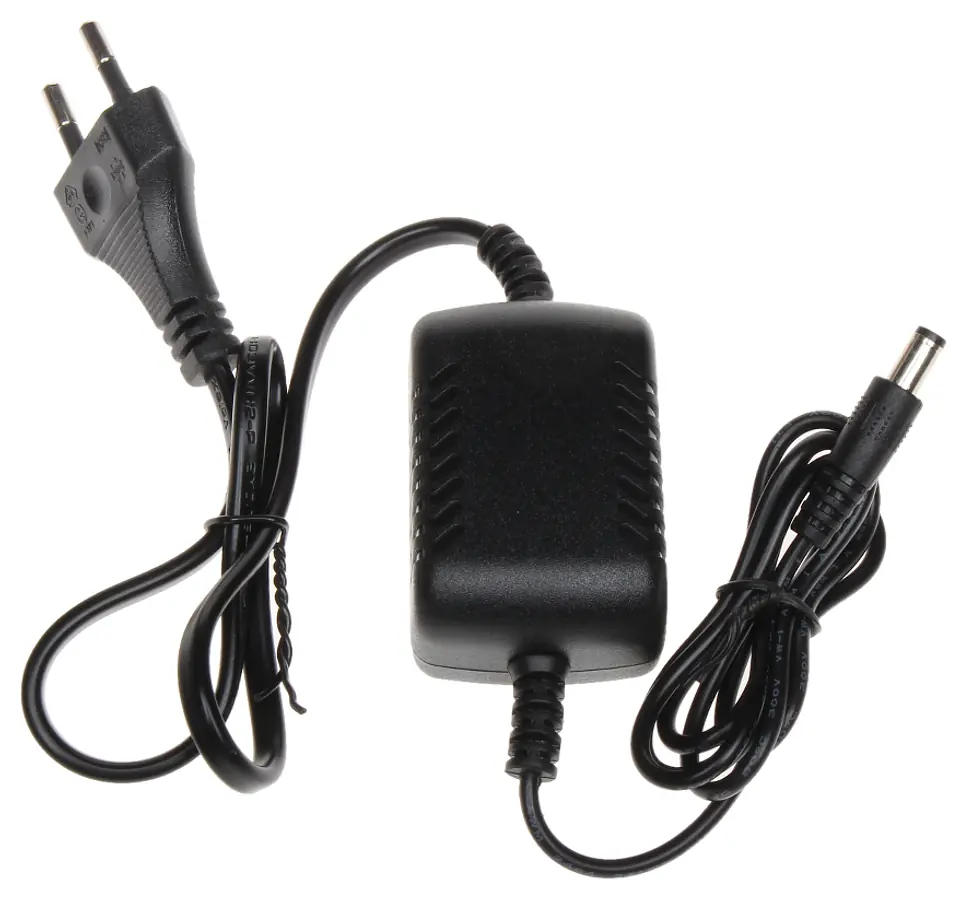

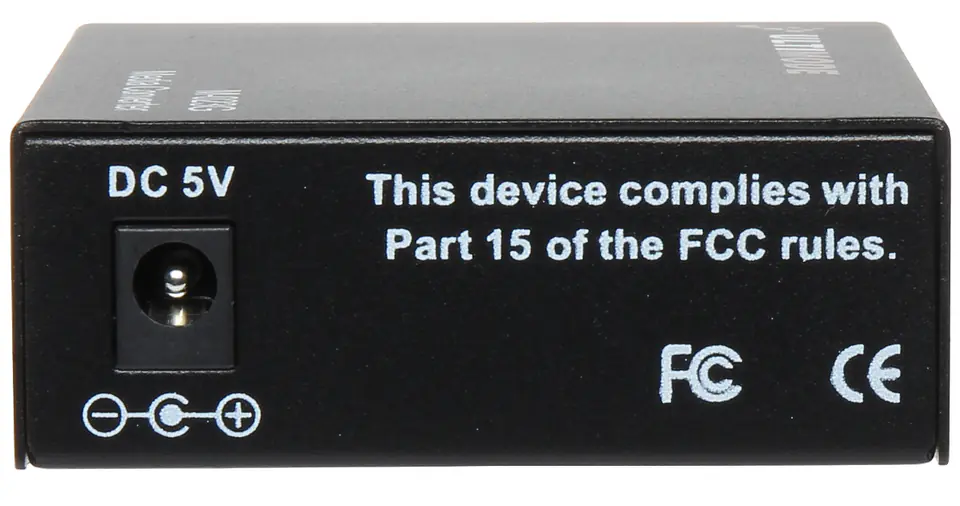

| Power:: | 5 V DC / 2 A (power supply included) |
| Scales:: | 0.174 kg |
| Selected features:: | Auto MDI/MDI-X Detection - Automatically Detects Data Transmission Mode Auto Bit Speed Detection Bidirectional Transmission Via Two Fibers LEDs Indicating Correct Operation of the Device |
| Supported standards:: | IEEE 802.3, IEEE 802.3u, 802.3z |
| Transmission range:: | 2 km - Multimode fiber |
| Warranty:: | 2 years |

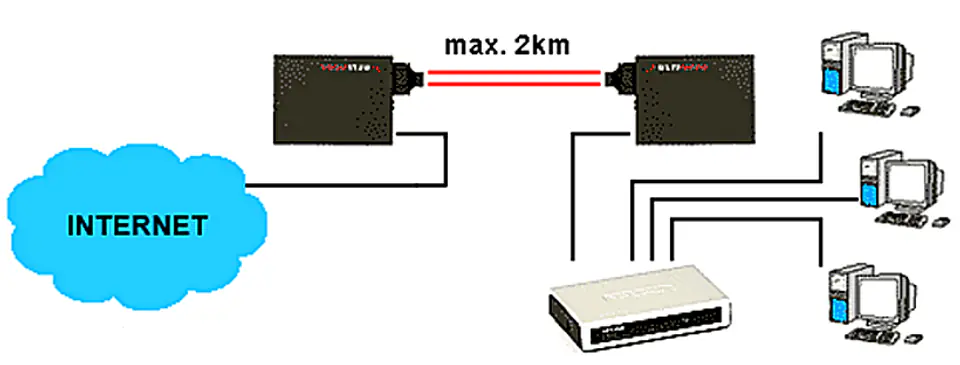

The M-023G converter allows you to change the conductive medium of the data stream from a standard STP/UTP cable to a multimode fiber optic cable

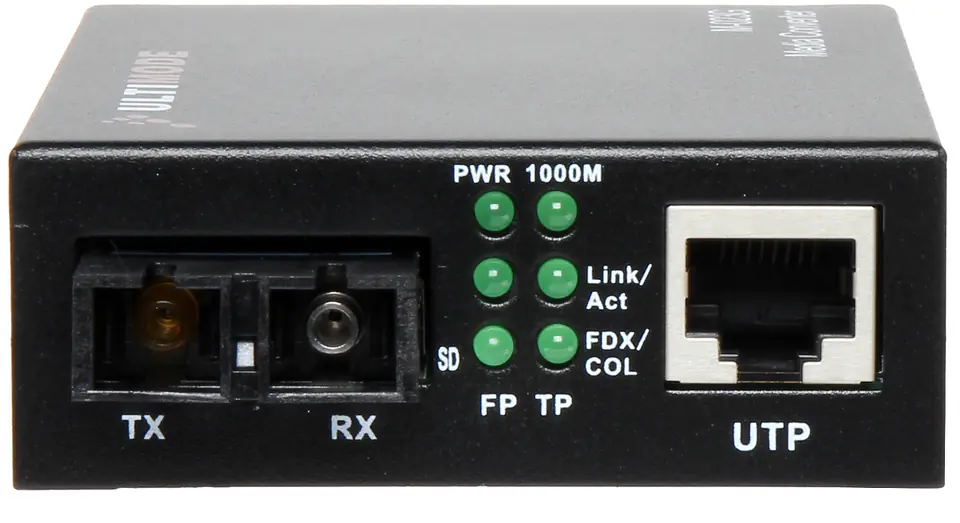

The media converter has two SC connectors. One is used to transmit (TX) and the other to receive the signal (RX)The optical signal is transmitted and received in the second transmission window 1310 nm
