MULTILINE LASER AQ4DG GREEN PLUS

Technical Specifications

Manufacturer: Pro
manufacturer's code: 3-01-06-L1-210
EAN: 5901571527185
Power supply: Li-ion battery
Self-leveling system: Magnetic pendulum
Laser beam color: Green
Accuracy: ± 1 mm/5m (± 0.2 mm/1m)
Range (max): 30 m
Range with detector (max): 50 m
Manual mode: Yes
Thread: 1/4" and 5/8"
IP rating: IP-54

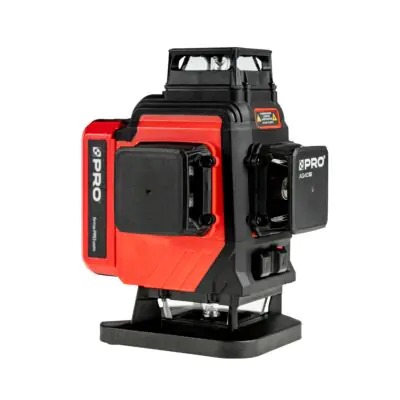

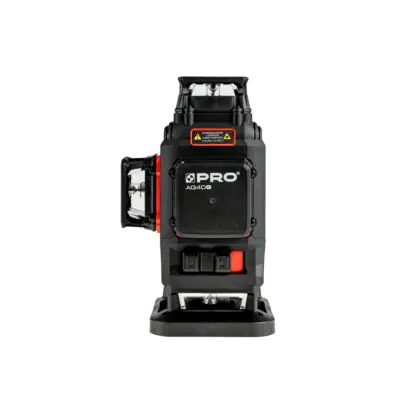

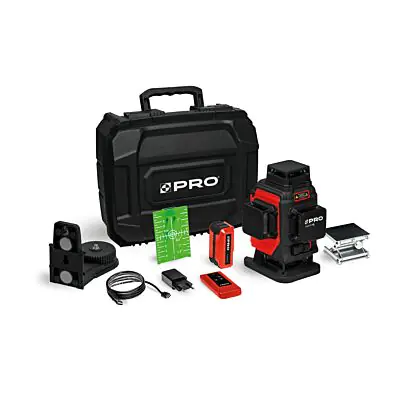

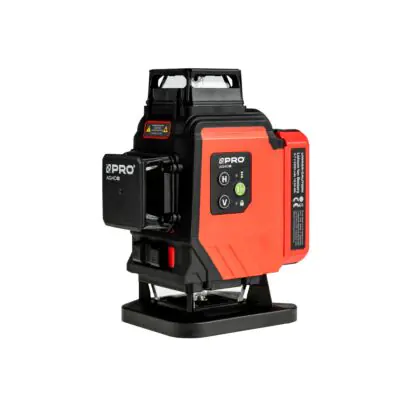

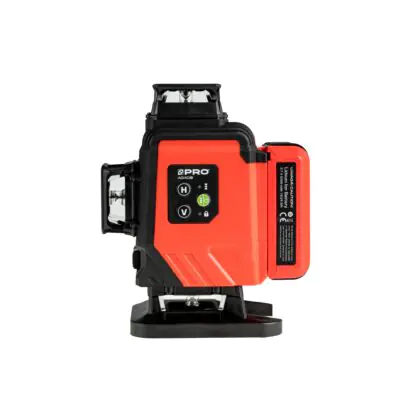

Multi-line laser AQ4DG Green Plus

The PRO-AQ4DG multi-line laser generates 4 360° planes, two horizontal and two vertical intersecting at 90°
Detector pulse mode extends laser range
Laser plumb function (the axis of the cross on the ceiling and ground determines the vertical)
Possibility of determining bevels thanks to the mode of operation with a locked pendulum
Self-leveling thanks to magnetic pendulum
Protection class IP54
Deflection of the device beyond the operating range of 3°±1° is syngalized by a pulsed sound signal along with the flashing of the laser line
Easy to mount on tripod or expansion pole with 1/4" and 5/8" thread


**

Illustrative photos
