MULTILINE LASER AQ3DG GREEN

Technical Specifications

Manufacturer: Pro
manufacturer's code: 3-01-06-L1-208
EAN: 5901571527161
Power supply: Li-ion battery
Self-leveling system: Magnetic pendulum
Laser beam color: Green
Accuracy: ± 1 mm/5m (± 0.2 mm/1m)
Range (max): 30 m
Range with detector (max): 50 m
Manual mode: Yes
Thread: 1/4" and 5/8"
IP rating: IP-54



Multiline laser AQ3DG Green

The PRO-AQ3DG multi-line laser generates three 360° planes, one horizontal and two vertical planes intersecting at 90°
Detector pulse mode extends laser range
Laser plummet function (the axis of the cross on the ceiling and ground determines the vertical)
Possibility of determining bevels thanks to the mode of operation with a locked pendulum
Self-leveling thanks to the magnetic pendulum
Protection class IP54
Deflection of the device outside the operating range of 3°±1° is syngalized by a pulsed sound signal along with the flashing of the laser line
Easy to mount on tripod or expansion pole with 1/4" and 5/8" thread


**

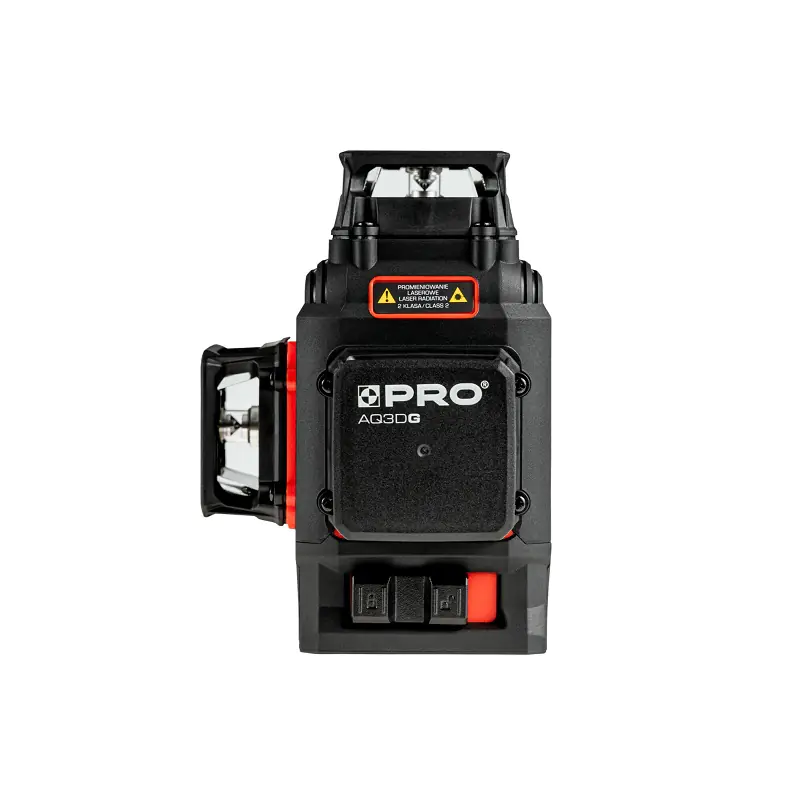

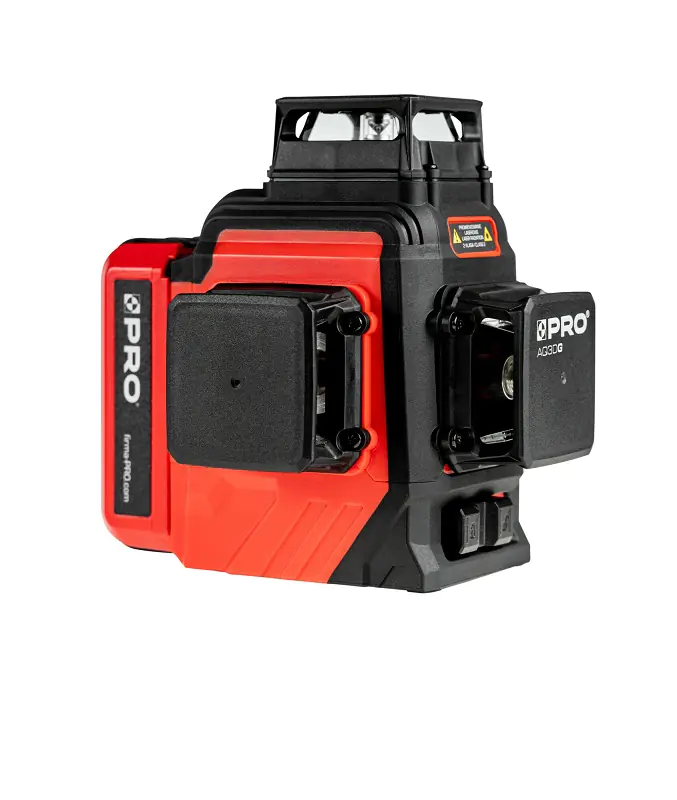

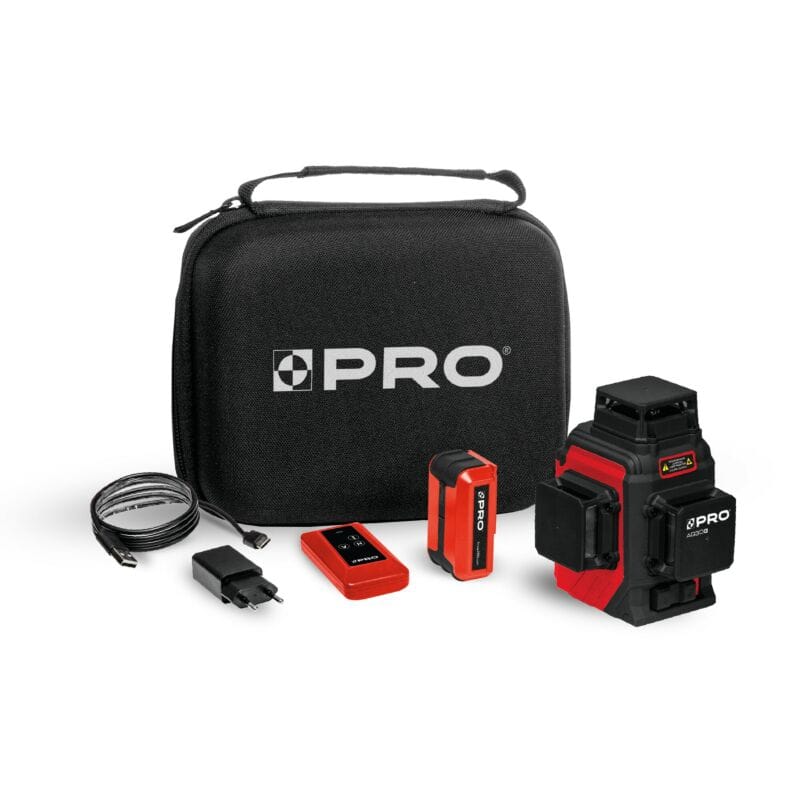

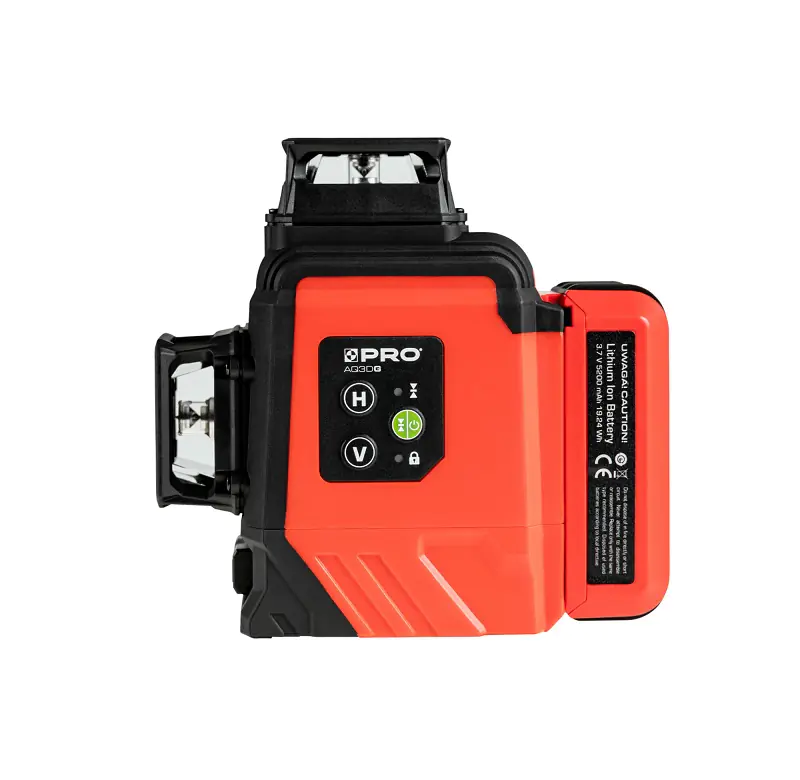

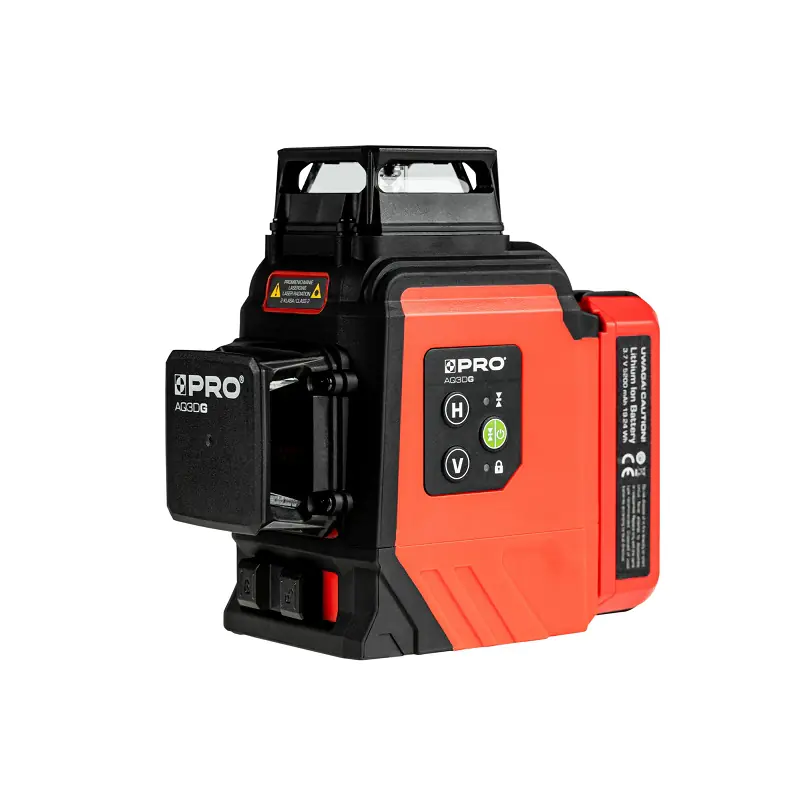

Illustrative photos
