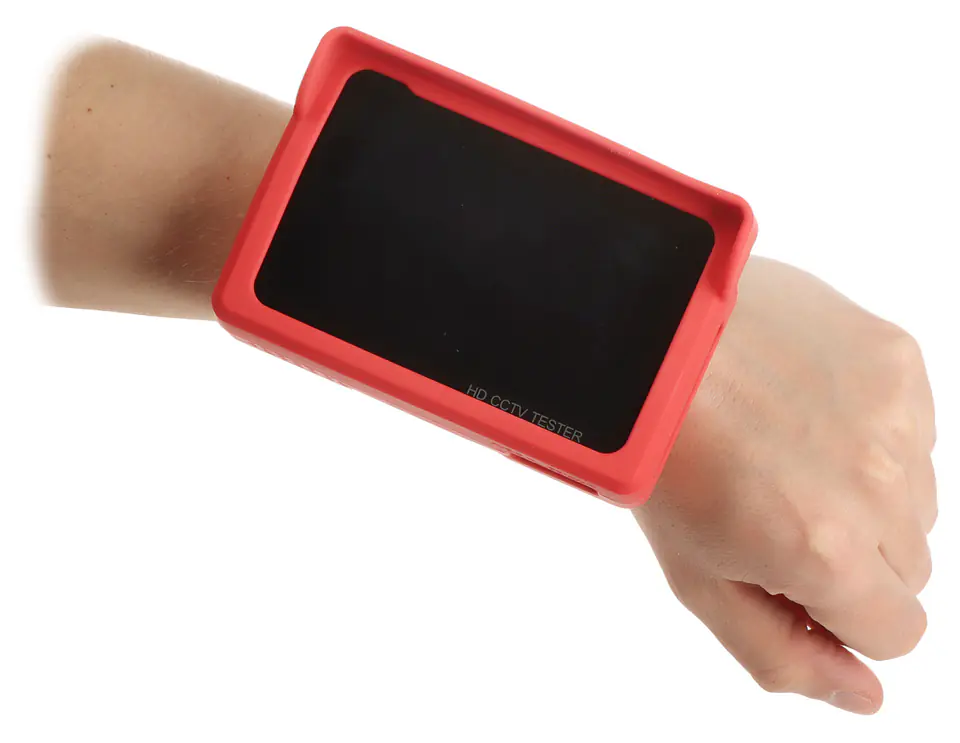

Multifunctional tester of AHD, HD-CVI, HD-TVI, IP, analog cameras, Speed Dome (PTZ), equipped with many additional functions necessary when starting CCTV systems

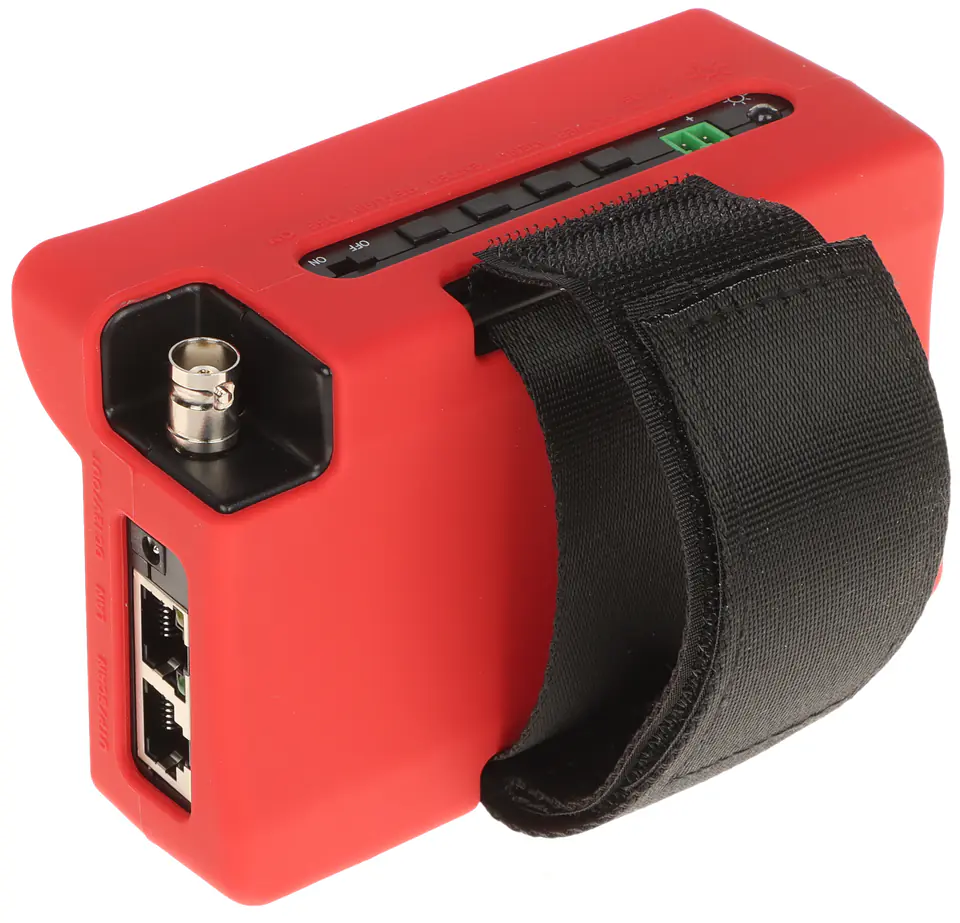

MULTIFUNCTIONAL CCTV TESTER CS-HB-45W
€258.90
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- CS-HB-45W / 5902887067501
Share this product:
Specification

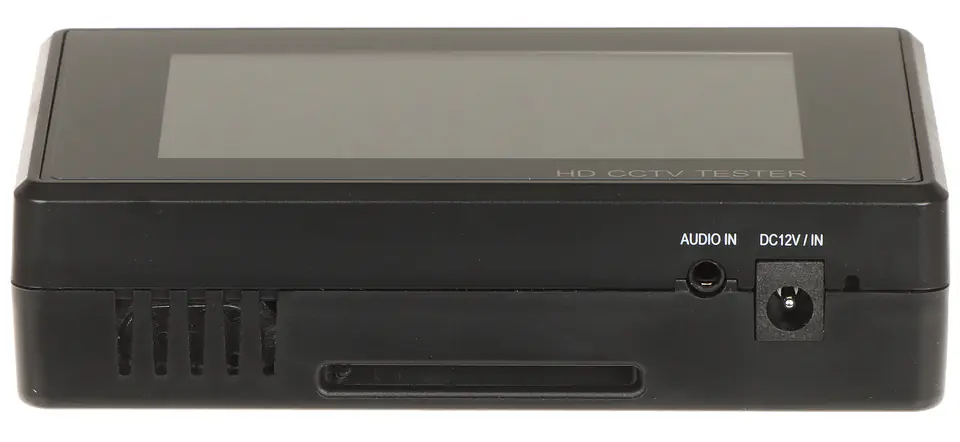

| Audio input:: | 1 pc. Mini Jack |
|---|---|
| Battery life:: | Max. 6 hours |
| Battery:: | Li-Poly battery 7.4 V / 2400 mAh 12 V DC / 1 A (power supply included) |
| Baud:: | 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 115200 bps |
| Dimensions:: | 130 x 87 x 50 mm |

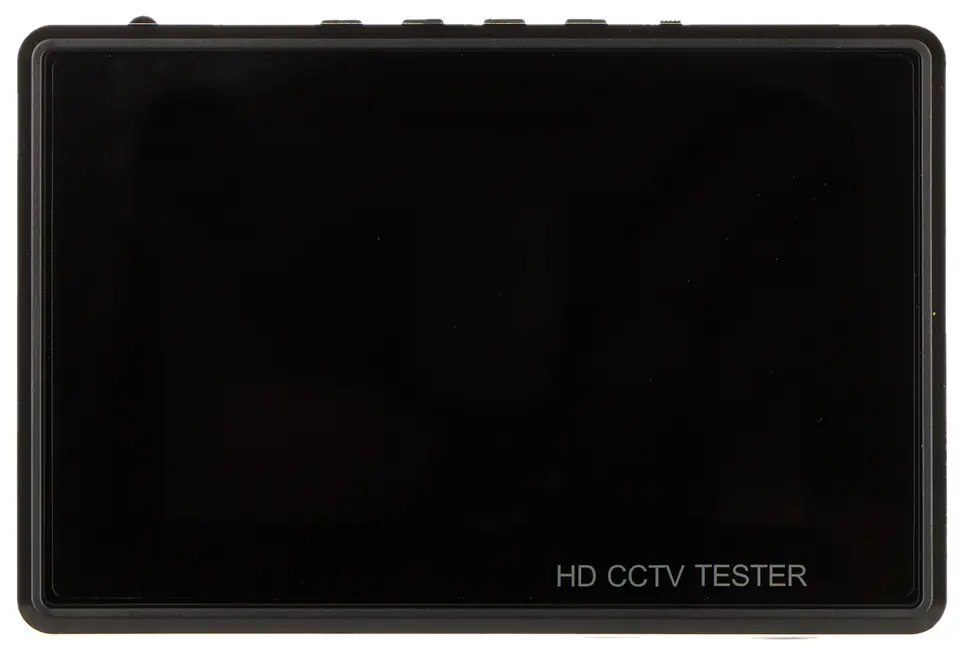

| Display:: | 4 " - capacitive touch screen - 800 x 480 px |

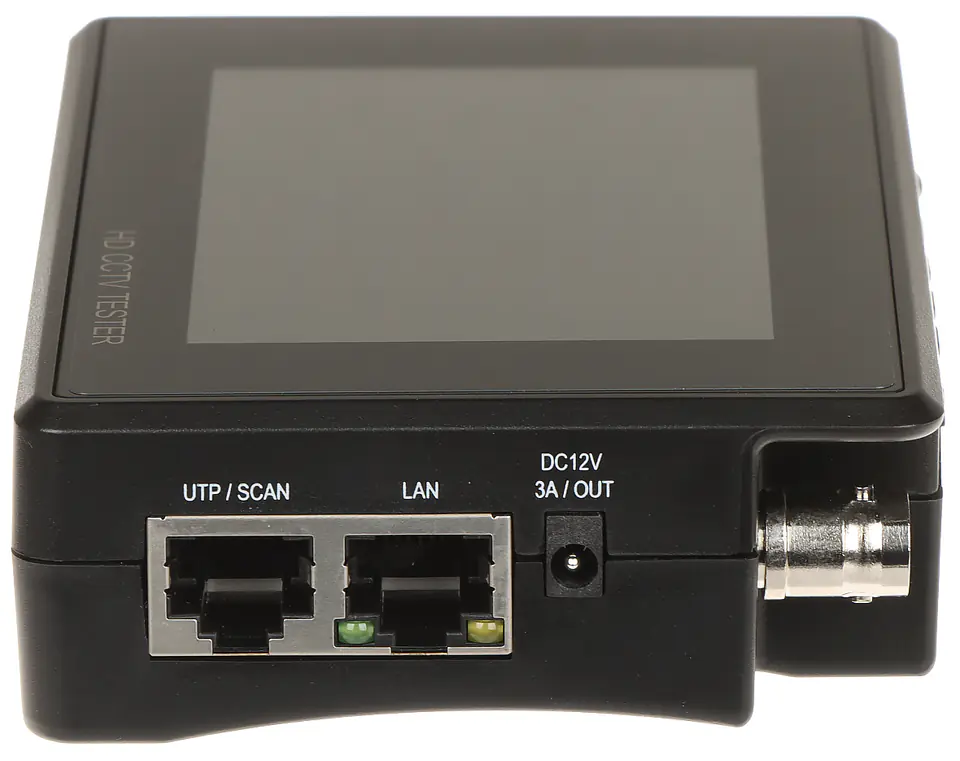

| Lan port:: | 2 pcs. - Cooperation with PoE cameras and switches |
| Operating temperature:: | -10 °C ... 50 °C |
| Permissible relative humidity:: | 30 % ... 90 % |
| Protocols:: | Supports over 30 RS485 Protocols Pelco-D, Pelco-P, YAAN, YAAN-O, YAAN-1, SAMSUNG, PANASONIC, Lilin-FAST, Lilin-MLP2, MOLYNX, MINKING A01, Fastrax, CBC, LC-NEW, WV-CS850, SONY-EVI, LG-MULTIX, DAT-SD, VICON, Vcltp, DH-YTC 06, Santachi, Bosch OSRD, TeleEye DM2, HD 600, Hikvision, KALATEL ASC, AD 168(M-B), SAMSUNG SPD, Siemens, MINKING B01, ALEC |

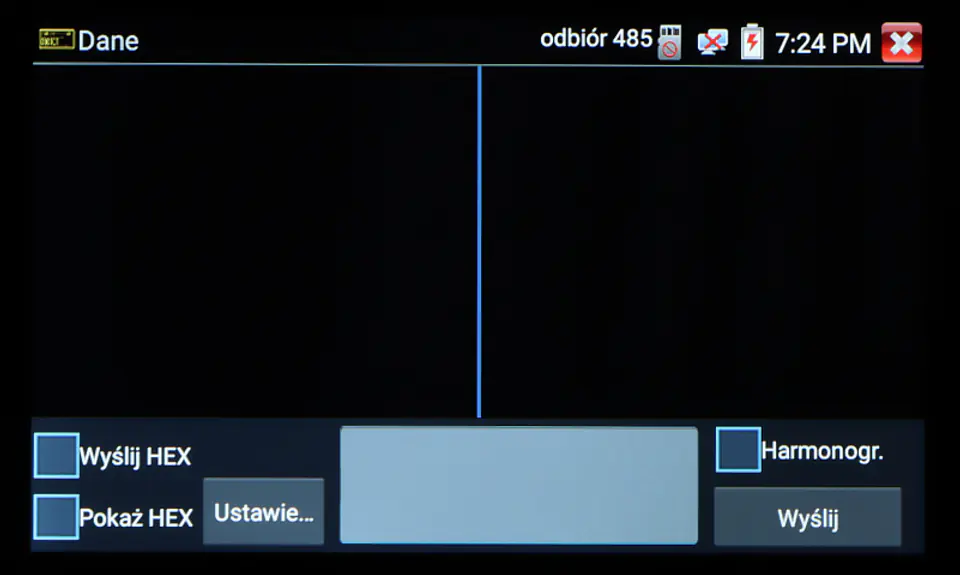

| Rs-485, rs-232 line test:: | Testing data from the control device (commands are displayed hexadecimally) |
| Scales:: | 0.38 kg |

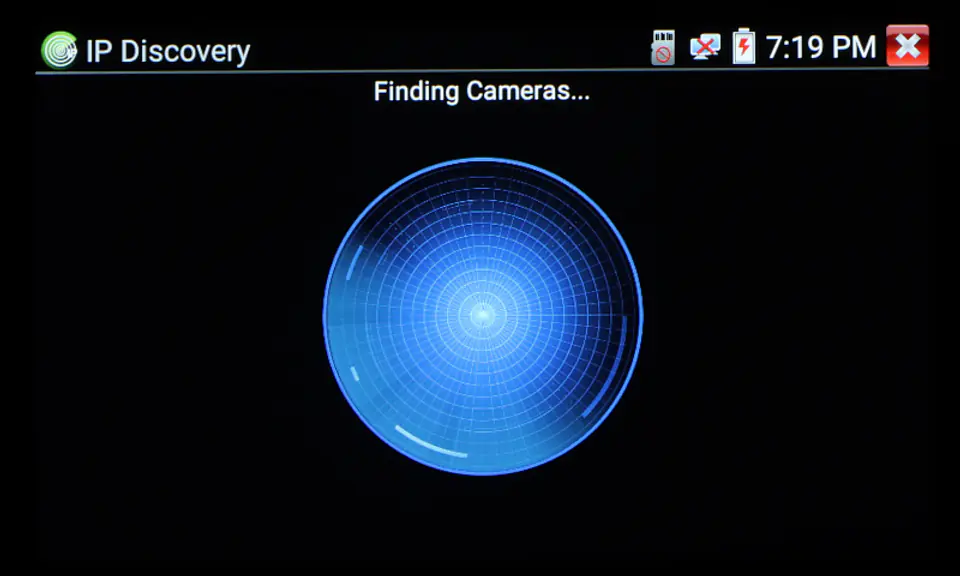

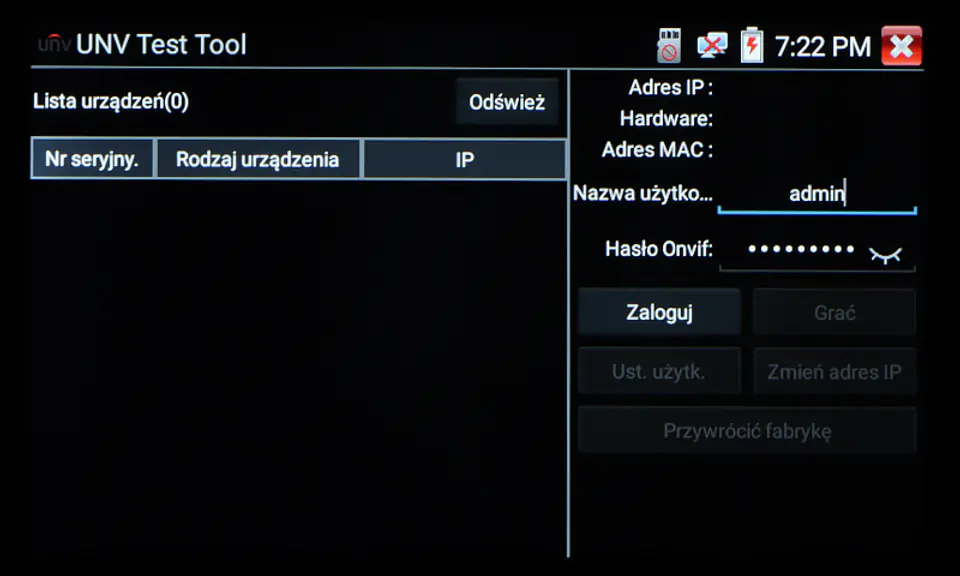

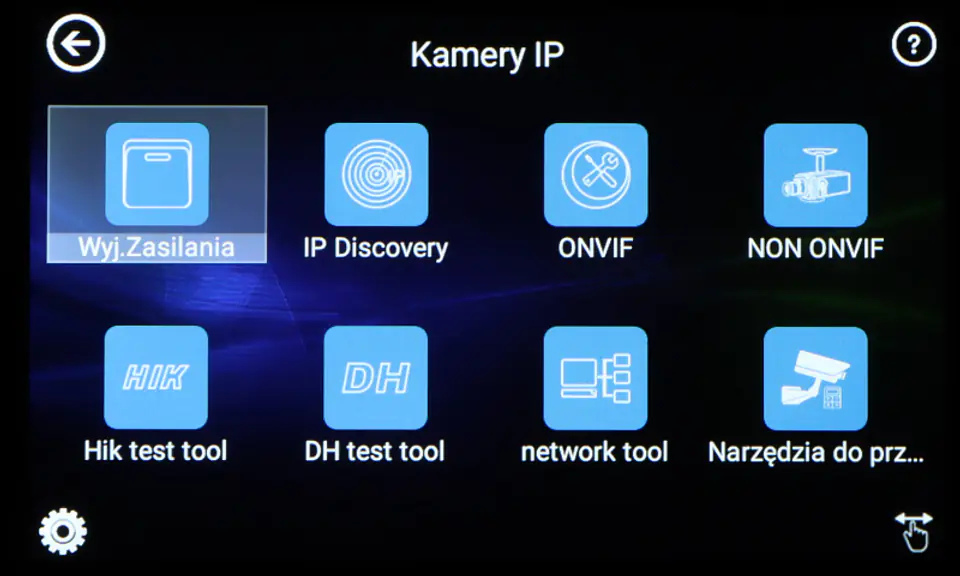

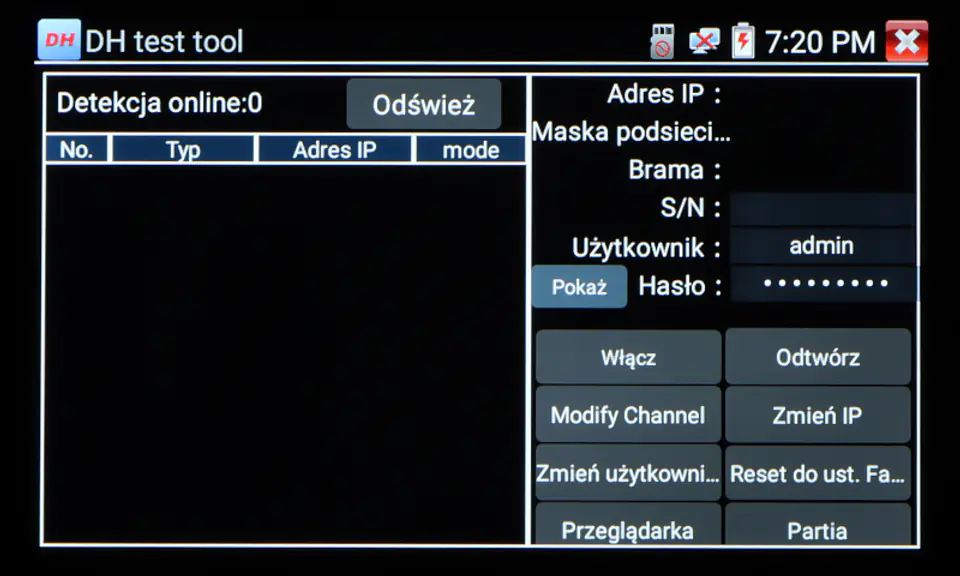

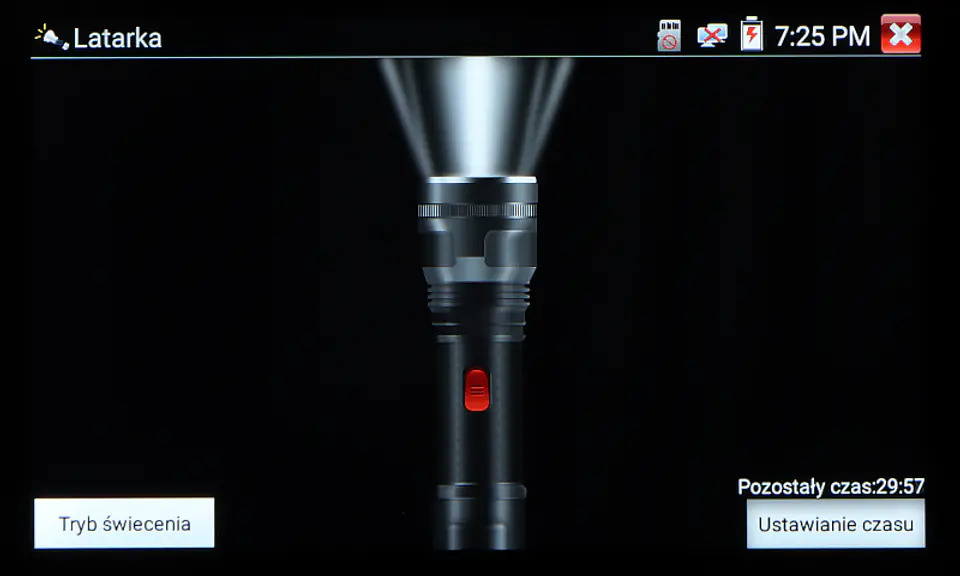

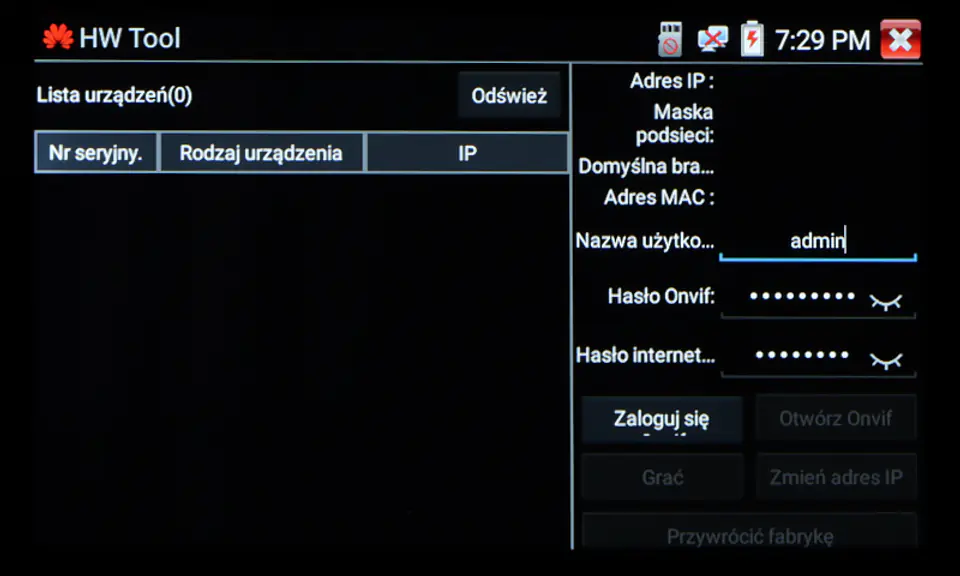

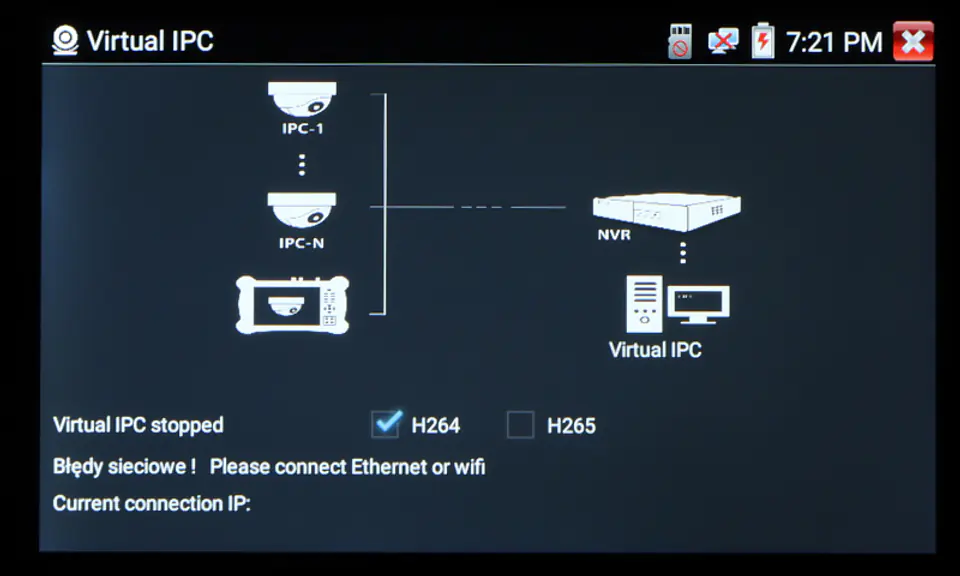

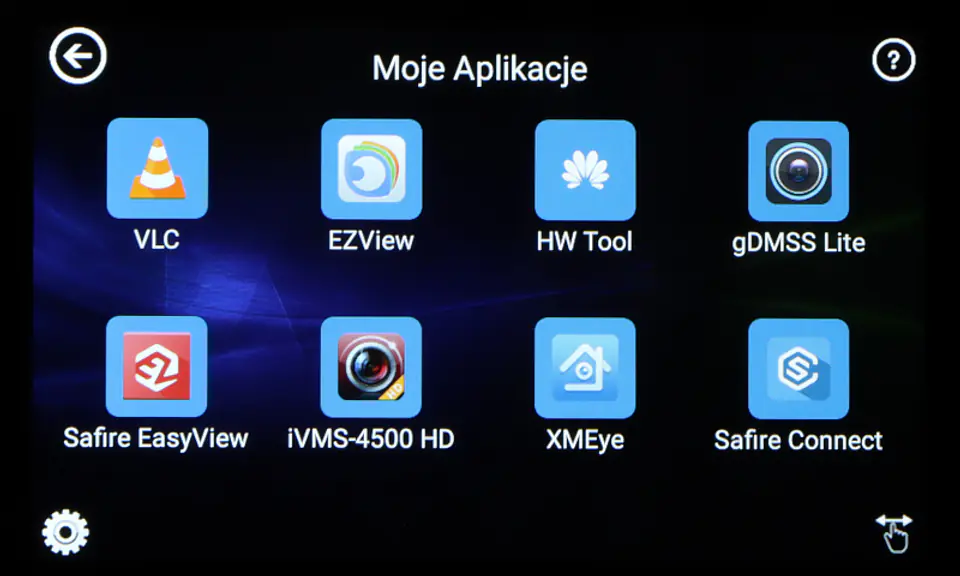

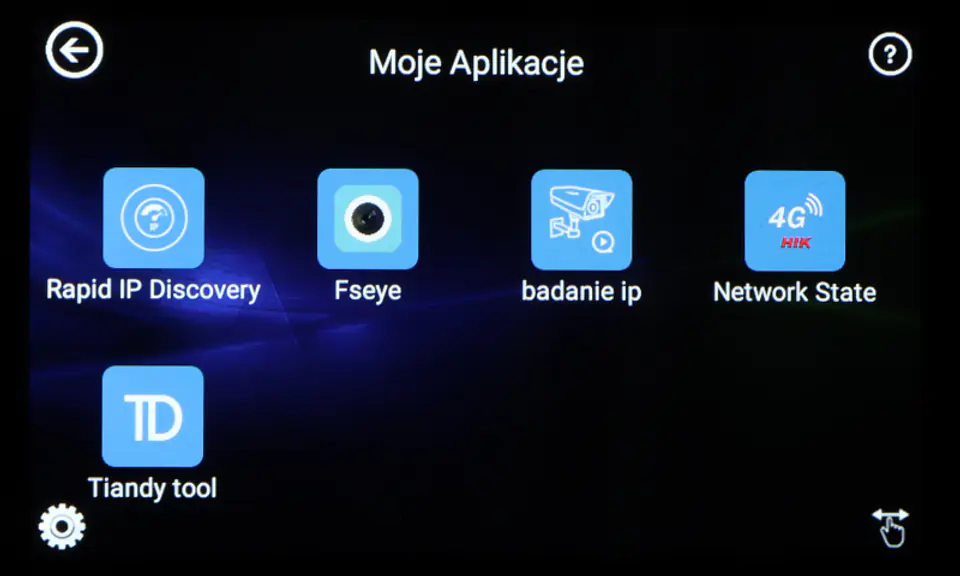

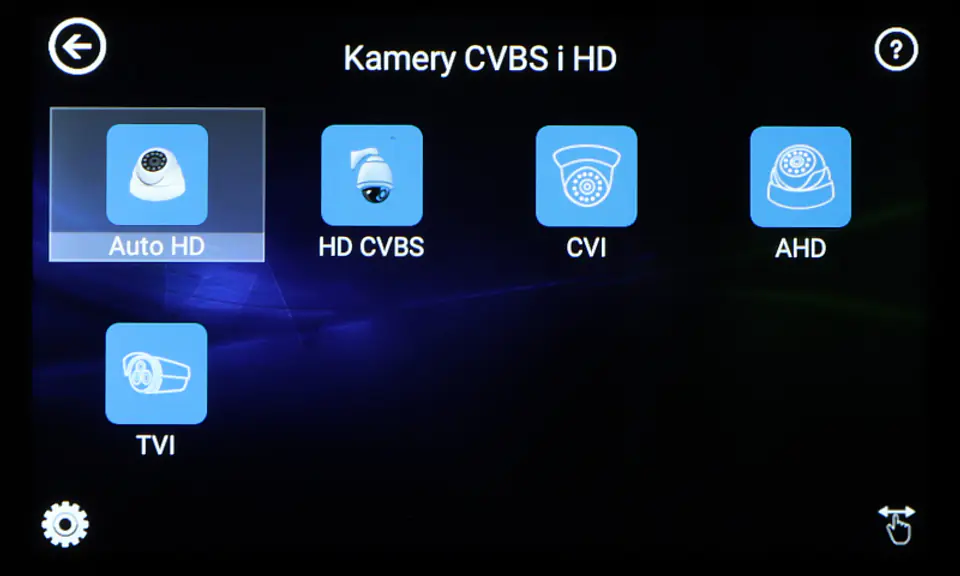

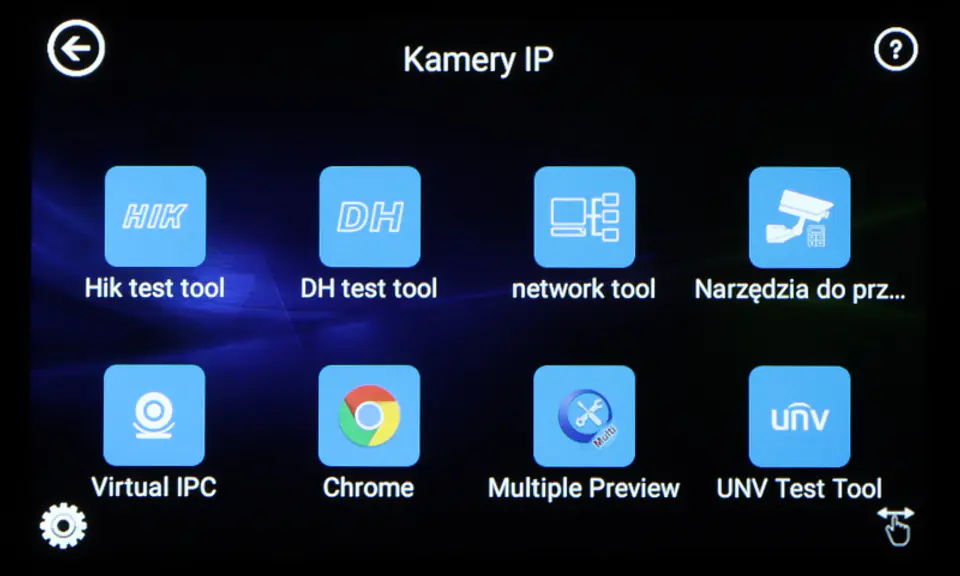

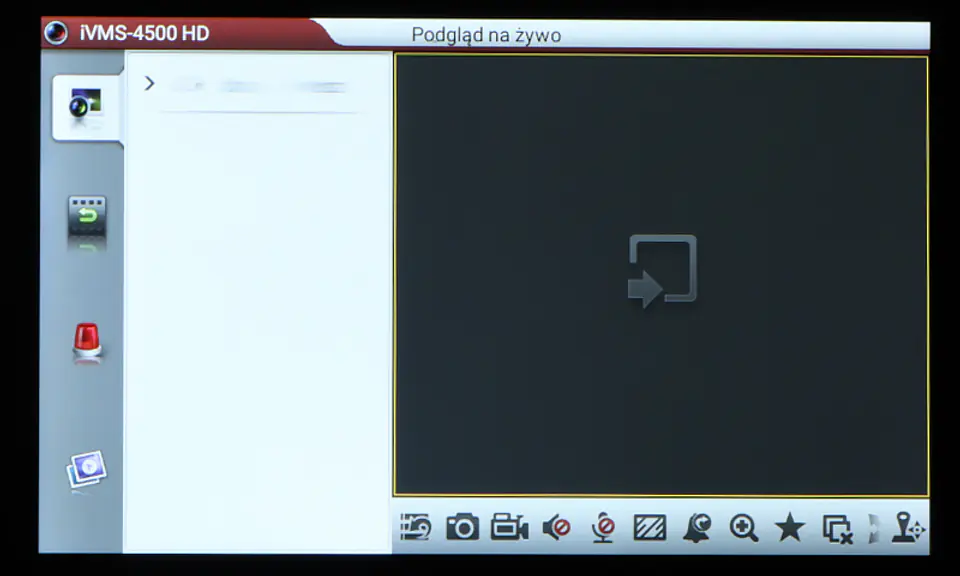

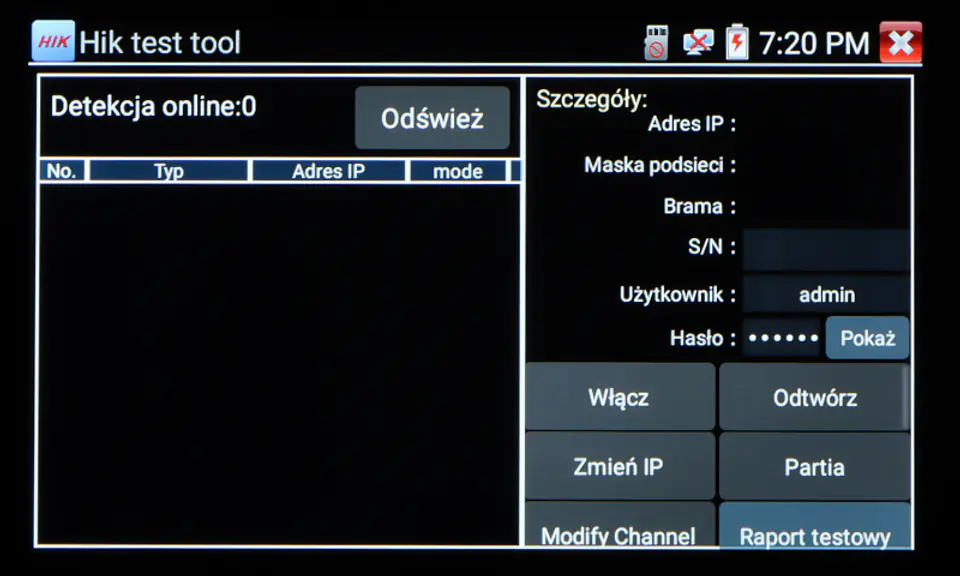

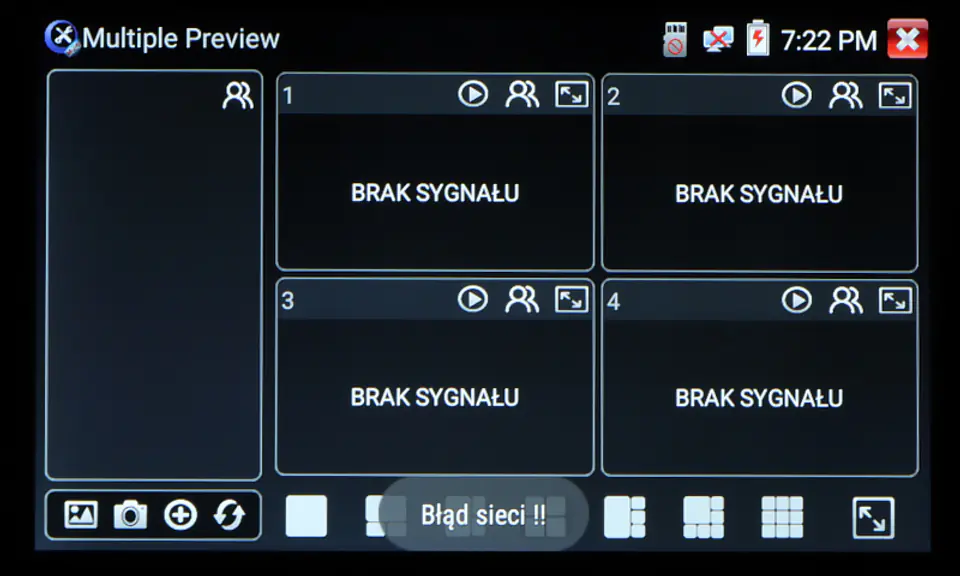

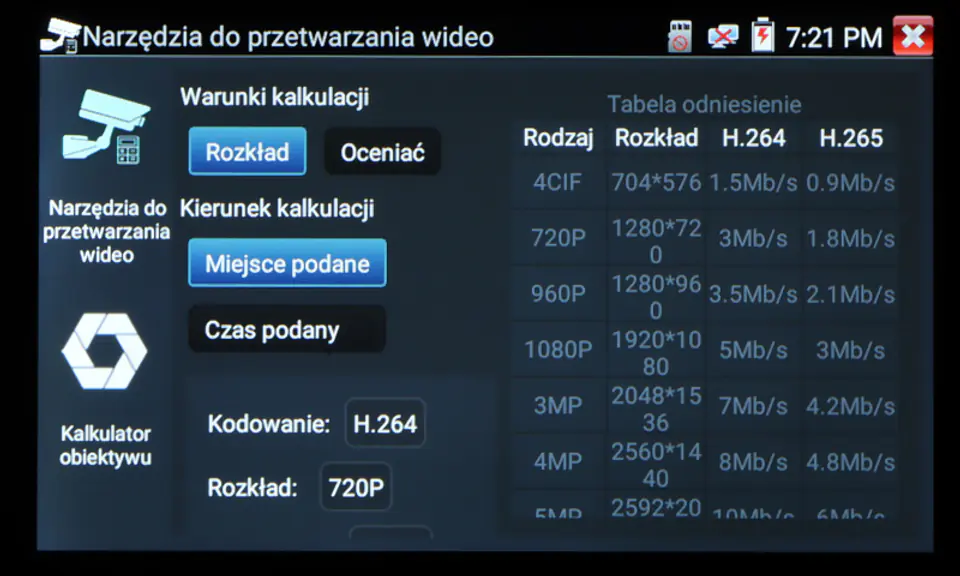

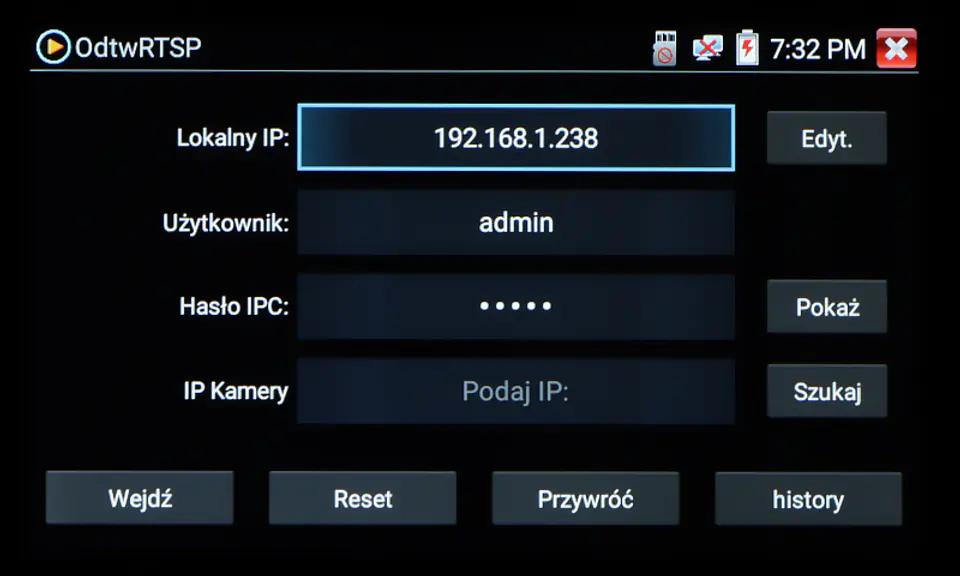

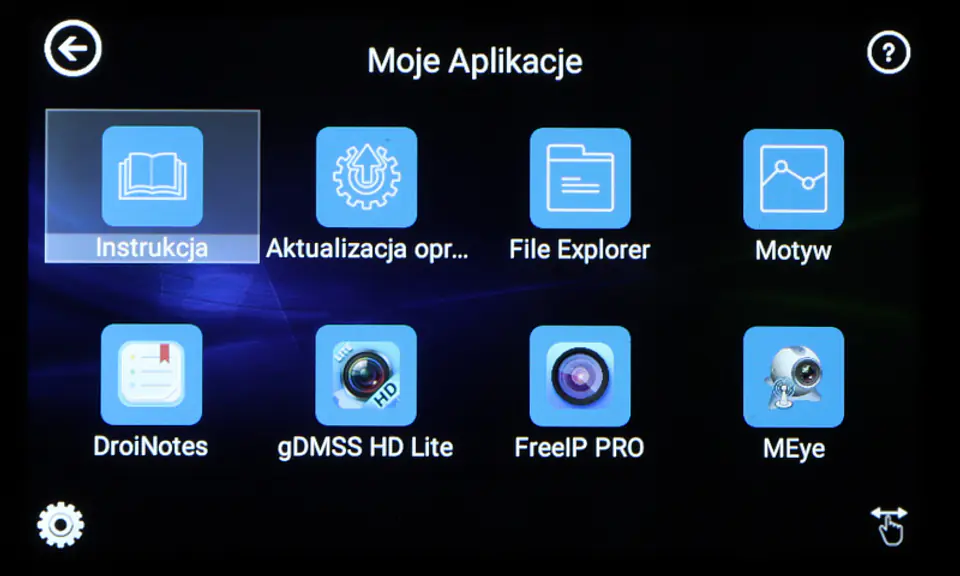

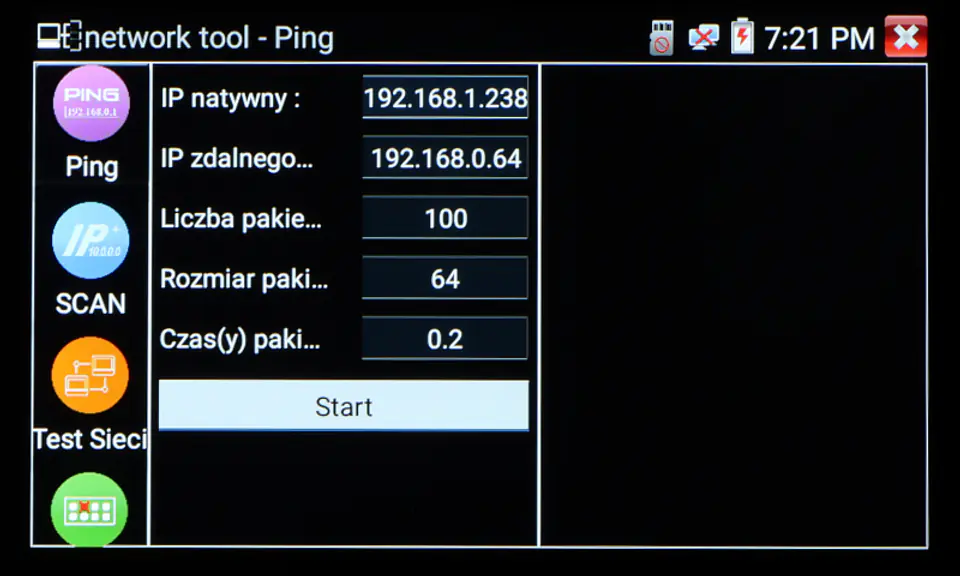

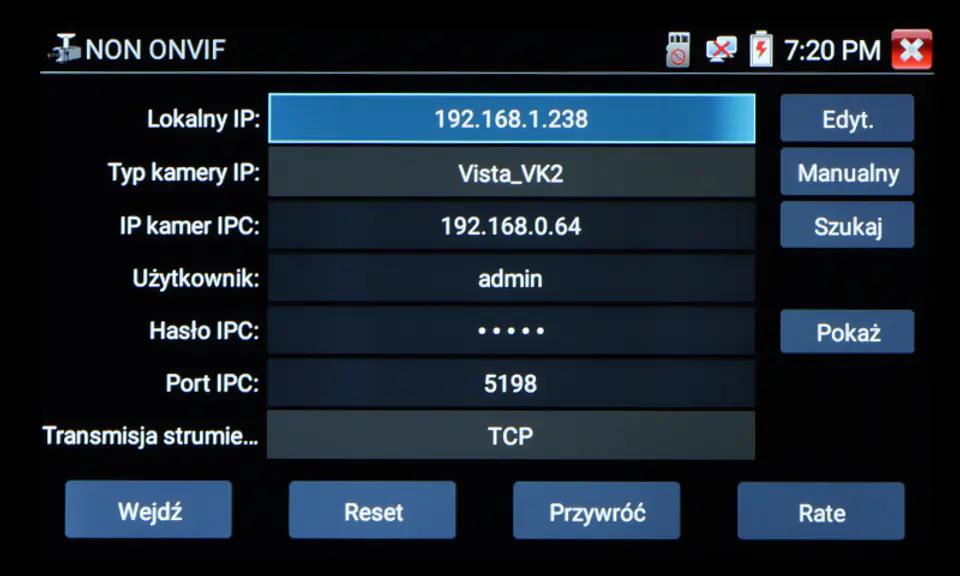

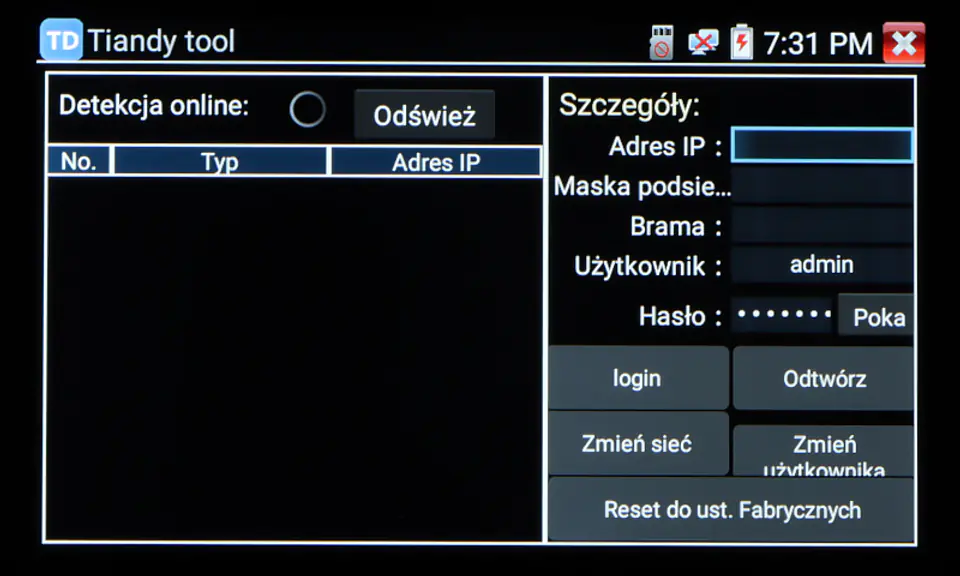

| Selected features:: | AHD Camera Test HD-CVI Camera Test HD-TVI Camera Test PAL/NTSC Camera Test IP Camera Test - Supported Image Compression Methods: H.265, H.264 Format Support: 5 Mpx, 16: 9 HD-CVI, DAHUA Search and Preview of Onvif Compatible IP Cameras Virtual IPC Calculator Bitrate DH test tool Hik test tool UNV Test Tool HuaWei Tool Control turntables and PTZ cameras (speed dome) Preview from IP cameras using built-in applications - iVMS-4500 HD, EZView, gDMSS HD Lite, XMEye, MEye, FreeIP PRO, HW tool, Safire EasyView, Fseye, Tiandy tool Built-in web browser - Google Chrome LAN connection monitoring PING address scanner - link testing using ICMP packets Detection of the connected port in the switch Twisted pair tester Cooperation with cameras and PoE switches PoE power meter Power source DC 12V / 48V Data monitor - RS-485 serial port monitor Audio Test Hotspot - Wi-Fi Video recording on micro SD card with playback capability (not included) Play Tester - screen projection: simultaneous tester, mobile phone and computer Playback of recordings Calculator Built-in flashlight |
| Serial ports:: | RS-485 |
| Service:: | Graphic menu - touch control |

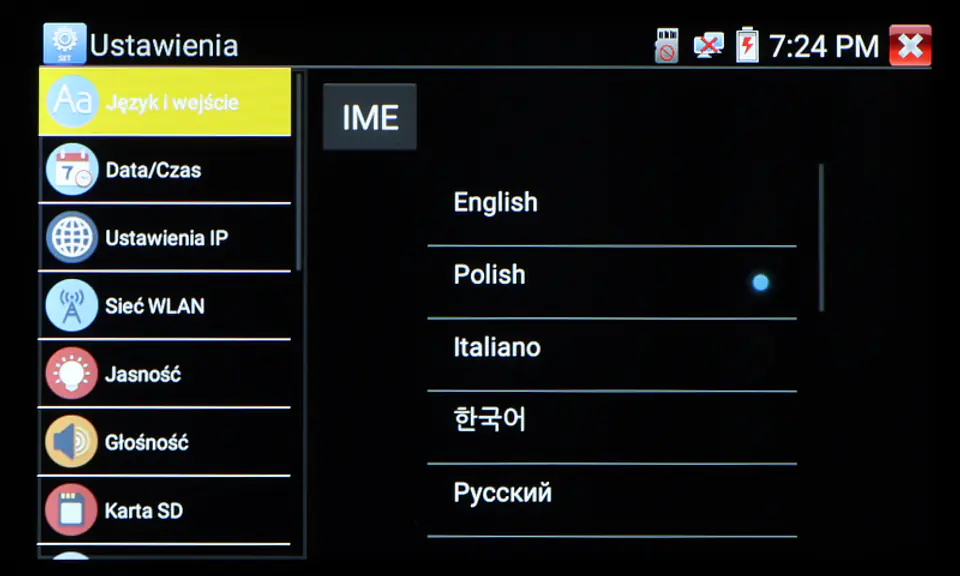

| Supported languages:: | Polish, Bulgarian, Czech, English, French, German, Italian, Portuguese, Russian, Spanish, Turkish |

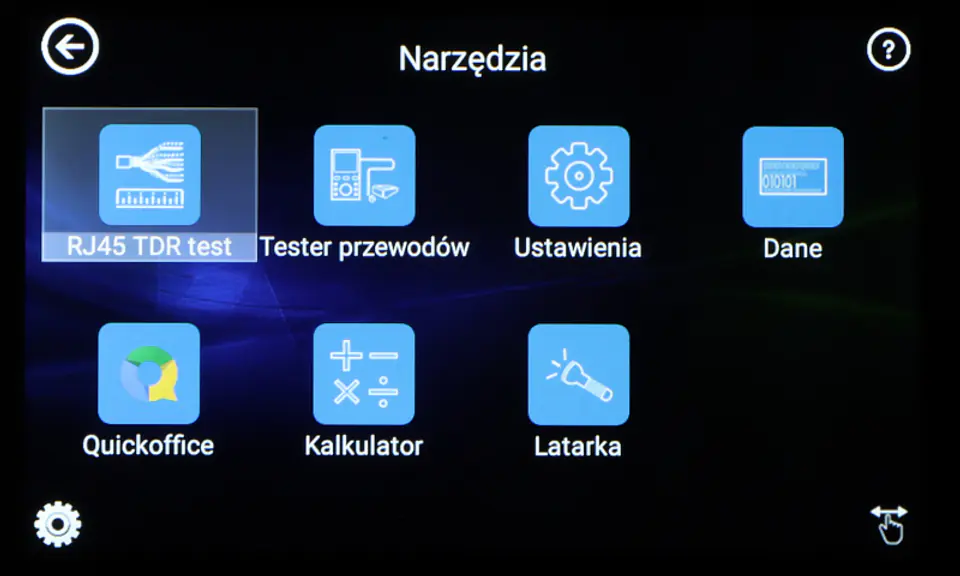

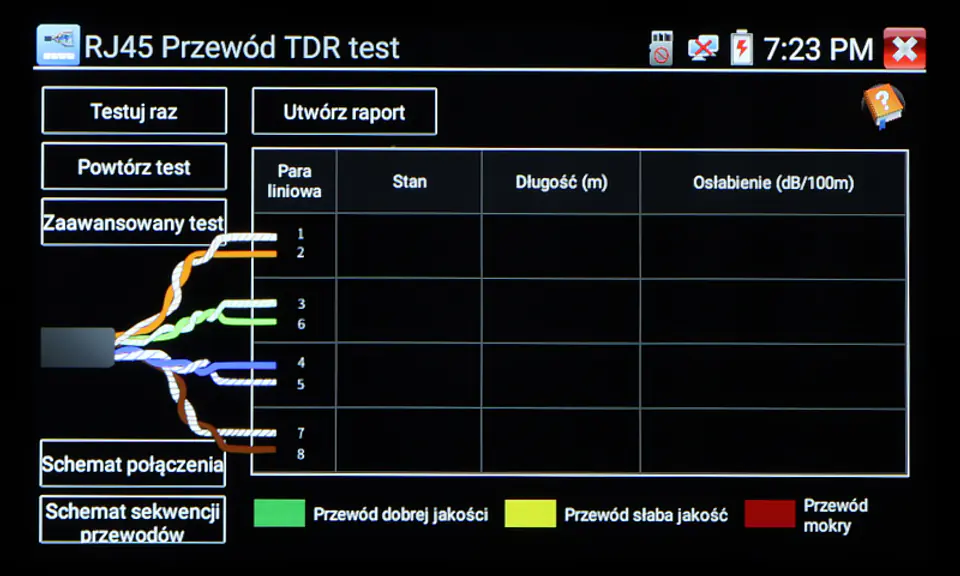

| Tdr reflectometer:: | Detection and location of cable break location (UTP only) |

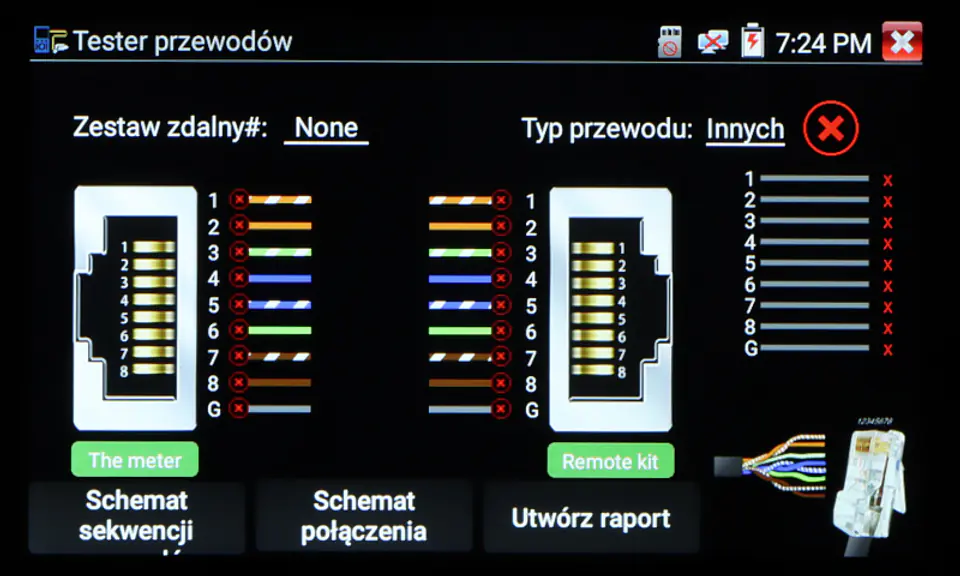

| Twisted pair or telephone line test:: | UTP or telephone cable connection test terminated with RJ-45 plug |
| Video input:: | 1 pc. AHD / HD-CVI / HD-TVI / CVBS - BNC socket |
| Vision standard:: | AHD - 8 Mpx, HD-CVI - 8 Mpx, HD-TVI - 8 Mpx, TCP/IP - 4K, CVBS - PAL / NTSC |
| Warranty:: | 2 years |
| Wi-fi module:: | 2.4 GHz |

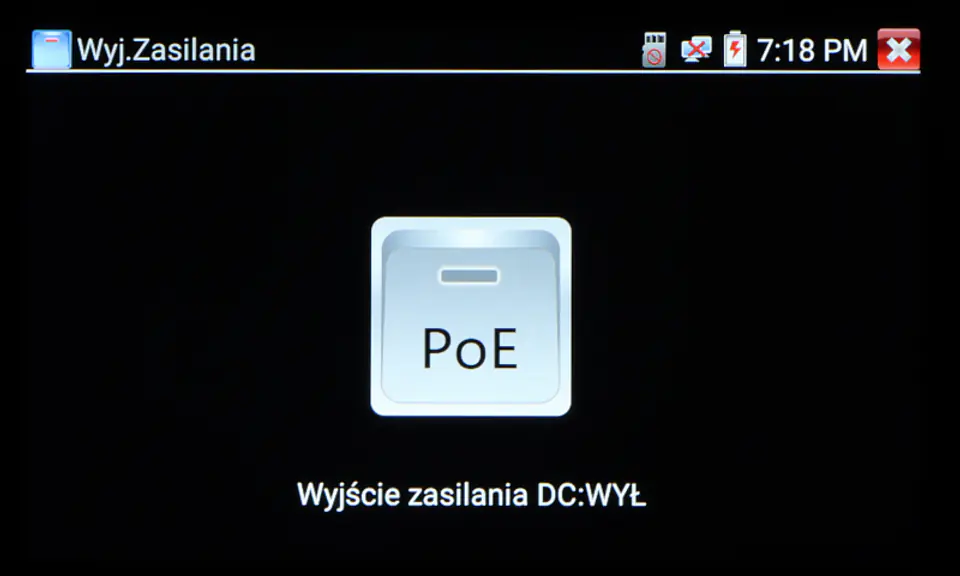

| Work as a power source:: | 12 V DC / 3 A 48 V (PoE, LAN), 25.5 watts |
