Multifunctional tester of AHD, HD-CVI, HD-TVI, IP cameras, analog cameras, Speed Dome (PTZ), equipped with many additional functions necessary for commissioning CCTV systems

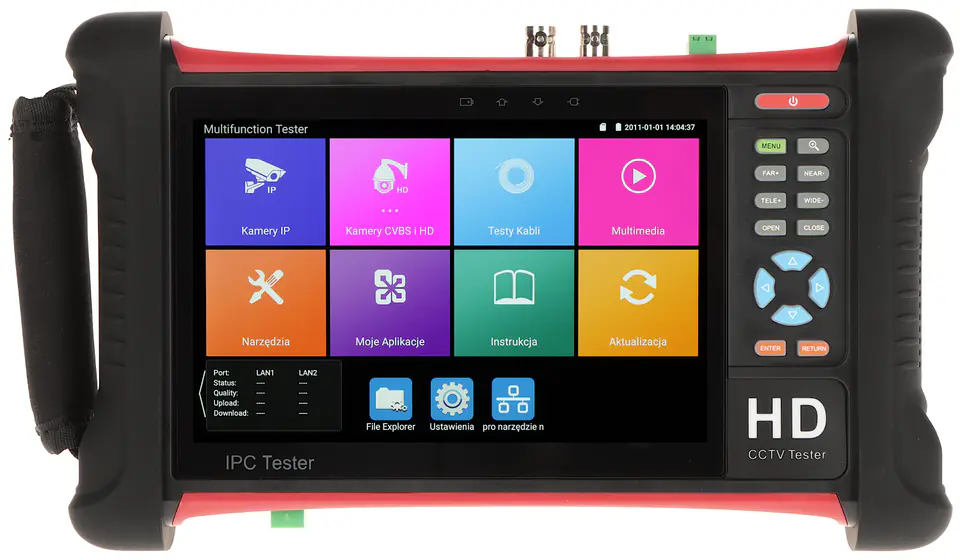

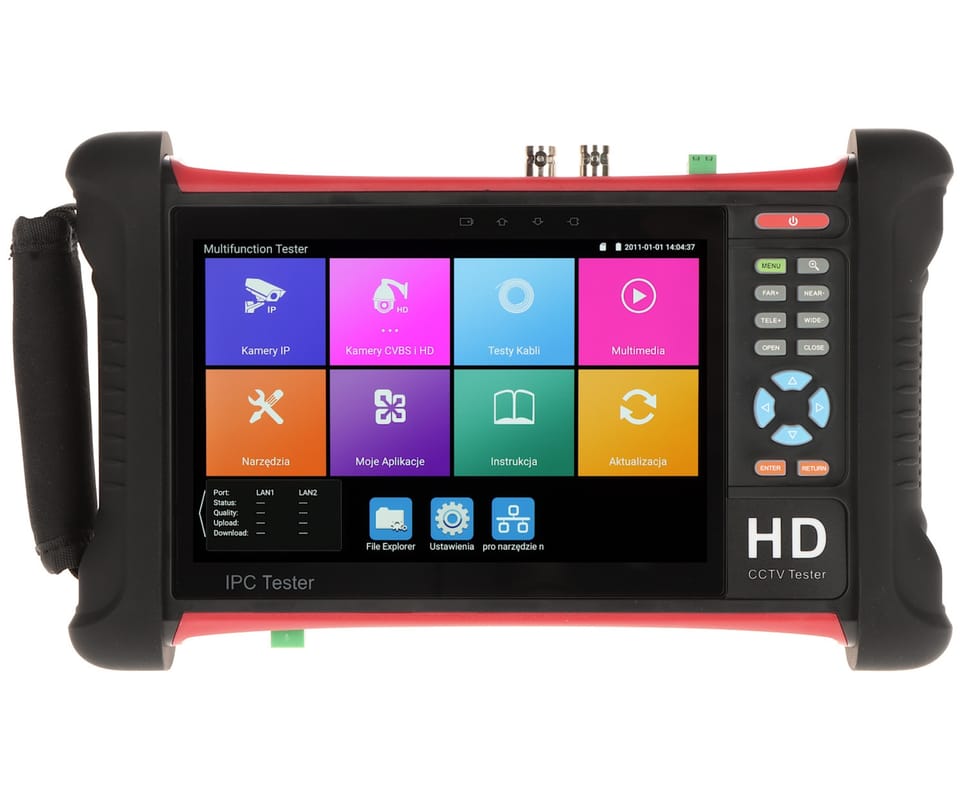

MULTIFUNCTIONAL CCTV TESTER CS-H8-70H
€596.63
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- CS-H8-70H / 5902887031915
Share this product:
Specification
| Audio input: | 1 pc Mini Jack |
|---|---|
| Audio output: | 1 pc Mini Jack |

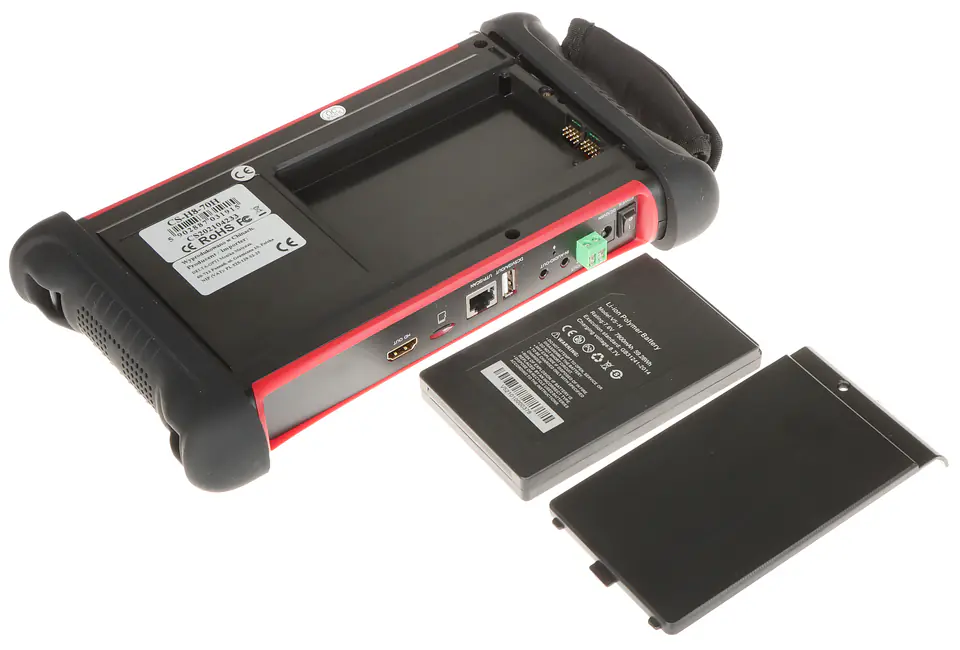

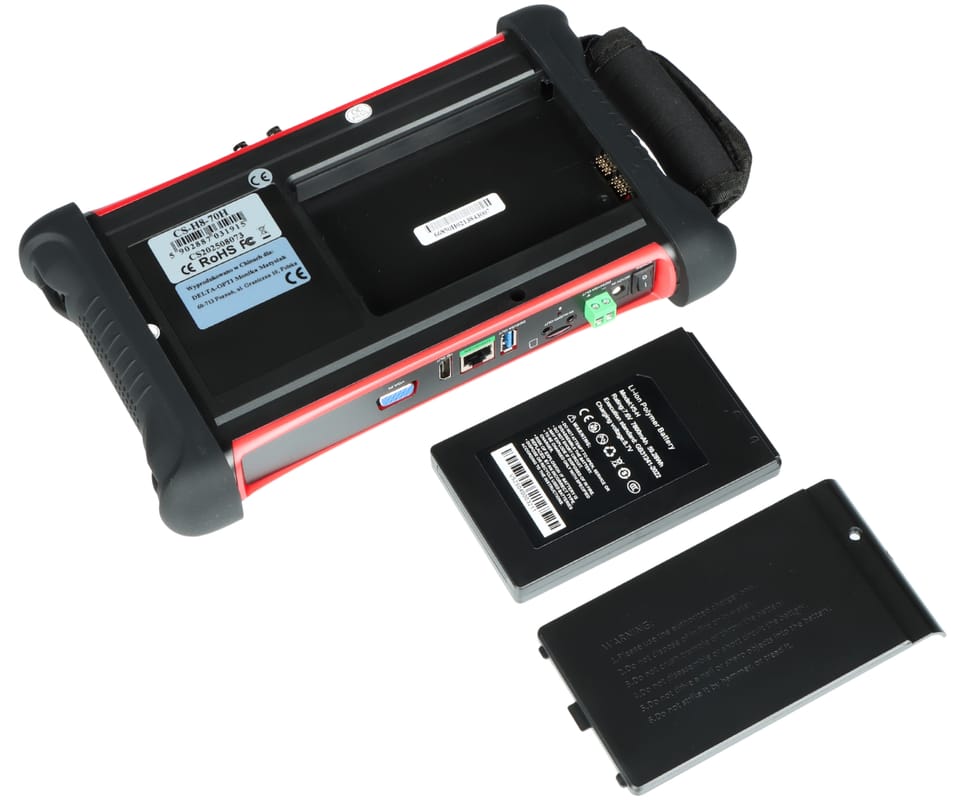

| Battery: | 7800mAh 12V DC / 2A battery (power adapter included) |
| Baud: | 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 115200 bps |
| Dimensions: | 262 x 161 x 45 mm |
| Display: | 7 " Retina - capacitive touch screen, 1920 x 1200 px |
| Estimated battery life: | .max. 10 hours |
| Operating temperature: | -10 °C ... 50 °C |
| Permissible relative ambient humidity: | 30 % ... 90 % |
| Port lan: | 2 pcs. - Cooperation with PoE cameras and switches |
| Protocols: | Support more than 30 RS485 protocols: Pelco-D, Pelco-P, YAAN, YAAN-O, YAAN-1, SAMSUNG, PANASONIC, Lilin-FAST, Lilin-MLP2, MOLYNX, MINKING A01, Fastrax, CBC, LC-NEW, WV-CS850, SONY-EVI, LG-MULTIX, DAT-SD, VICON, Vcltp, DH-YTC 06, Santachi, Bosch OSRD, TeleEye DM2, HD 600, Hikvision, KALATEL ASC, AD 168(M-B), SAMSUNG SPD, Siemens, Cohu, MINKING B01, ALEC |
| Rs-485, rs-232 line test: | Testing data from the control device (commands are displayed hexadecimal) |
| Scales: | 0.97 kg |

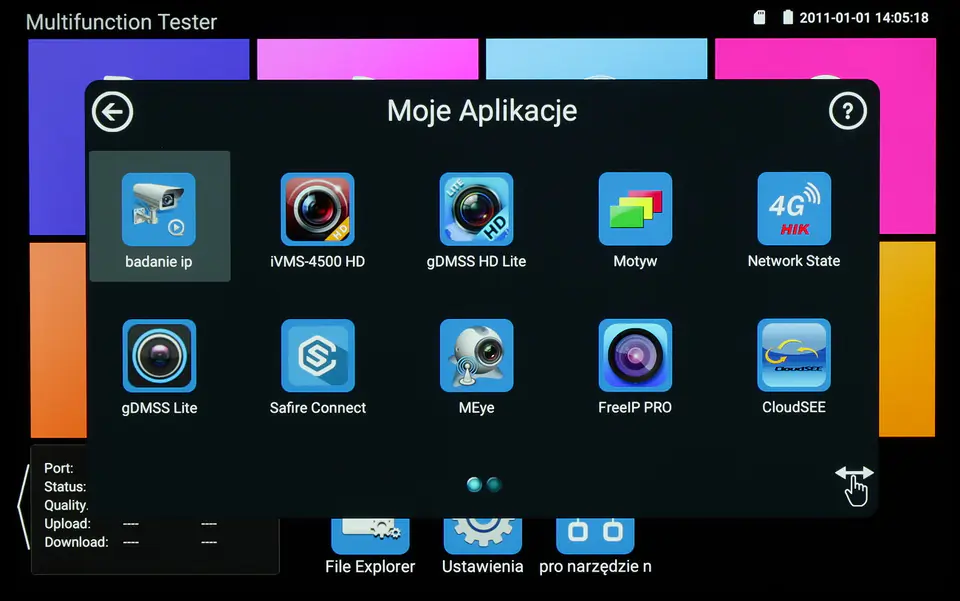

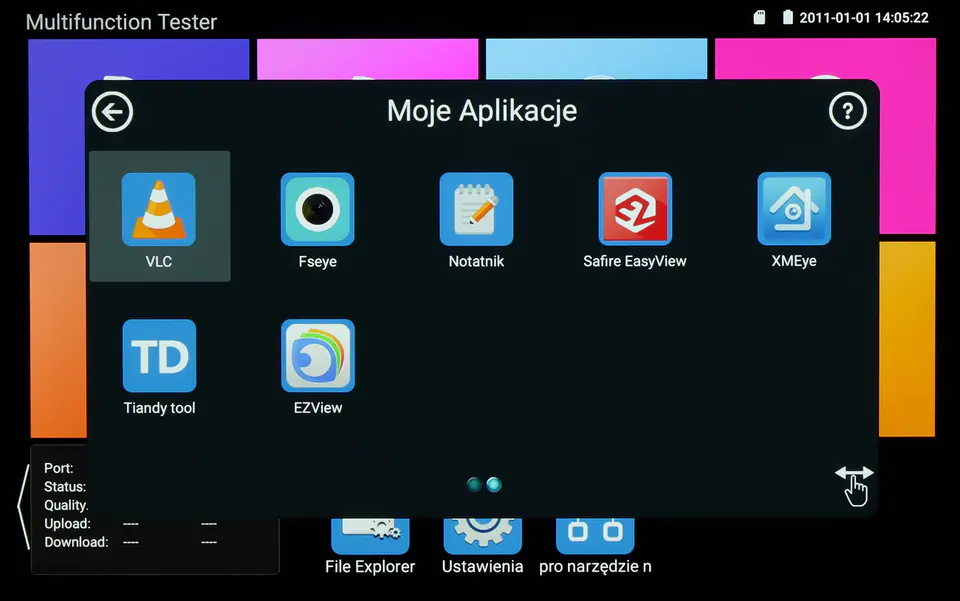

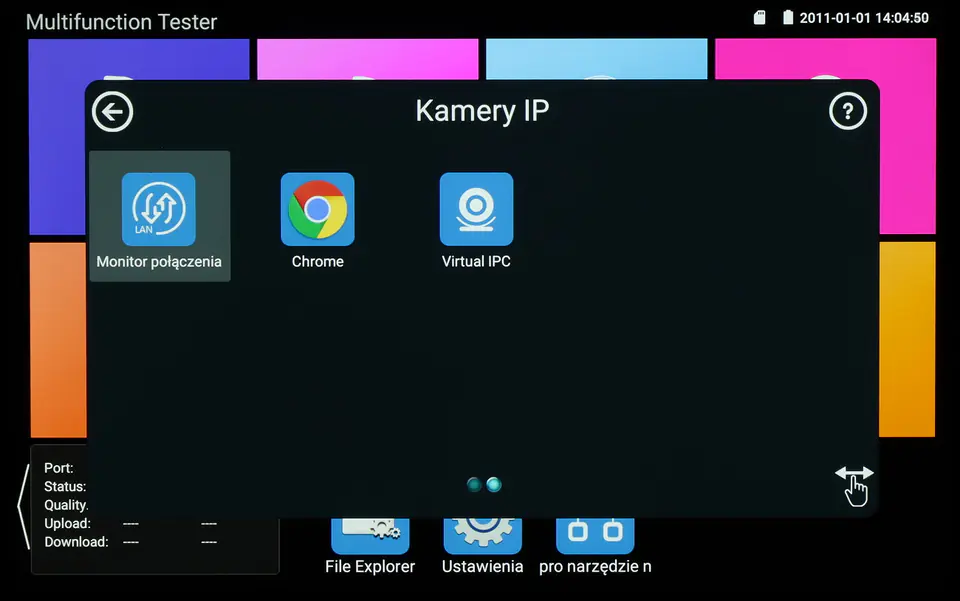

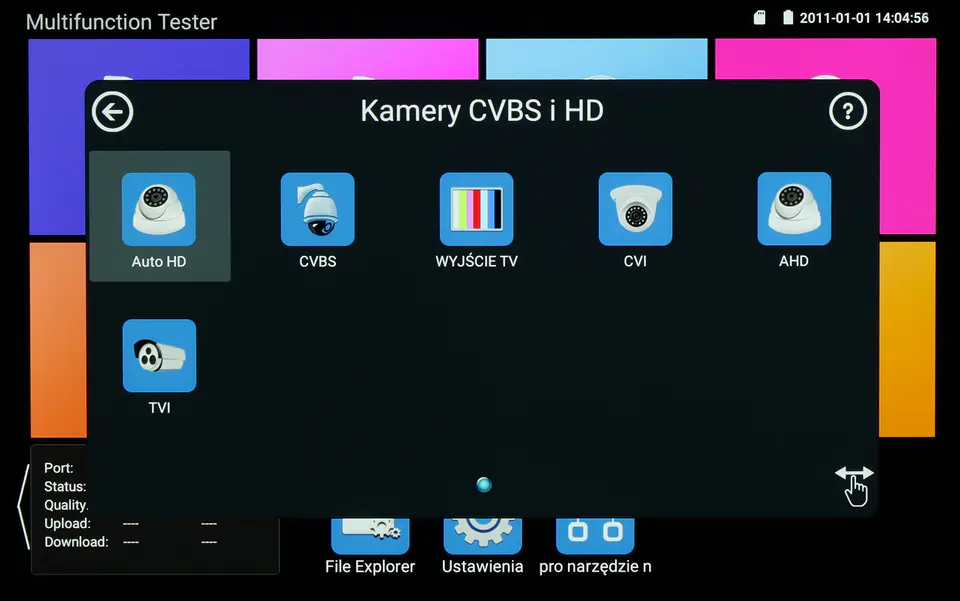

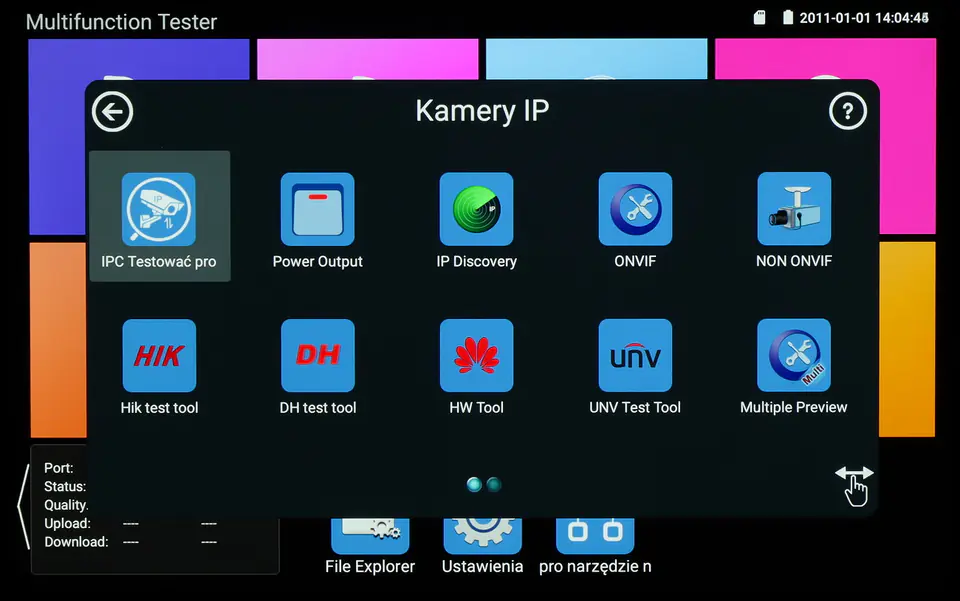

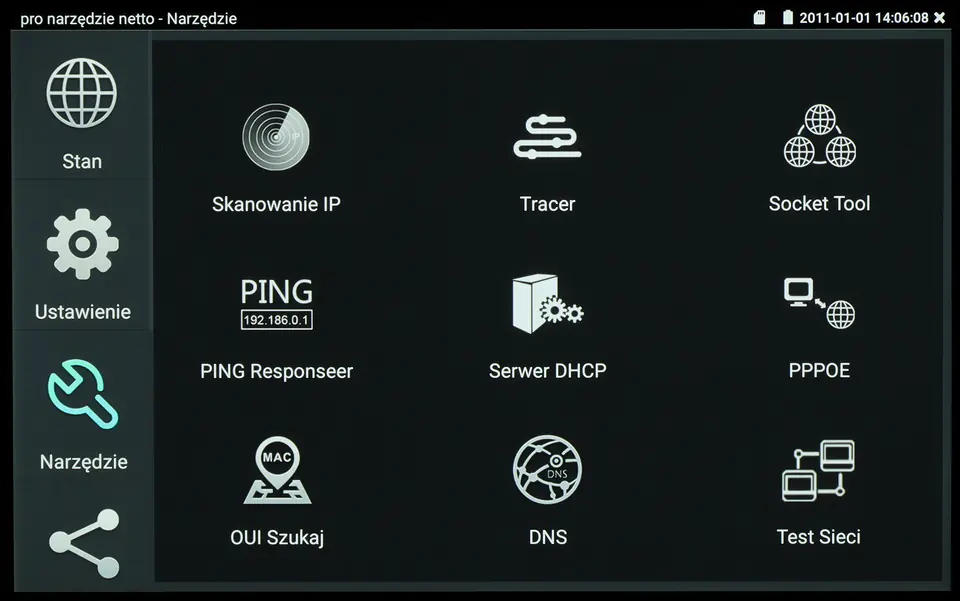

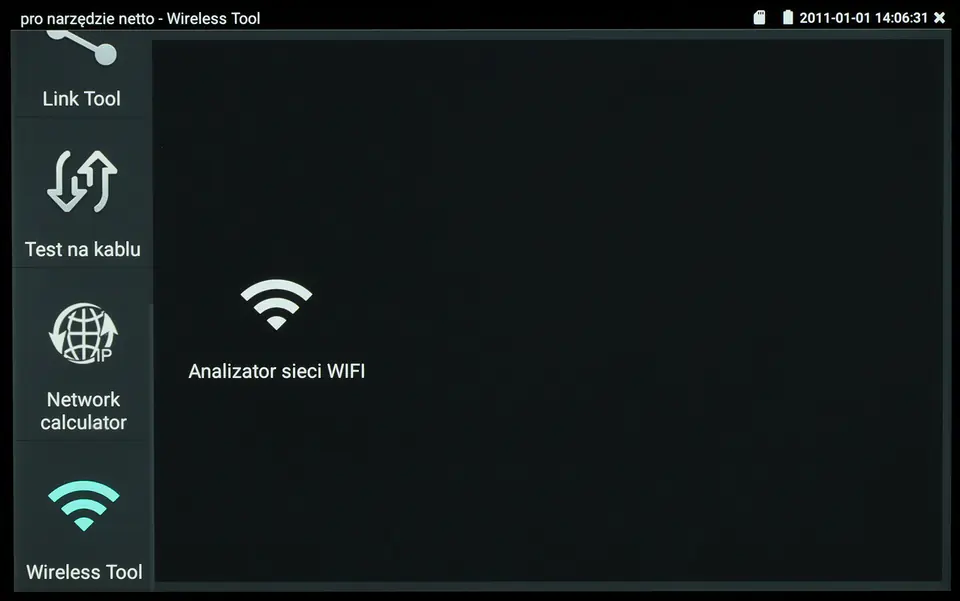

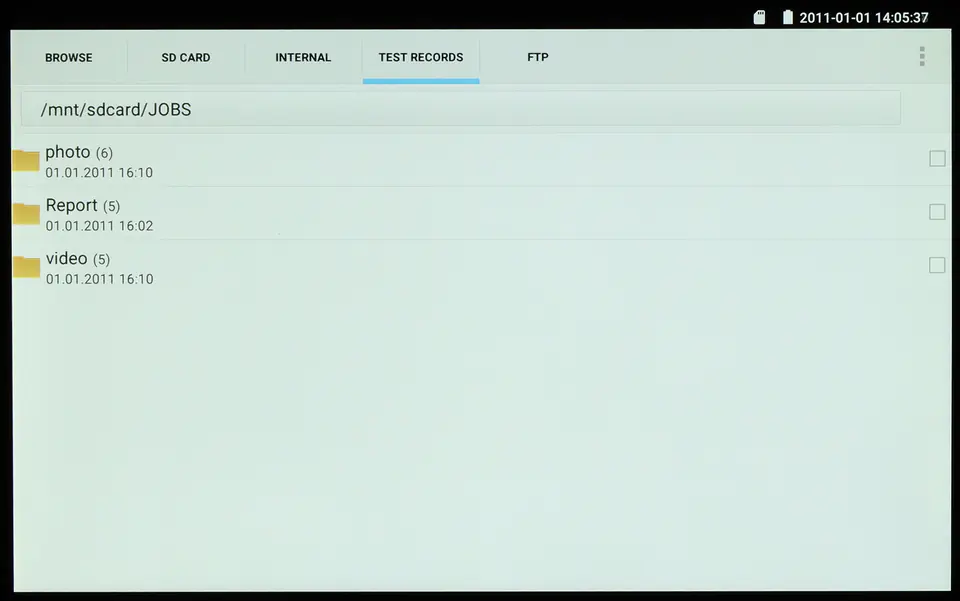

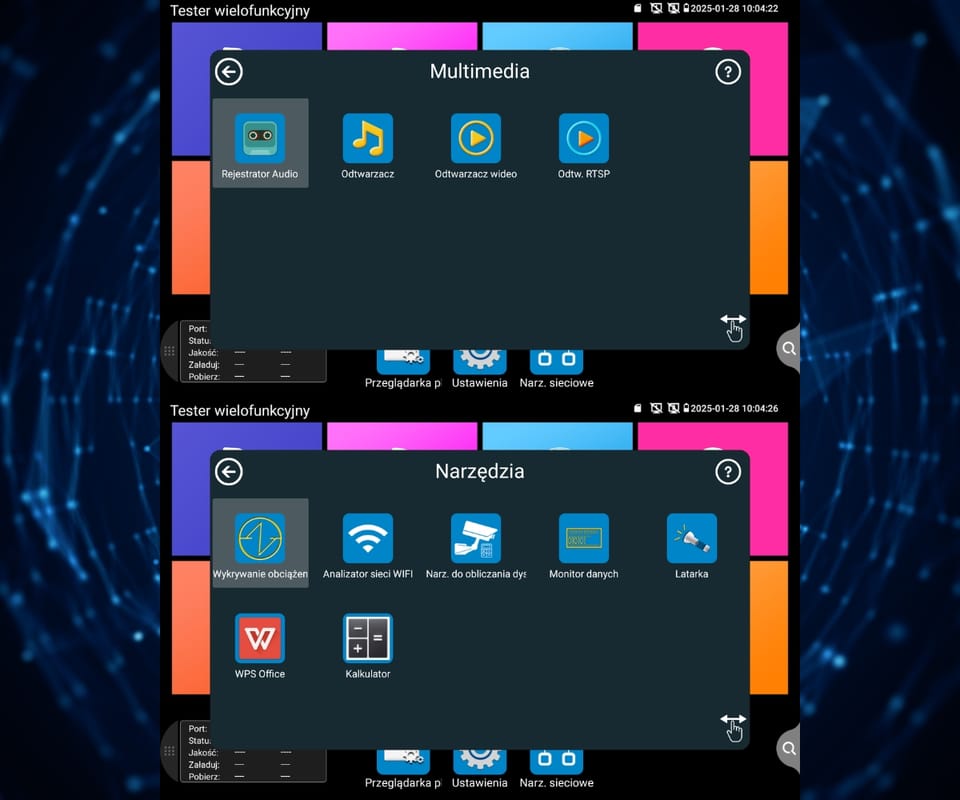

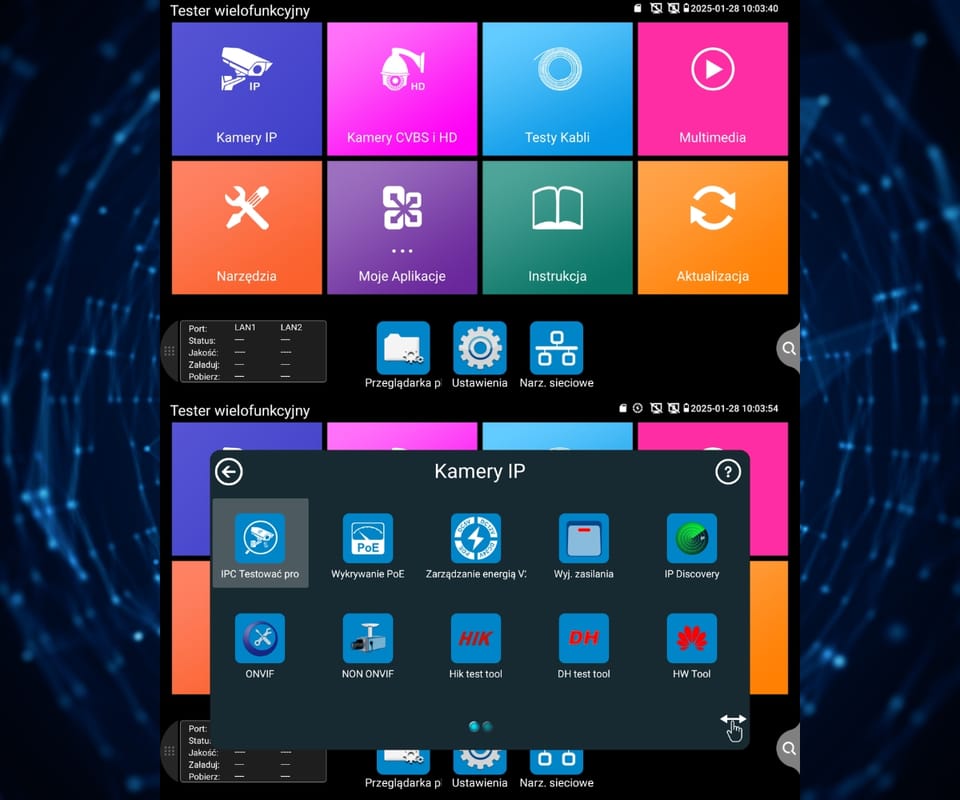

| Selected features: | AHD Camera Test HD-CVI Camera Test HD-TVI Camera Test PAL/NTSC Camera Test IP Camera Test - Supported Image Compression Methods: H.265, H.264, MJPEG Searching and viewing IP cameras compatible with Onvif Control of rotators and PTZ cameras (speed dome) Preview from IP cameras using built-in applications - CloudSEE, gDMSS HD Lite, Fseye, XMEye, gDMSS Lite, EZView, FreeIP PRO, iVMS-4500 HD, MEye Built-in web browser - Google Chrome Control signal generator LAN Monitoring IP address scanner PING - testing the link using ICMP packets Detecting the connected port in the switch Twisted-pair cable tester Cooperation with PoE cameras and switches PoE power meter Power source DC 5V / 12V / 48V Data monitor - RS-485 serial port monitor Audio Test Wi-Fi Hotspot Network Analyzer - Wi-Fi Video recording to micro SD card playable - 8 GB included Playback of recordings Calculator Built-in flashlight Backlit buttons |
| Serial ports: | RS-485 |

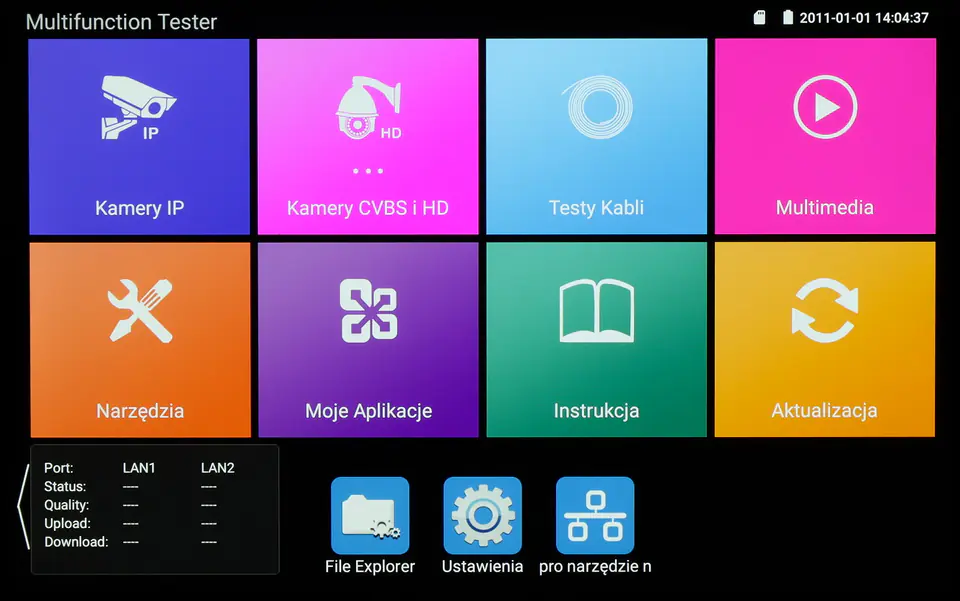

| Service: | Graphic menu - touch and button control |

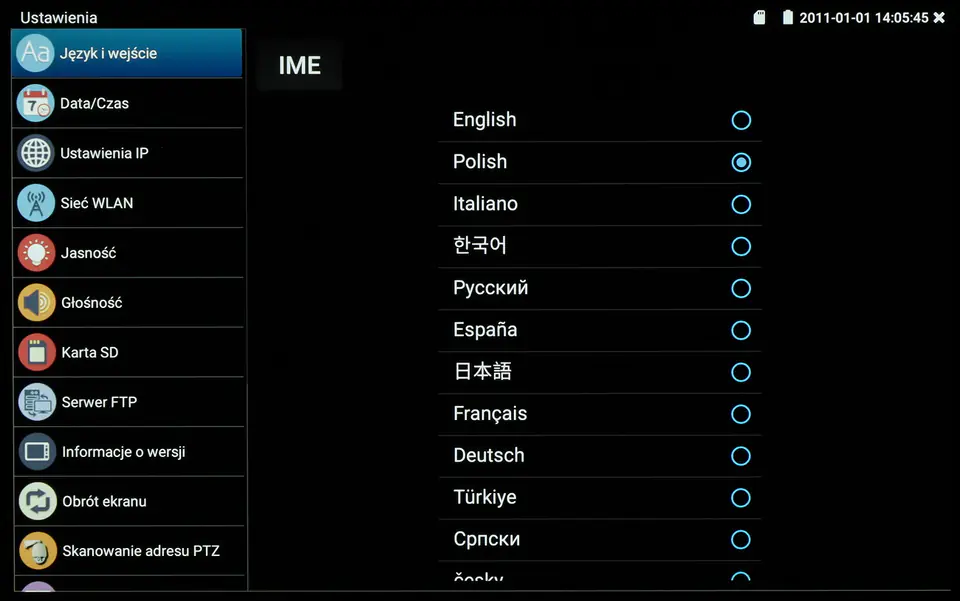

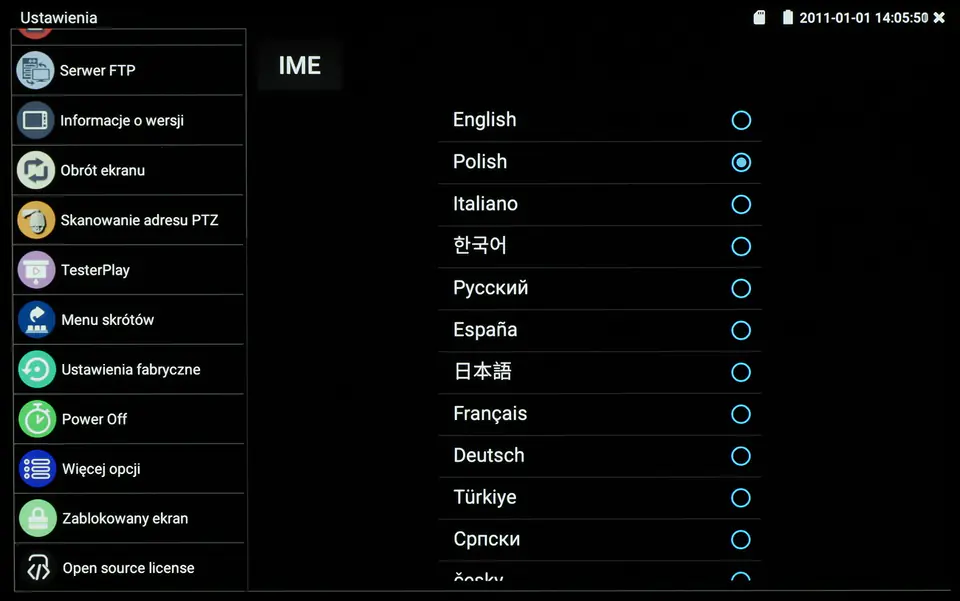

| Supported languages: | Polish, Czech, English, French, German, Italian, Portuguese, Russian, Serbian, Spanish, Turkish |

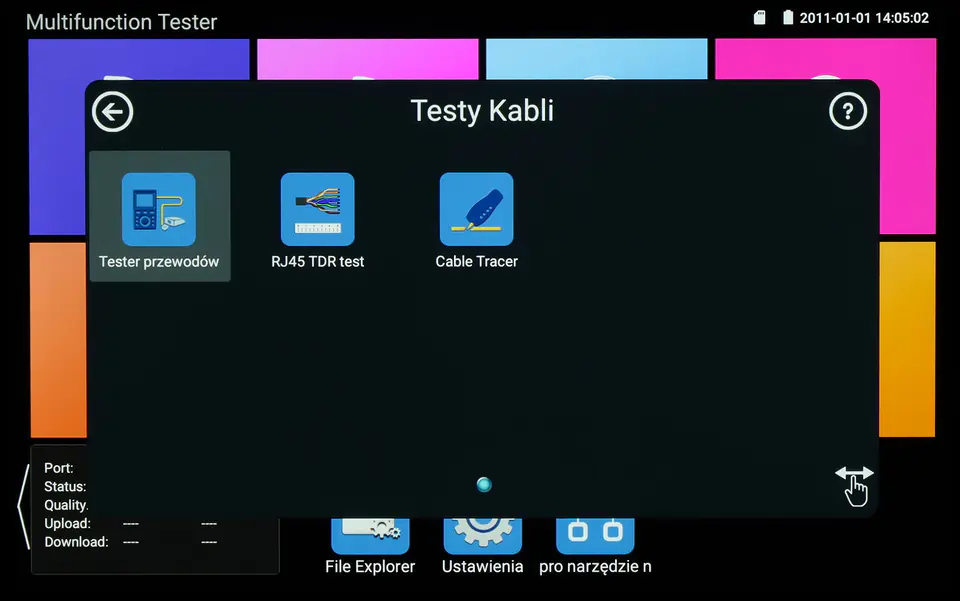

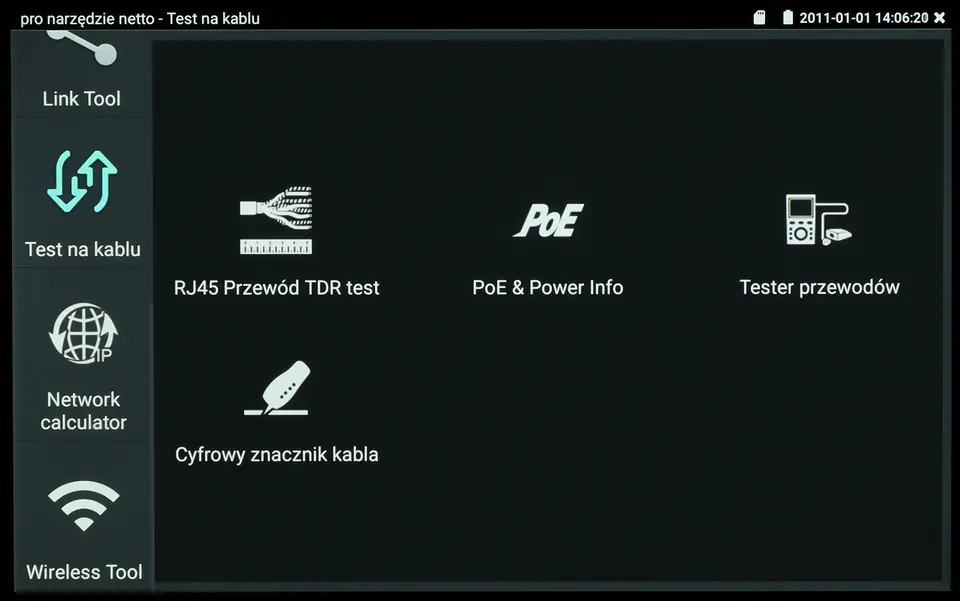

| Tdr reflectometer: | Cable break location detection and location (UTP only) |

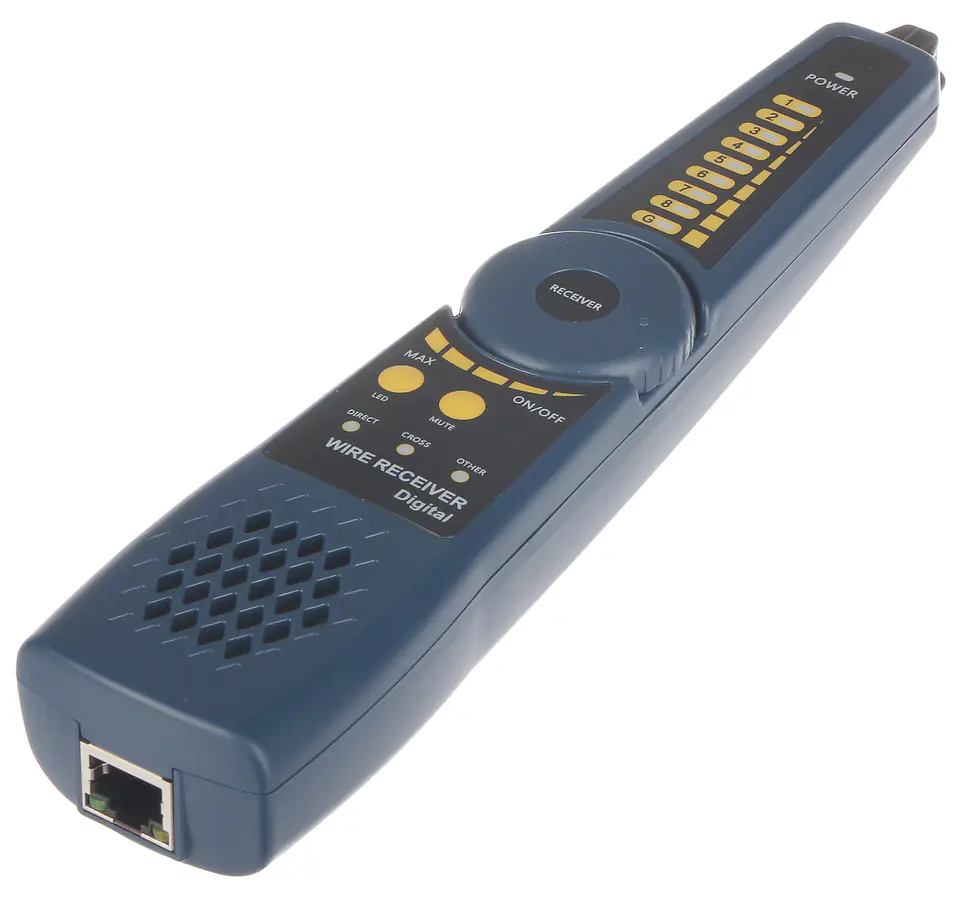

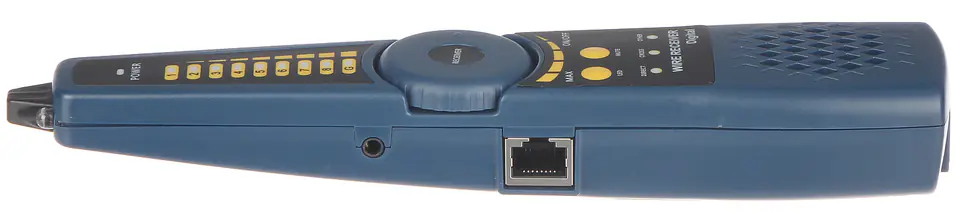

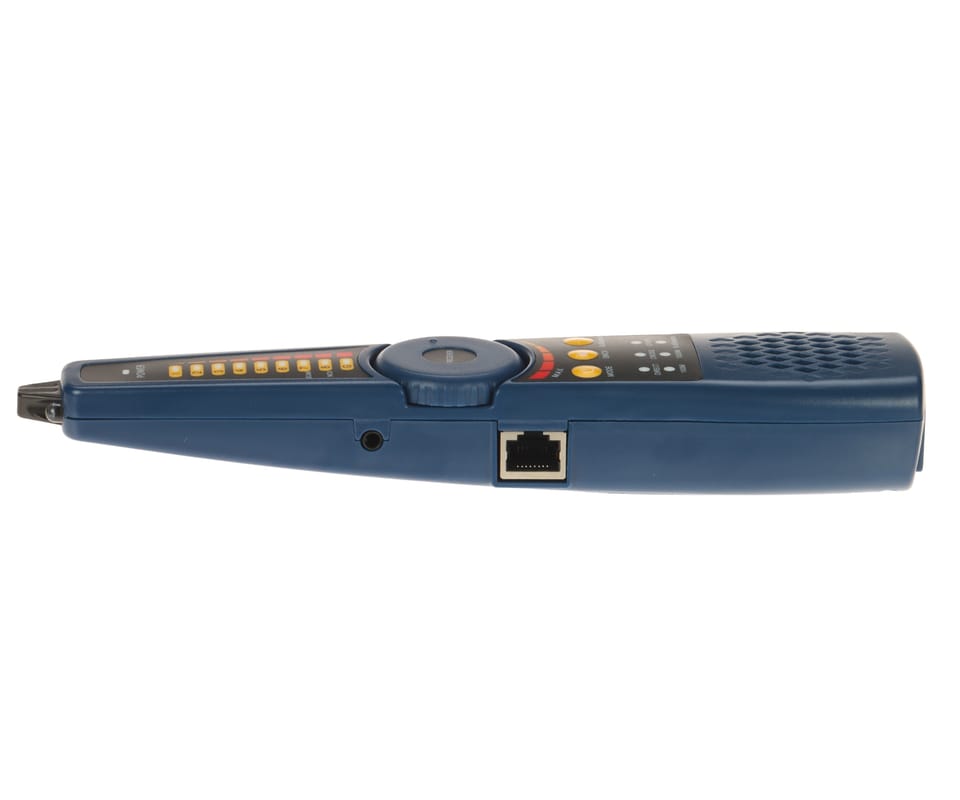

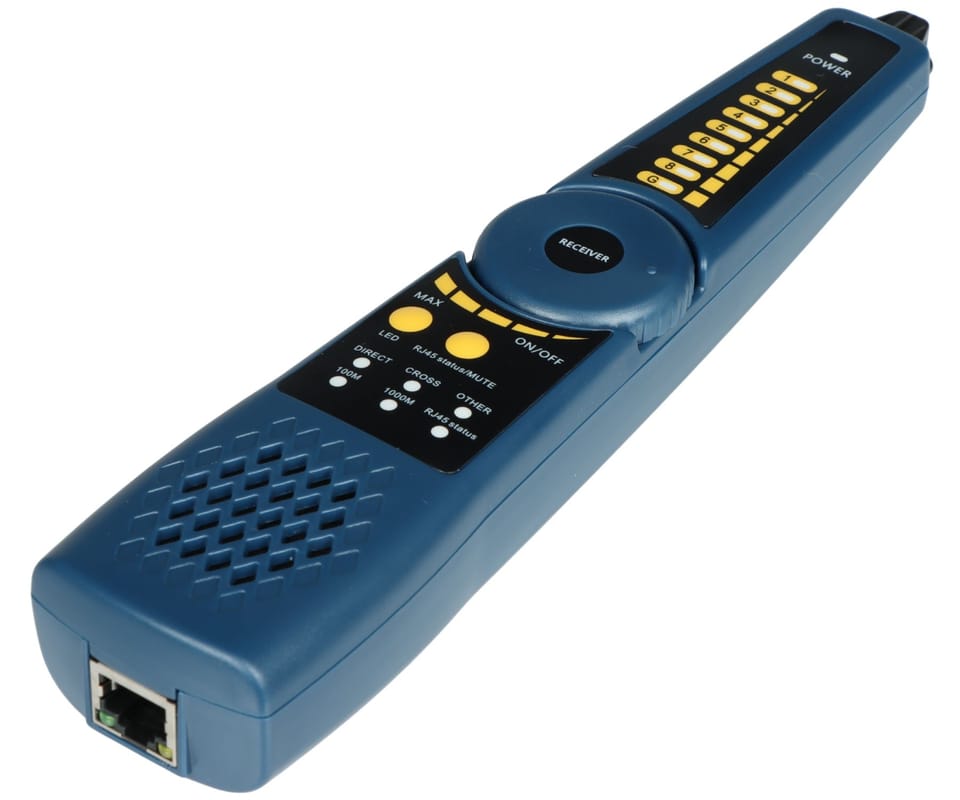

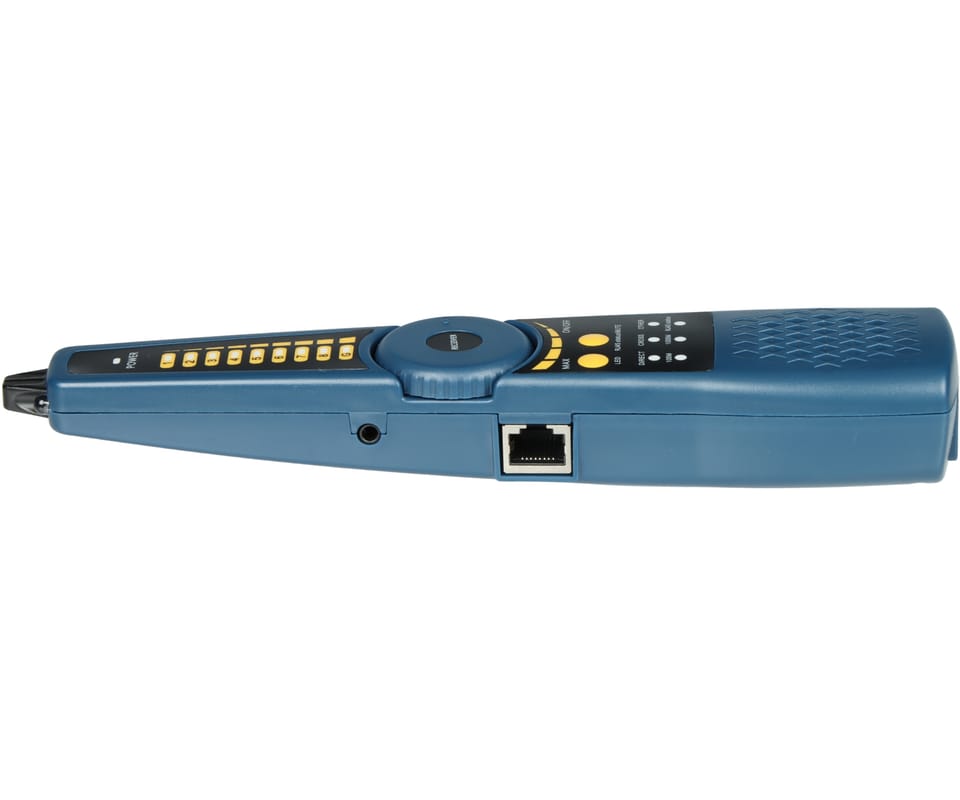

| Twisted pair or telephone line test: | Test of connection of UTP or telephone cables, terminated with RJ-45 plug |

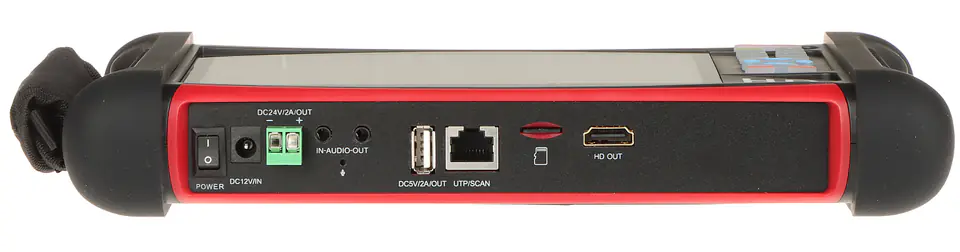

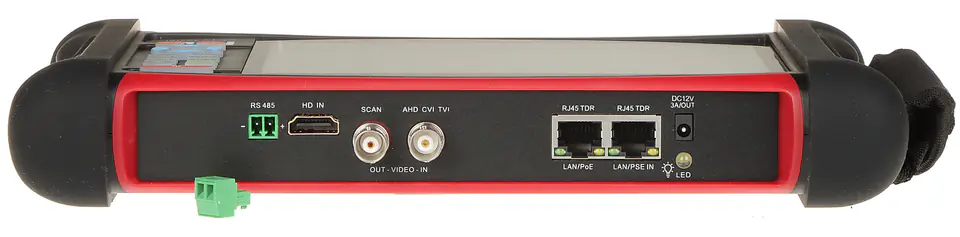

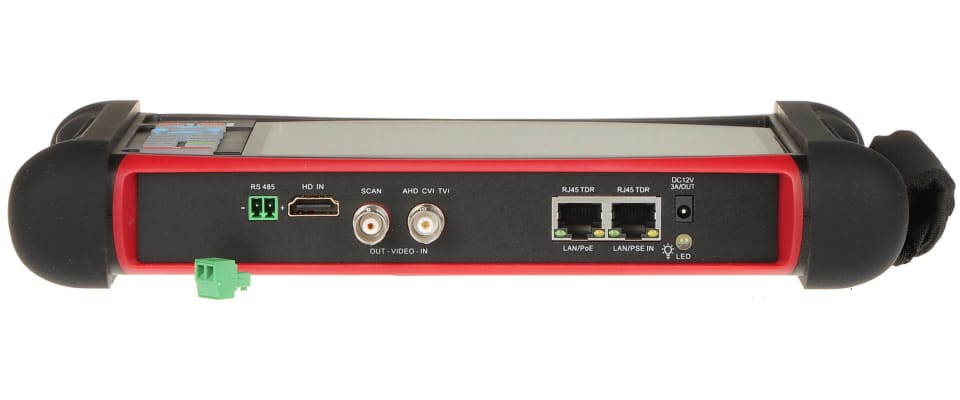

| Video input: | 1 pc AHD / HD-CVI / HD-TVI / CVBS - BNC SOCKET 1 PC HDMI |
| Video output: | 1 pc CVBS - BNC socket 1 pc HDMI |
| Video signal generator: | Control signal generator Generating eight color stripes in PAL/NTSC standards Blue or black screen can be generated |
| Video signal level meter: | PAL/NTSC only |
| Vision standard: | AHD - 5 Mpx, HD-CVI - 8 Mpx, HD-TVI - 8 Mpx, TCP/IP - 4K, CVBS - PAL / NTSC |
| Warranty: | 2 years |

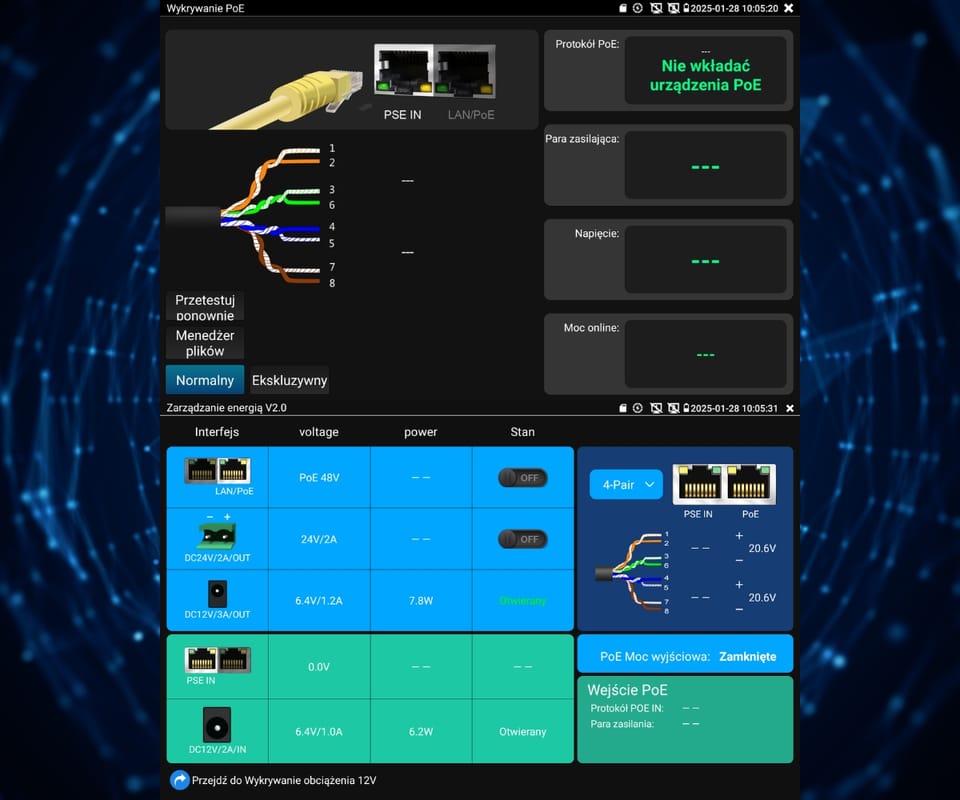

| Working as a power source: | 12 V DC / 3 A 5 V DC / 2 A from USB port 24 V DC / 2 A (screw terminals) 48 V (PoE, LAN), 24 W |
