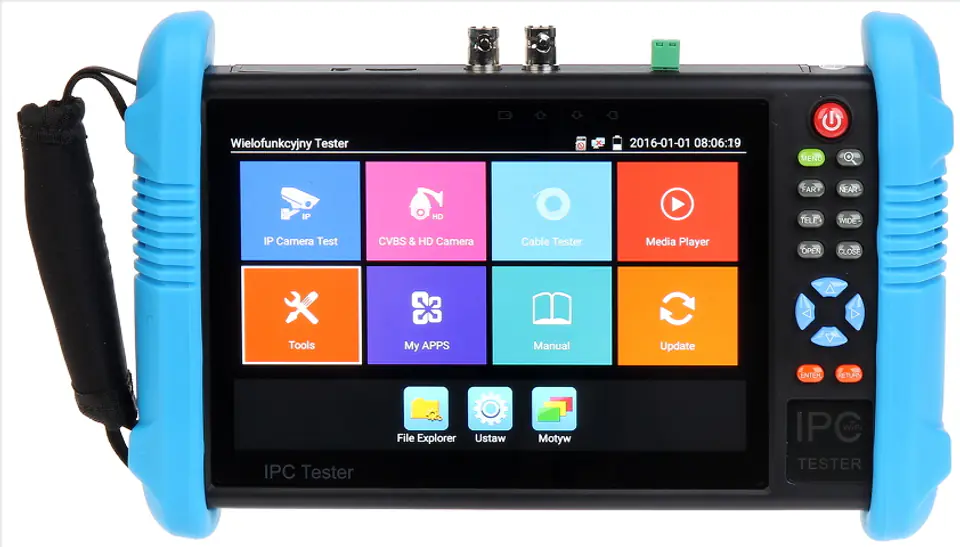

Multifunctional tester of AHD, HD-CVI, HD-TVI, IP cameras, analog cameras, Speed Dome (PTZ), equipped with many additional functions necessary for commissioning CCTV systems

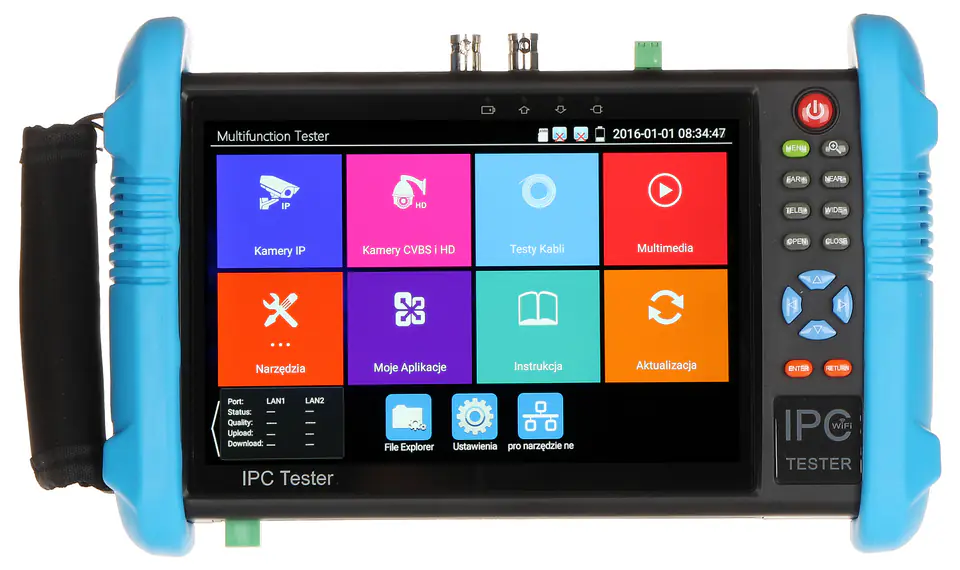

MULTIFUNCTIONAL CCTV TESTER CS-H7-70H
€500.18
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- INNY-D
- Product code:
- CS-H7-70H / 5902887004261
Share this product:
Specification
| Audio input: | 1 pc Mini Jack |
|---|---|
| Audio output: | 1 pc Mini Jack |

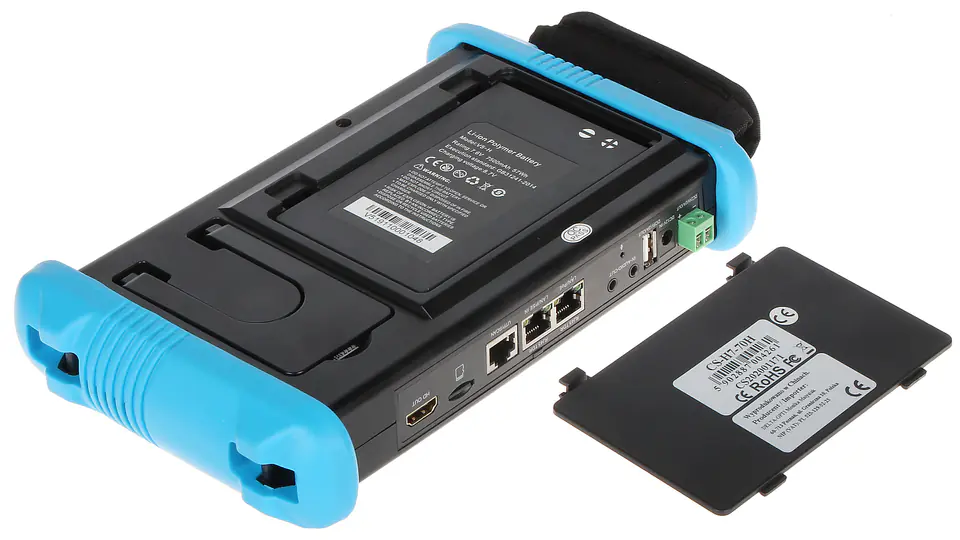

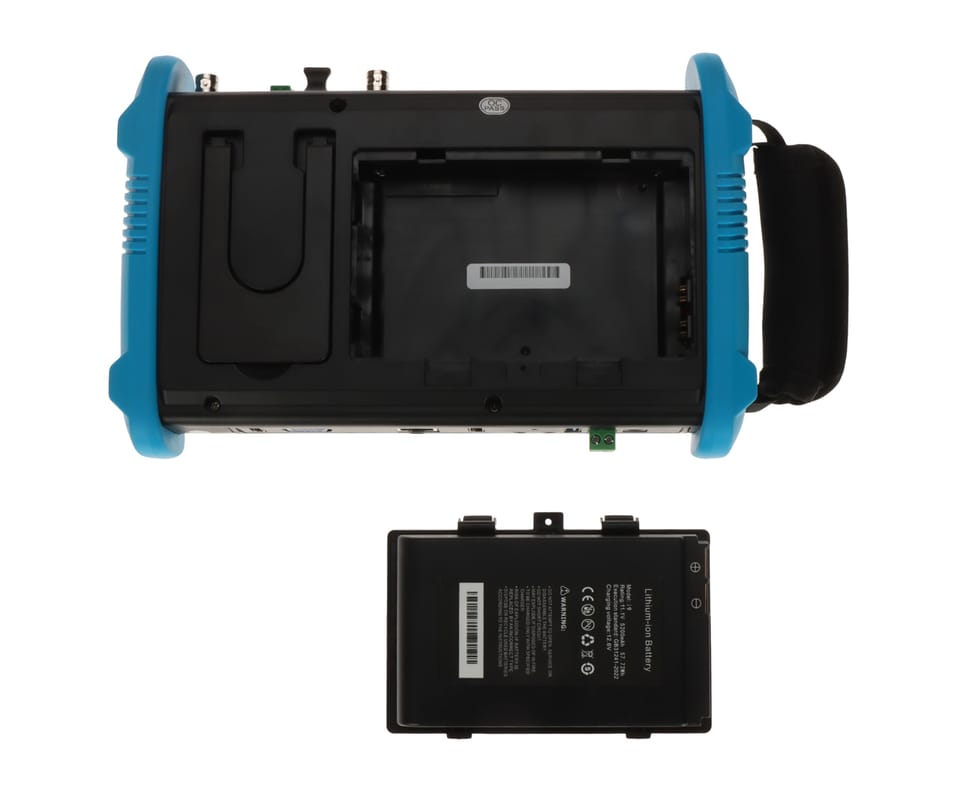

| Battery: | 7500mAh 12V DC / 2A battery (power adapter included) |
| Baud: | 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 115200 bps |
| Dimensions: | 242 x 157 x 46 mm |

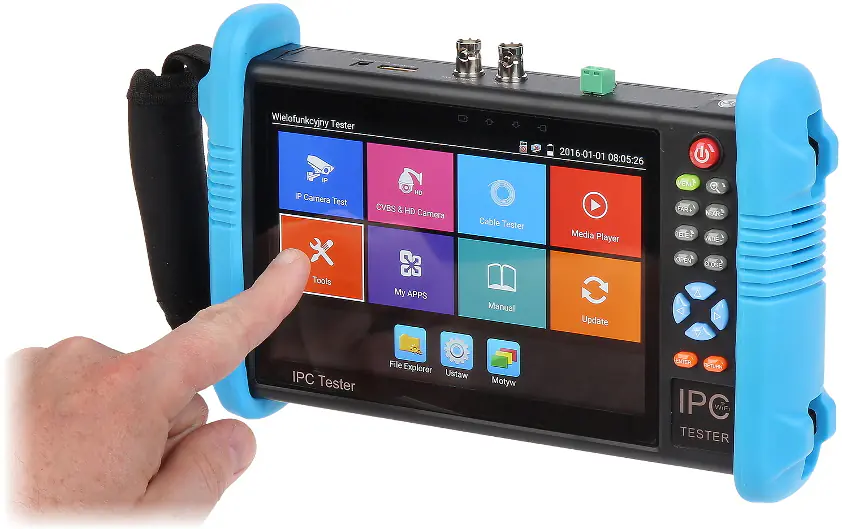

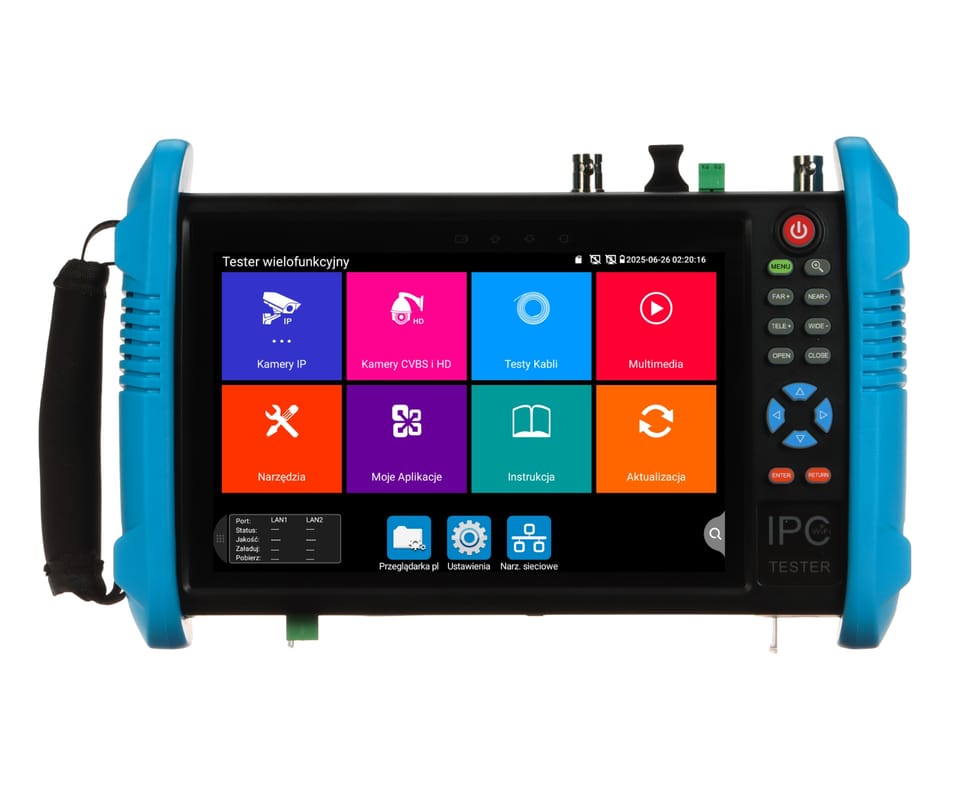

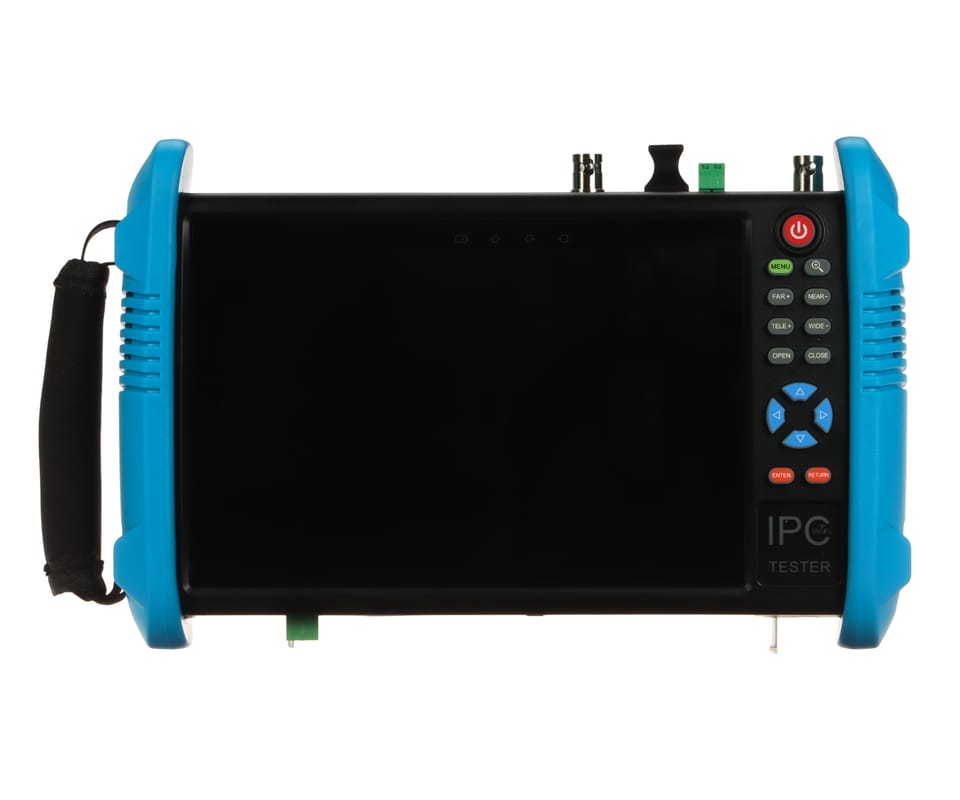

| Display: | 7 " - capacitive touch screen, 1280 x 800 px |
| Estimated battery life: | .max. 10 hours |
| Operating temperature: | -10 °C ... 50 °C |
| Permissible relative ambient humidity: | 30 % ... 90 % |

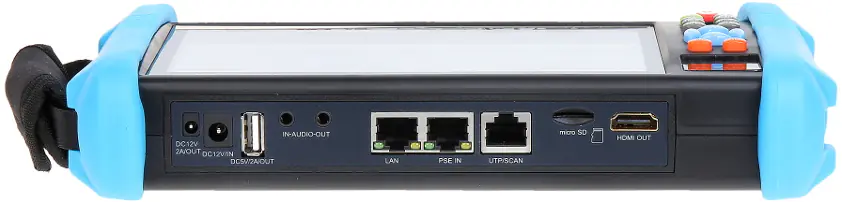

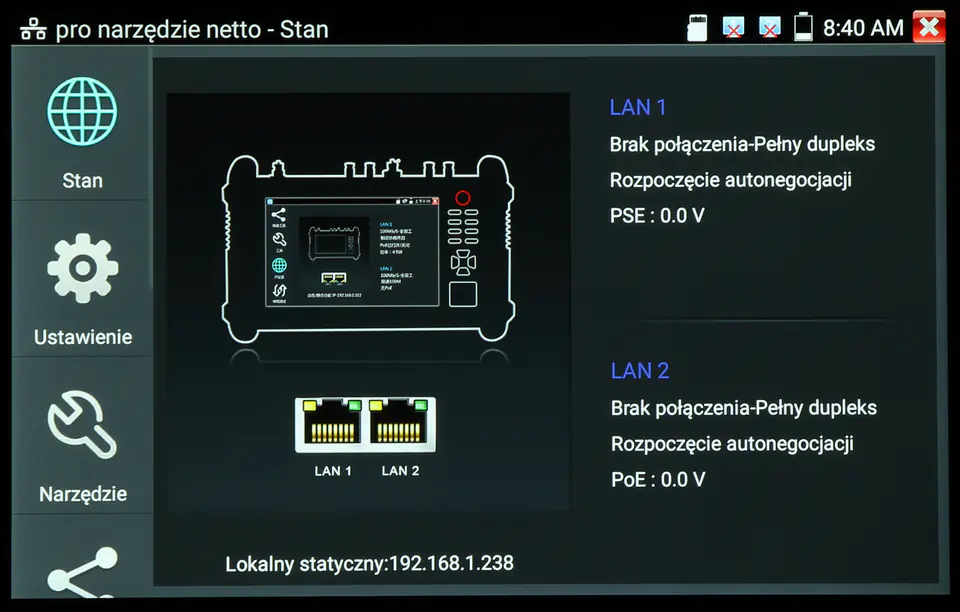

| Port lan: | 2 pcs. - Cooperation with PoE cameras and switches |
| Protocols: | Support more than 30 RS485 protocols: Pelco-D, Pelco-P, YAAN, YAAN-O, YAAN-1, SAMSUNG, PANASONIC, Lilin-FAST, Lilin-MLP2, MOLYNX, MINKING A01, Fastrax, CBC, LC-NEW, WV-CS850, SONY-EVI, LG-MULTIX, DAT-SD, VICON, Vcltp, DH-YTC 06, Santachi, Bosch OSRD, TeleEye DM2, HD 600, Hikvision, KALATEL ASC, AD 168(M-B), SAMSUNG SPD, Siemens, Cohu, MINKING B01, ALEC |
| Rs-485, rs-232 line test: | Testing data from the control device (commands are displayed hexadecimal) |
| Scales: | 0.94 kg |

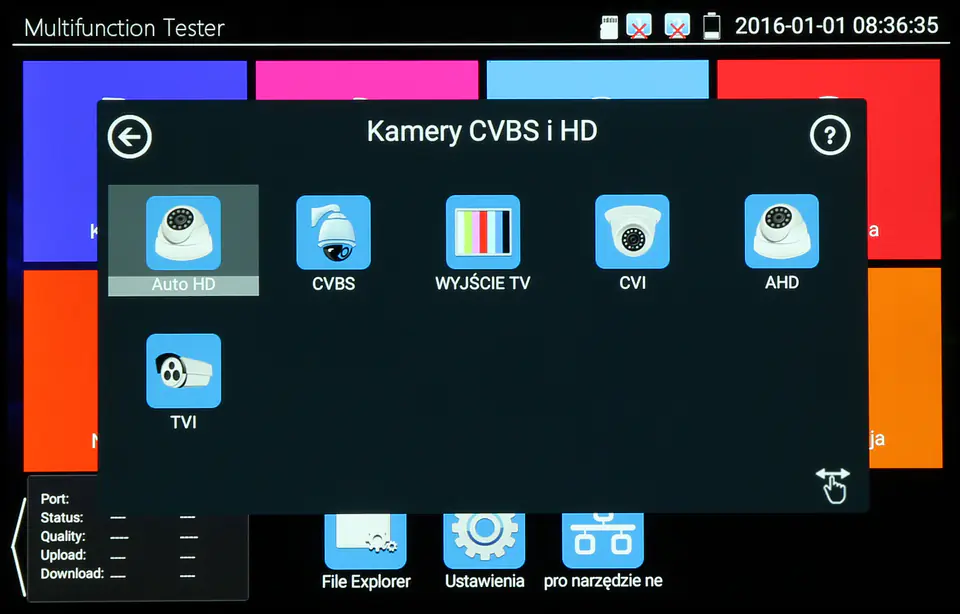

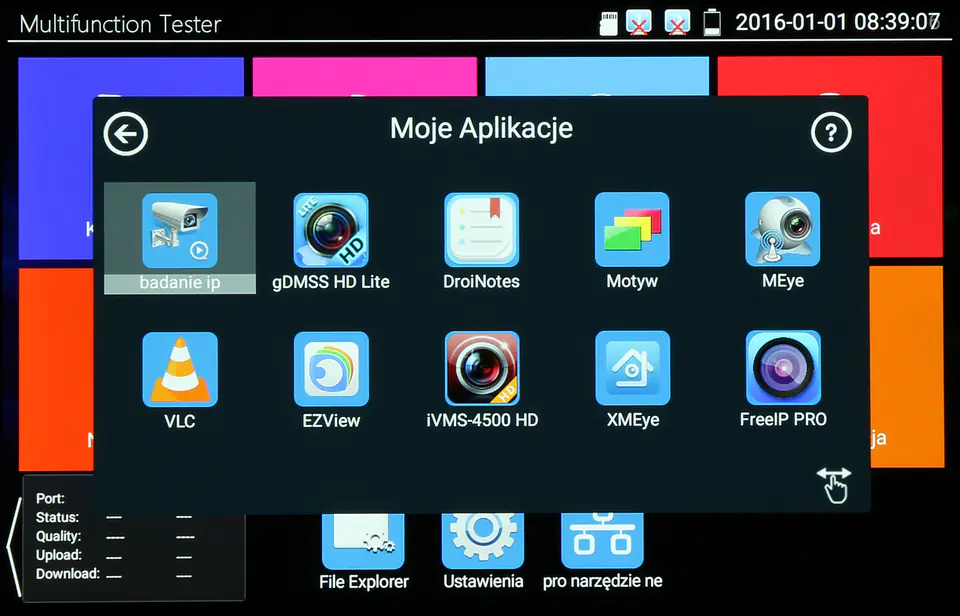

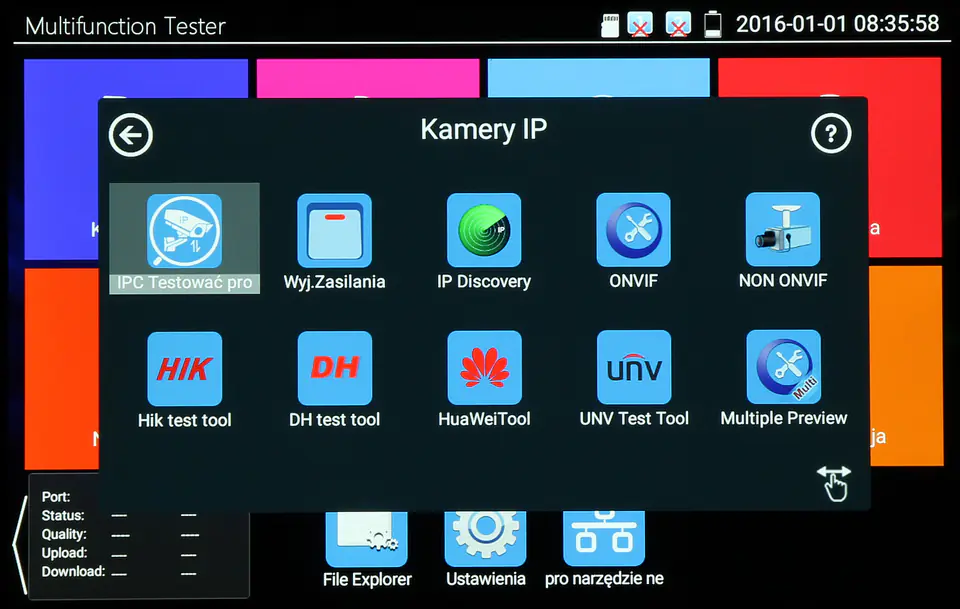

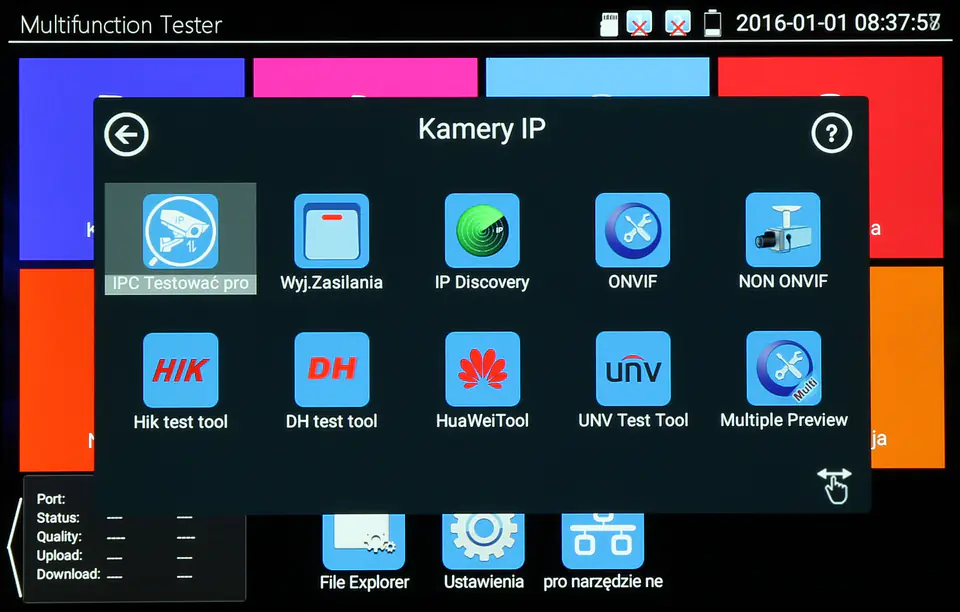

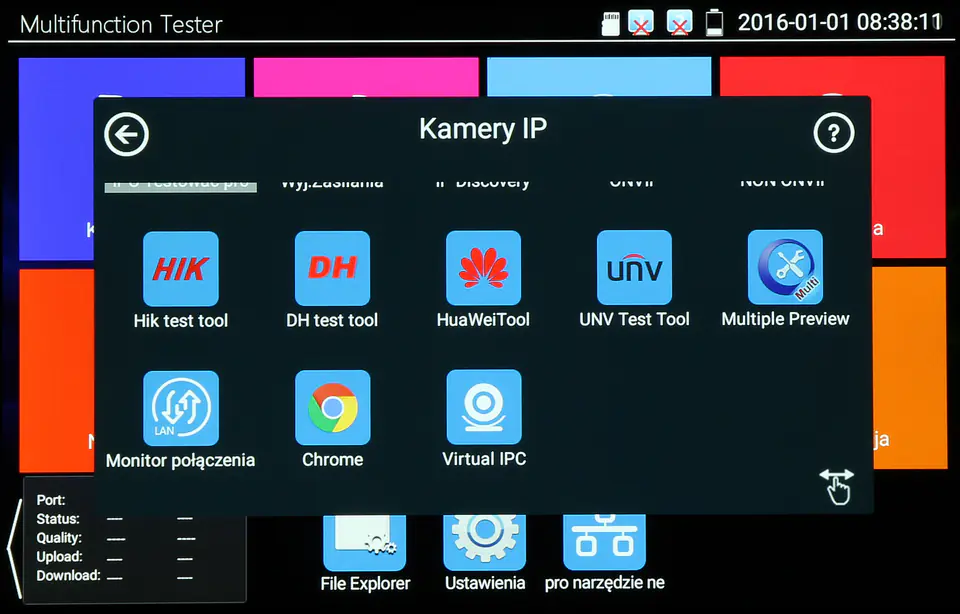

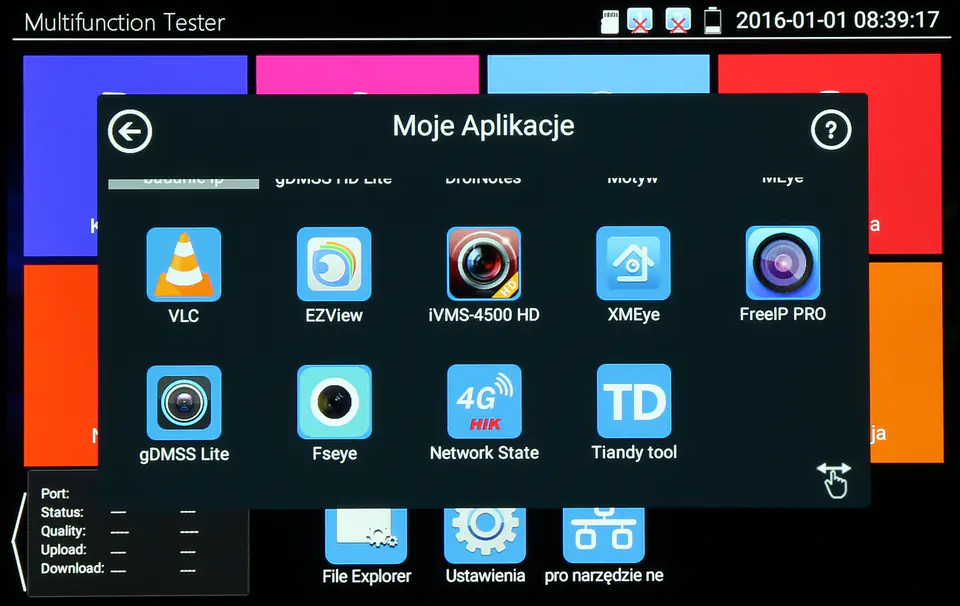

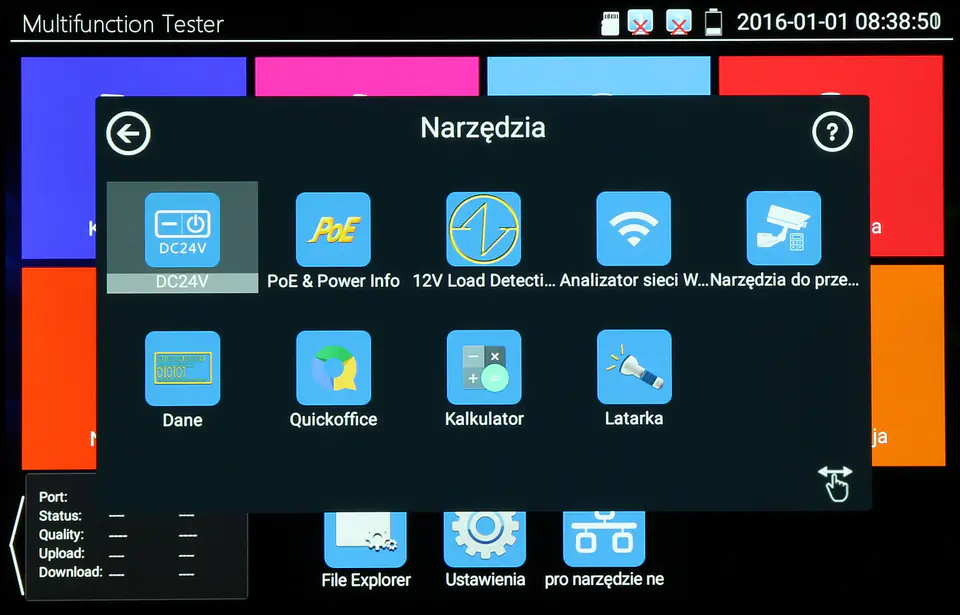

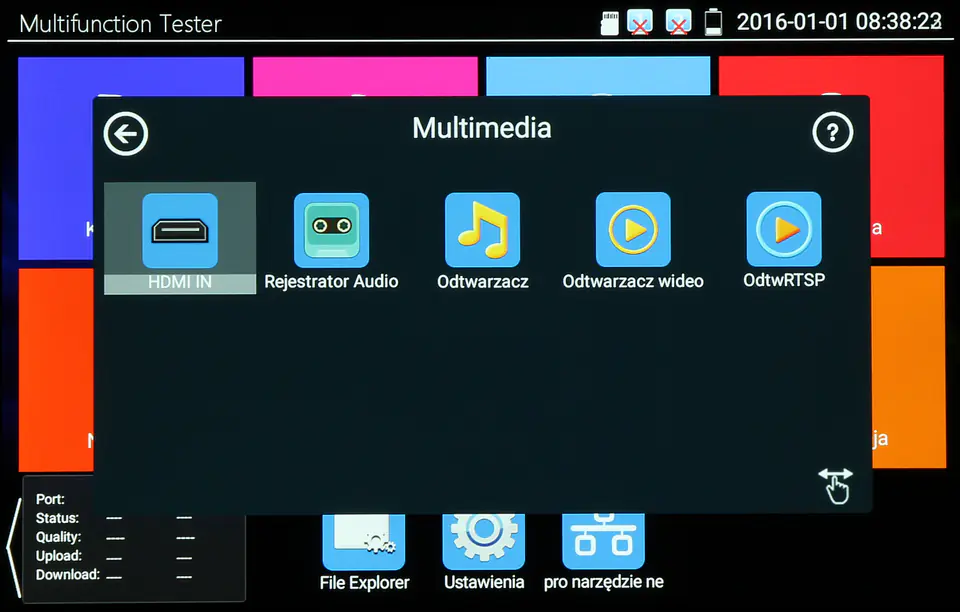

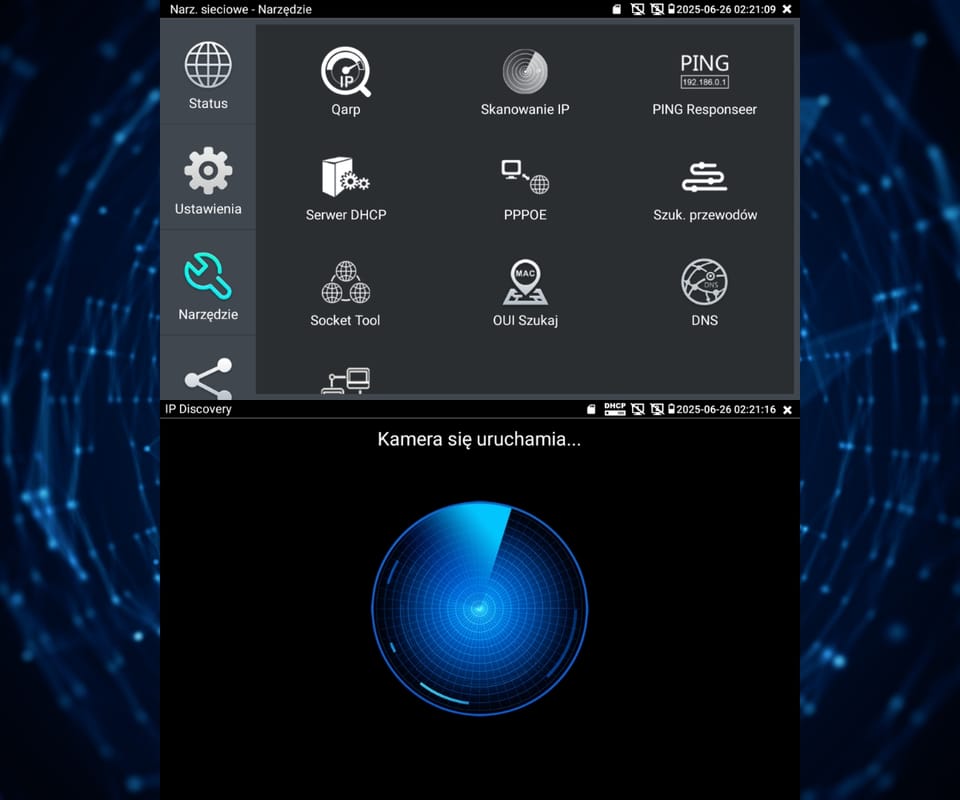

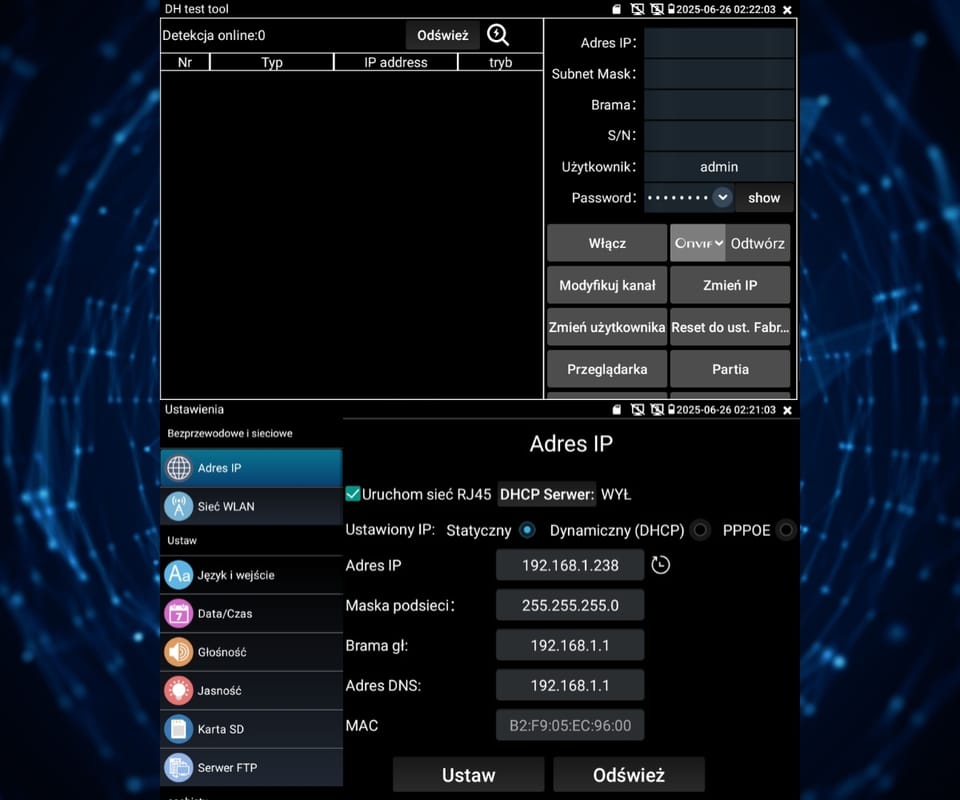

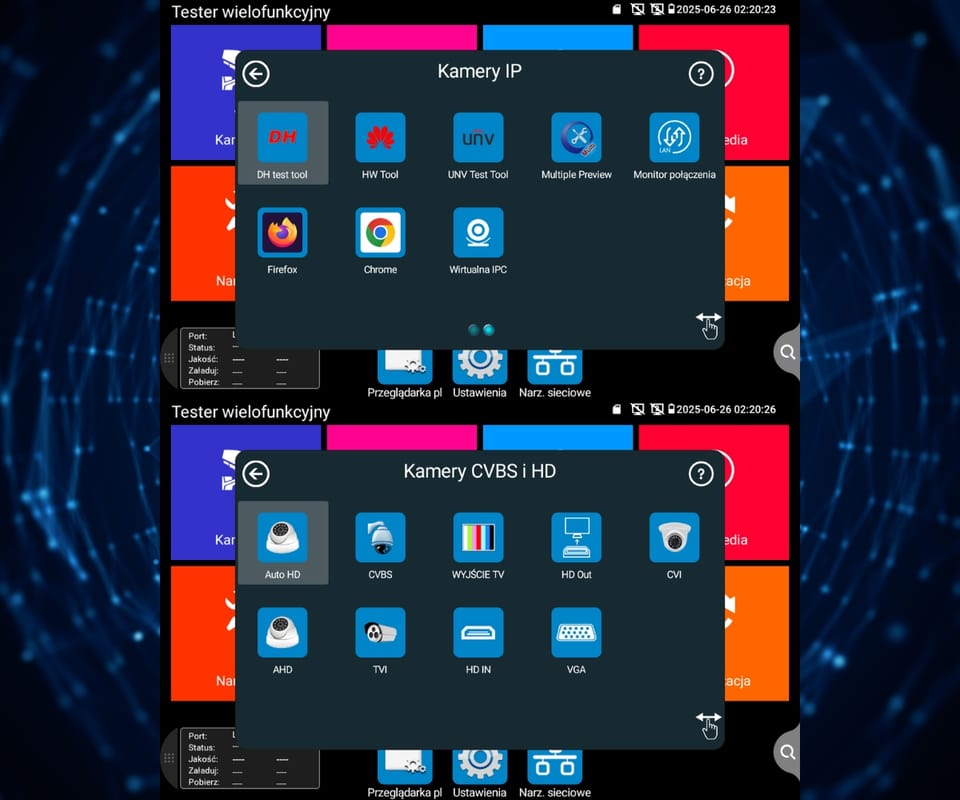

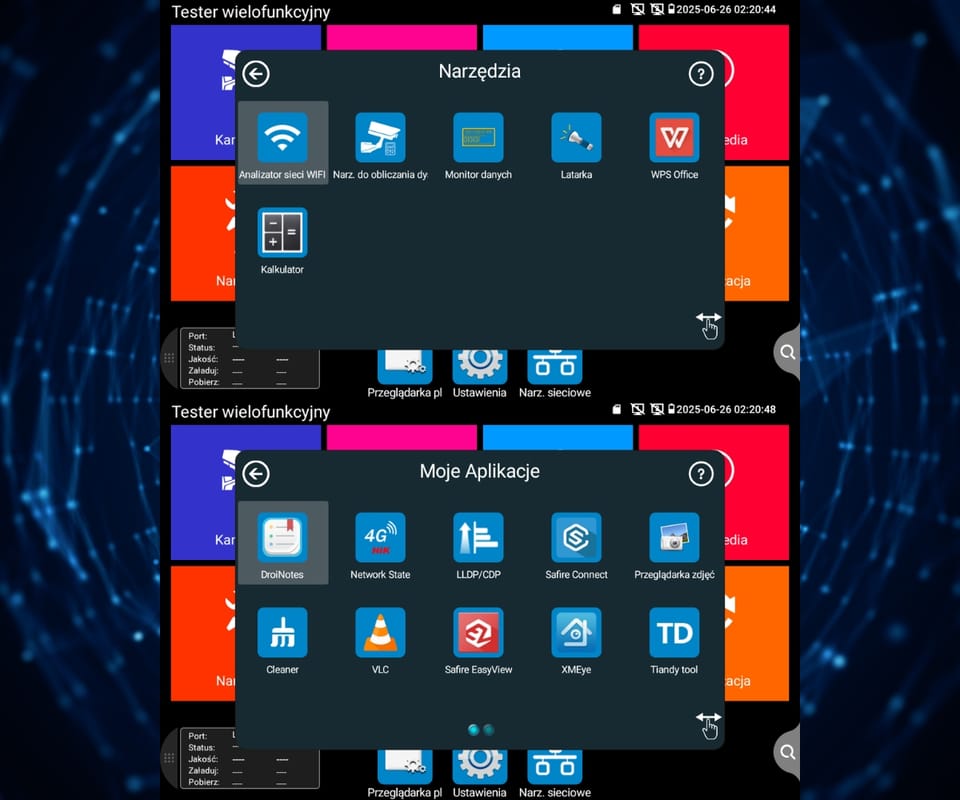

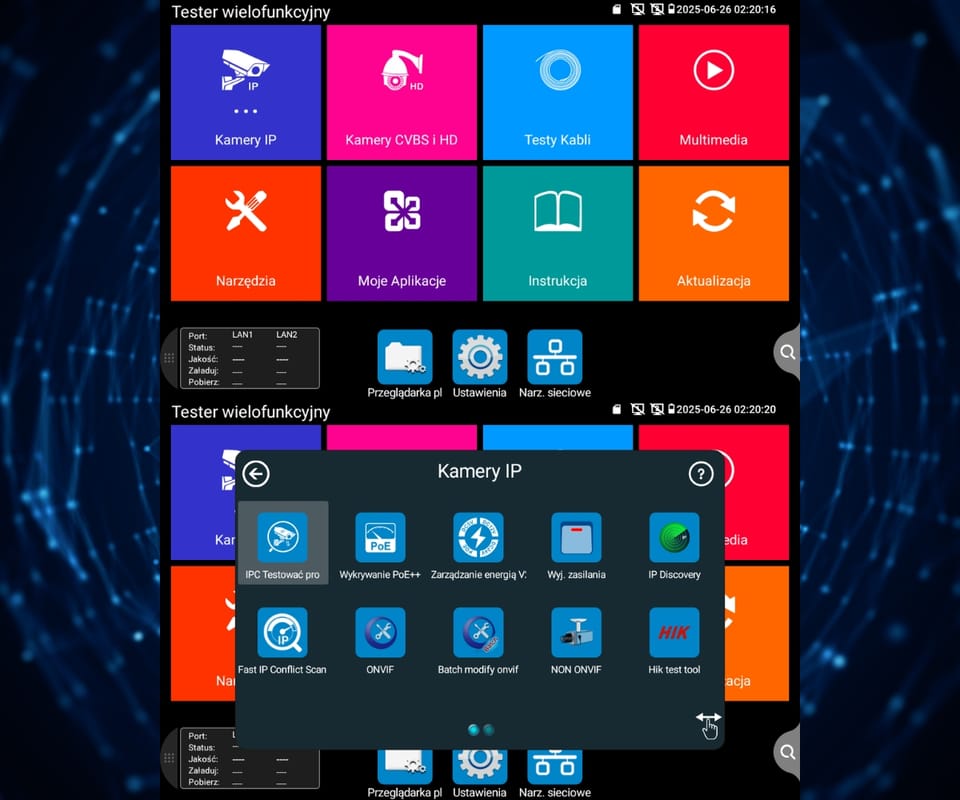

| Selected features: | AHD Camera Test HD-CVI Camera Test HD-TVI Camera Test PAL/NTSC Camera Test IP Camera Test - Supported Image Compression Methods: H.265, H.264, MJPEG Search and preview of IP cameras compatible with Onvif Virtual IPC Bitrate Calculator DH test tool Hik test tool UNV Test Tool HuaWei Tool Control of PTZ and PTZ cameras (speed dome) Monitoring from IP cameras using built-in applications - iVMS-4500 HD, EZView, gDMSS HD Lite, XMEye, MEye, Fseye Built-in web browser - Google Chrome Control signal generator LAN Monitoring IP address scanner PING - testing the link using ICMP packets Detecting a connected port in a switch Twisted pair tester Cooperation with PoE cameras and switches PoE power meter Power source DC 5V / 12V / 48V Data monitor - RS-485 serial port monitor Hotspot Audio Test - Wi-Fi Video recording to micro SD card with playback - 8 GB included Playback of recordings Calculator Built-in flashlight |
| Serial ports: | RS-485 |

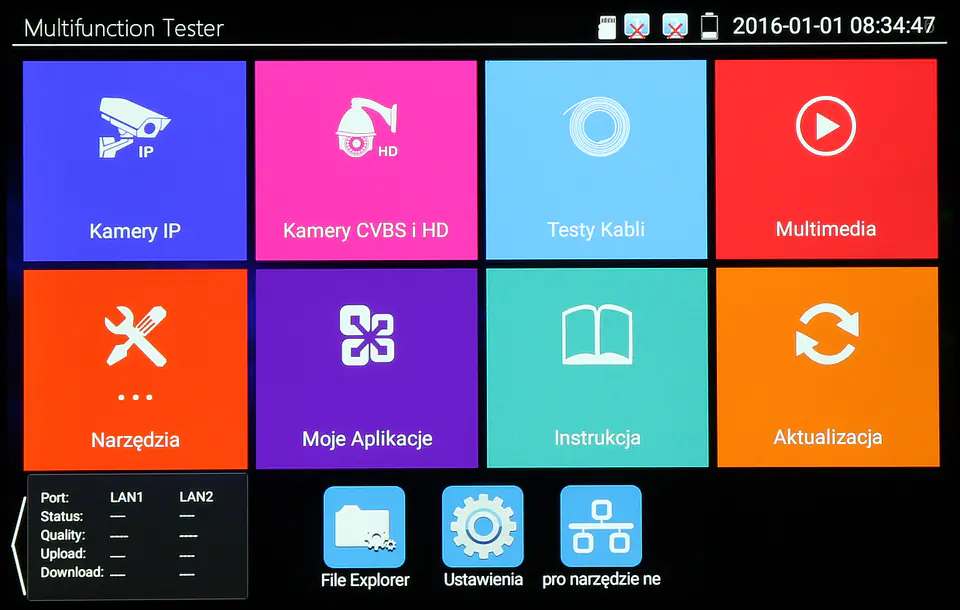

| Service: | Graphic menu - touch and button control |

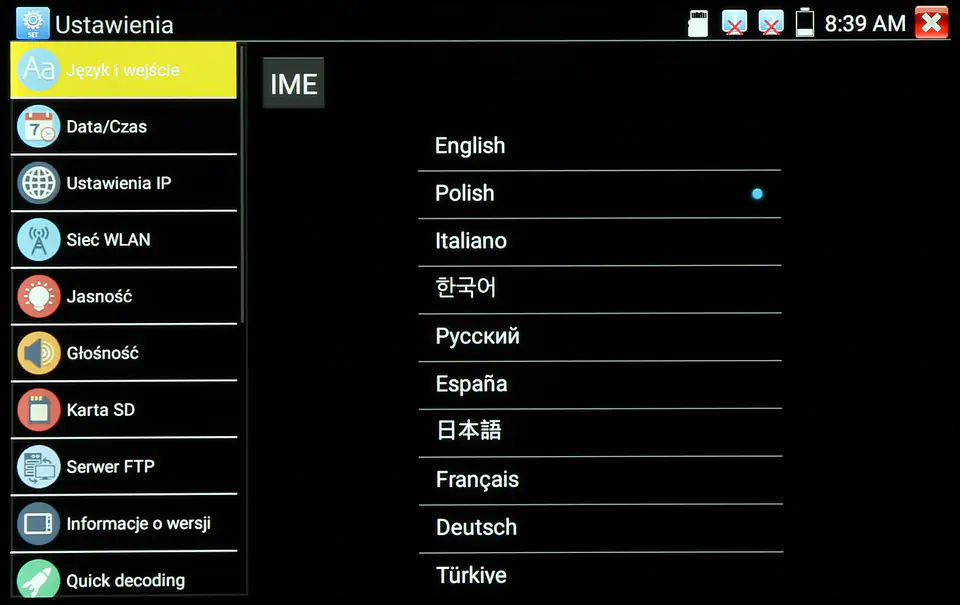

| Supported languages: | Polish, Czech, English, French, German, Italian, Portuguese, Russian, Serbian, Spanish, Turkish |

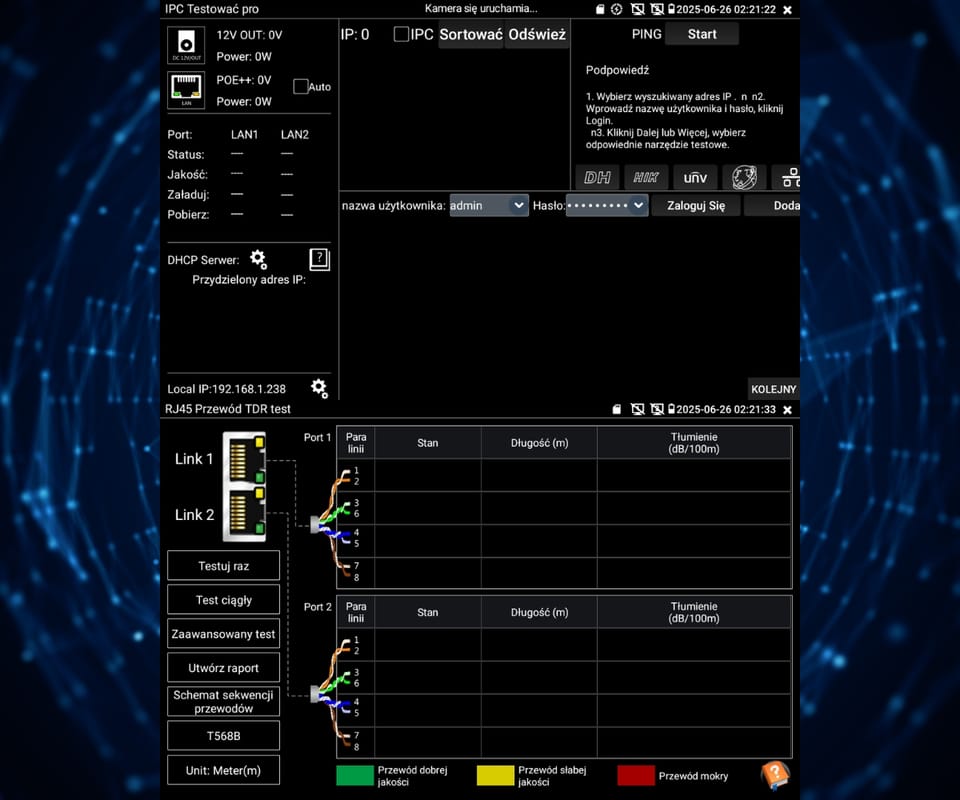

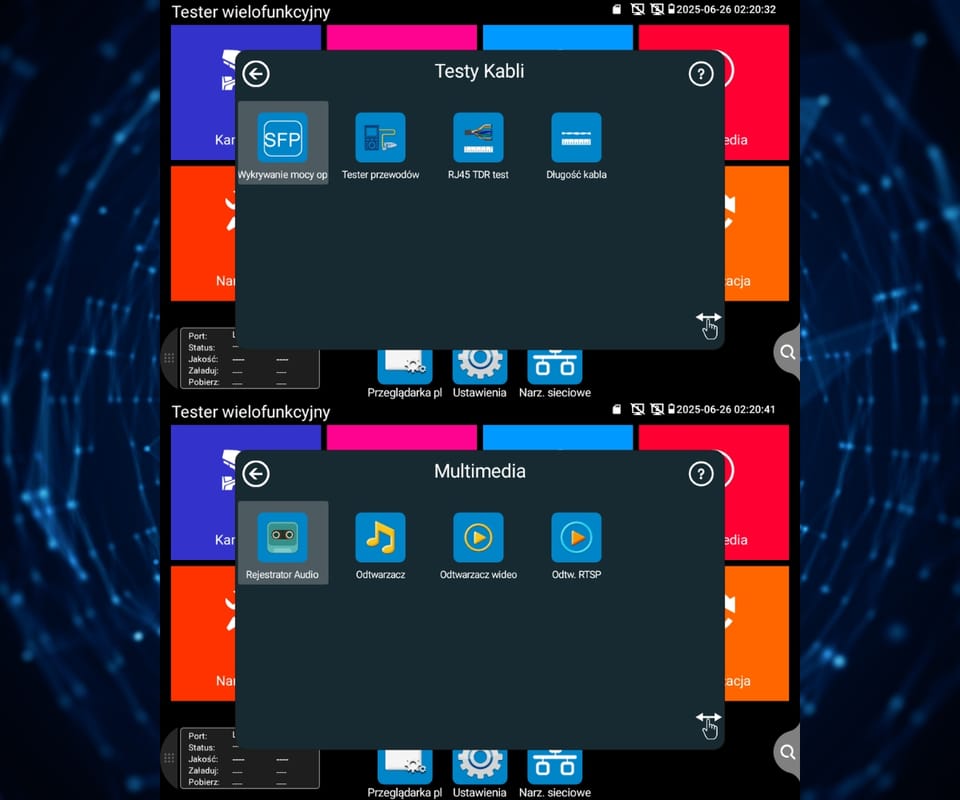

| Tdr reflectometer: | Cable break location detection and location (UTP only) |

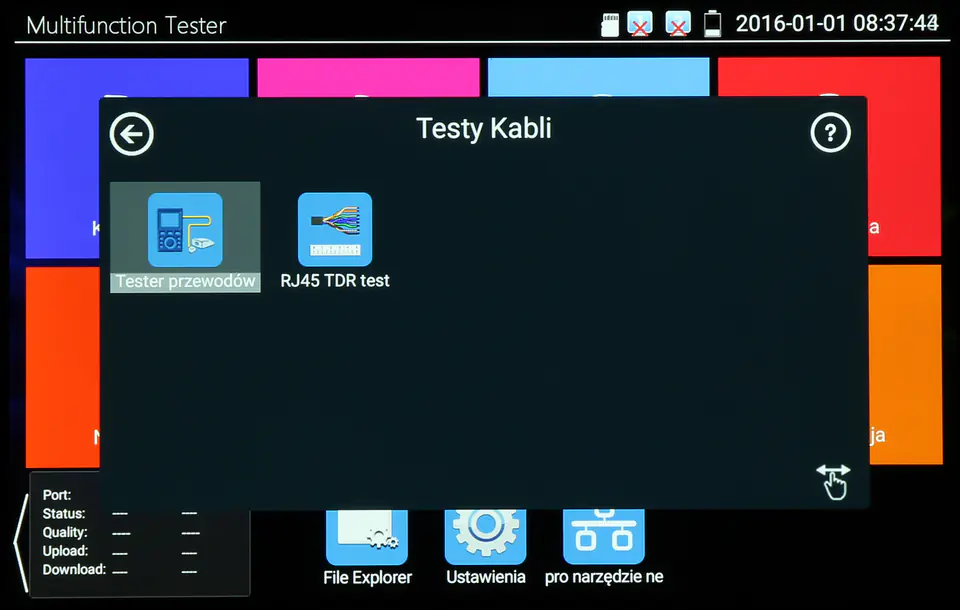

| Twisted pair or telephone line test: | Test of connection of UTP or telephone cables, terminated with RJ-45 plug |

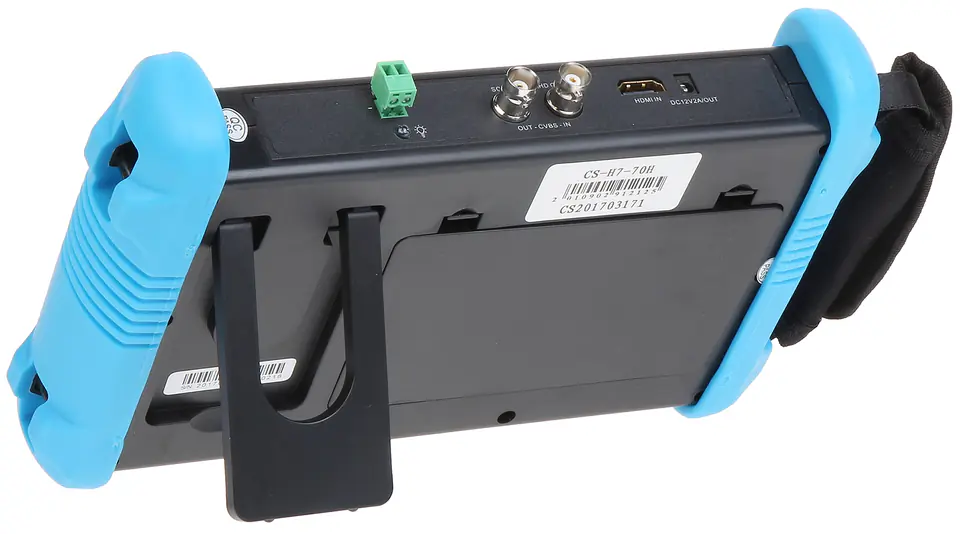

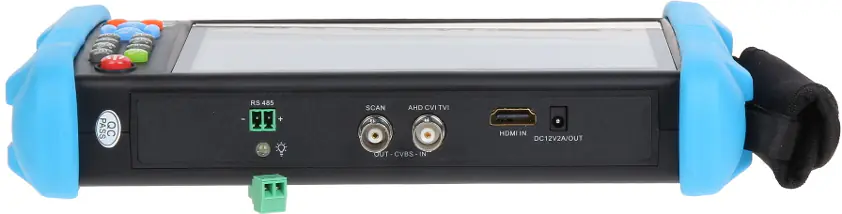

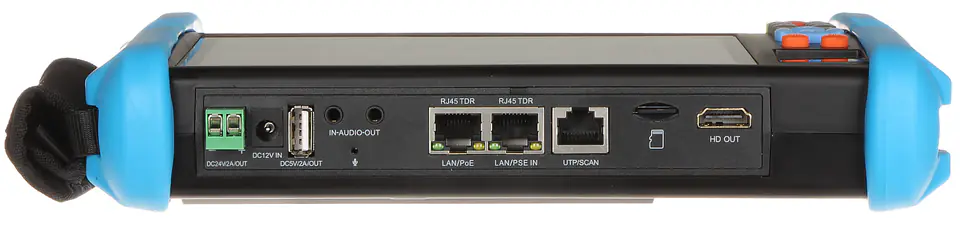

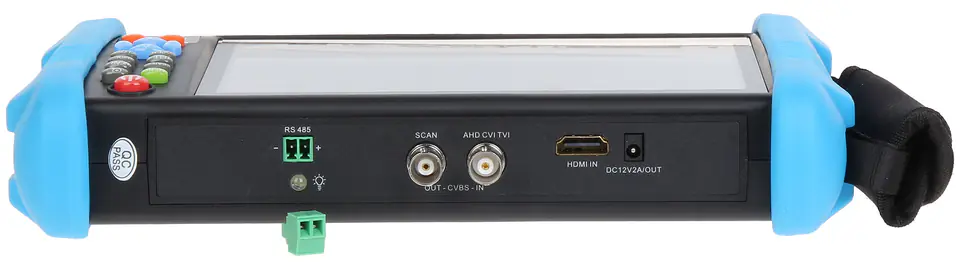

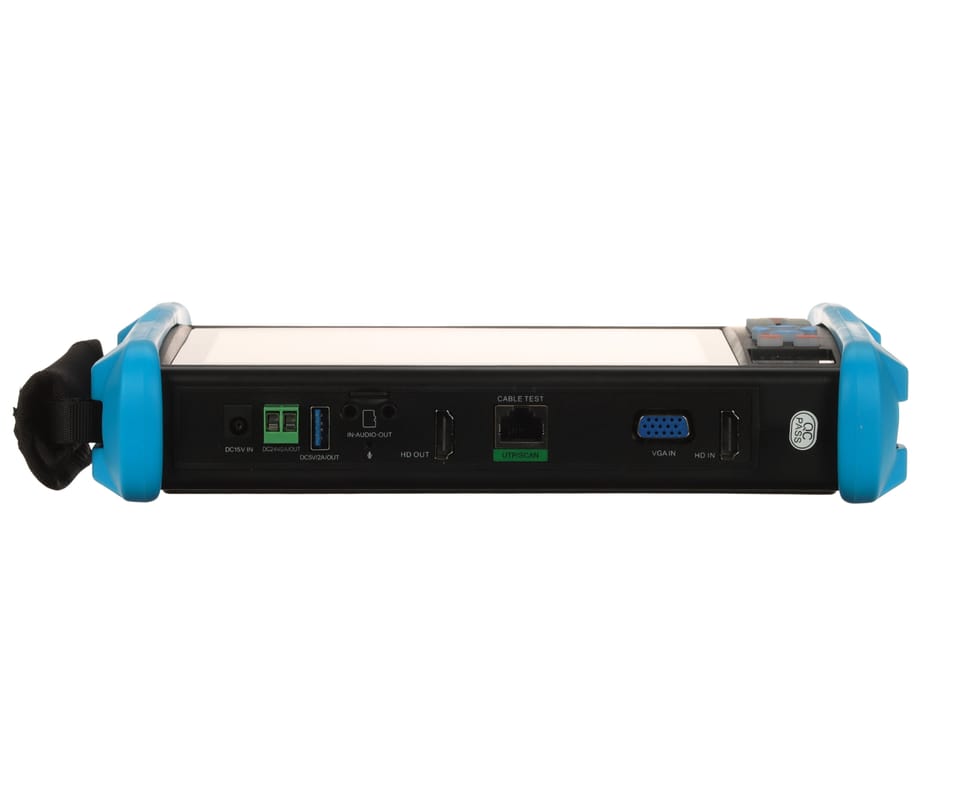

| Video input: | 1 pc AHD / HD-CVI / HD-TVI / CVBS - BNC SOCKET 1 PC HDMI |
| Video output: | 1 pc CVBS - BNC socket 1 pc HDMI |
| Video signal generator: | Control signal generator Generating eight color stripes in PAL/NTSC standards Blue or black screen can be generated |
| Vision standard: | AHD - 8 Mpx, HD-CVI - 8 Mpx, HD-TVI - 8 Mpx, TCP/IP - 4K, CVBS - PAL / NTSC |
| Warranty: | 2 years |
| Wi-fi module: | 2.4 GHz |
| Working as a power source: | 12 V DC / 3 A 24 V DC / 2 A 5 V DC / 2 A from USB port 48 V (PoE, LAN), 24 W |
