Multifunctional tester of AHD, HD-CVI, HD-TVI, IP cameras, analog cameras, Speed Dome (PTZ), equipped with many additional functions necessary for commissioning CCTV systems

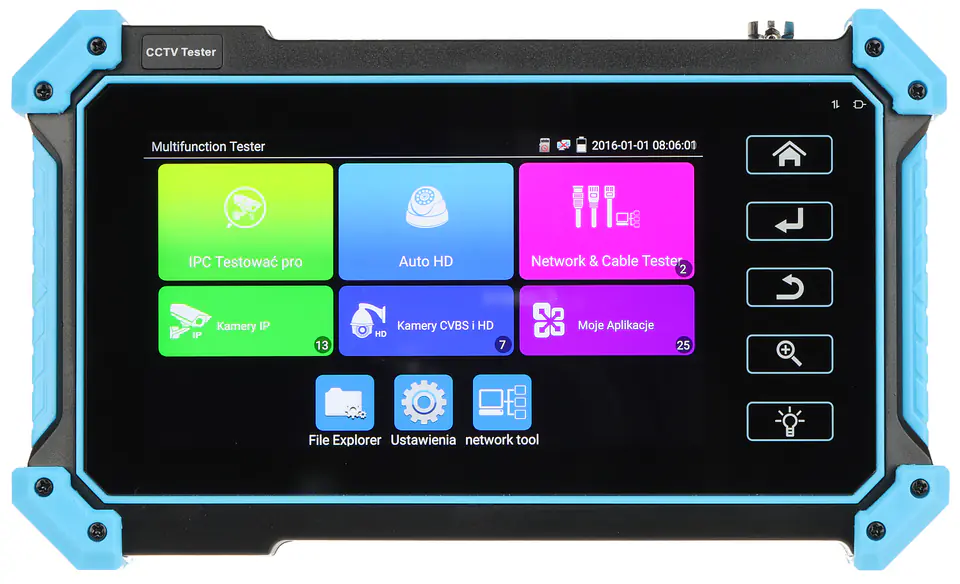

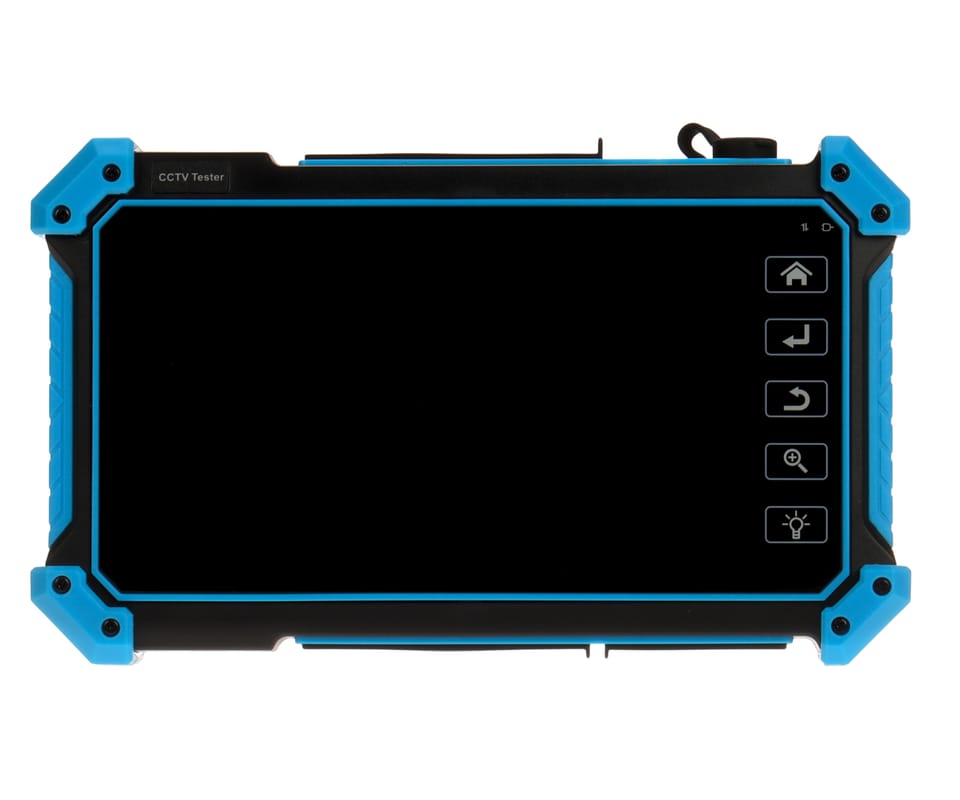

MULTIFUNCTIONAL CCTV TESTER CS-H7-50H
€235.06
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- CS-H7-50H / 5902887063480
Share this product:
Specification
| Audio input: | 1 pc Mini Jack |
|---|---|

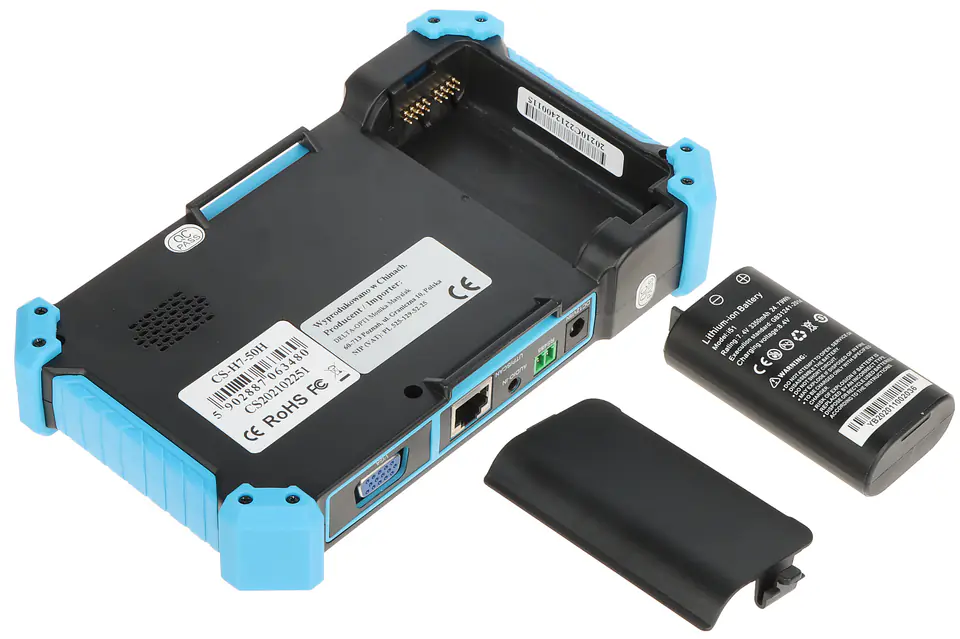

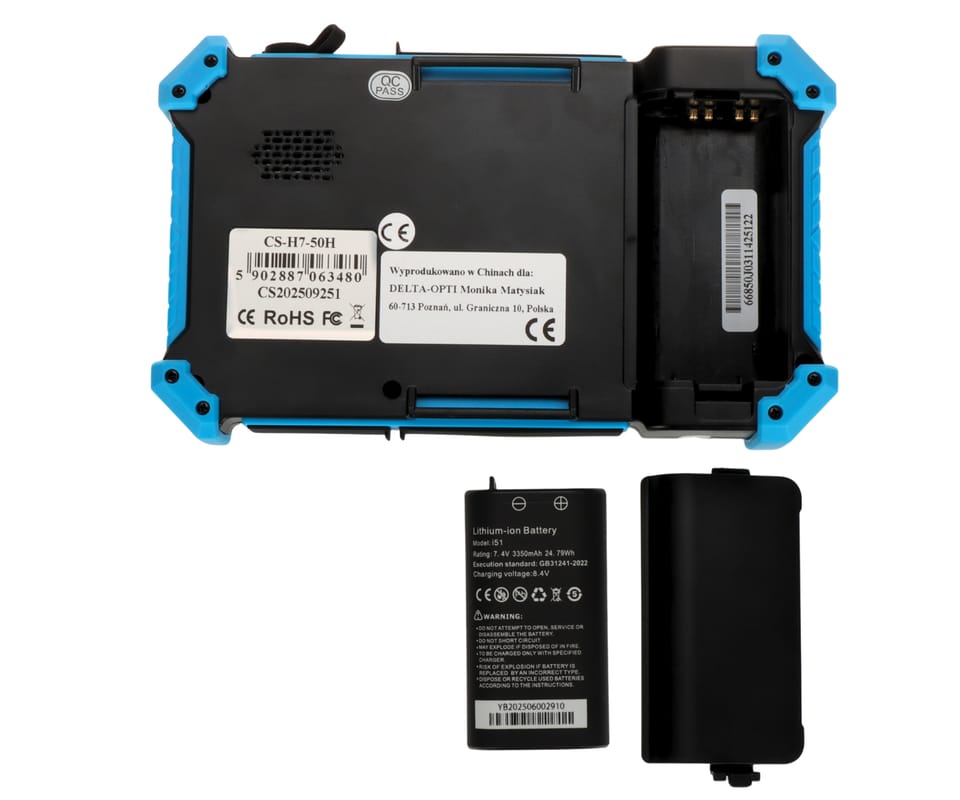

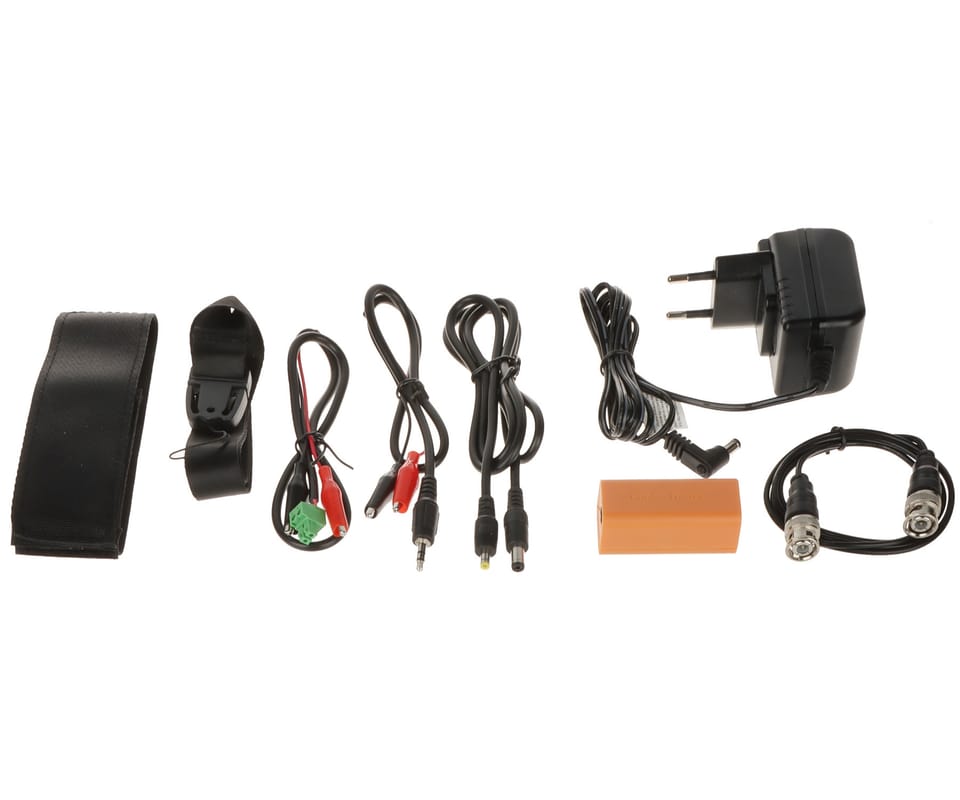

| Battery: | Li-Ion battery 7.4 V / 3350 mAh 12 V DC / 2 A (power adapter included) |
| Baud: | 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 115200 bps |
| Dimensions: | 184 x 110 x 40 mm |

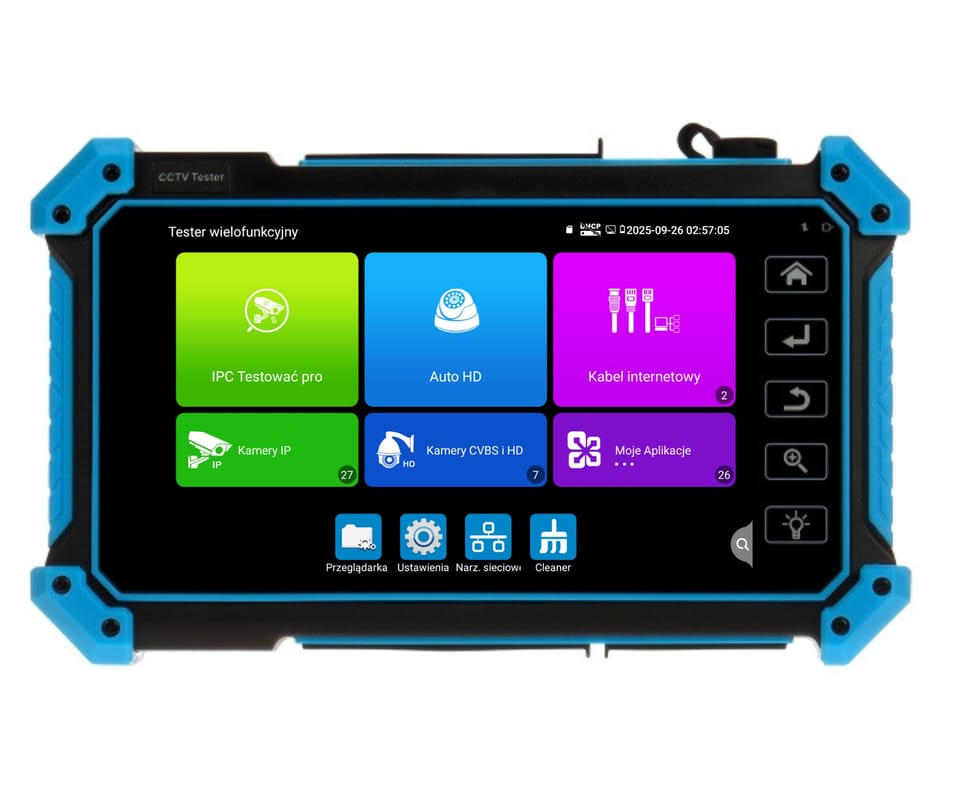

| Display: | 5 " - capacitive touch screen - 1920 x 1080 px |
| Estimated battery life: | .max. 6 hours |
| Operating temperature: | -10 °C ... 50 °C |
| Permissible relative ambient humidity: | 30 % ... 90 % |
| Port lan: | 2 pcs. - Cooperation with PoE cameras and switches |
| Protocols: | Support more than 30 RS485 protocols Pelco-D, Pelco-P, YAAN, YAAN-O, YAAN-1, SAMSUNG, PANASONIC, Lilin-FAST, Lilin-MLP2, MOLYNX, MINKING A01, Fastrax, CBC, LC-NEW, WV-CS850, SONY-EVI, LG-MULTIX, DAT-SD, VICON, Vcltp, DH-YTC 06, Santachi, Bosch OSRD, TeleEye DM2, HD 600, Hikvision, KALATEL ASC, AD 168(M-B), SAMSUNG SPD, Siemens, MINKING B01, ALEC |

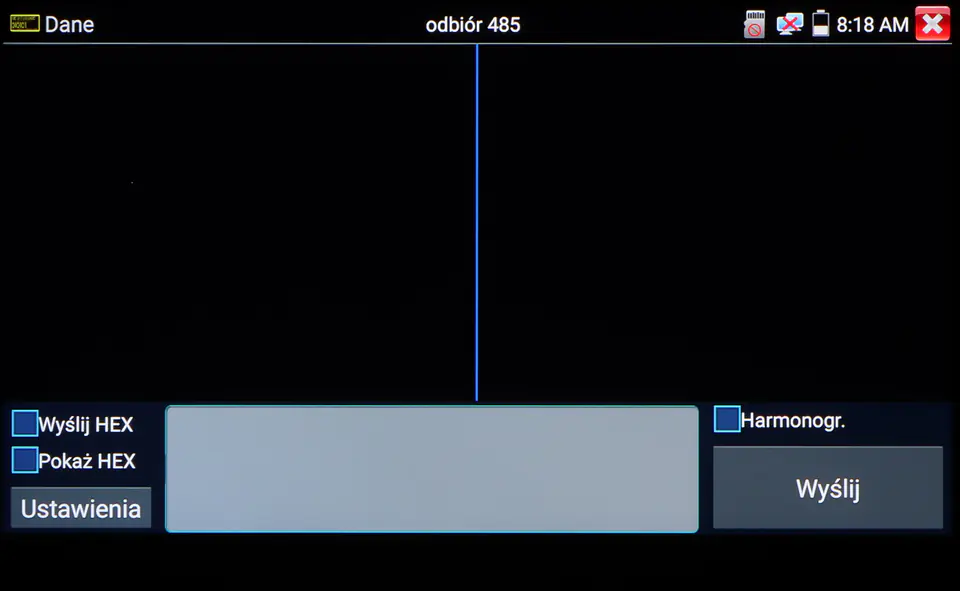

| Rs-485, rs-232 line test: | Testing data from the control device (commands are displayed hexadecimal) |
| Scales: | 0.42 kg |

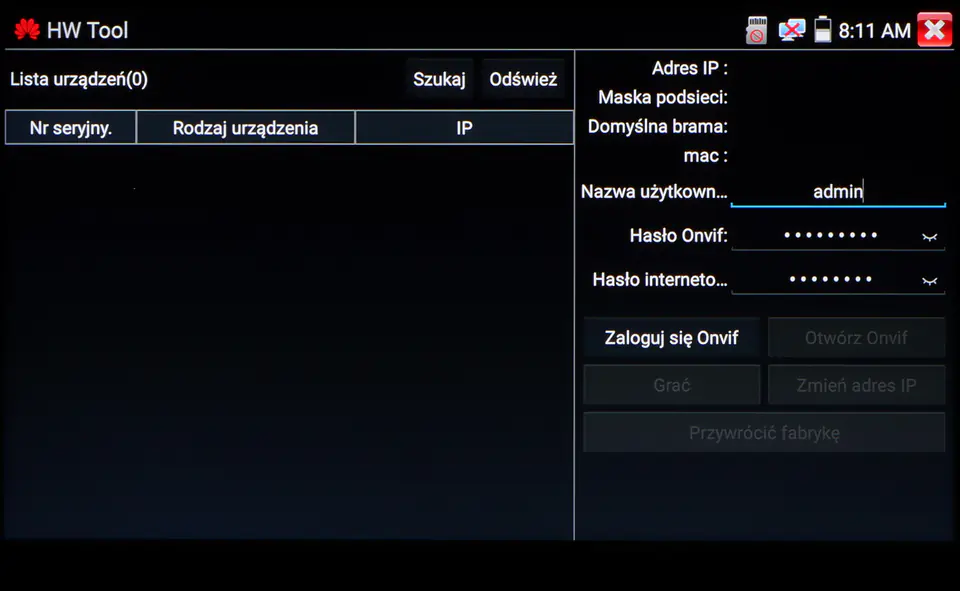

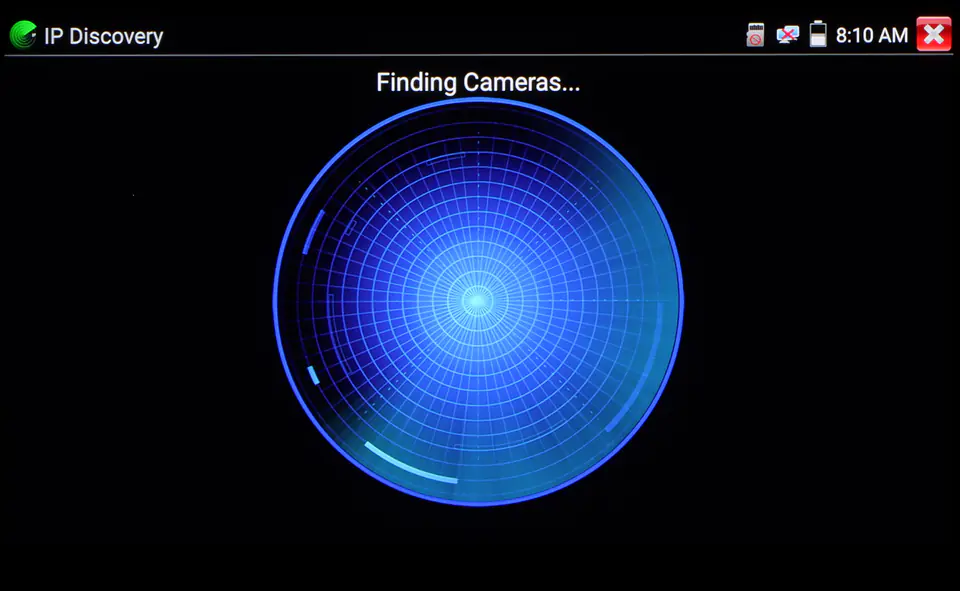

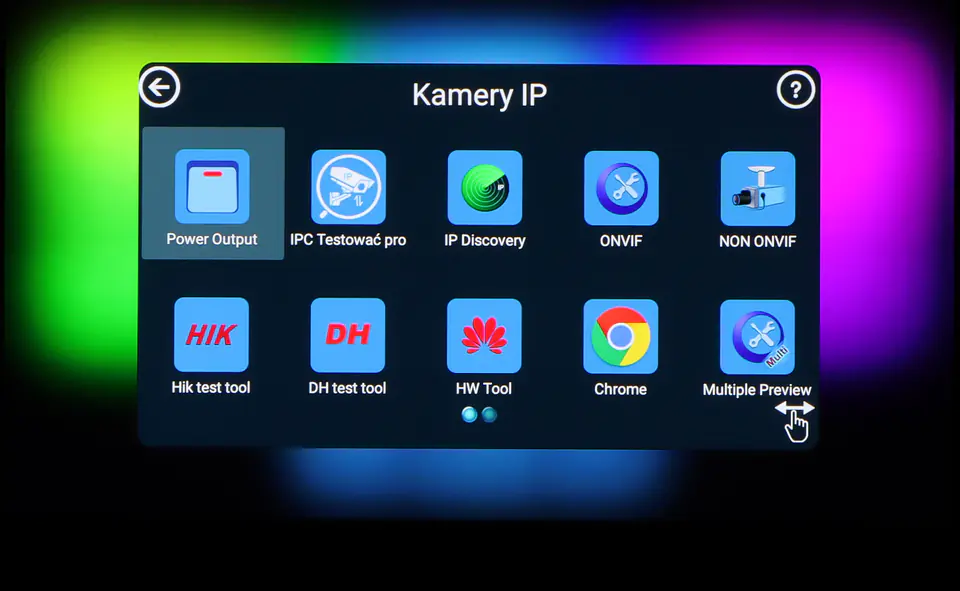

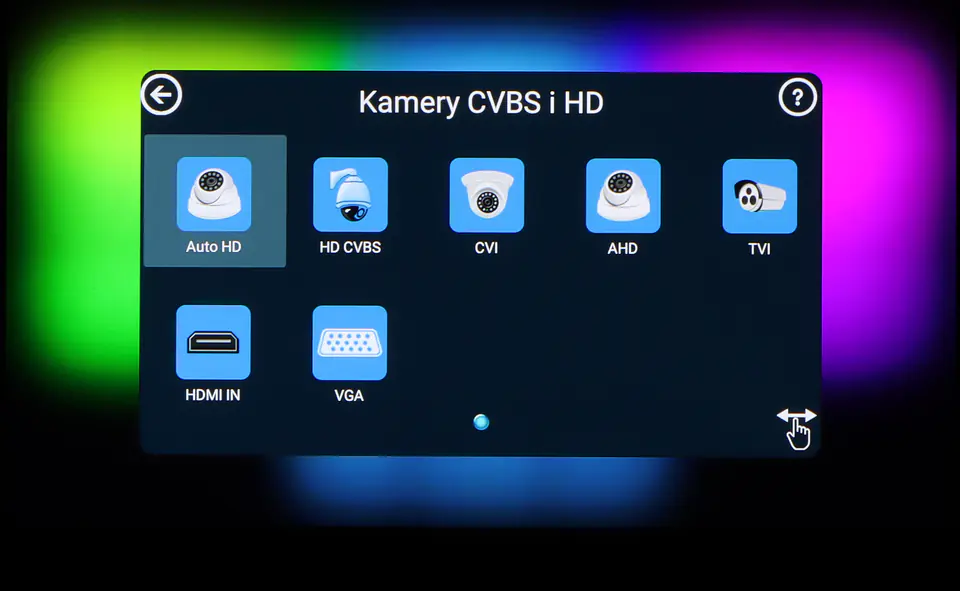

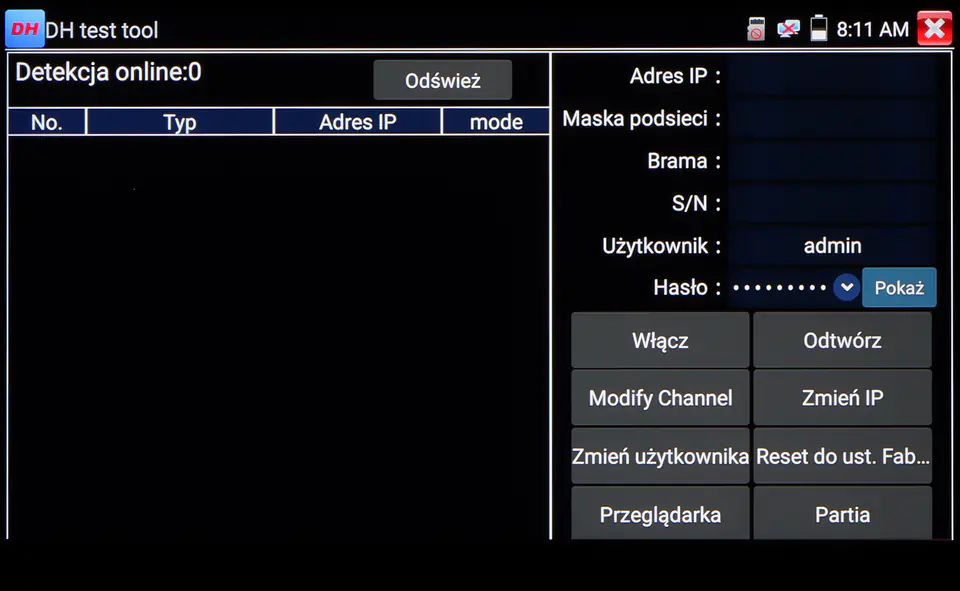

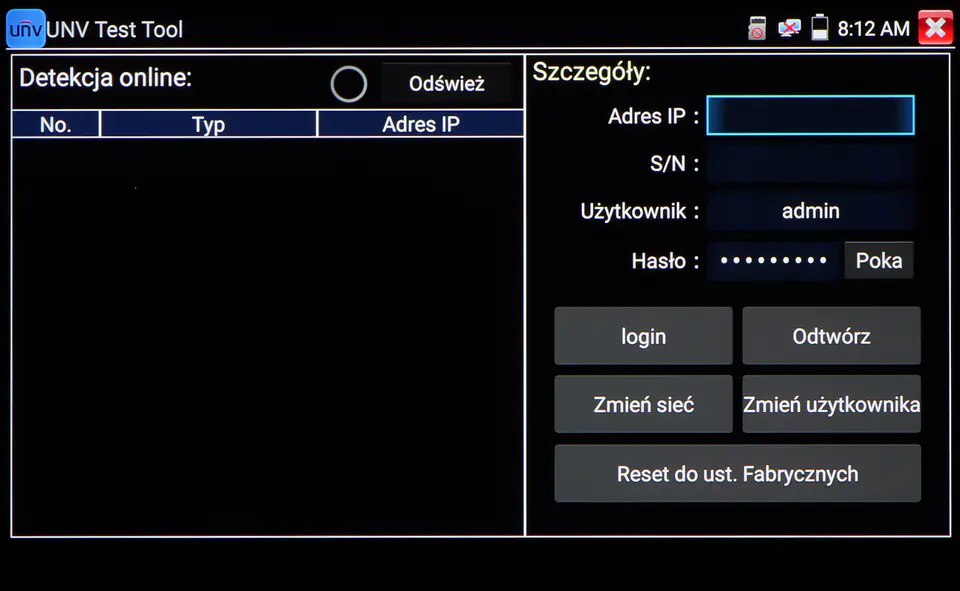

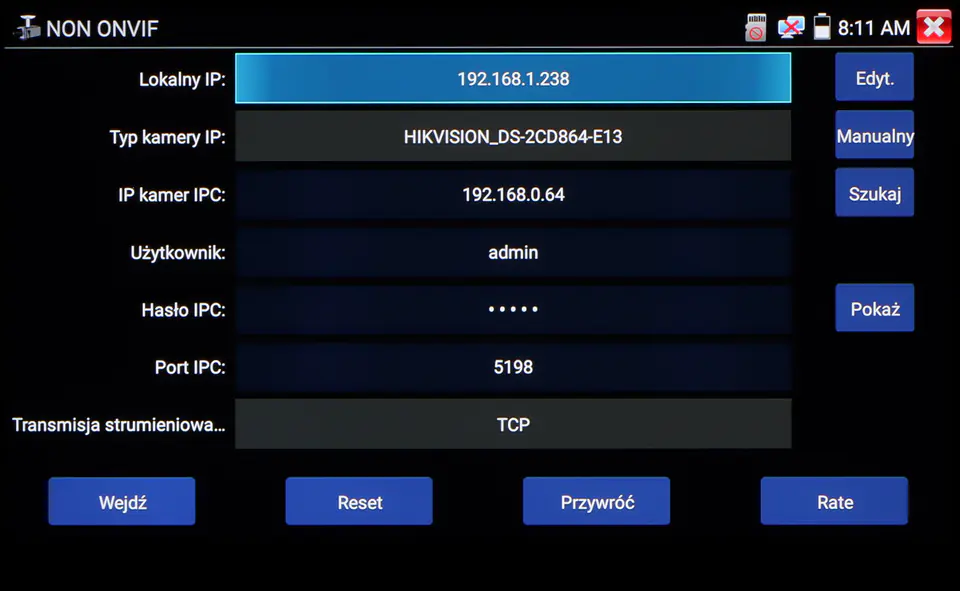

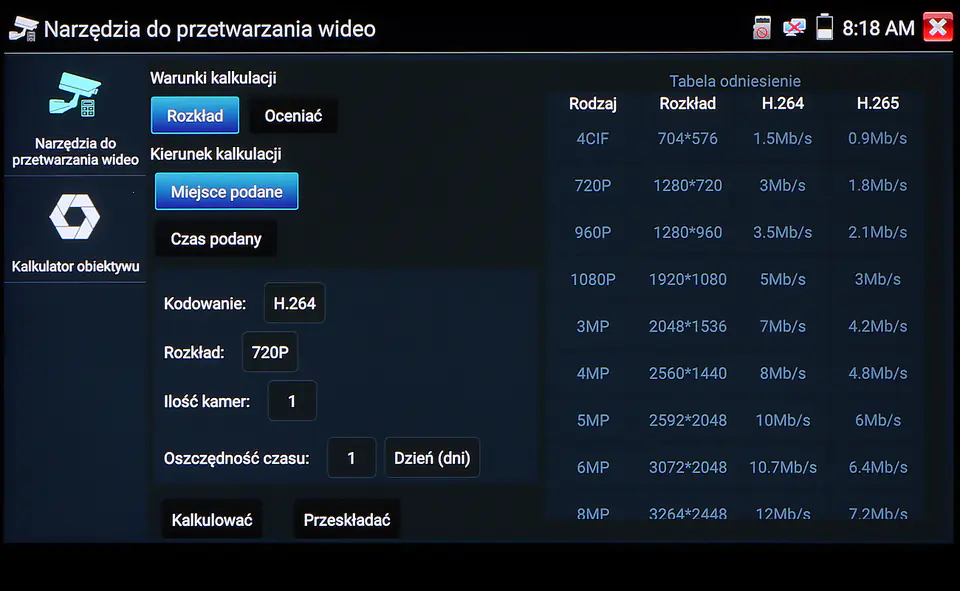

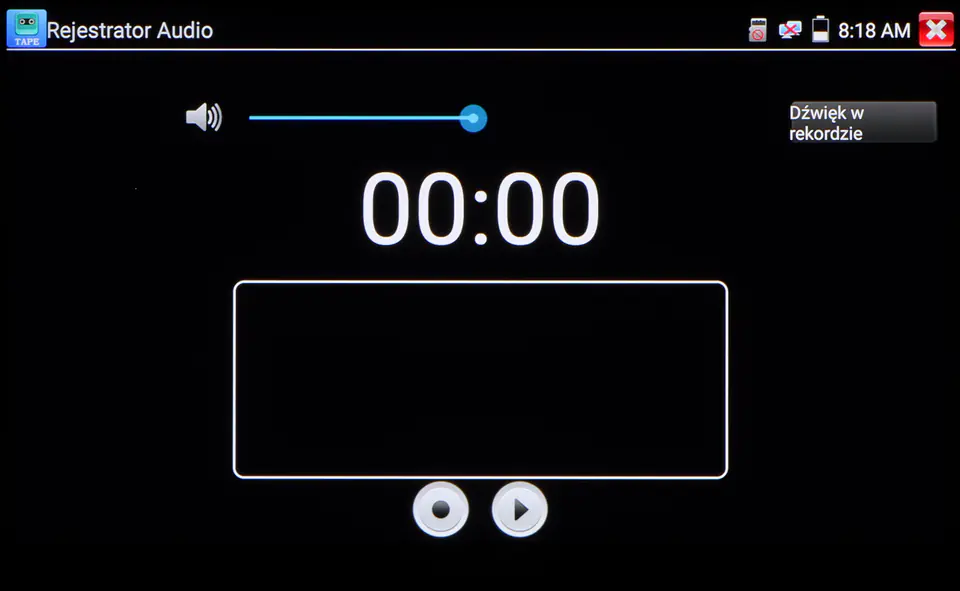

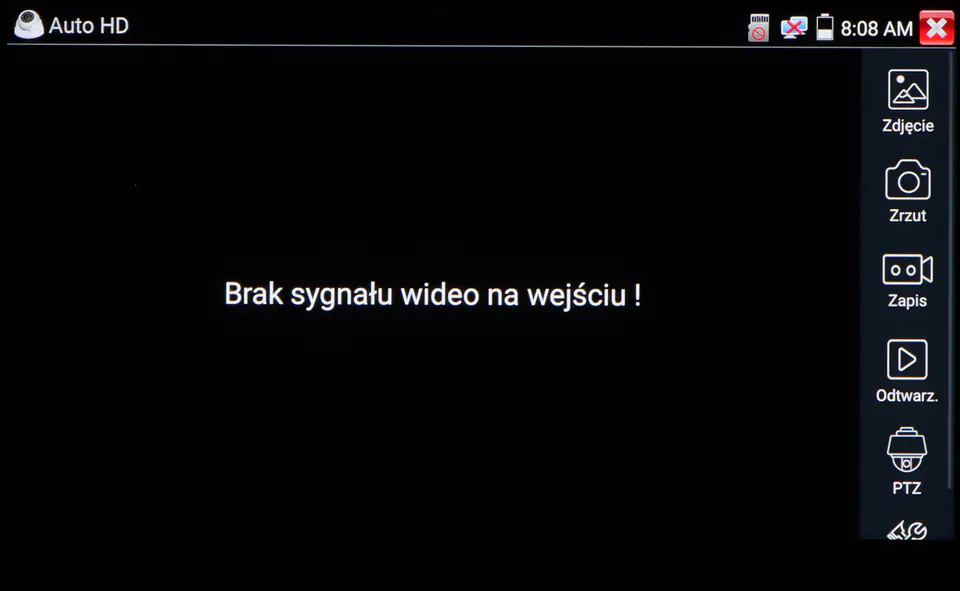

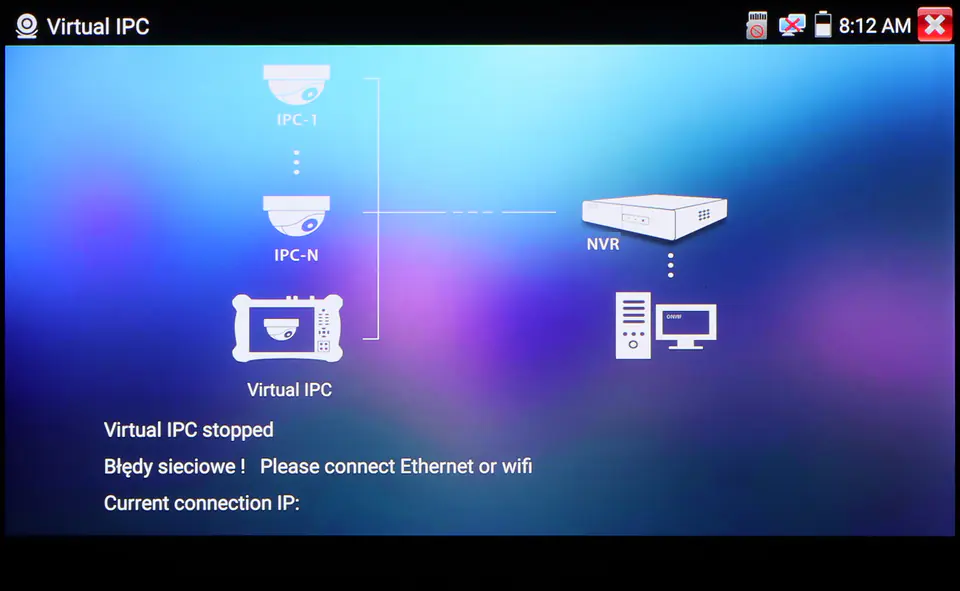

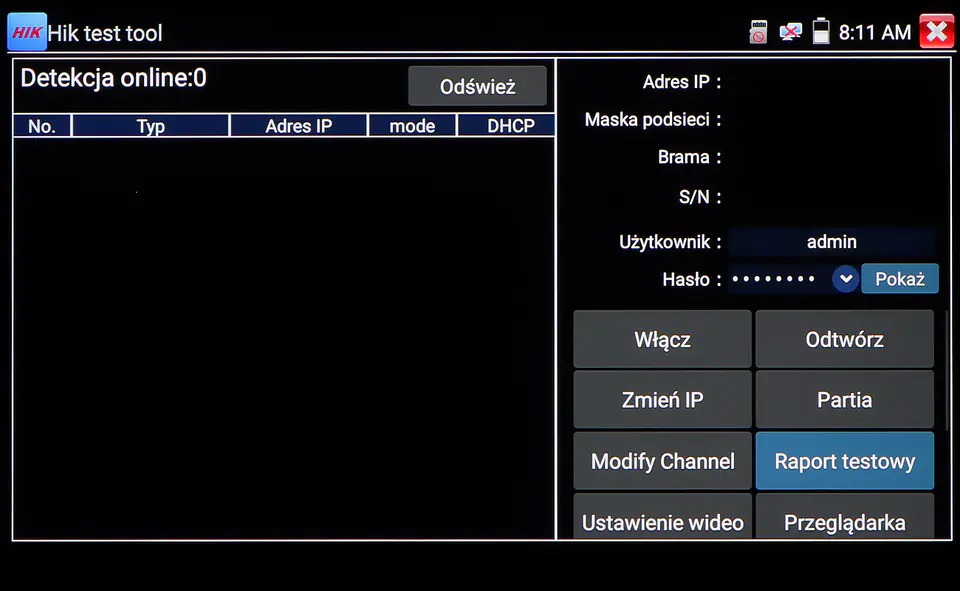

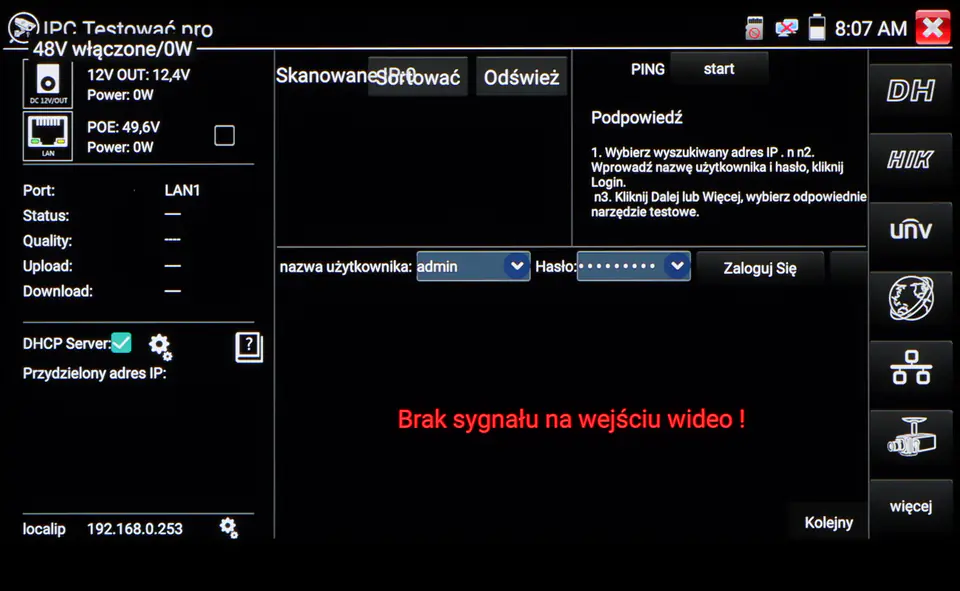

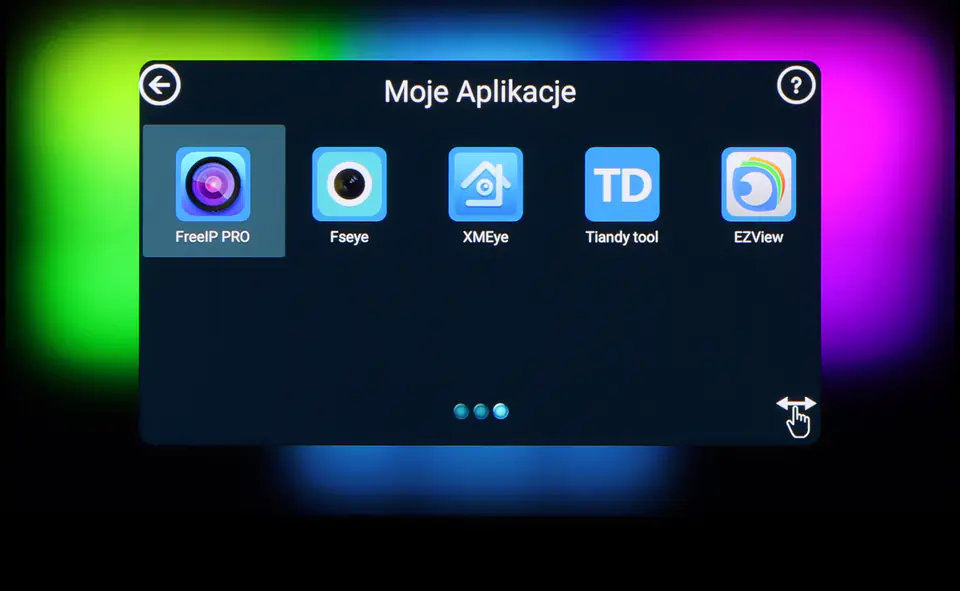

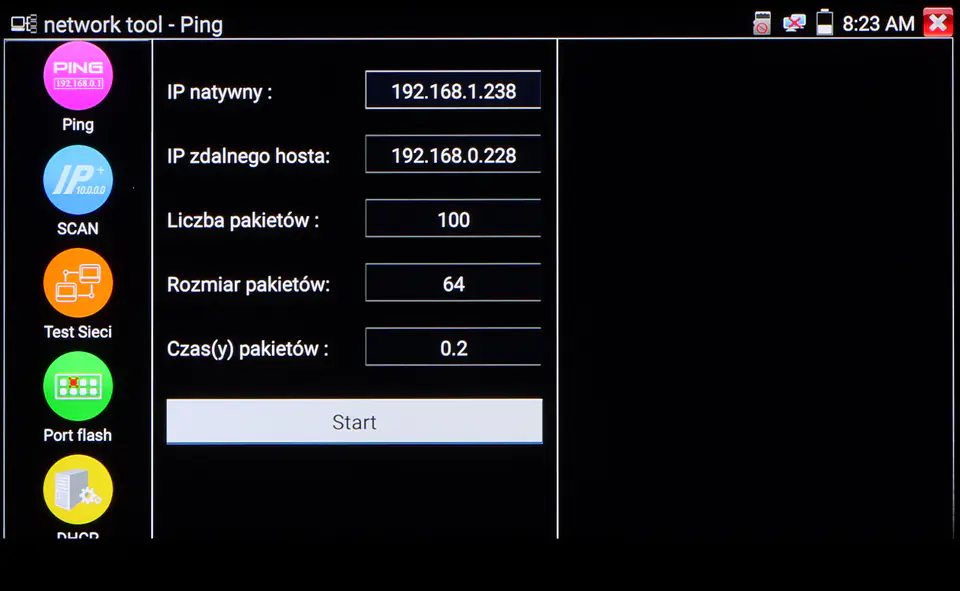

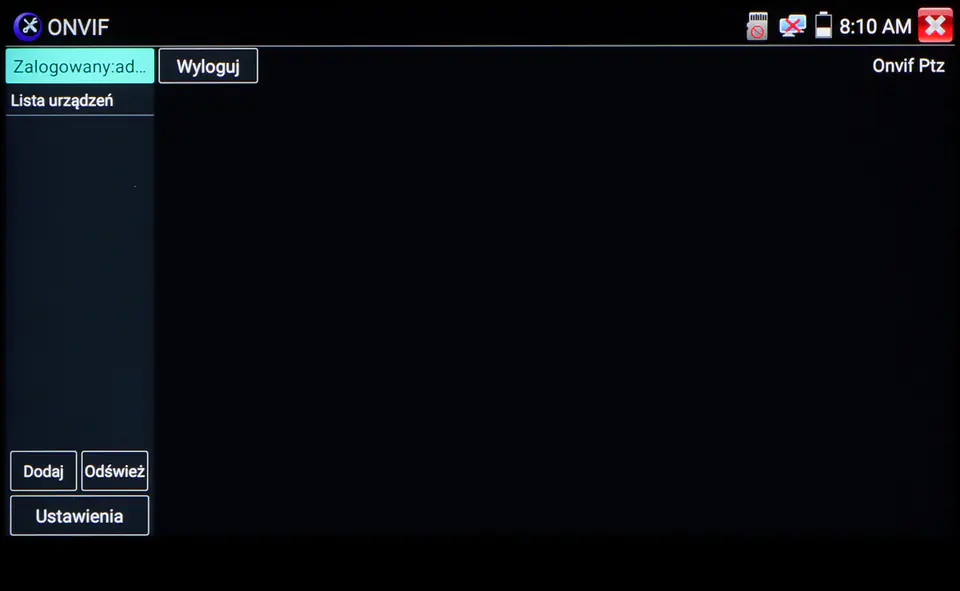

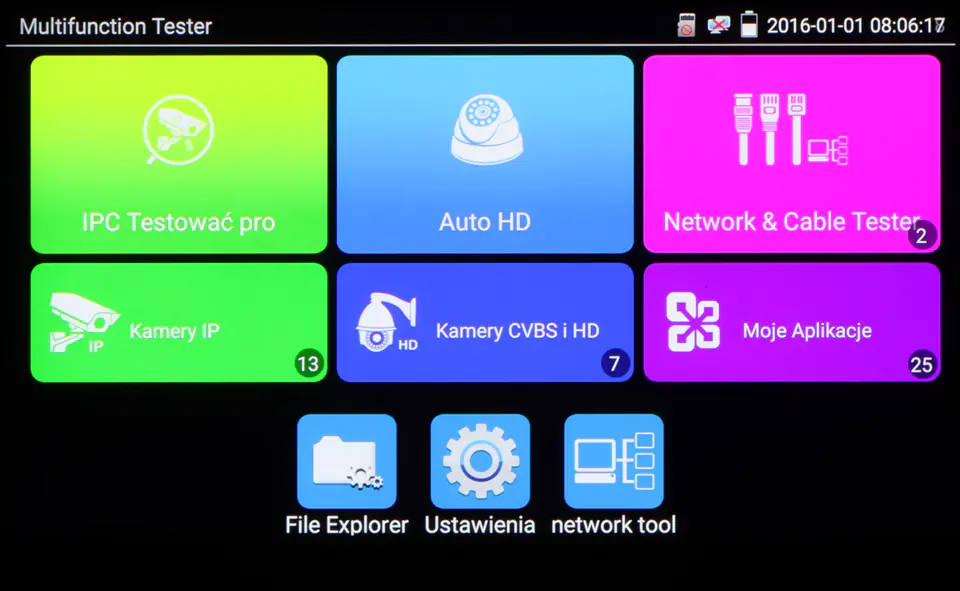

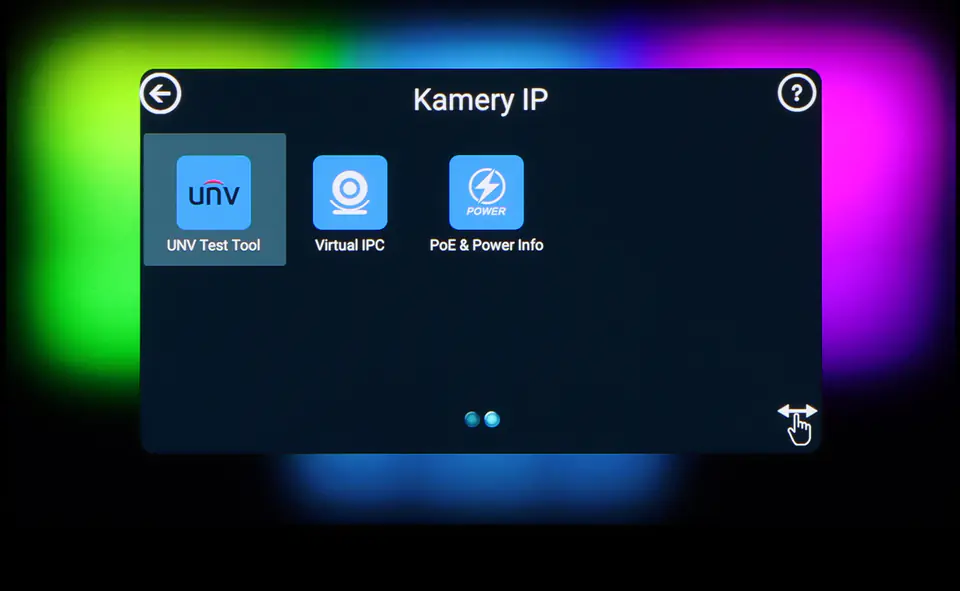

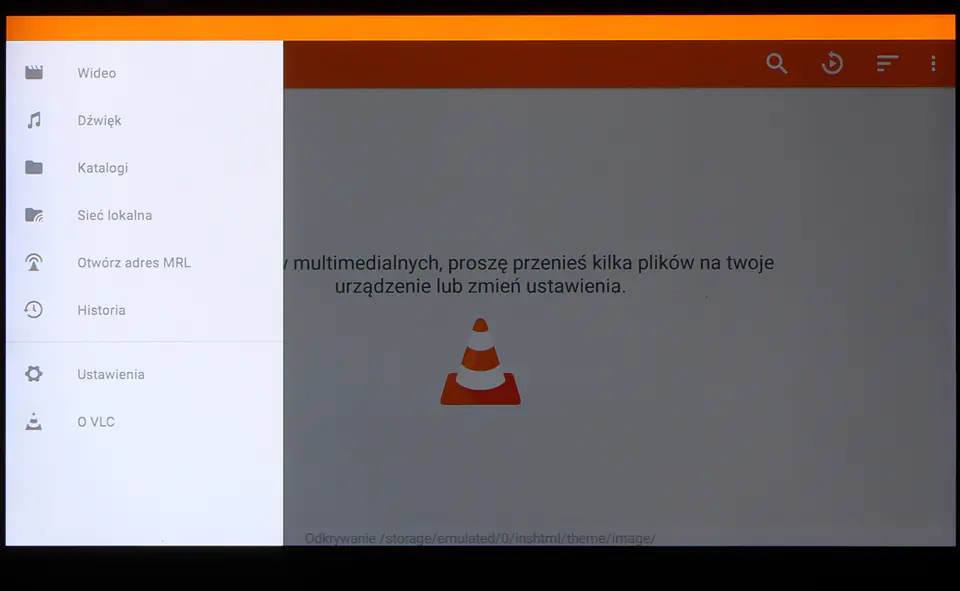

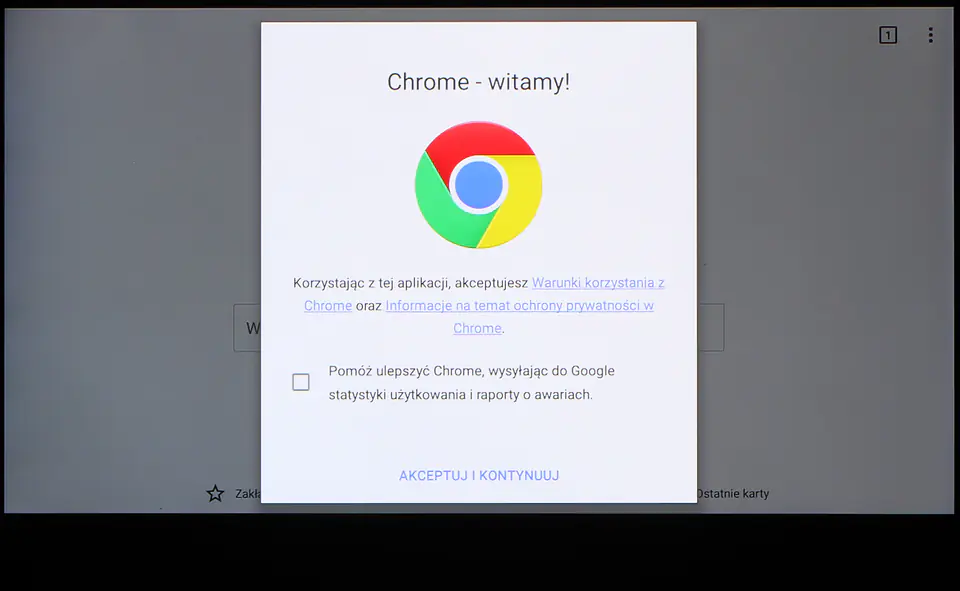

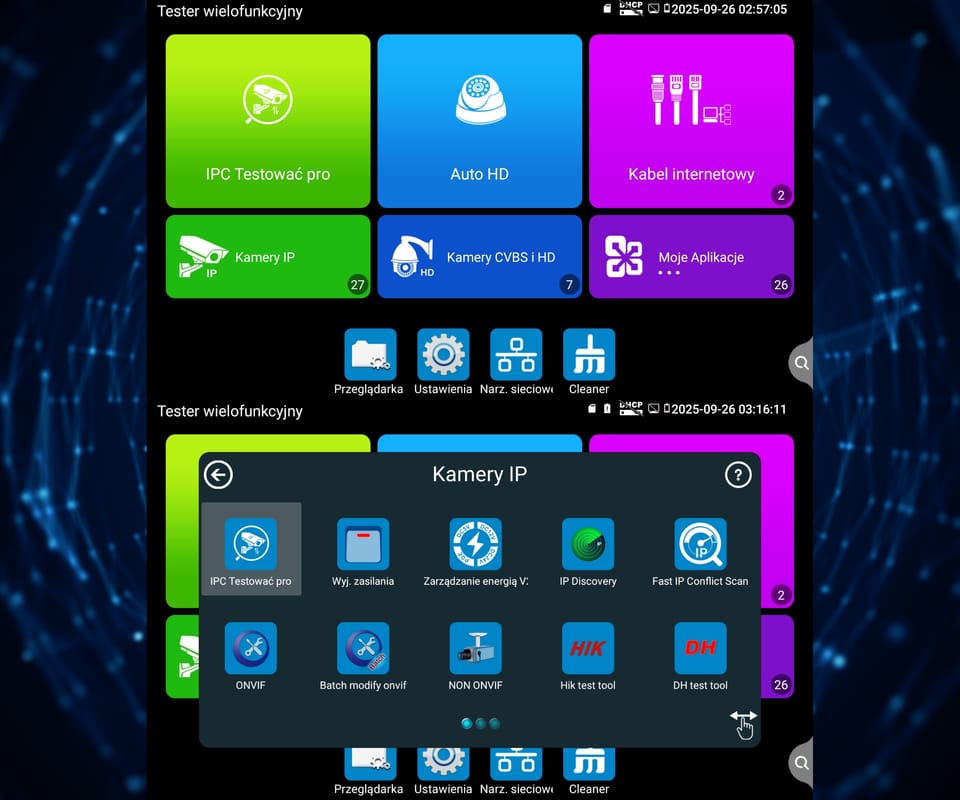

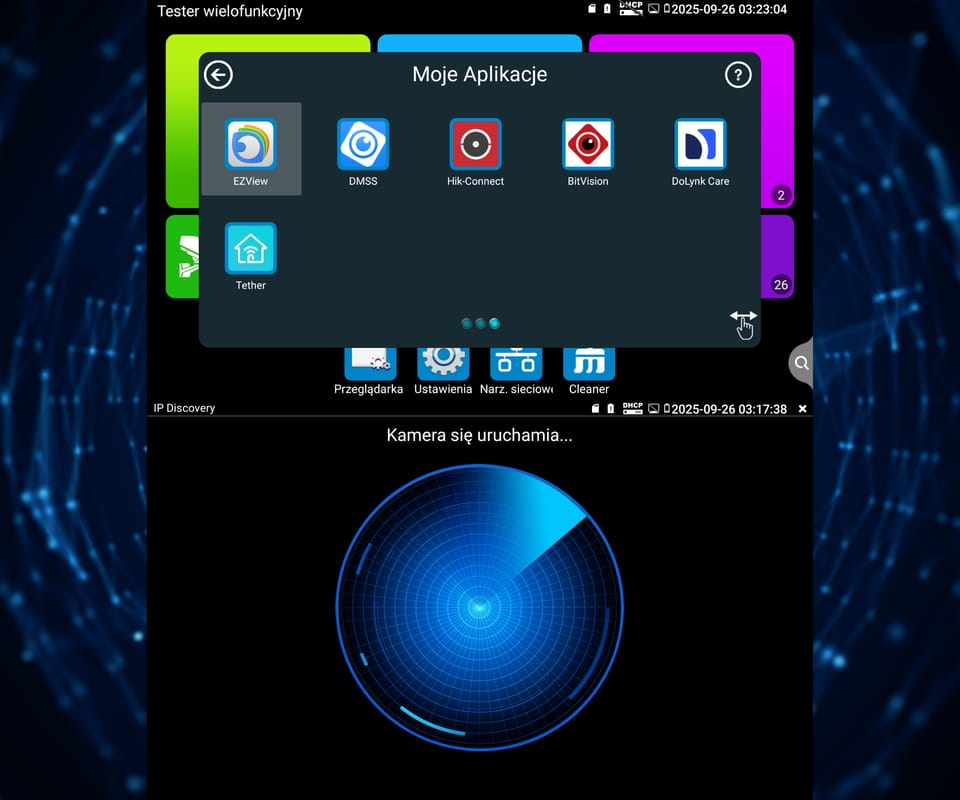

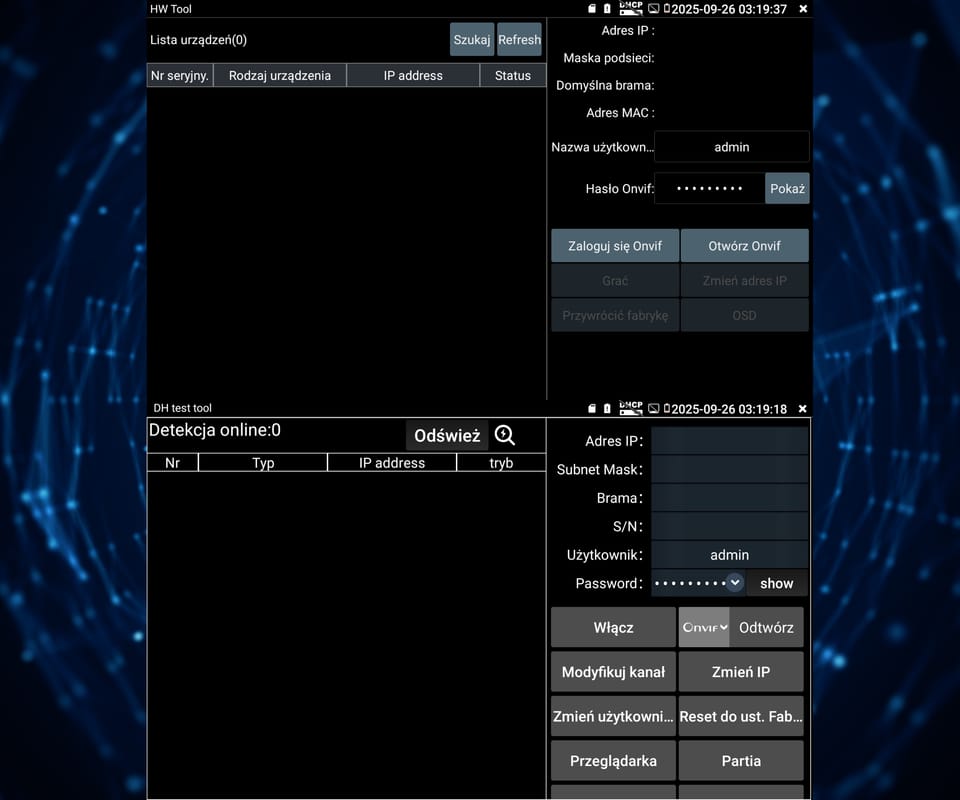

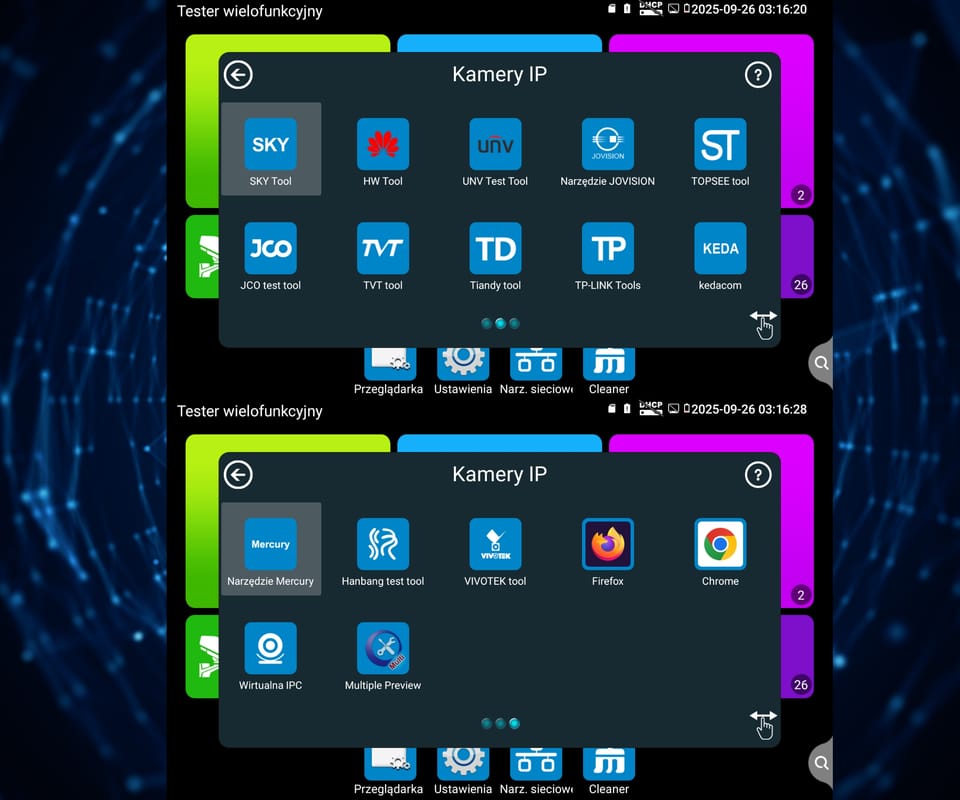

| Selected features: | AHD Camera Test HD-CVI Camera Test HD-TVI Camera Test PAL/NTSC Camera Test IP Camera Test - Supported Image Compression Methods: H.265, H.264, MJPEG Support Format: 5 Mpx, 16 : 9 HD-CVI, DAHUA Search and preview of IP cameras compatible with Onvif Virtual IPC Calculator Bitrate DH test tool Hik test tool UNV Test Tool HuaWei Tool Control of rotators and PTZ cameras (speed dome) Monitoring from IP cameras using built-in applications - iVMS-4500 HD, EZView, gDMSS HD Lite, XMEye, MEye, Fseye Built-in web browser - Google Chrome LAN Monitoring IP address scanner PING - testing the link using ICMP packets Detecting the connected port in the switch Twisted pair tester Cooperation with cameras and PoE switches PoE power meter Power source DC 12V / 48V Data monitor - RS-485 serial port monitor Hotspot Audio Test - Wi-Fi Video recording to a playable micro SD card (not in set) Playback of recordings Calculator Built-in flashlight |
| Serial ports: | RS-485 |

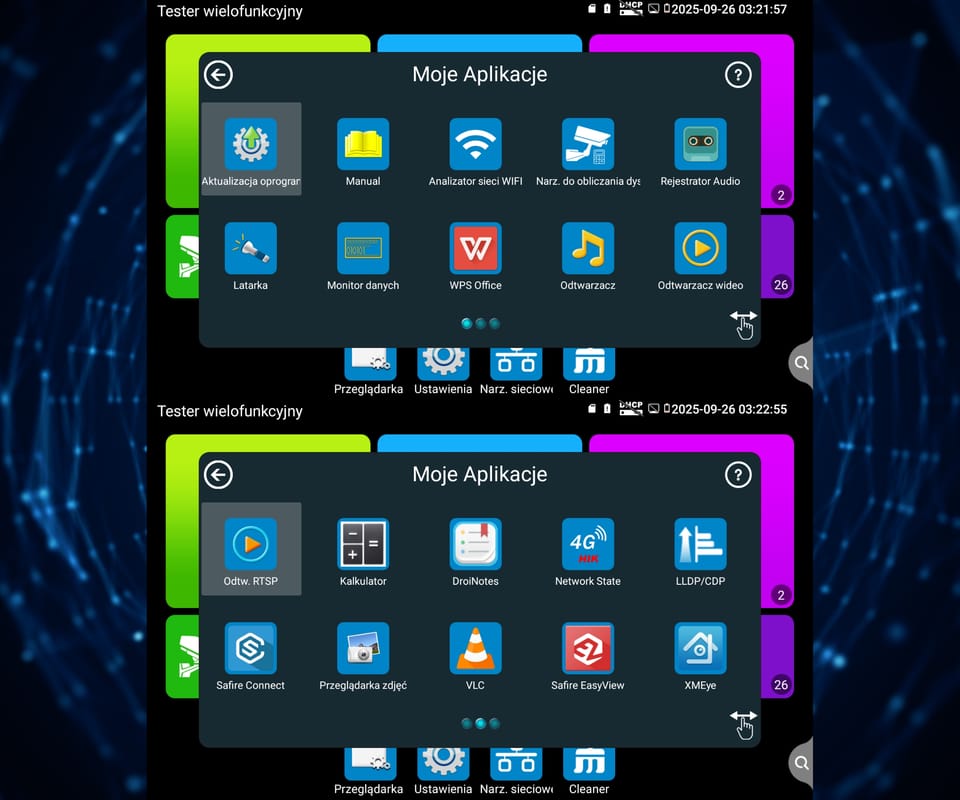

| Service: | Graphic menu - touch control |

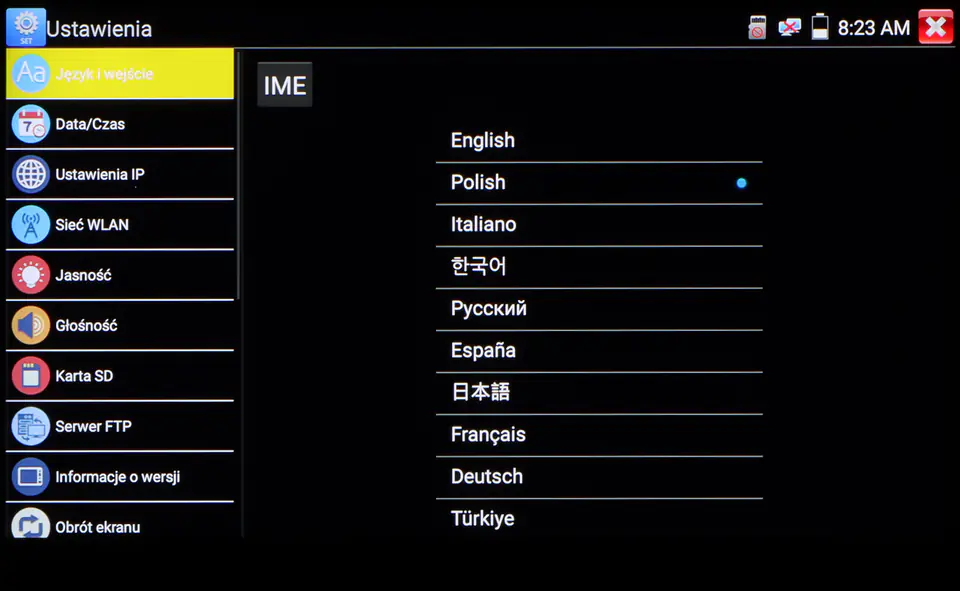

| Supported languages: | Polish, Bulgarian, Czech, English, French, German, Italian, Portuguese, Russian, Spanish, Turkish |

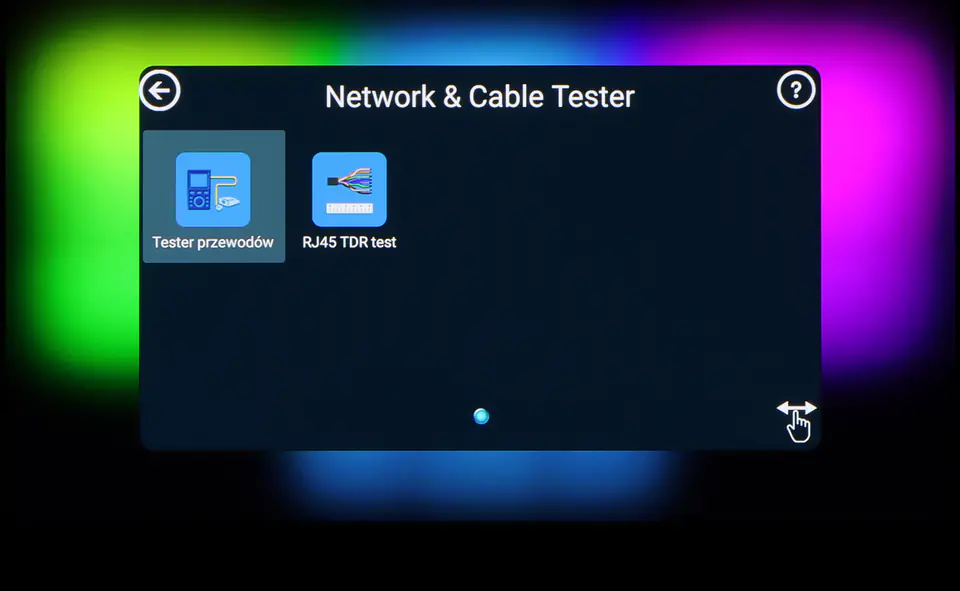

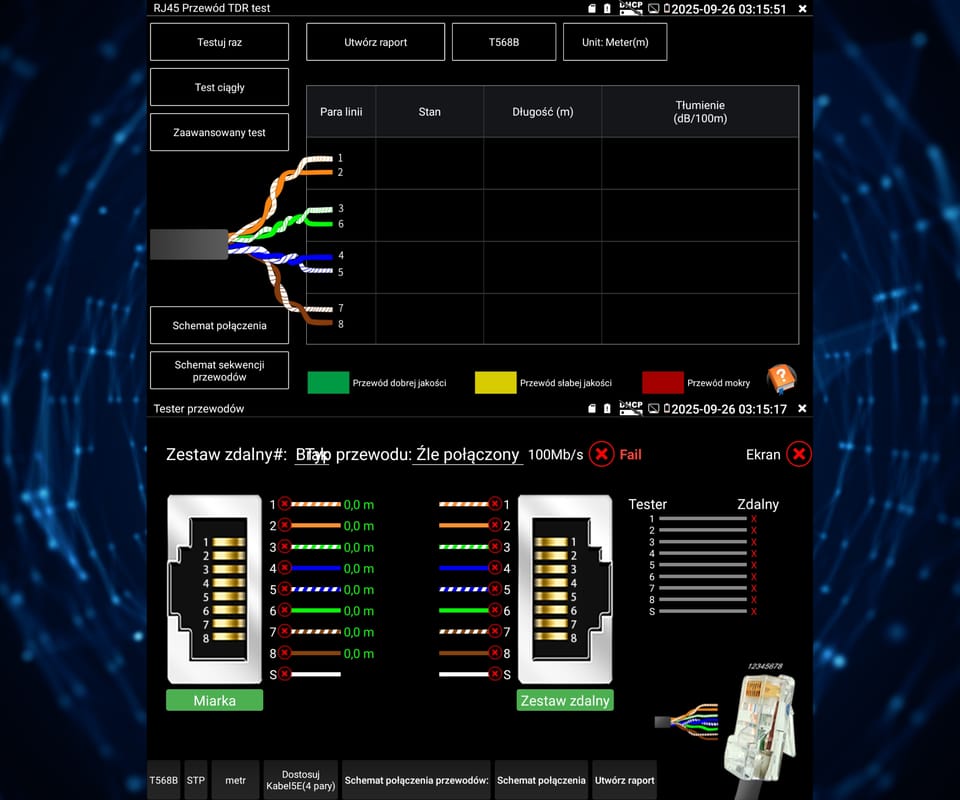

| Tdr reflectometer: | Cable break location detection and location (UTP only) |

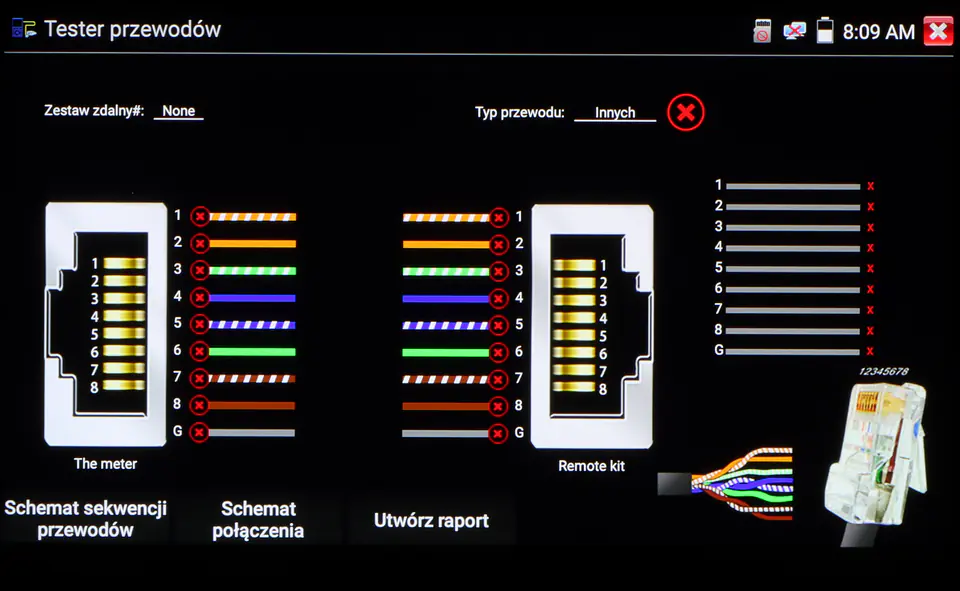

| Twisted pair or telephone line test: | Test of connection of UTP or telephone cables, terminated with RJ-45 plug |

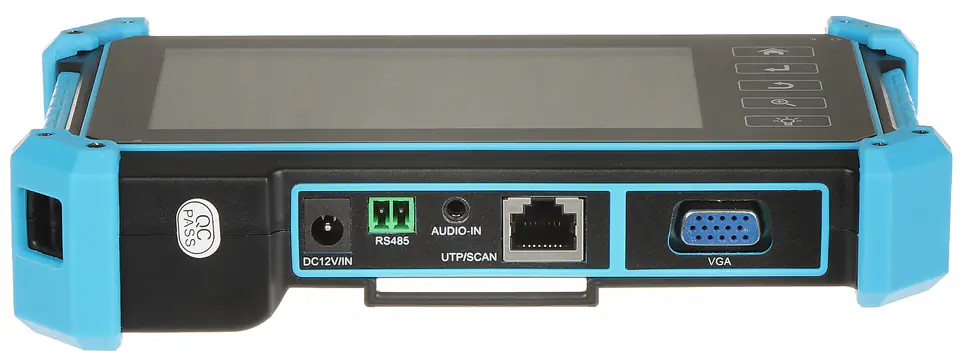

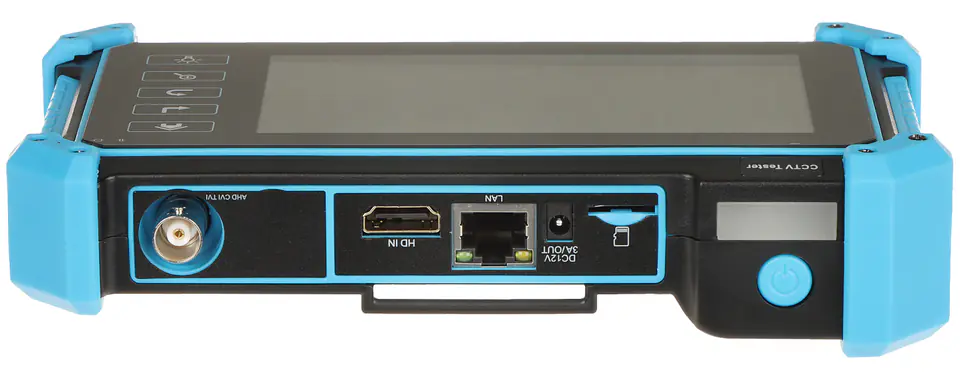

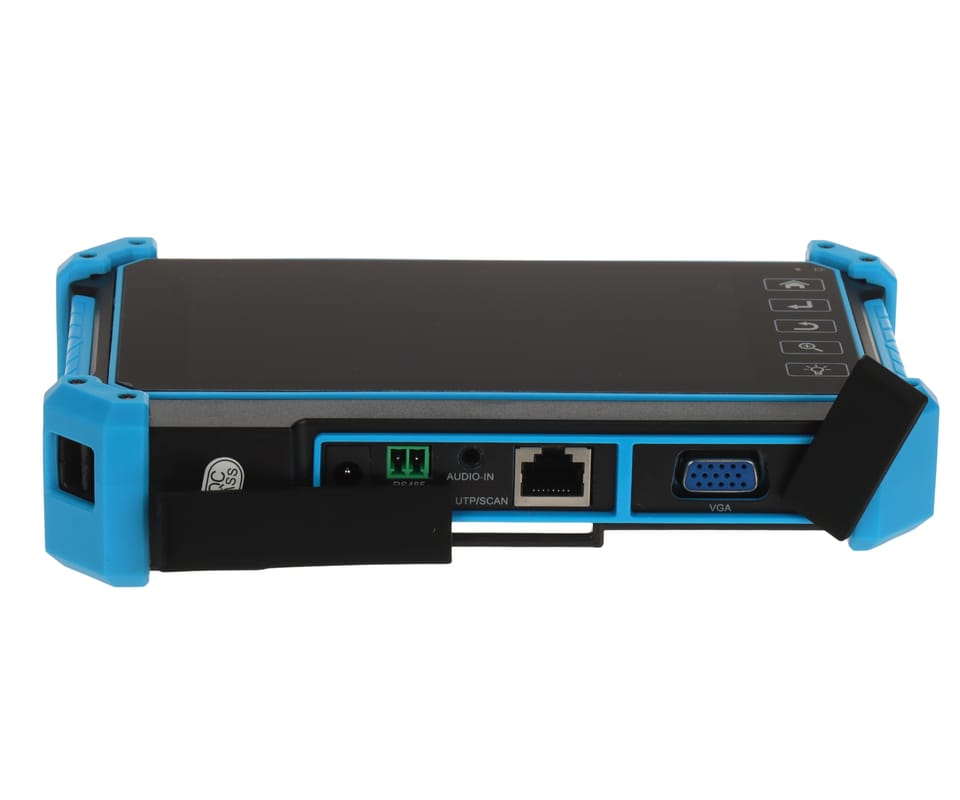

| Video input: | 1 pc AHD / HD-CVI / HD-TVI / CVBS - BNC socket, 1 pc HDMI 1 pc VGA |
| Vision standard: | AHD - 8 Mpx, HD-CVI - 8 Mpx, HD-TVI - 8 Mpx, TCP/IP - 4K, CVBS - PAL / NTSC |
| Warranty: | 2 years |
| Wi-fi module: | 2.4 GHz |

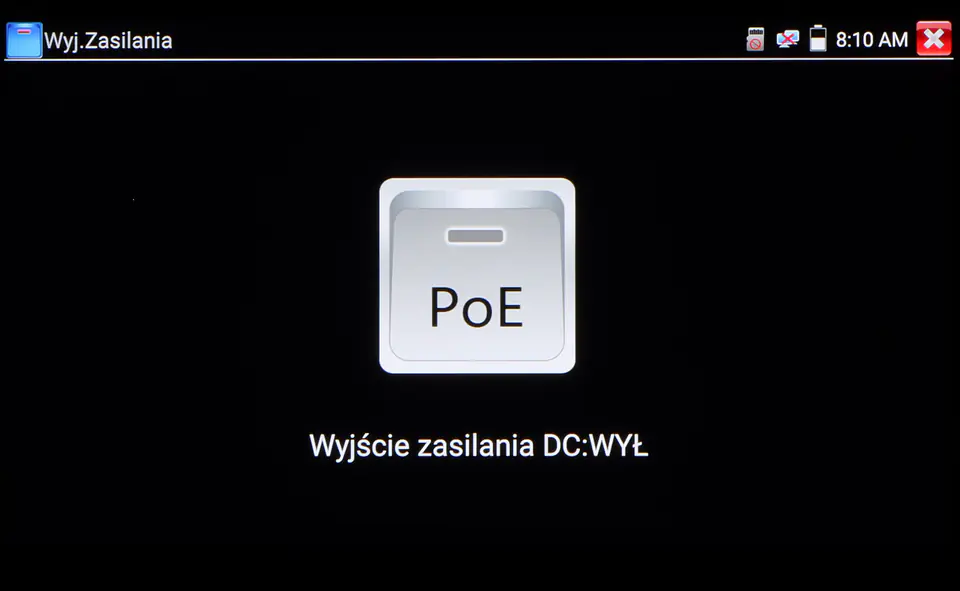

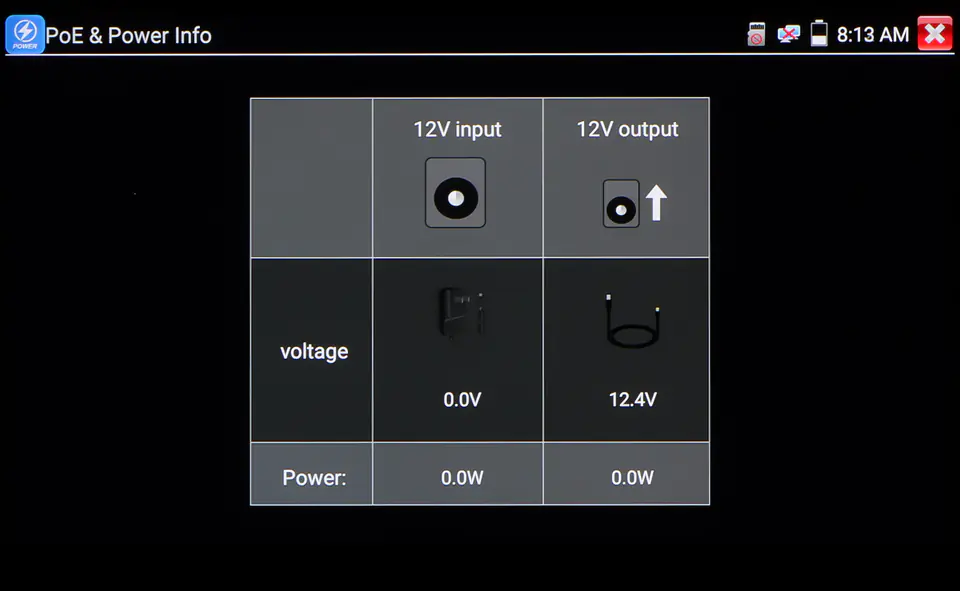

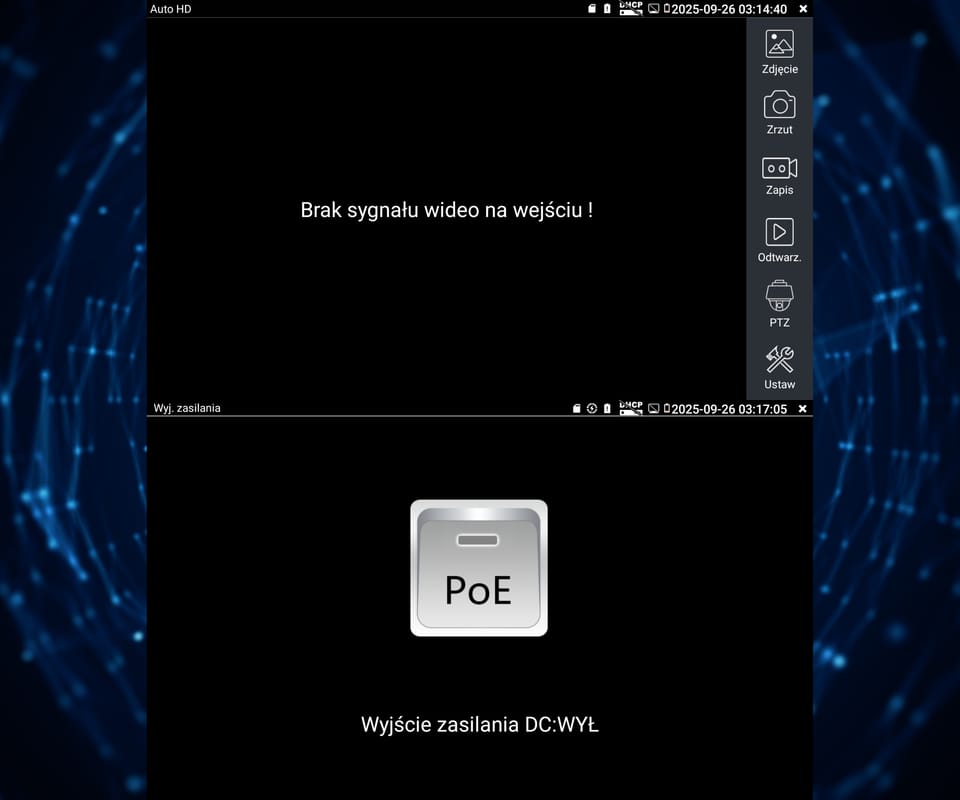

| Working as a power source: | 12 V DC / 3 A 48 V (PoE, LAN), 25.5 W |
