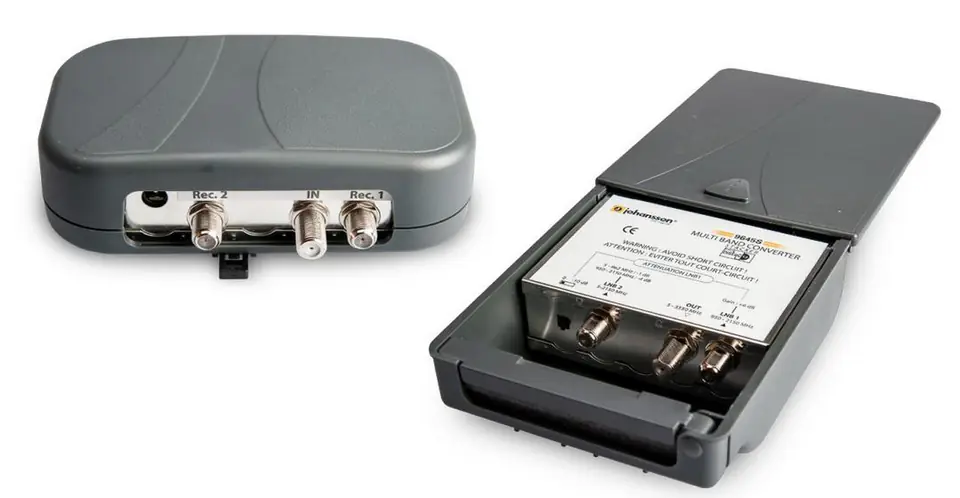

Multiband Converter 9645 KIT two clock on 1 cable

Multiband Converter 9645 KIT is the ideal solution for upgrading the old single cable system from twin converter
(or quad + DiSEqC switch ref 9920) for use in conjunction with the receiver (dual inputs (PVR))
or two separate receivers (single inputs).
No power is needed. The device is powered by a satellite receiver.

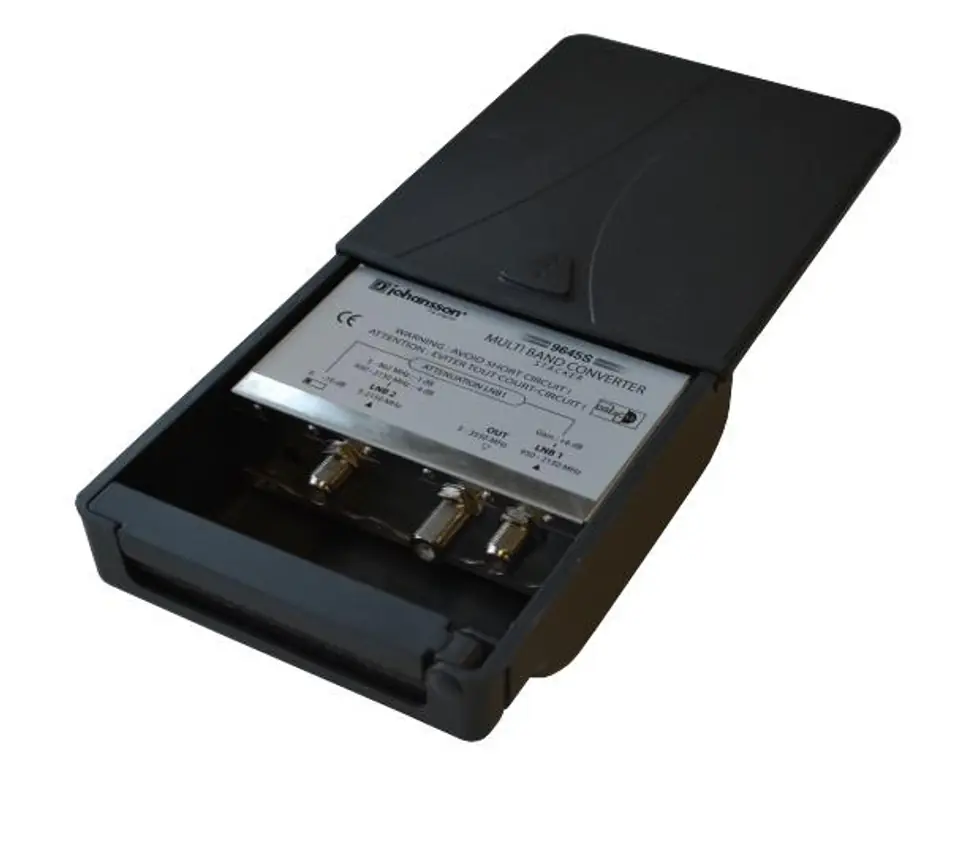

Transmitter specifications:
- Inputs: 5-2150 MHz, 950-2150 MHz
- Outputs: 5-3550 MHz with "F" High Quality connector
- Attenuation: -1 @5-862MHz, -3@950-2150Mhz
Converted Sat. Pos. 1 (0 dB) = +6
Converted Sat. Pos. 2 (10 dB att.) = +4
- Dimensions: 125 x 115 x 45

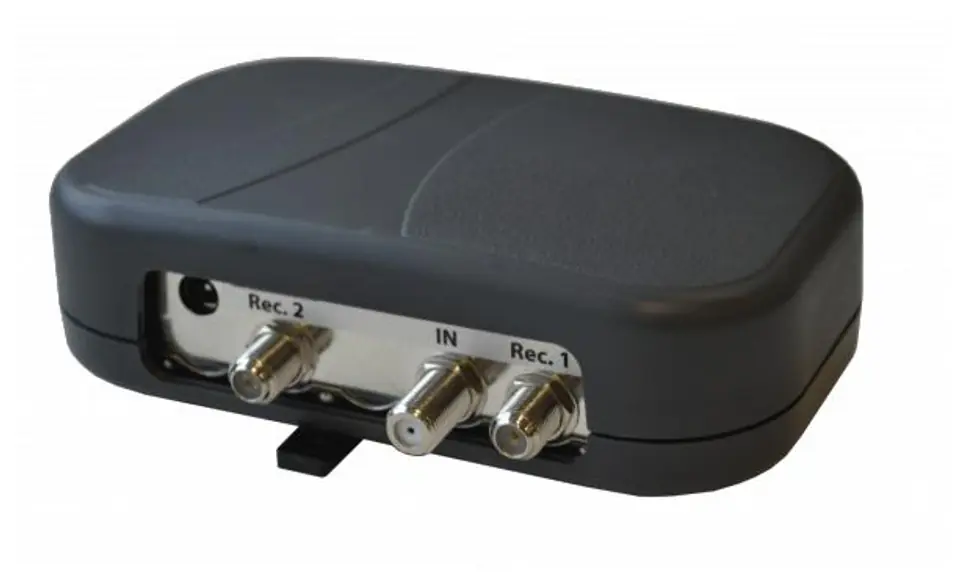

Receiver specifications:
- Output: 5-2150 MHz, 950-2150 MHz
- Input: 5-3550MHz with "F" High Quality connector
- Attenuation: -1 @5-862MHz, -3@950-2150Mhz
Converted Sat. = +5
- Dimensions: 150 x 90 x 40
