Mandrel cutter, solid carbide
Execution: with center blade, suitable for drilling.
Application: for circumferential milling, edge milling and high-precision finishing. High surface quality thanks to 45° spiral angle for soft cutting. Prevents burrs at the cutting edges. Significantly longer durability compared to ordinary tools. A tool for universal use. For INOX processing.
Multi-edge milling cutter, WN,full. FIRE,6-os.6mm b.long,GÜHRING
€41.89
Shipping from warehouse: B6
Estimated shipping: Wed, Nov 13 - Mon, Nov 18
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- GÜHRING
- Product code:
- 9057290060000 / 4031093684927
Share this product:
Specification
| Aluminium > 8% silicon: | 360 |
|---|---|
| Cast iron gg/gts: | 200 |
| Copper alloys: | 220 |

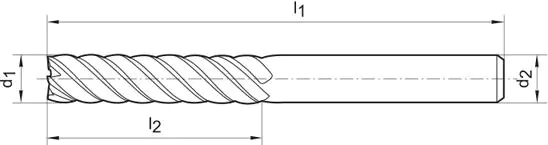

| Cutting part length l2: | 30 mm |
| Diameter d1 = h 10: | 6 mm |
| Ggg cast iron: | 160 |
| Hardened steel < 55 hrc: | 55 |
| Inox austenite.: | 72 |
| Inox duplex: | 58 |
| Inox ferrite./martenz.: | 90 |
| Number of blades: | 6 |
| Shank diameter d2 = h6: | 6 mm |
| Steel < 1000 n/mm2: | 152 |
| Steel < 1000 n/mm2 fz: | 0.031 mm/rev. |
| Steel < 1400 n/mm2: | 122 |
| Steel < 700 n/mm2: | 170 |
| Titanium > 850 n/mm2: | 105 |
| Total length l1: | 75 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
