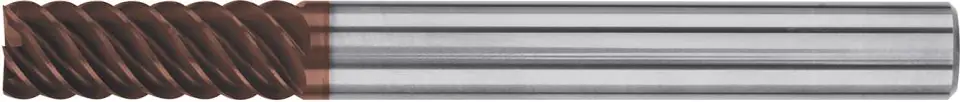

Mandrel cutter, solid carbide
Execution: with center blade, suitable for drilling.
Application: for circumferential milling, edge milling and high-precision finishing.
Thanks to the very large helix angle and the reinforced core, extremely smooth operation is achieved, thus small shape deviations and a very good surface of the workpiece.
For high-speed machining of HSC materials with a maximum hardness of 56 HRC.
Multi-edge milling cutter, long, DIN6527, full. Signum, 6-8-os.chw.HA6mm GÜHRING
This product is not available
- Availability:
- expected delivery
- Brand:
- GÜHRING
- Product code:
- 9037150060000 / 4031093674591
Share this product:
Specification
| Cast iron gg/gts: | 200 |
|---|---|

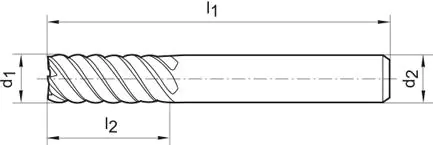

| Cutting part length l2: | 13 mm |
| Diameter d1 = h 10: | 6 mm |
| Ggg cast iron: | 160 |
| Hardened steel < 55 hrc: | 55 |
| Hardened steel < 55 hrc fz: | 0.011 mm/rev |
| Hardened steel < 60 hrc: | 55, 45 |
| Inox duplex: | 85 |
| Number of blades: | 6 |
| Shank diameter d2 = h6: | 6 mm |
| Total length l1: | 57 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
