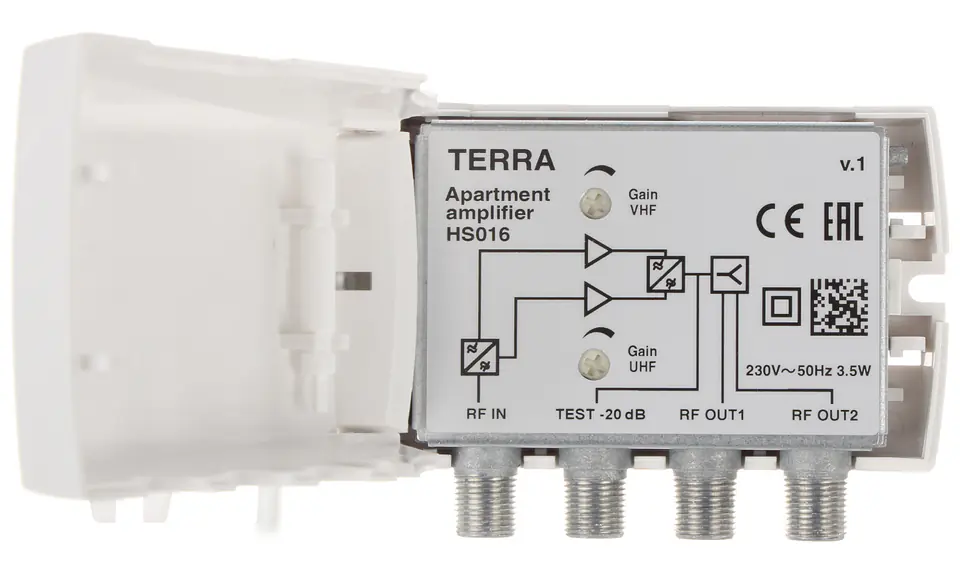

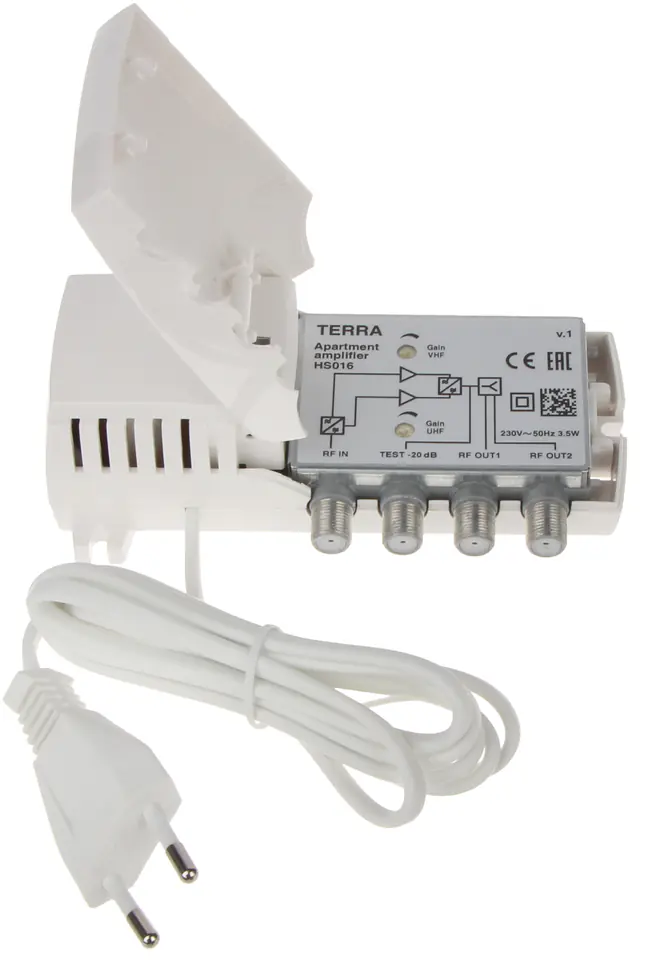

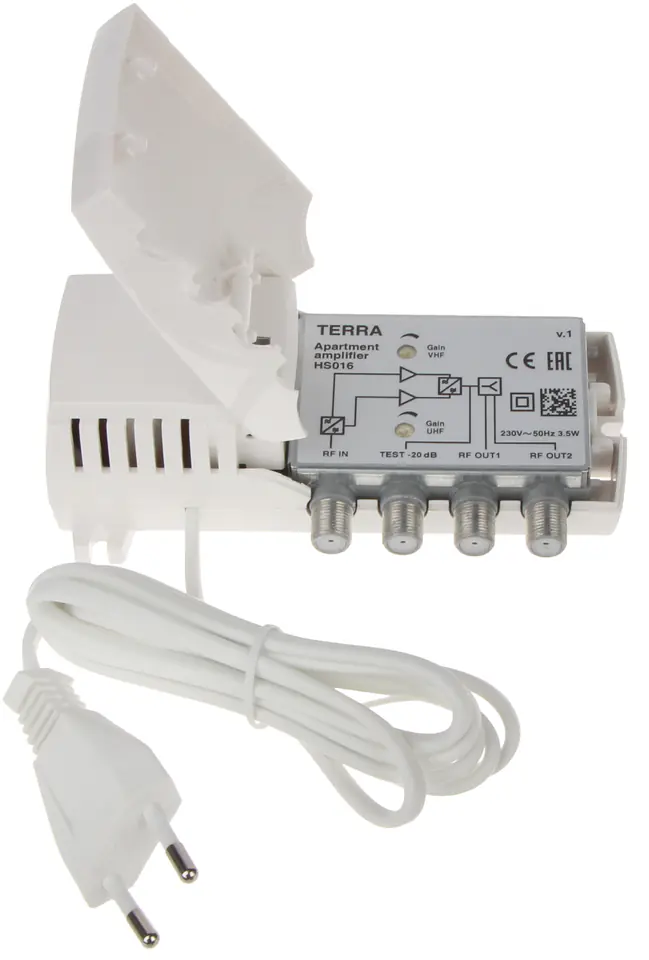

MULTI-BAND AMPLIFIER TERRA HS-016
€41.22
Shipping from warehouse: D4
Estimated shipping: Tue, Feb 11 - Fri, Feb 14
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- HS-016 / 5902887050961
Share this product:
Specification
| Amplification:: | 20 dB ... 22 dB @ VHF20 dB ... 22 dB@UHF |
|---|---|
| Dimensions:: | 133 x 63 x 39 mm |
| Frequency range:: | 47 MHz ... 300 MHz - VHF, 470 MHz ... 862 MHz - UHF |
| Gain adjustment:: | 0 dB ... -15 dB @ VHF ,0 dB ... -12 dB @ UHF |
| Manufacturer / brand:: | TERRA |
| Maximum output level imd3=60 db din45004b:: | 104 dBμV |
| Noise ratio:: | < 4.5 dB @ VHF< 3 dB @ UHF |
| Number of inputs/outputs:: | 1 / 2 + 1 (1 x test: -20dB) |
| Operating temperature:: | -20 °C ... 50 °C |
| Power consumption:: | ≤ 3.5 watts |
| Power:: | 230 VAC |
| Scales:: | 0.33 kg |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
