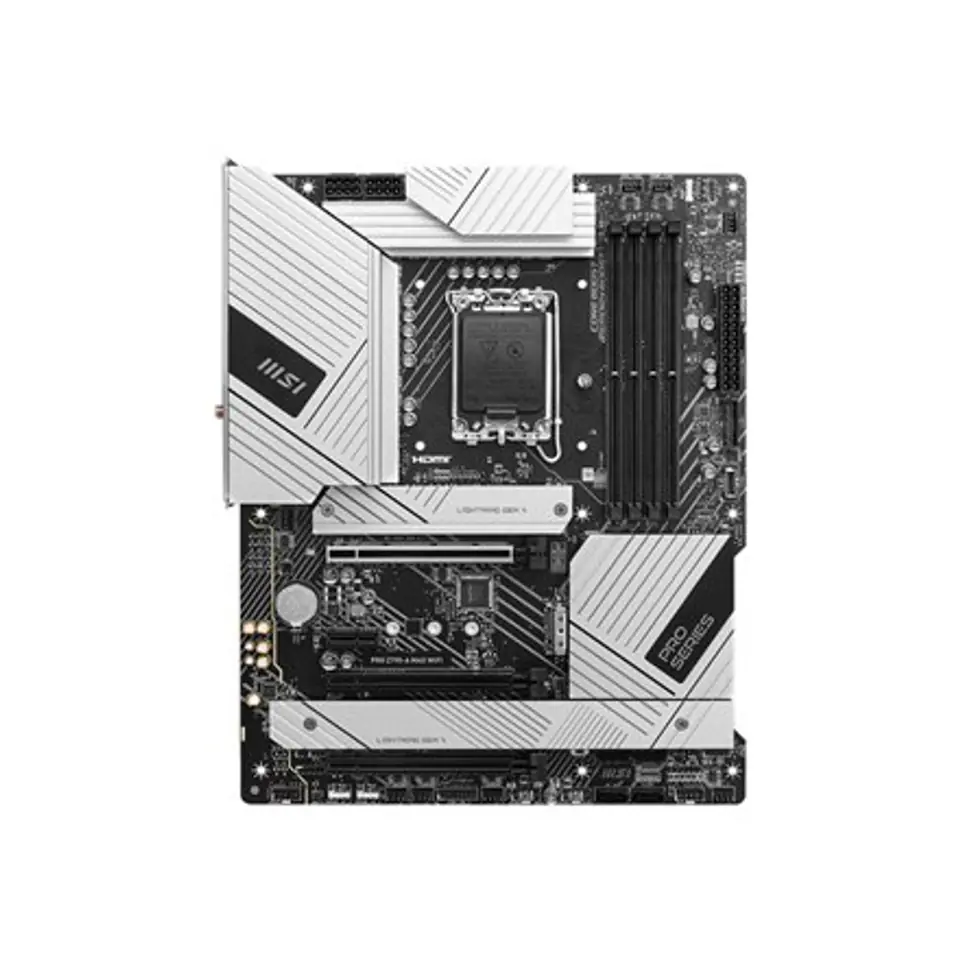

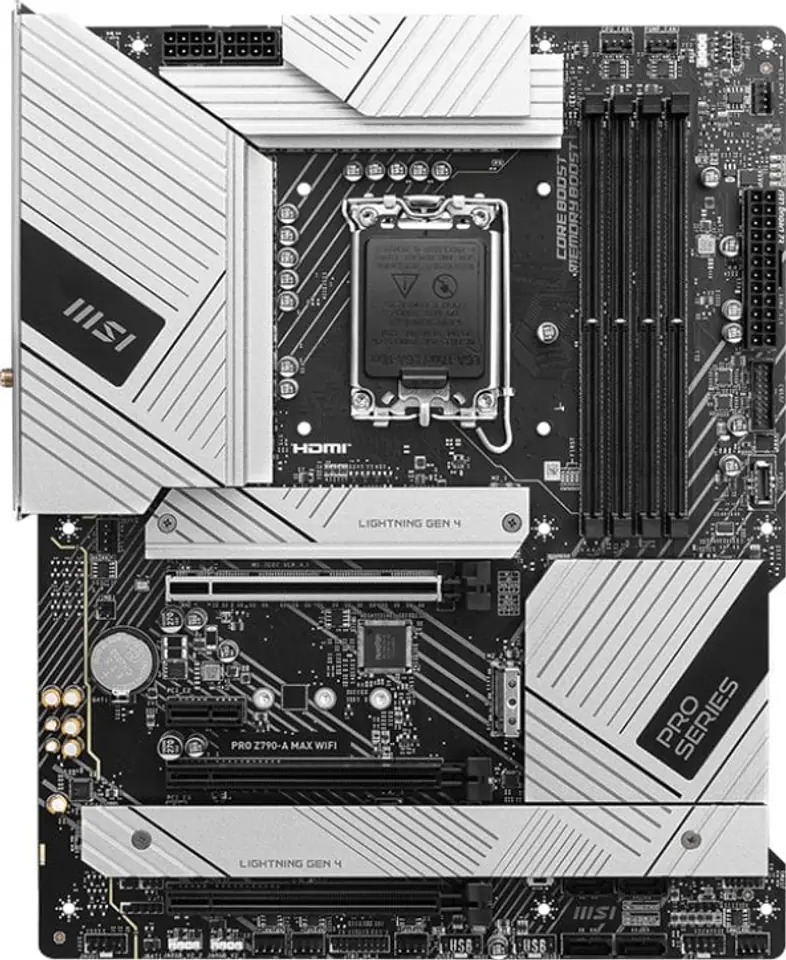

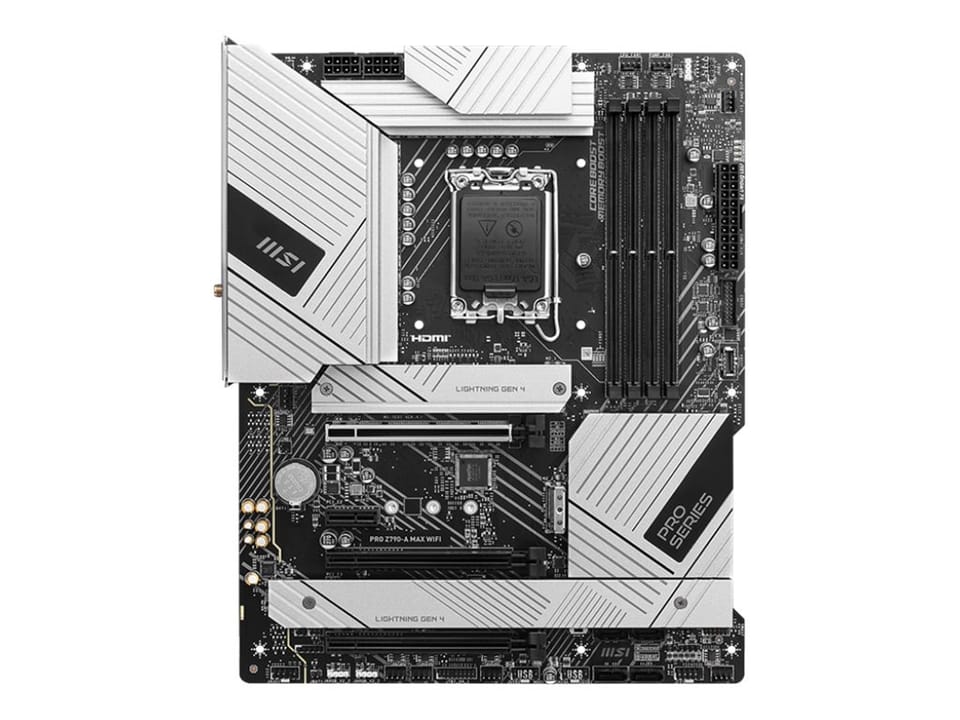

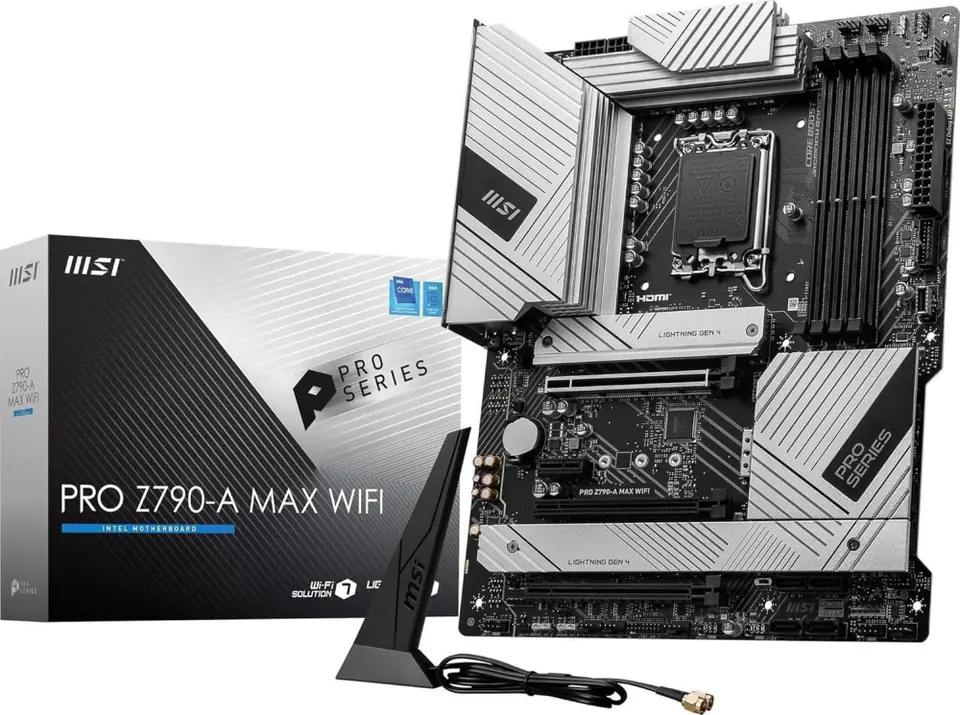

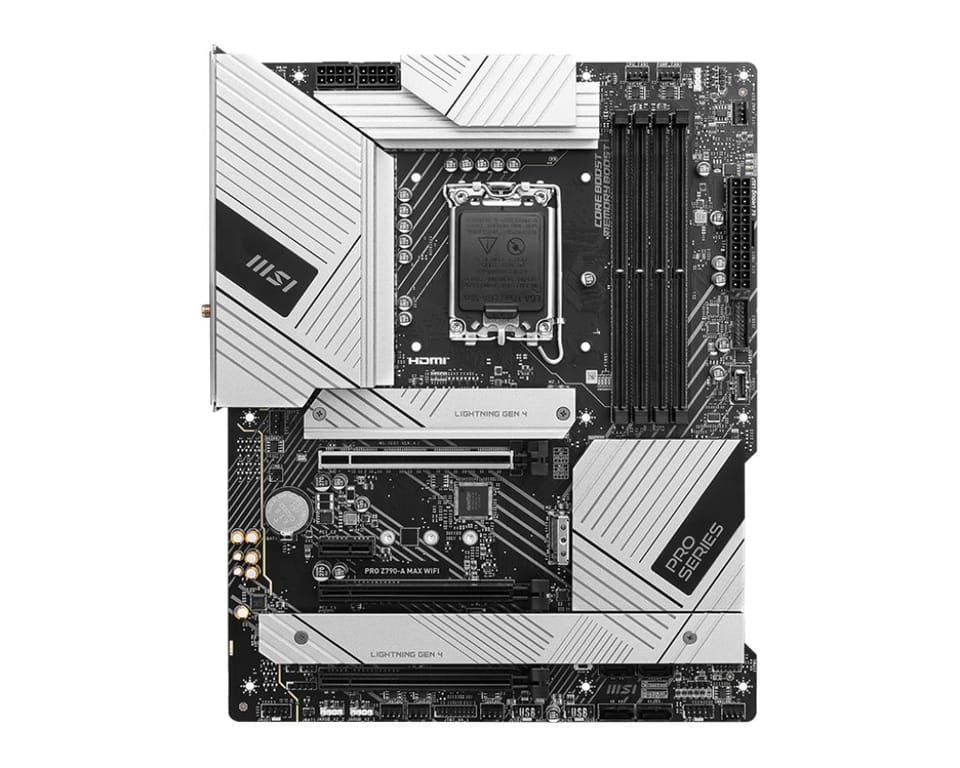

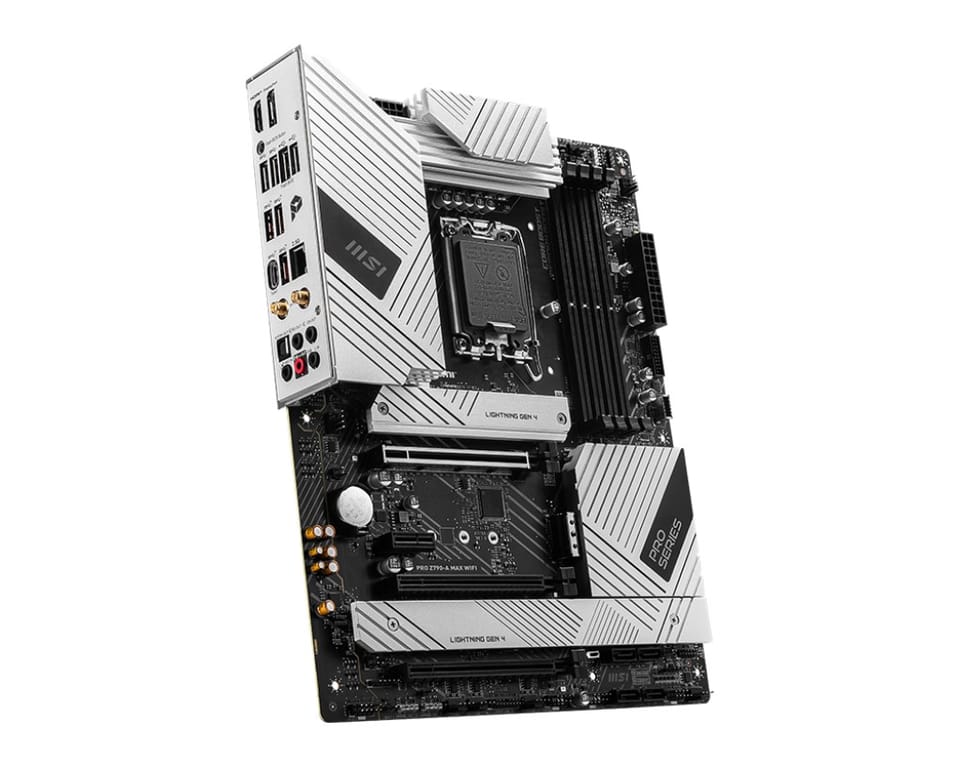

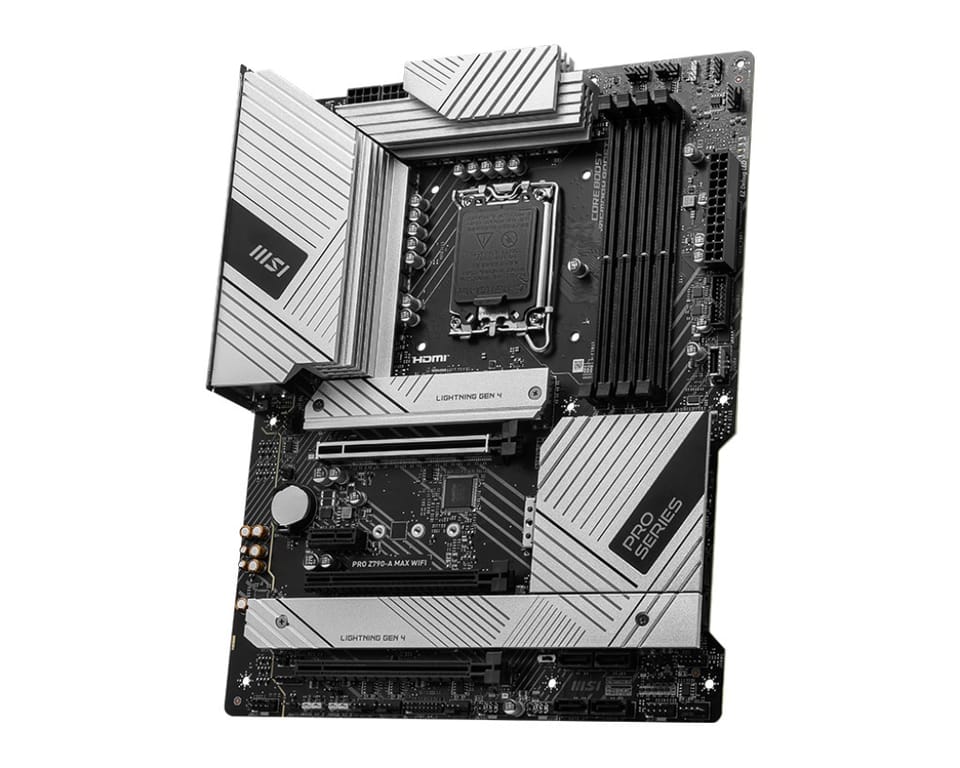

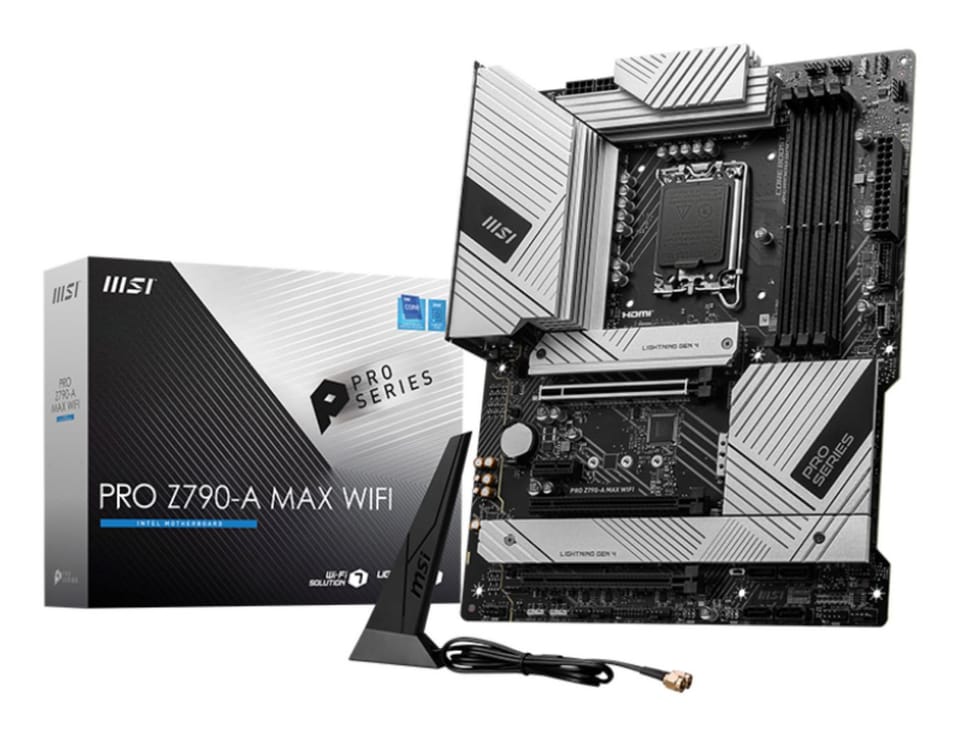

MSI PRO Z790-A MAX WIFI - bundkort - A

Name: MSI PRO Z790-A MAX WIFI - bundkort - A
Brand: Msi
SKU: 1775236
Price: 302.65 EUR
Availability: InStock

€302.65

Shipping from warehouse: ⁨M7⁩

Estimated shipping: Tue, Apr 8 - Fri, Apr 11

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Msi
Product code:: 7E07-014R / 4711377139939

Specification

Audio output channels:	7.1 channels
Bios type:	UEFI AMI
Bluetooth:	Yes
Bluetooth version:	5.3
Cables included:	SATA
Chassis intrusion connector:	Yes
Compatible processor series:	Intel® Pentium® Gold, Intel® Celeron®, Intel® Pentium®
Cpu fan connector:	Yes
Depth:	243.8 mm
Desktop management interface (dmi) version:	6.4
Displayports quantity:	1
Ecc сompatibility:	Non-ECC
Ethernet interface type:	2.5 Gigabit Ethernet
Ethernet lan:	Yes
Ethernet lan (rj-45) ports:	1
Front panel audio connector:	Yes
Front panel connector:	Yes
Hdmi ports quantity:	1
Maximum internal memory:	128 GB
Memory channels:	Dual-channel
Motherboard chipset:	Intel Z790
Motherboard chipset family:	Intel
Motherboard form factor:	ATX
Number of m.2 (m) slots:	4
Number of memory slots:	4
Number of sata iii connectors:	6
Number of storage drives supported:	10
On-board graphics card:	No
Pci express x1 slots:	1
Pci express x16 slots:	3
Processor manufacturer:	Intel
Processor socket:	LGA 1700
Product colour:	Aluminium, Black
Raid levels:	1, 0, 10, 5
Raid support:	Yes
Rgb led pin header:	Yes
S/pdif out port:	Yes
Supported memory clock speed (max):	7200 MHz
Supported memory clock speeds:	5000, 6800, 6600, 6000 MHz, 5200, 4800 MHz, 7000, 5600, 6400, 6200, 5800, 5400
Supported memory types:	DDR5-SDRAM
Supported processor sockets:	LGA 1700
Supported storage drive interfaces:	M.2, PCI Express
Supported storage drive types:	HDD & SSD
Top wi-fi standard:	Wi-Fi 6 (802.11ax)
Tpm connector:	Yes
Unbuffered memory:	Yes
Usb 2.0 connectors:	4
Usb 2.0 ports quantity:	2
Usb 3.2 gen 1 (3.1 gen 1) connectors:	2
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:	2
Usb 3.2 gen 2 (3.1 gen 2) connectors:	1
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:	3
Usb 3.2 gen 2x2 type-c ports quantity:	1
Wi-fi:	Yes
Wi-fi standards:	802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n)
Width:	304.8 mm
Windows operating systems supported:	Windows 10 x64, Windows 11 x64

PRO Z790-A MAX WiFi motherboard

Support for Intel Core 14./13./12. generation, Intel Pentium Gold and Celeron processors for the LGA 1700 socket\
Supports DDR5 memory, dual-channel DDR5 7800+MHz (OC)
Improved power design: 16+1+1 DRPS with 80A SPS, dual 8-pin CPU power connectors, core reinforcement, memory increase.
Premium thermal solution: extended heatsink, 7W/mK MOSFET thermal pads, additional thermal pads with chokes and M.2 Shield Frozr connector ensure high system performance and uninterrupted gameplay
High-quality PCB: 6-layer PCB made of 2-ounce copper and server-grade material
Lightning-fast gaming experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
Intel Turbo USB 3.2 Gen 2: Powered by the Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with greater stability and the fastest USB speeds
2.5G LAN solution with Wi-Fi 7: Enhanced networking solution for professional and multimedia applications. Provides a safe, stable and fast network connection
Audio Boost 5: Studio-quality audio for the most immersive gaming experience

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
