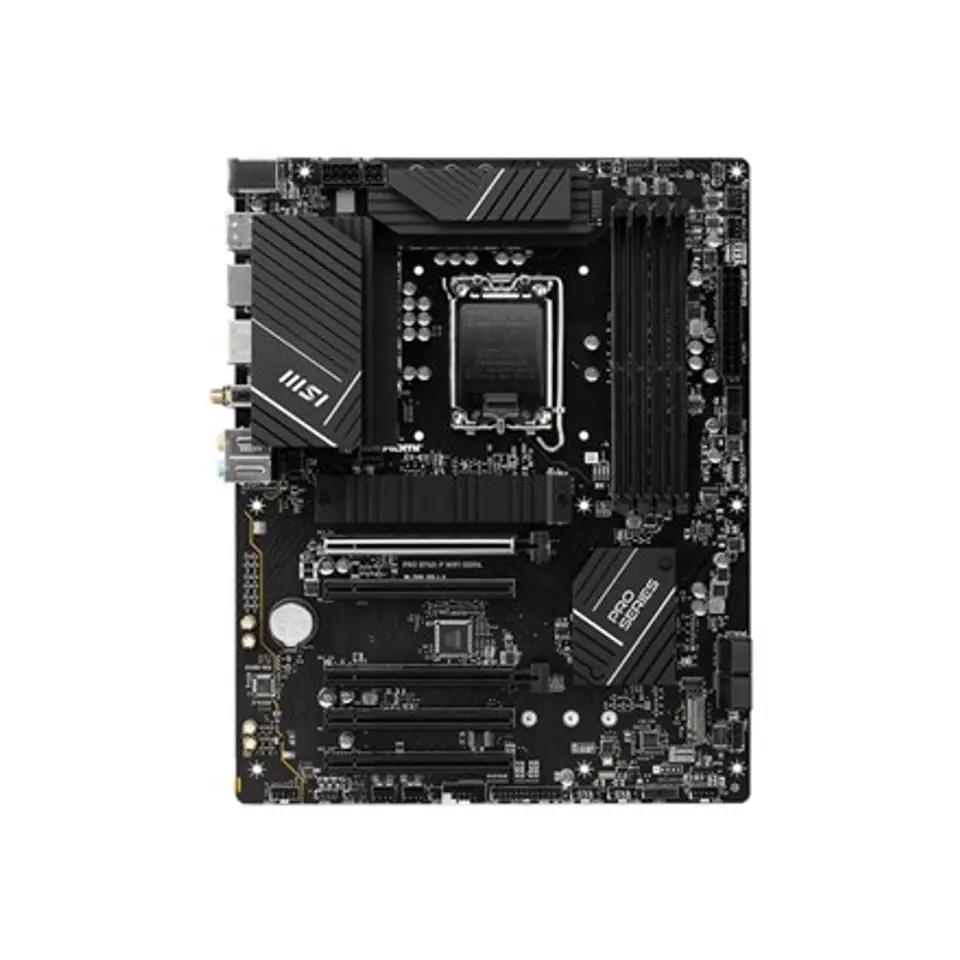

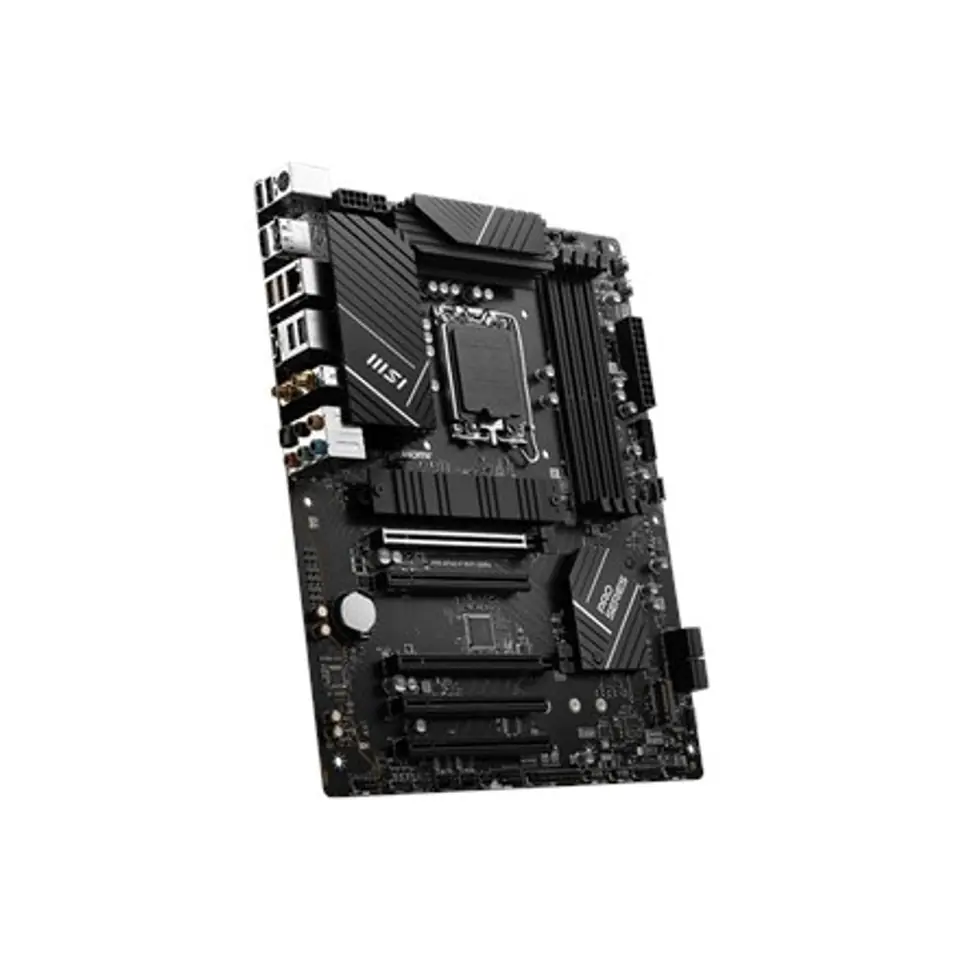

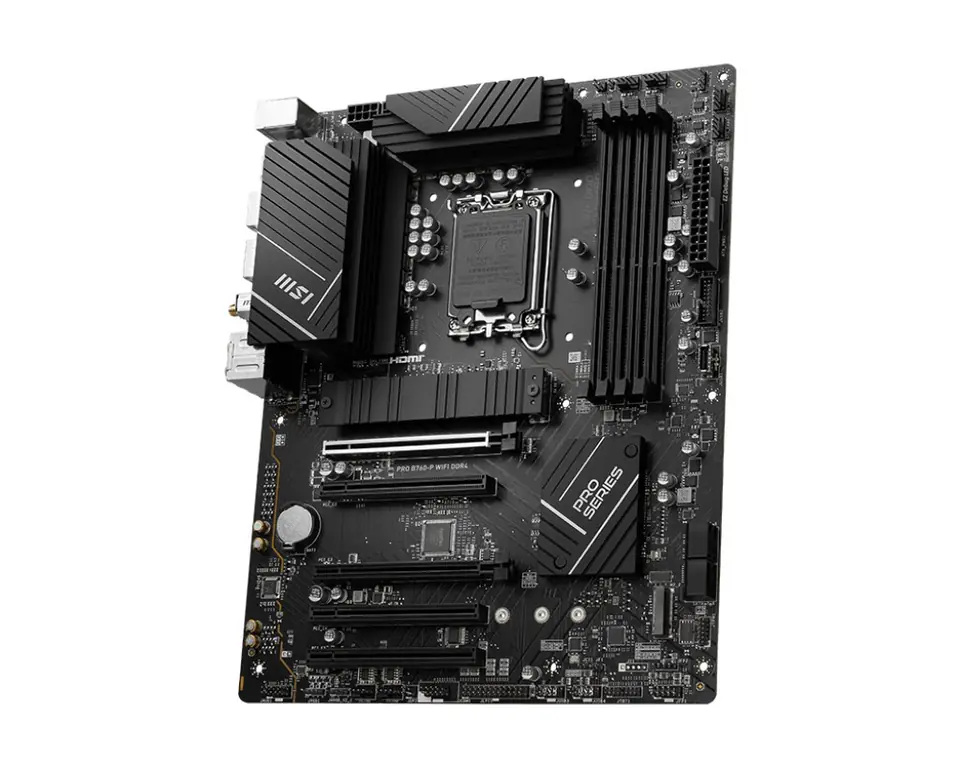

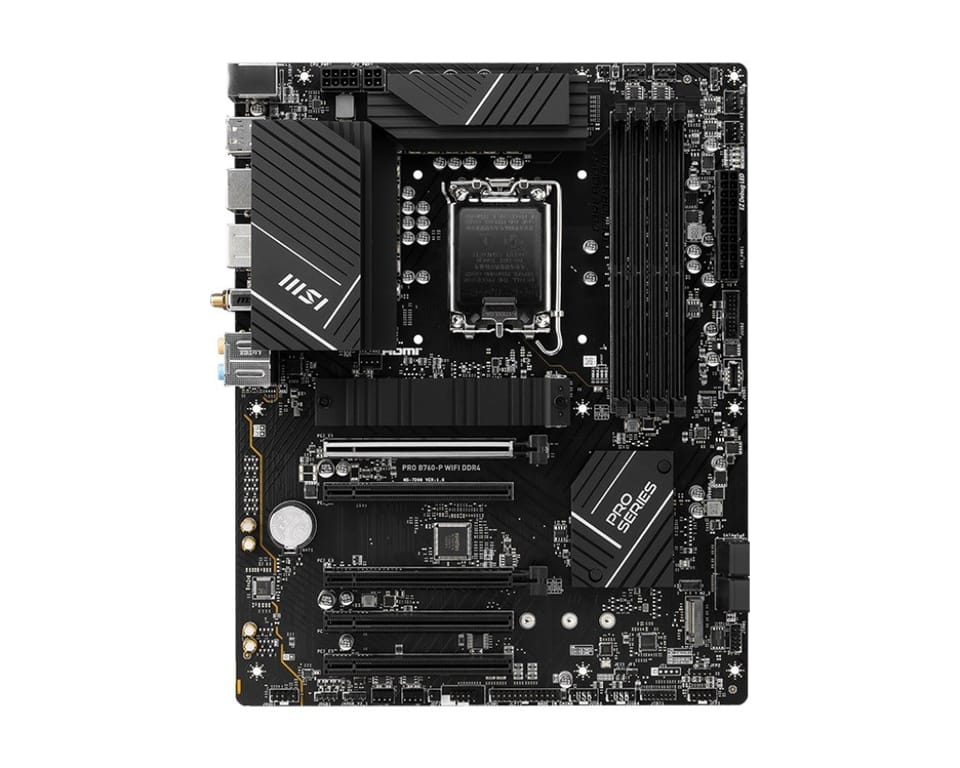

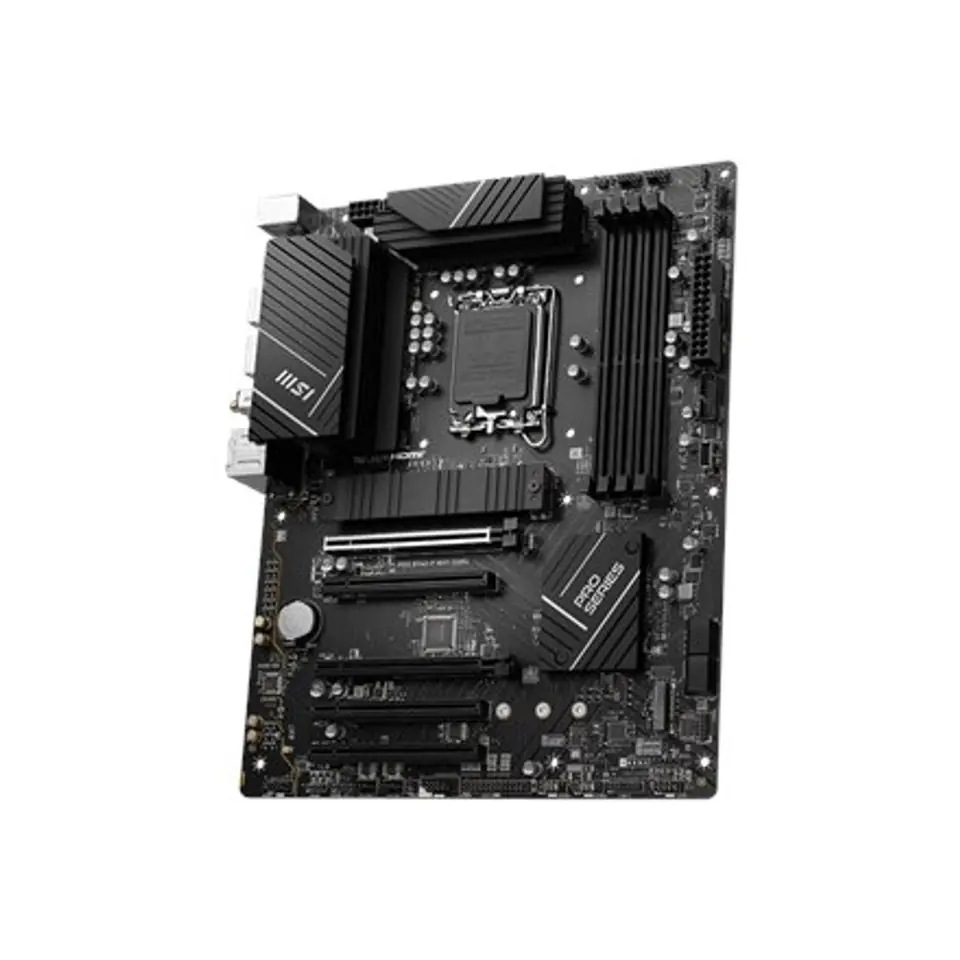

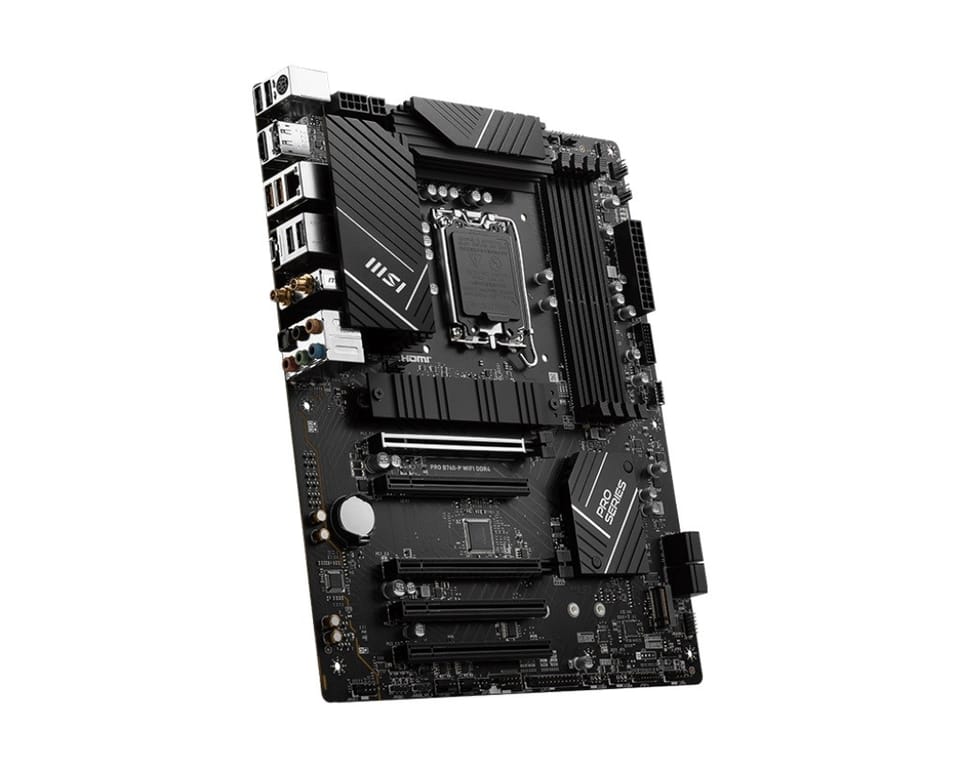

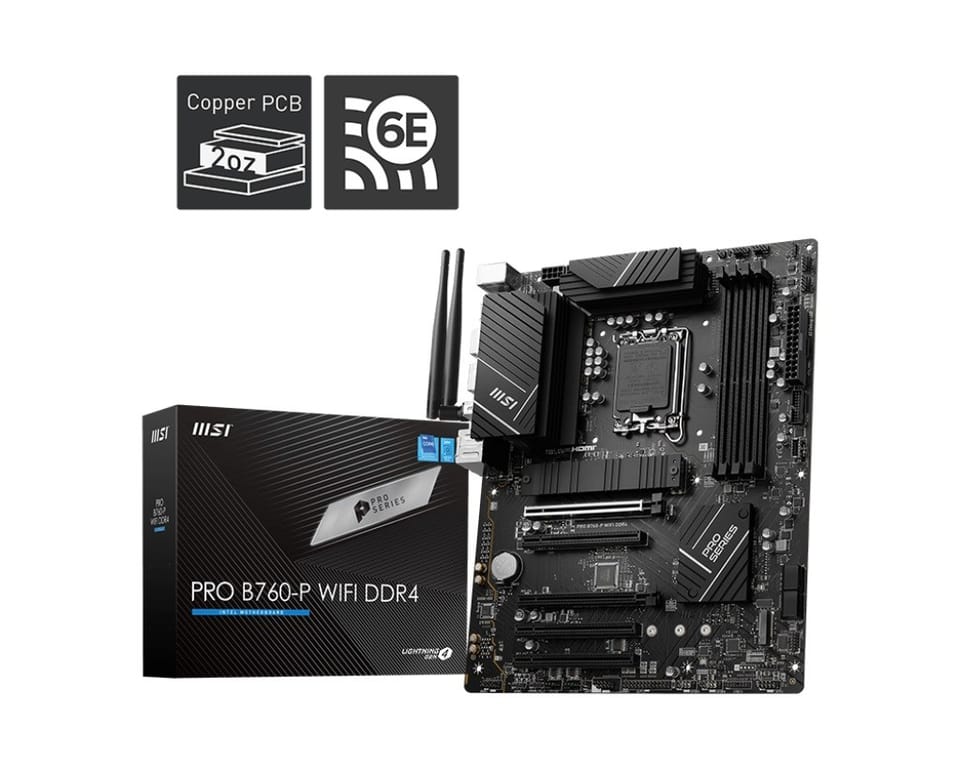

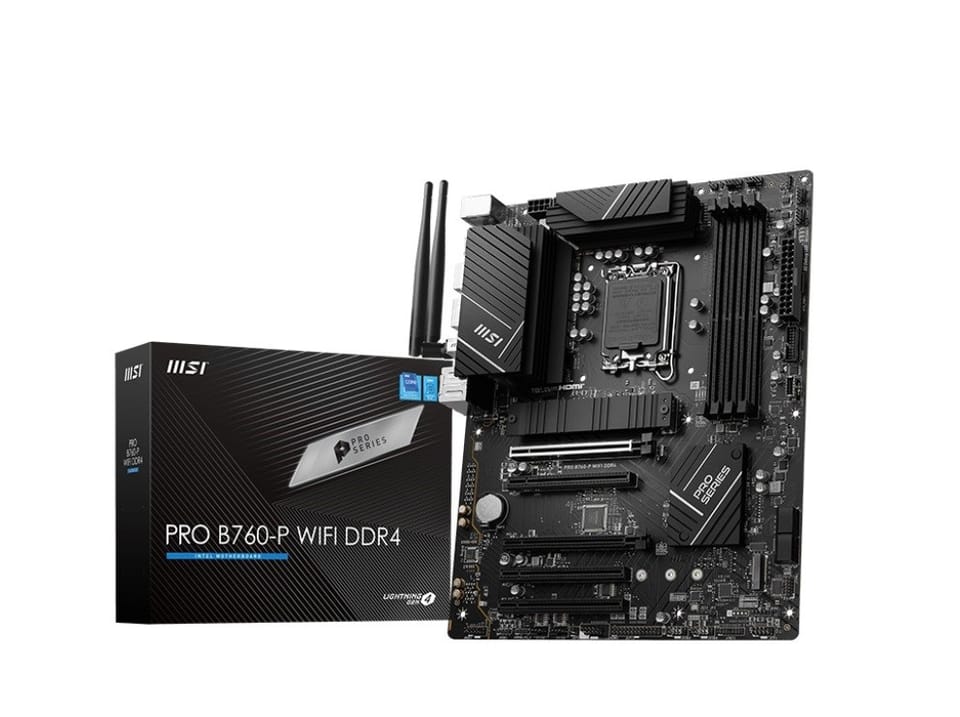

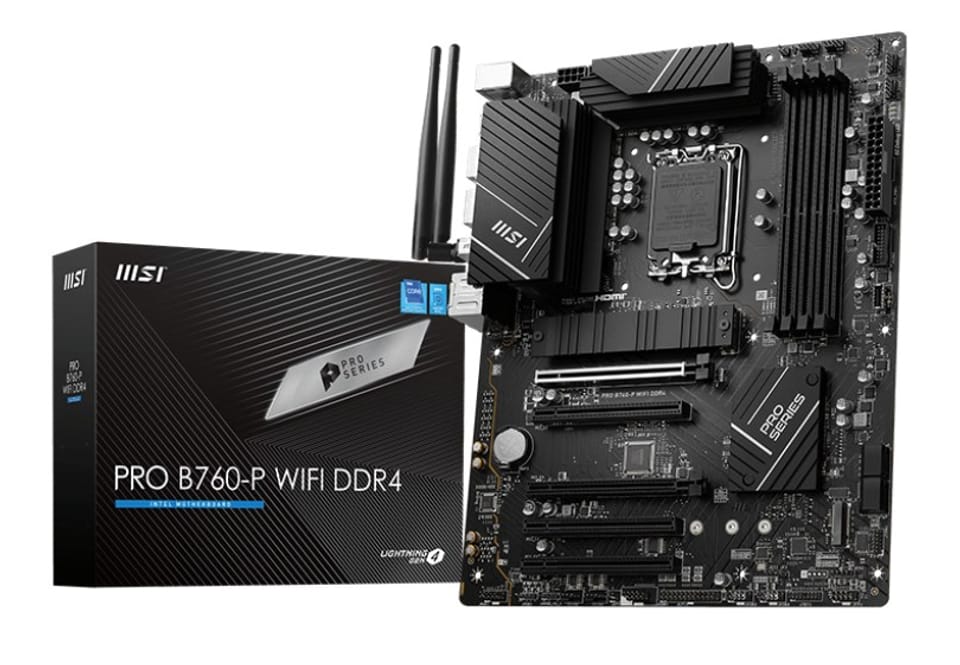

MSI PRO B760-P WIFI DDR4 motherboard LGA 1700 ATX
€175.23
Shipping from warehouse: A3
Estimated shipping: Mon, Nov 18 - Tue, Nov 19
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Msi
- Product code:
- PRO B760-P WIFI DDR4 / 4711377028363
Share this product:
Specification
| Atx power connector (24-pin): | Yes |
|---|---|
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Bluetooth: | Yes |
| Compatible processor series: | Intel® Celeron®, Intel® Pentium® Gold |
| Cpu fan connector: | Yes |
| Depth: | 304.8 mm |
| Displayports quantity: | 1 |
| Ecc сompatibility: | Non-ECC |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| Hdmi ports quantity: | 1 |
| Maximum internal memory: | 128 GB |
| Maximum number of smp processors: | 1 |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | ATX |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 4 |
| Pci express x1 (gen 3.x) slots: | 2 |
| Power source type: | ATX |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Raid levels: | 10, 5, 1, 0 |
| Raid support: | Yes |
| Rgb led pin header: | Yes |
| Supported memory clock speed (max): | 5333 MHz |
| Supported memory clock speeds: | 2933, 3600 MHz, 5333 MHz, 3200 MHz, 2666, 4266, 2400, 5066, 3466, 3400, 5200, 3800, 3333, 4000, 4800, 4600 MHz, 3733, 4400, 5000, 2133, 4200 |
| Supported memory types: | DDR4-SDRAM |
| Supported processor sockets: | LGA 1700 |
| Supported storage drive interfaces: | M.2, SATA III |
| Tpm connector: | Yes |
| Usb 2.0 connectors: | 4 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 2 |
| Usb 3.2 gen 2 (3.1 gen 2) connectors: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 2 |
| Wi-fi: | Yes |
| Width: | 243.8 mm |
| Windows operating systems supported: | Windows 10, Windows 11 |
