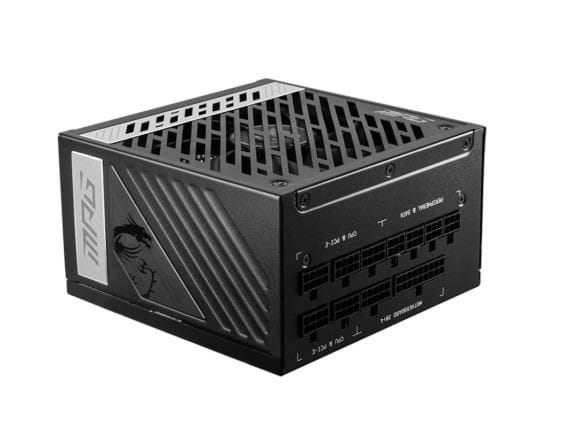

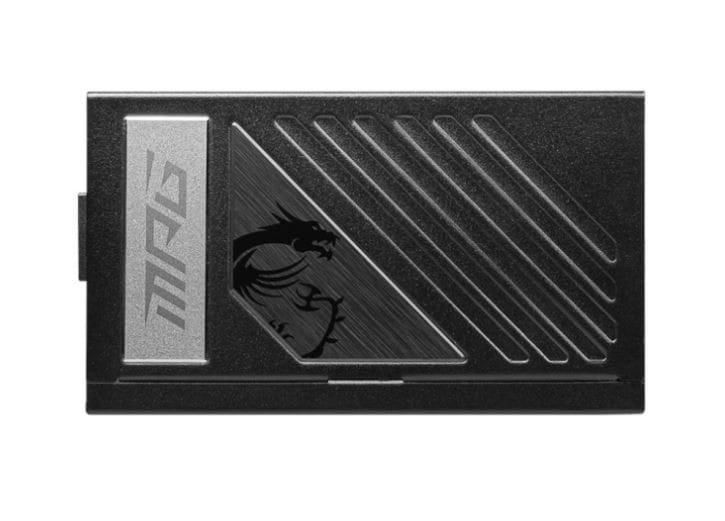

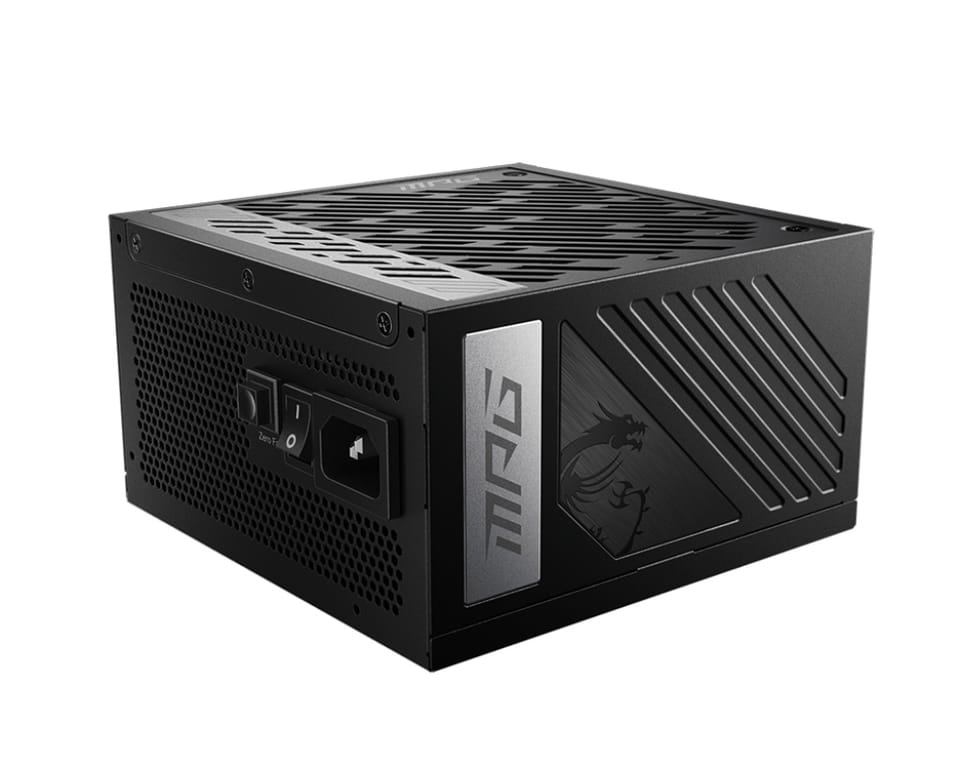

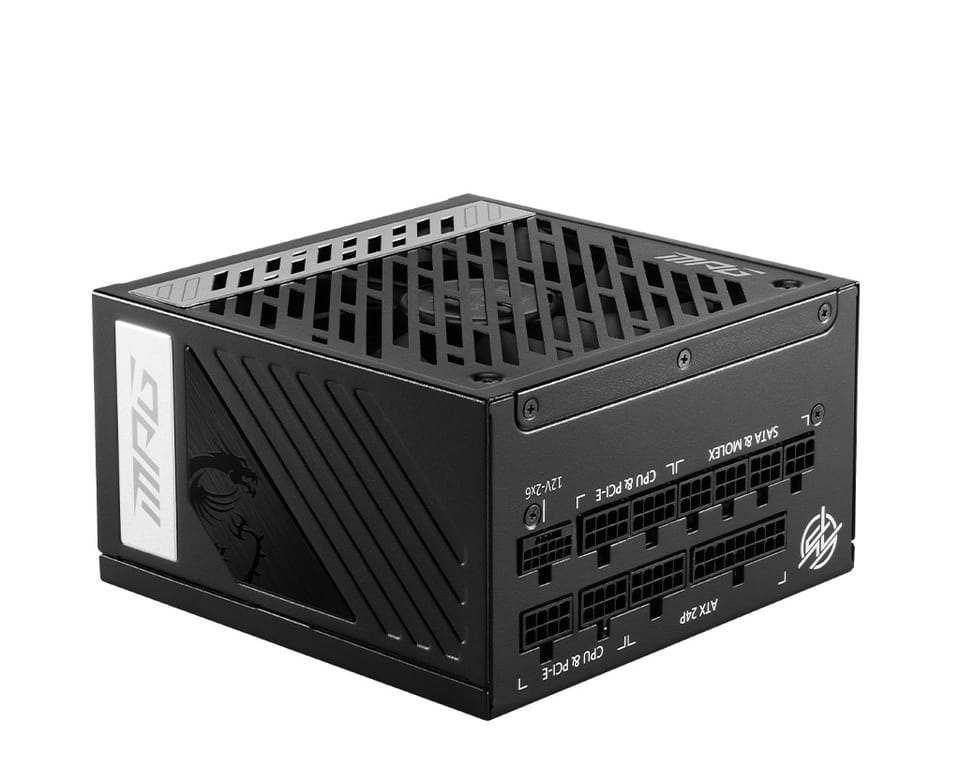

MSI MPG A1000G PCIE5 power supply unit 1000 W 20+4 pin ATX ATX Black

€213.42
Shipping from warehouse: ⁨M7⁩
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Msi
Product code:
306-7ZP7C11-CE0 / 4719072972196

Specification

80 plus certification:80 PLUS Gold
Ac input frequency:50 - 60 Hz
Ac input voltage:100 - 240 V
Atx version:3.0
Bearing technology:FDB
Cabling type:Fully-Modular
Combined power (-12v):3.6 W
Combined power (+12v):1000 W
Combined power (+3.3v):120 W
Combined power (+5v):120 W
Combined power (+5vsb):15 W
Cooling type:Active
Depth:150 mm
Efficiency:90%
Eps cable length:70 cm
Eps power connector (4+4 pin):Yes
Eps power connector (8-pin):No
Fan diameter:13.5 cm
Floppy disk drive connector:Yes
Height:86 mm
Illumination:No
Max output current (-12v):0.3 A
Max output current (+12v):83.5 A
Max output current (+3.3v):22 A
Max output current (+5v):22 A
Max output current (+5vsb):3 A
Motherboard power cable length:60 cm
Motherboard power connector:20+4 pin ATX
Number of fans:1 fan(s)
Number of sata power connectors:12
Pci express power cable length:75 cm
Pci express power connectors (16-pin):1
Pci express power connectors (6+2 pin):6
Peripheral (molex) power cable length:500 mm, 1100, 700, 650, 850 mm
Peripheral (molex) power connectors (4-pin):4
Power factor correction (pfc) type:Active
Power protection features:Over power, Overheating, Short circuit, Over voltage, Under voltage, Over current
Power supply unit (psu) form factor:ATX
Product colour:Black
Purpose:PC/Server
Sata power cable length:850 mm, 650 mm, 700 mm, 500 mm
Total power:1000 W
Width:150 mm

MSI HARDWARE

Build and build your most powerful build with MSI hardware and components, including PC cases, motherboards, liquid cooling systems, graphics cards, and power supplies.

80 PLUS GOLD CERTIFICATE

The efficiency of the power supply directly affects the performance of the computer system and power consumption. The 80 PLUS Gold certified power supply offers lower power consumption and higher efficiency.

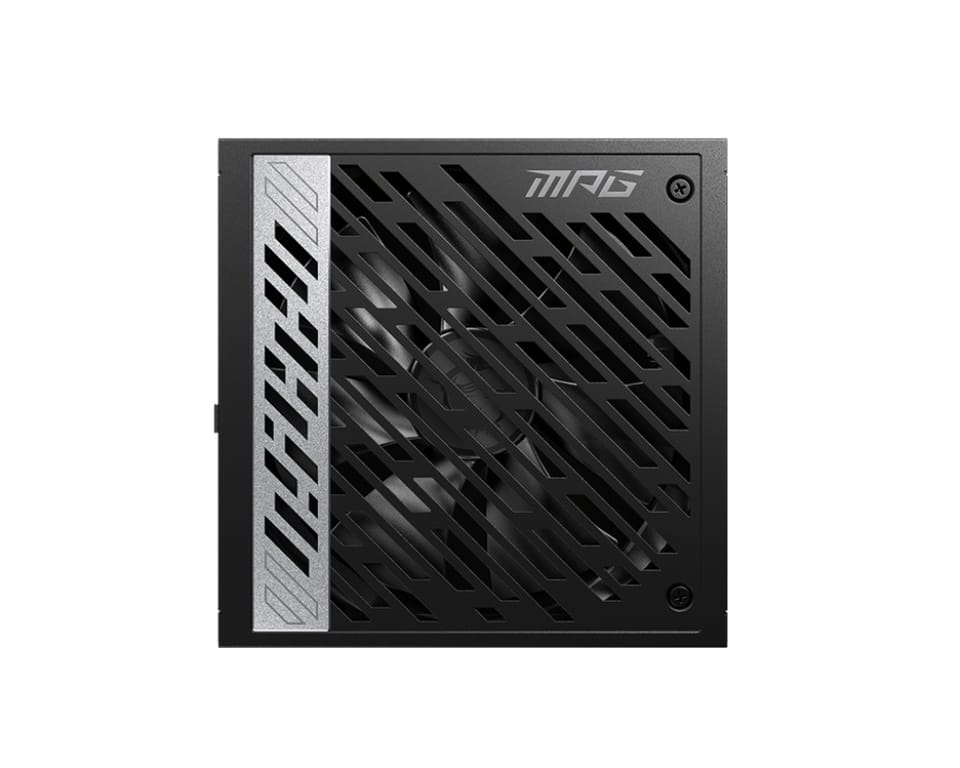

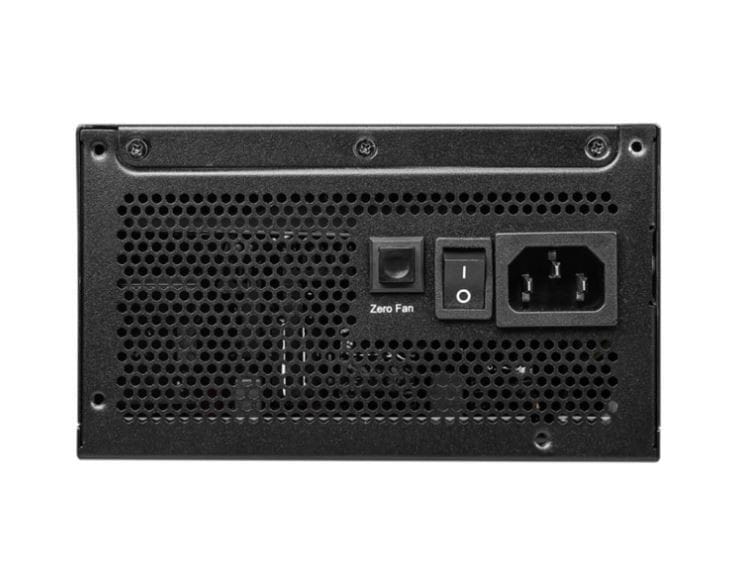

0% RPM MODE

The 0 RPM (0 rpm) mode allows you to stop the power supply fan when the TDP (Thermal Design Power) value, i.e. the maximum value of power consumption planned by the designers for heat dissipation, drops below 40%. Thanks to this, you can enjoy the game in absolute silence.

100% JAPANESE CAPACITORS 105°C

Striving for uncompromising product quality and stability, MPG A1000G series gaming power supplies feature 100% Japanese 105°C capacitors and solid cap polymer-aluminum capacitors.

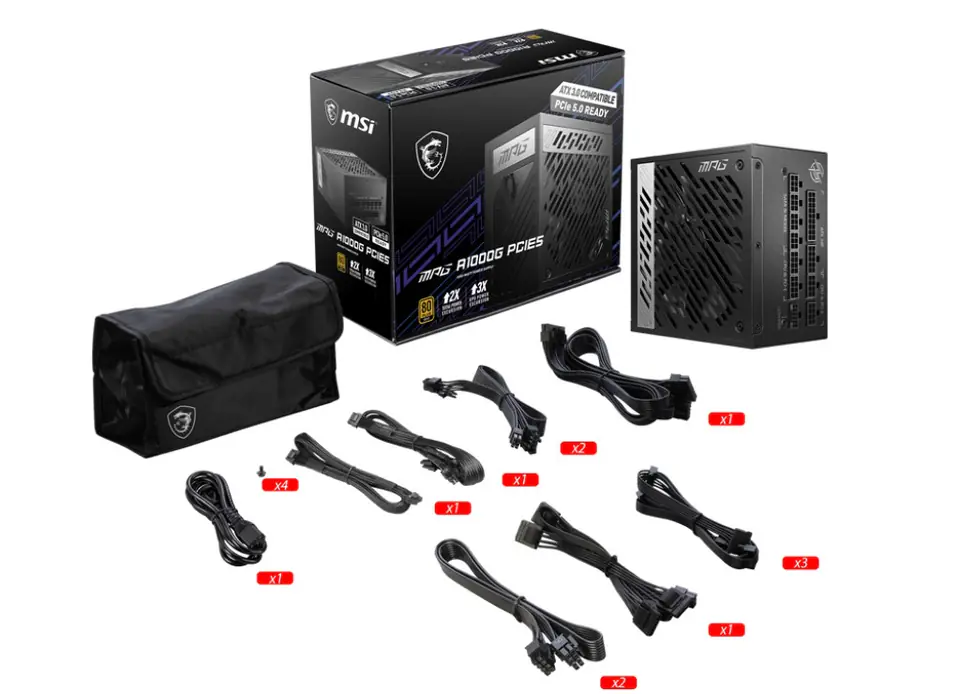

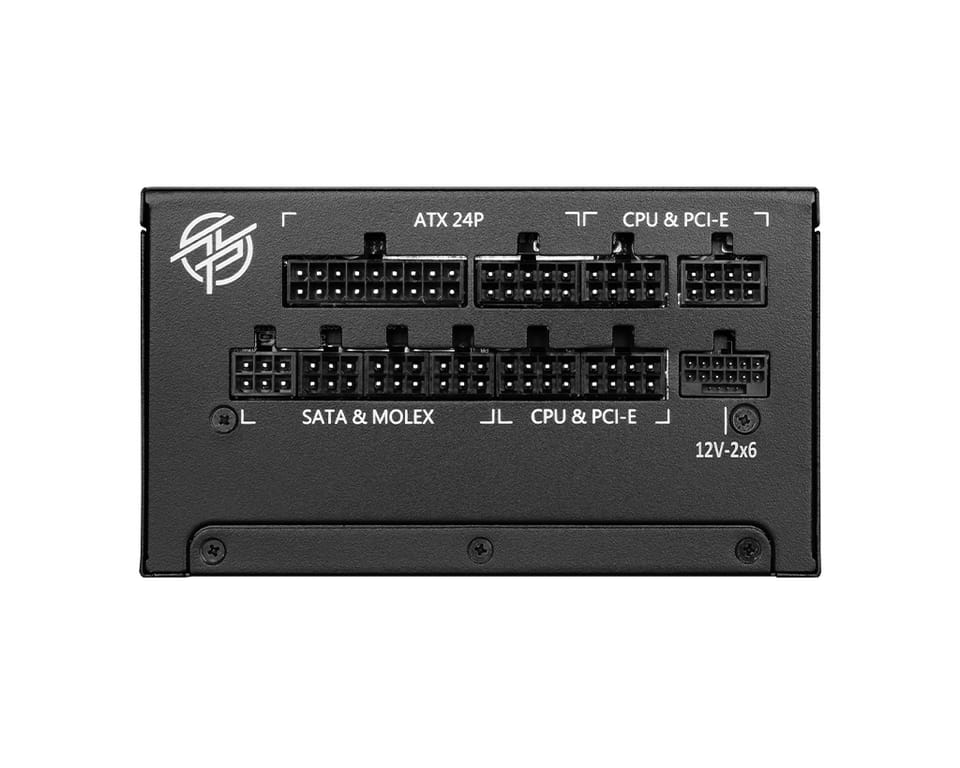

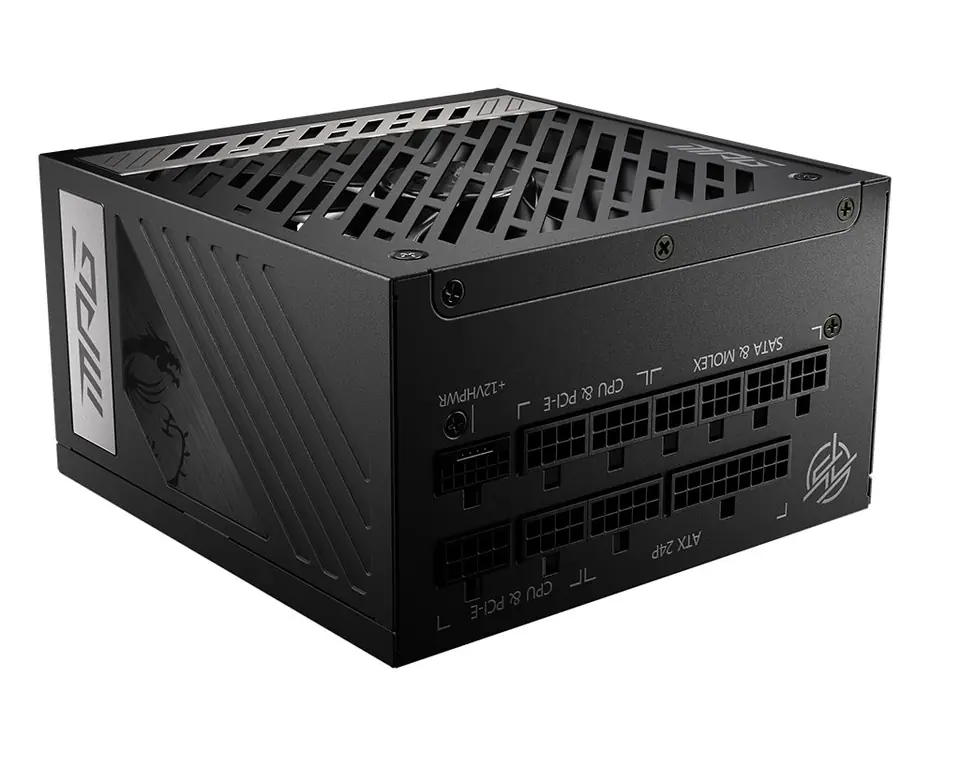

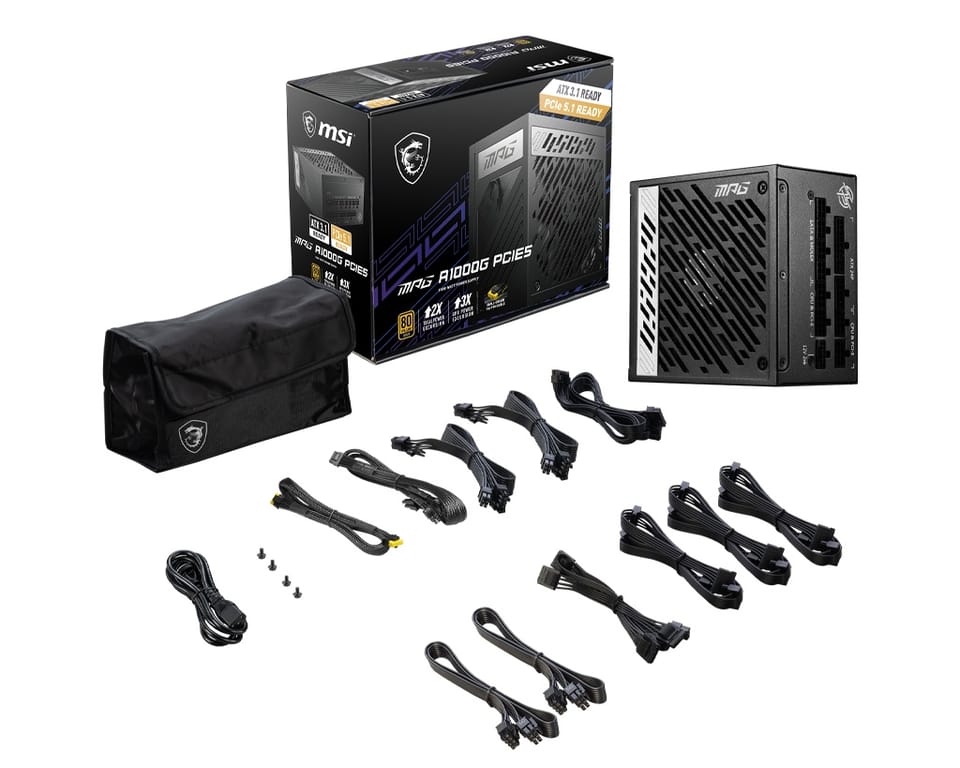

USE WHAT YOU NEED

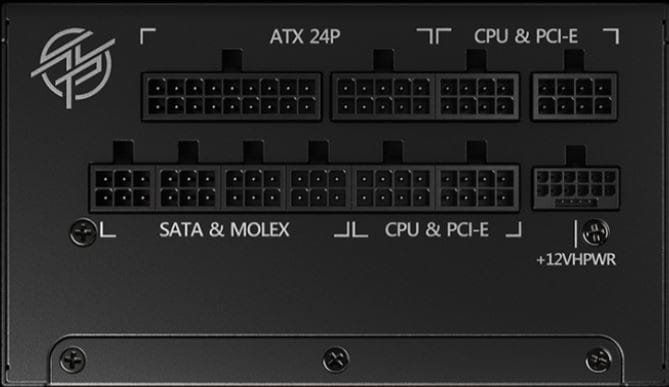

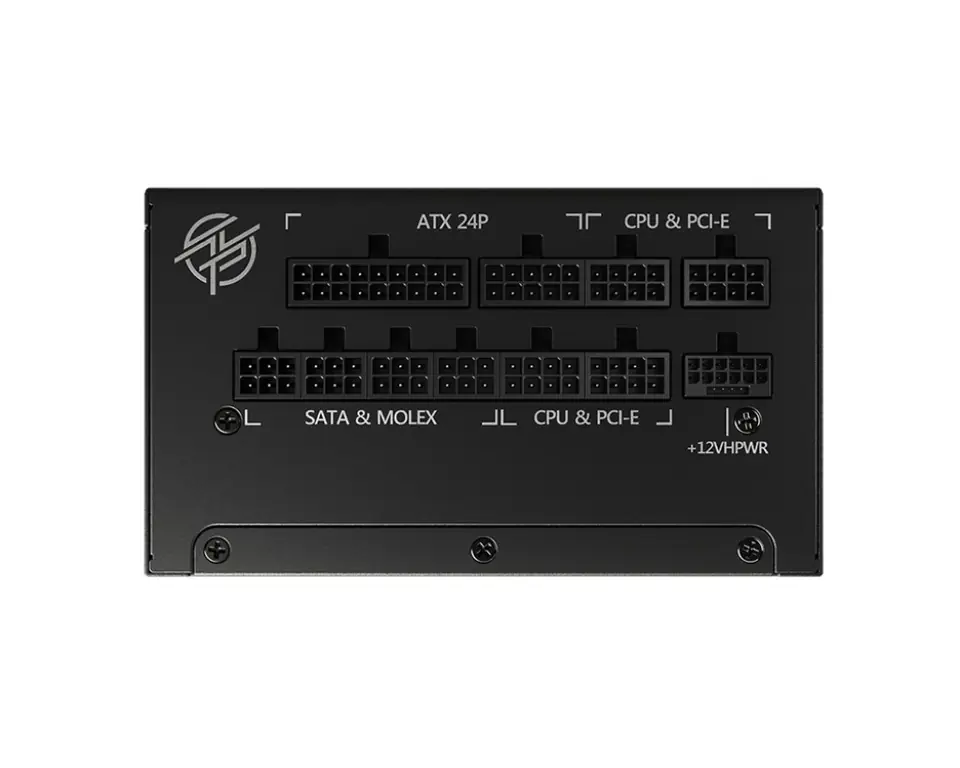

The MPG A1000G's fully modular design means you can only use the connectors you actually need to power your computer's installed components. In this way, it is possible to significantly reduce the clutter of cables inside the housing and greatly simplify the overall construction of the system.

MONO SUPPLY

Using a single power rail, the MPG A1000G can effortlessly deliver the power you need. This power is more than enough to power the MPG A1000G with high-performance graphics cards and processors, as well as 5 PCI-E slots.

COMPACT SIZE

The power supply is smaller than typical power supplies available on the market. The compact size of the new ATX power supplies makes them a perfect fit for most computer cases.
