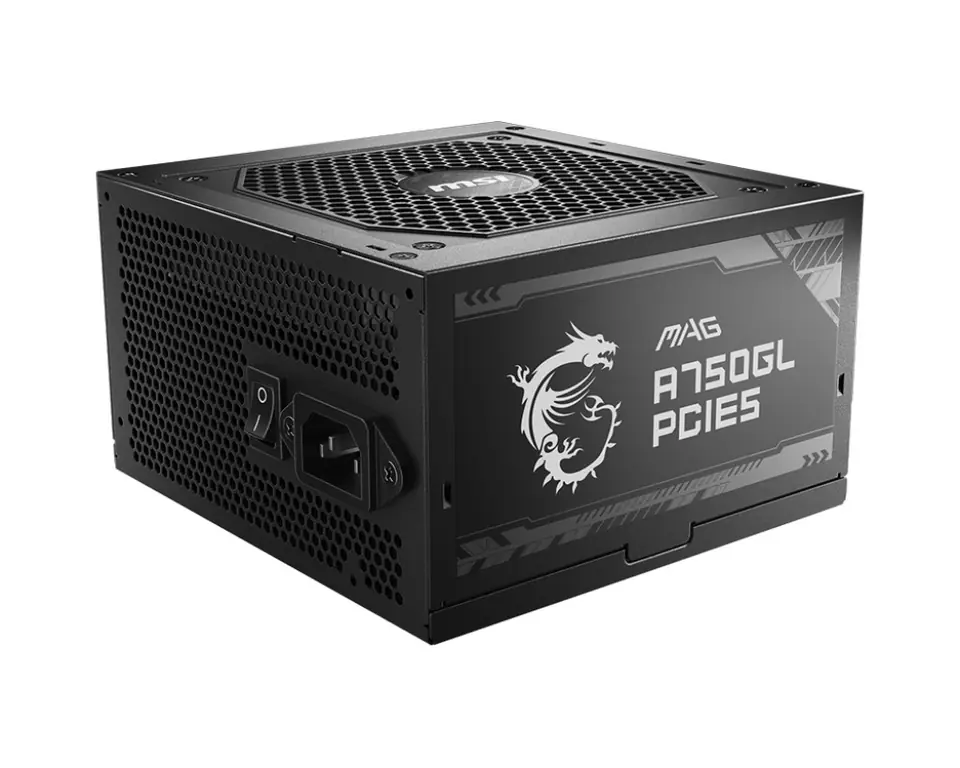

MSI MAG A750GL PCIE5 power supply unit 750 W 20+4 pin ATX ATX Black
€134.92
Shipping from warehouse: A3
Estimated shipping: Tue, Sep 24 - Fri, Sep 27
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Msi
- Product code:
- 306-7ZP8B11-CE0 / 4711377084284
Share this product:
Specification
| 80 plus certification: | 80 PLUS Gold |
|---|---|
| Ac input frequency: | 47 - 63 Hz |
| Ac input voltage: | 100 - 240 V |
| Atx power connector (20+4 pin): | No |
| Atx power connector (24-pin): | No |
| Cabling type: | Fully-Modular |
| Combined power (-12v): | 3.6 W |
| Combined power (+12v): | 744 W |
| Combined power (+3.3v): | 110 W |
| Combined power (+5v): | 110 W |
| Combined power (+5vsb): | 12.5 W |
| Cooling type: | Active |
| Cpu power connector (4+4 pin): | Yes |
| Depth: | 140 mm |
| Efficiency: | 90% |
| Eps power connector (4+4 pin): | Yes |
| Eps power connector (8-pin): | No |
| Fan diameter: | 12 cm |
| Harmonized system (hs) code: | 84733020 |
| Height: | 86 mm |
| Illumination: | No |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 62 A |
| Max output current (+3.3v): | 20 A |
| Max output current (+5v): | 20 A |
| Max output current (+5vsb): | 2.5 A |
| Maximum input current (@110v): | 8 A |
| Maximum input current (@220v): | 4 A |
| Motherboard power cable length: | 45 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 8 |
| On/off switch: | Yes |
| Package type: | Box |
| Pci express power connectors (6+2 pin): | 3 |
| Peripheral (molex) power connectors (4-pin): | 4 |
| Power factor correction (pfc) type: | Active |
| Power protection features: | Over power, Short circuit, Over voltage, Overheating, Over current |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Total power: | 750 W |
| Width: | 150 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
