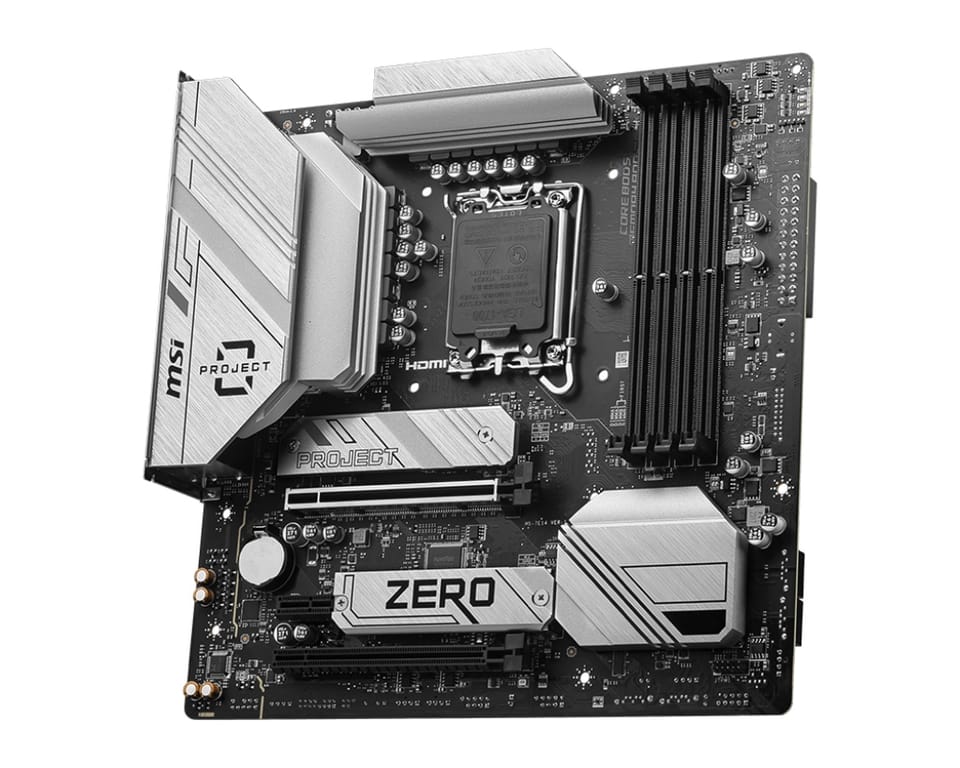

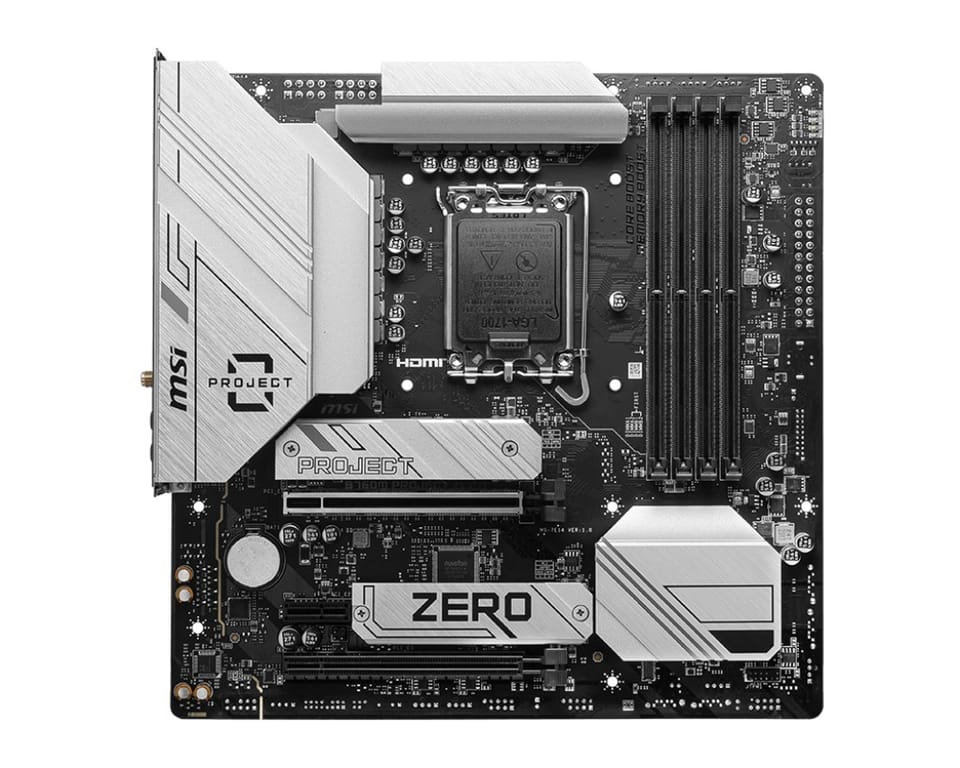

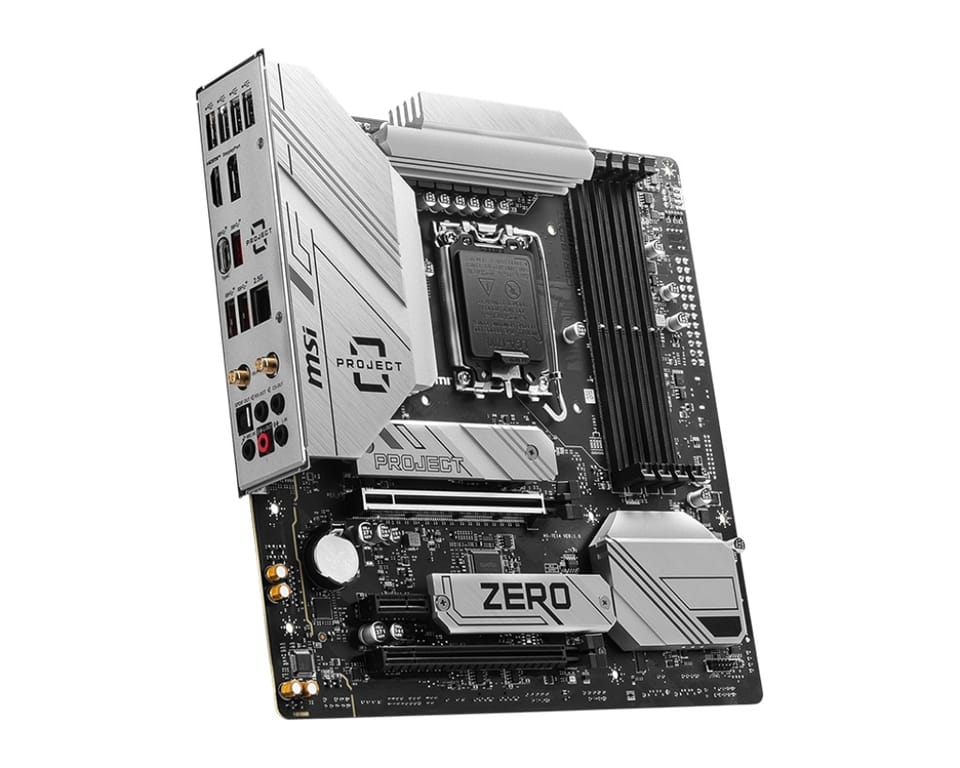

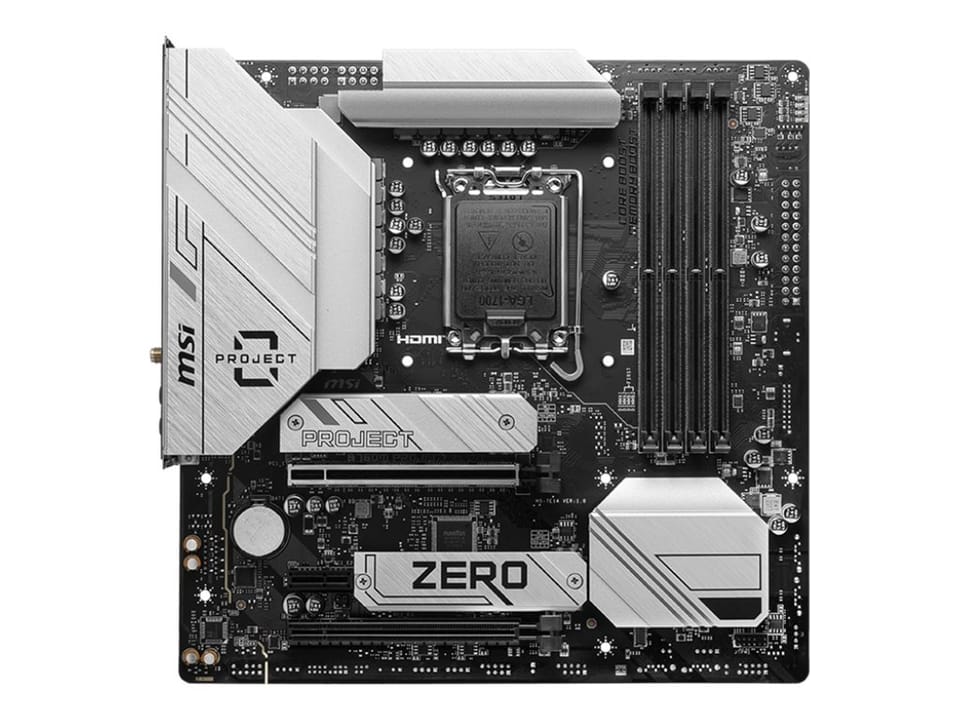

MSI B760M Ptoject Zero Intel B760 LGA 1700 micro ATX
This product is not available
- Availability:
- expected delivery
- Brand:
- Msi
- Product code:
- B760M PROJECT ZERO / 4711377143660
Share this product:
Specification
| Atx power connector (24-pin): | Yes |
|---|---|
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Cables included: | SATA |
| Chassis intrusion connector: | Yes |
| Clear cmos jumper: | Yes |
| Compatible processor series: | Intel® Celeron®, Intel® Pentium® Gold |
| Cpu fan connector: | Yes |
| Depth: | 243.8 mm |
| Displayport version: | 1.4 |
| Displayports quantity: | 1 |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 1.4 |
| Headphone outputs: | 1 |
| Lan controller: | Realtek RTL8111H |
| Line-in: | Yes |
| Maximum internal memory: | 256 GB |
| Microphone in: | Yes |
| Motherboard chipset: | Intel B760 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Number of com connectors: | 1 |
| Number of hdds supported: | 4 |
| Number of m.2 (m) slots: | 2 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 4 |
| Number of storage drives supported: | 6 |
| Parallel connector: | Yes |
| Power source type: | ATX |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Ps/2 ports quantity: | 2 |
| Raid levels: | 5, 10, 0, 1 |
| Raid support: | Yes |
| Rgb led pin header: | Yes |
| Supported memory clock speeds: | 6400, 6000, 6800, 6200, 5800, 5400, 4800, 5000, 5600, 6600, 5200 |
| Supported memory types: | DDR5-SDRAM |
| Supported processor sockets: | LGA 1700 |
| Supported storage drive interfaces: | SATA III |
| Supported storage drive types: | HDD & SSD |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 4 |
| Usb 2.0 ports quantity: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 3 |
| Usb 3.2 gen 2 (3.1 gen 2) connectors: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity: | 1 |
| Vga (d-sub) ports quantity: | 1 |
| Wi-fi: | No |
| Width: | 243.8 mm |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
