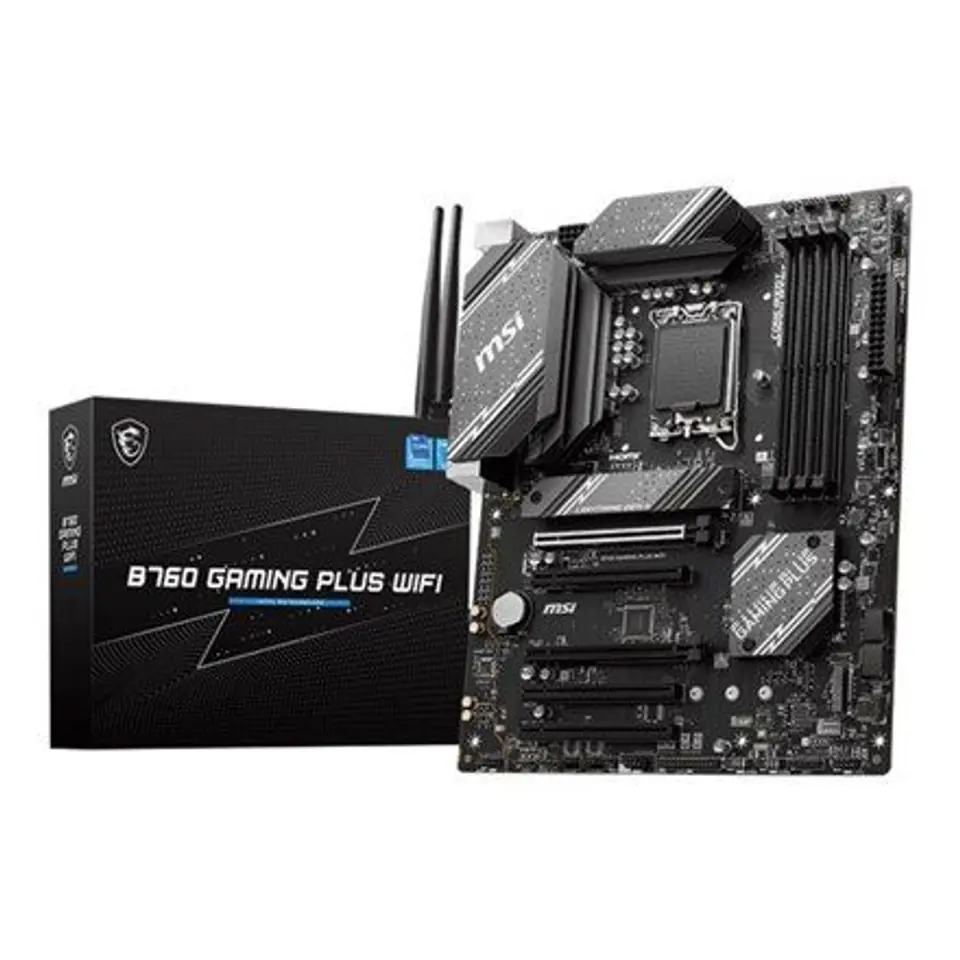

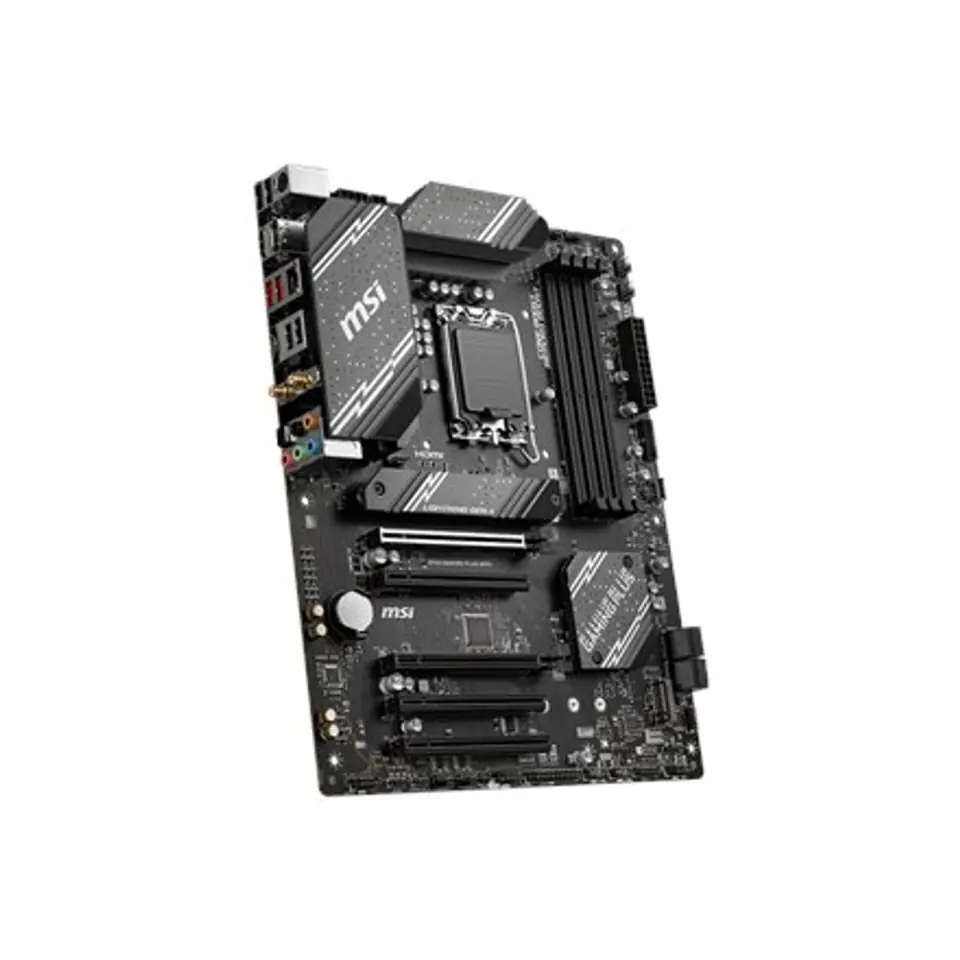

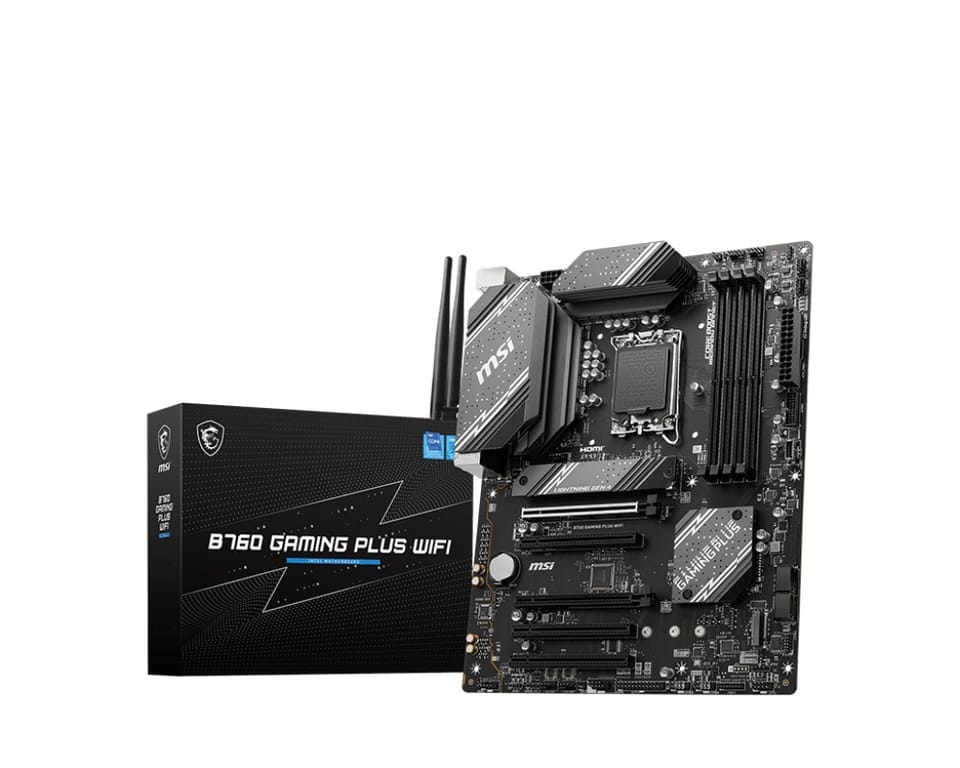

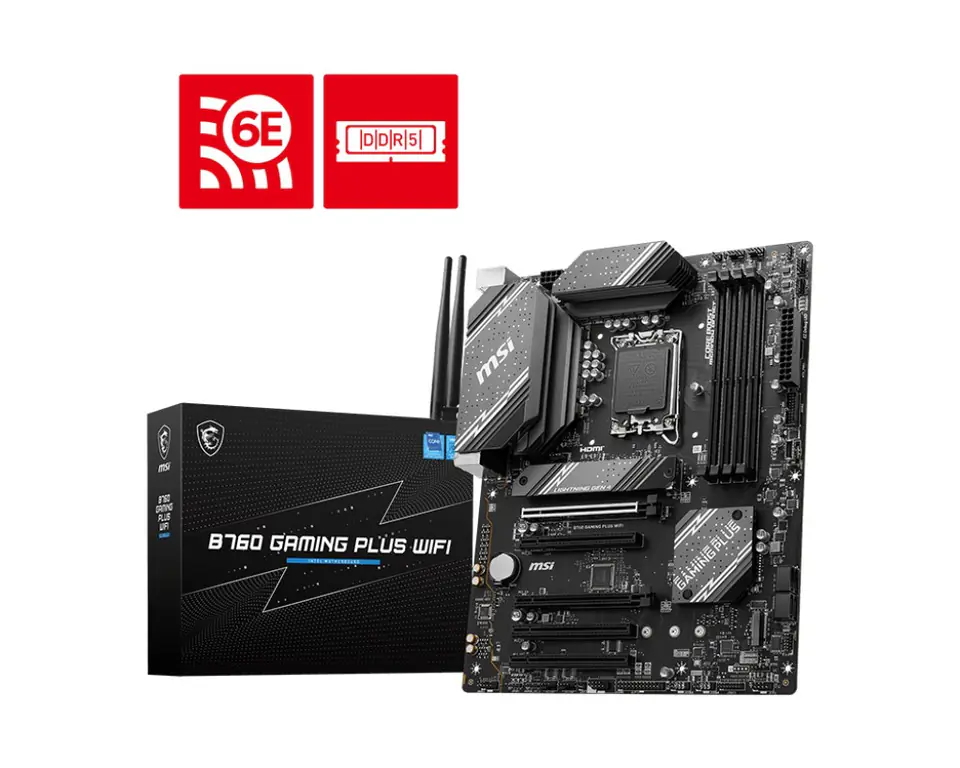

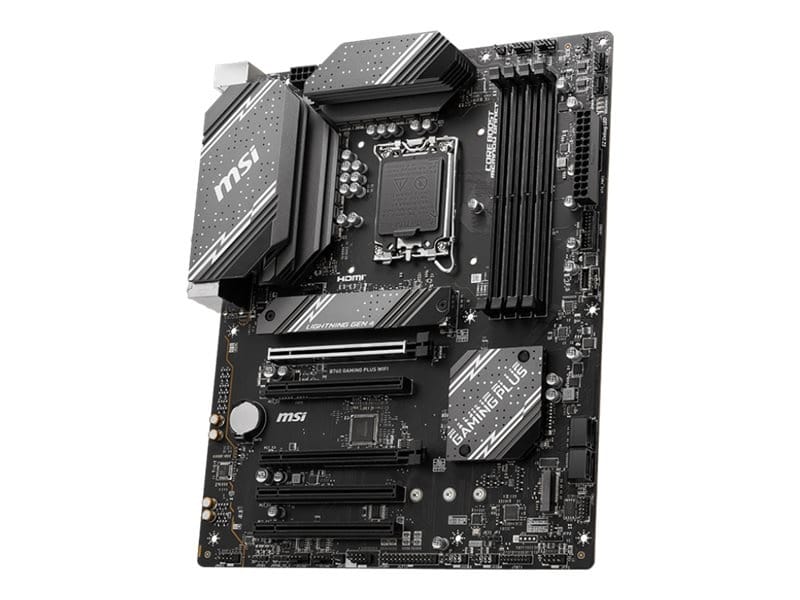

MSI B760 GAMING PLUS WIFI motherboard Intel B760 LGA 1700 ATX

€199.65
Shipping from warehouse: ⁨A3⁩
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Msi
Product code:
7D98-007R / 4711377086561

Specification

Audio chip:Realtek ALC897
Audio output channels:7.1 channels
Bluetooth:Yes
Bluetooth version:5.3
Compatible processor series:Intel® Pentium® Gold, Intel® Celeron®
Depth:304.8 mm
Displayport version:1.4
Displayports quantity:1
Ethernet interface type:2.5 Gigabit Ethernet
Ethernet lan:Yes
Ethernet lan (rj-45) ports:1
Hdmi ports quantity:1
Hdmi version:2.1
Lan controller:Dragon RTL8125BG
Maximum internal memory:192 GB
Memory channels:Dual-channel
Memory slots type:DIMM
Motherboard chipset:Intel B760
Motherboard chipset family:Intel
Motherboard form factor:ATX
Number of m.2 (m) slots:2
Number of memory slots:4
Number of sata iii connectors:4
Pci express x1 (gen 3.x) slots:3
Pci express x1 slots:3
Pci express x16 (gen 4.x) slots:2
Pci express x16 slots:2
Processor manufacturer:Intel
Processor socket:LGA 1700
Raid levels:5, 0, 10, 1
Raid support:Yes
S/pdif out connector:Yes
S/pdif out port:Yes
Supported memory types:DDR5-SDRAM
Supported storage drive interfaces:M.2, SATA
Top wi-fi standard:Wi-Fi 6E (802.11ax)
Tpm connector:Yes
Usb 2.0 connectors:4
Usb 2.0 ports quantity:4
Usb 3.2 gen 1 (3.1 gen 1) connectors:3
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:2
Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity:1
Wi-fi:Yes
Width:243.8 mm
Windows operating systems supported:Windows 10 x64, Windows 11 x64

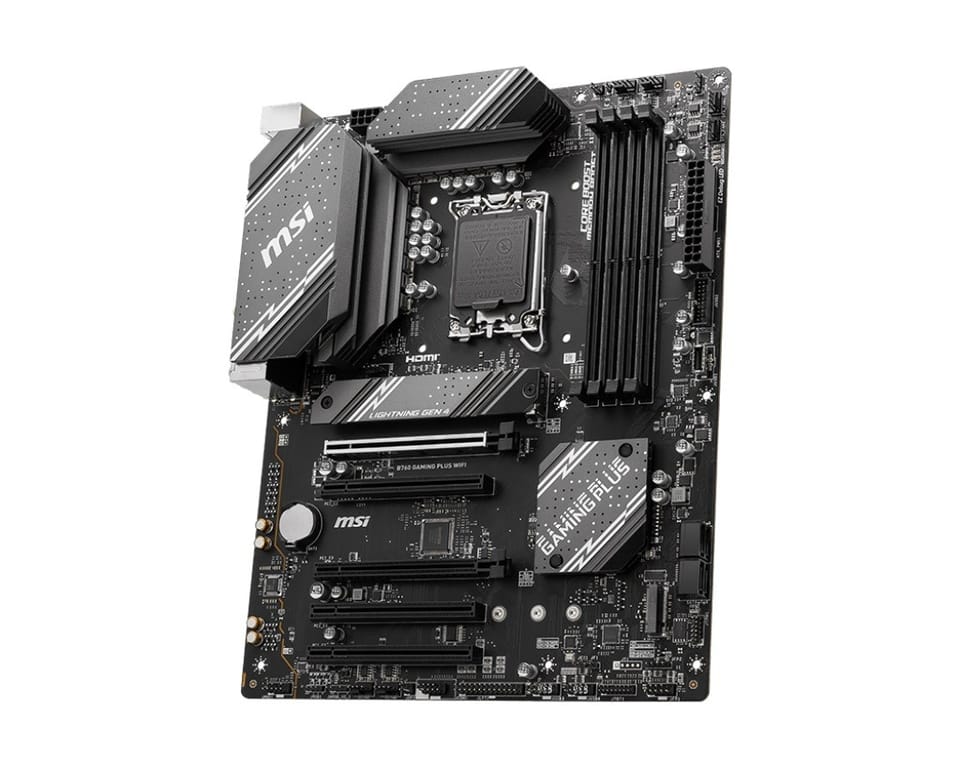

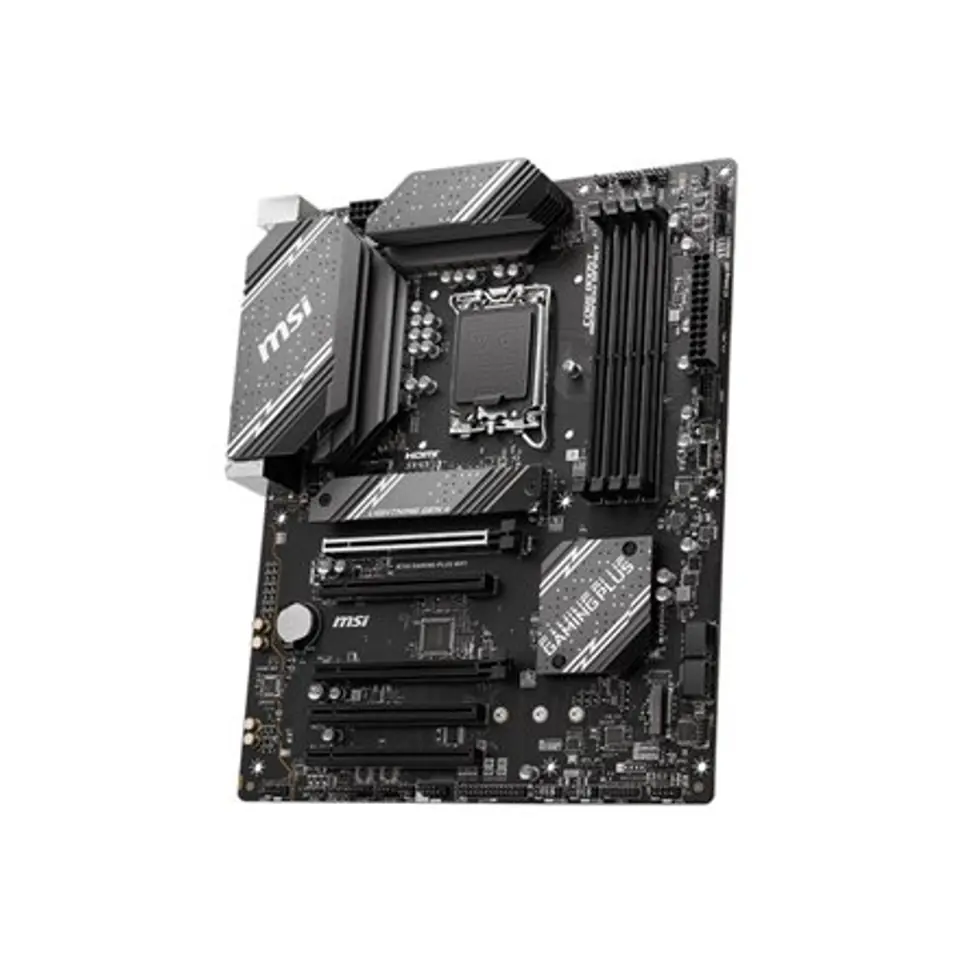

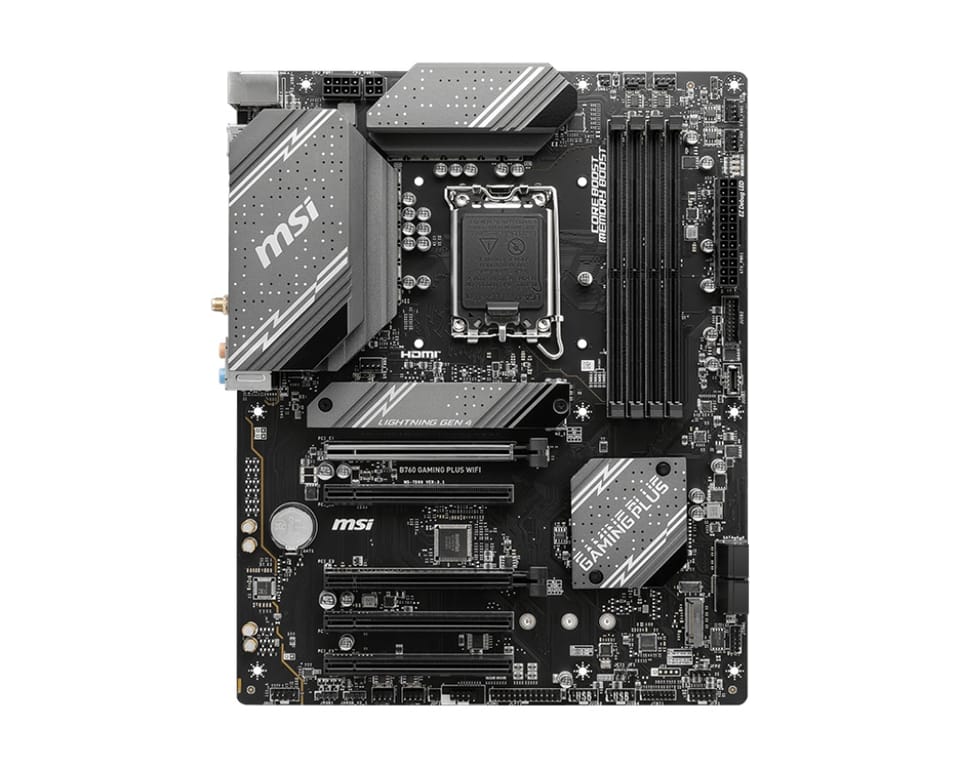

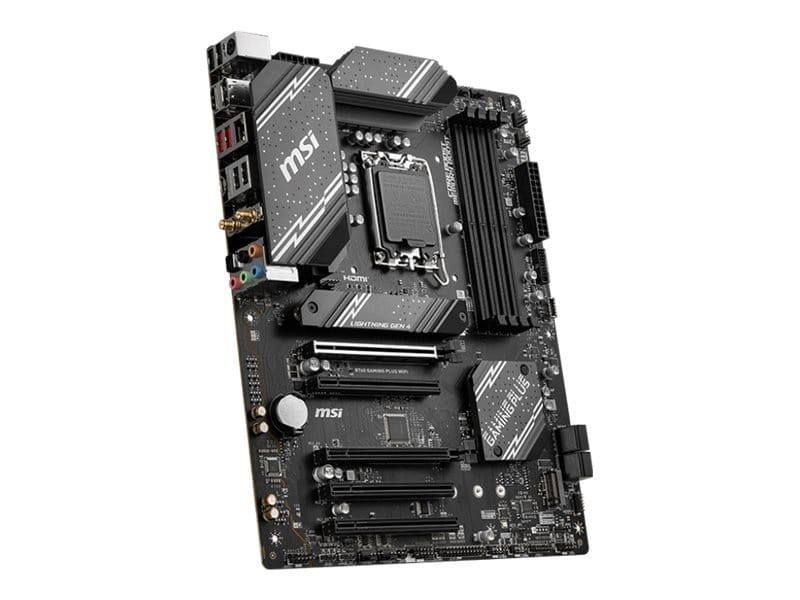

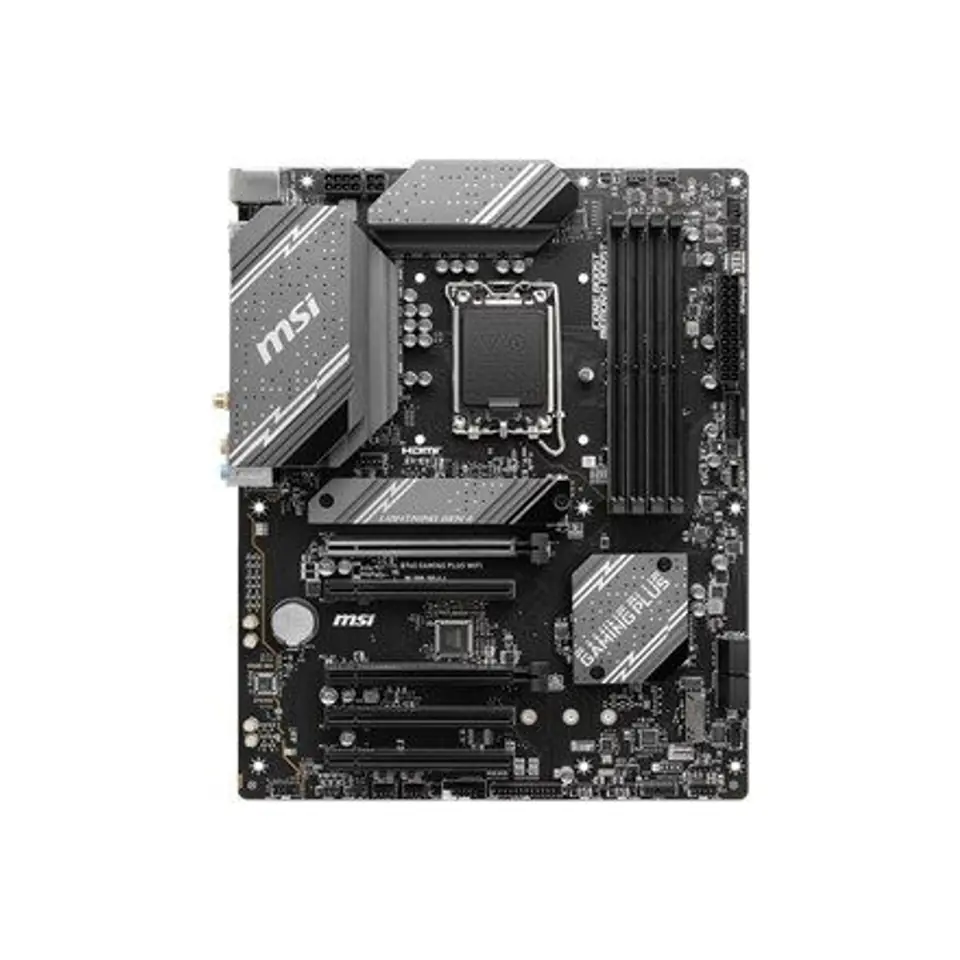

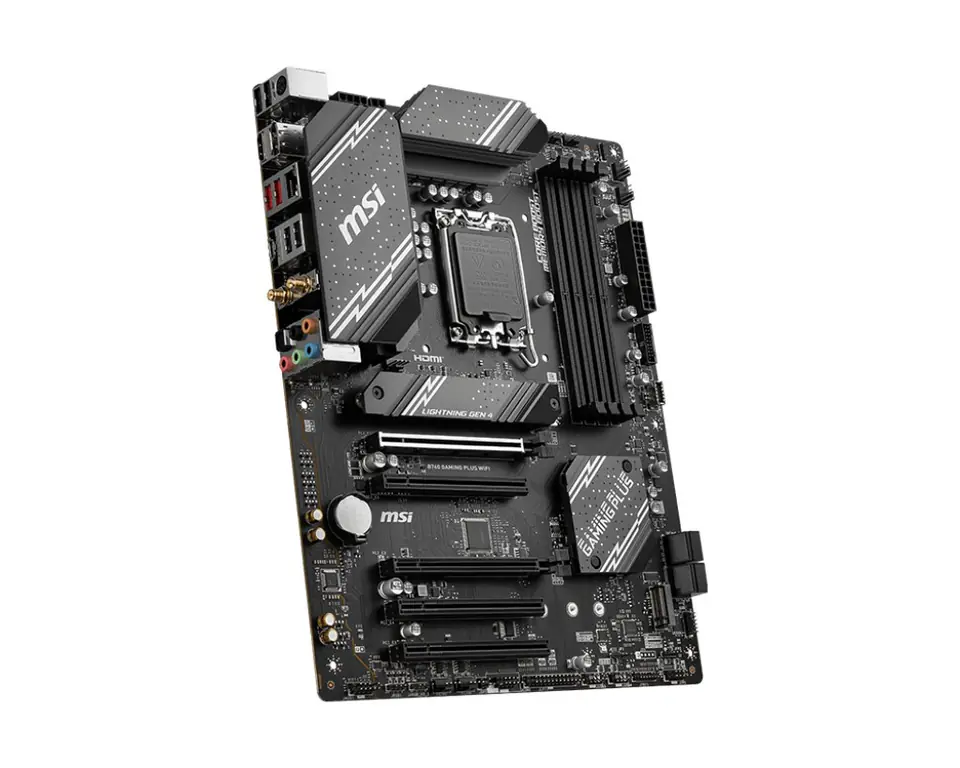

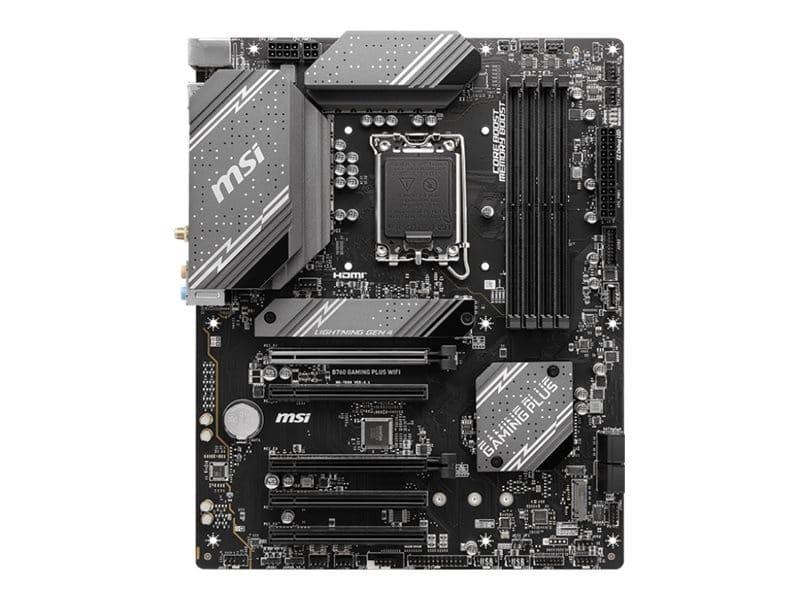

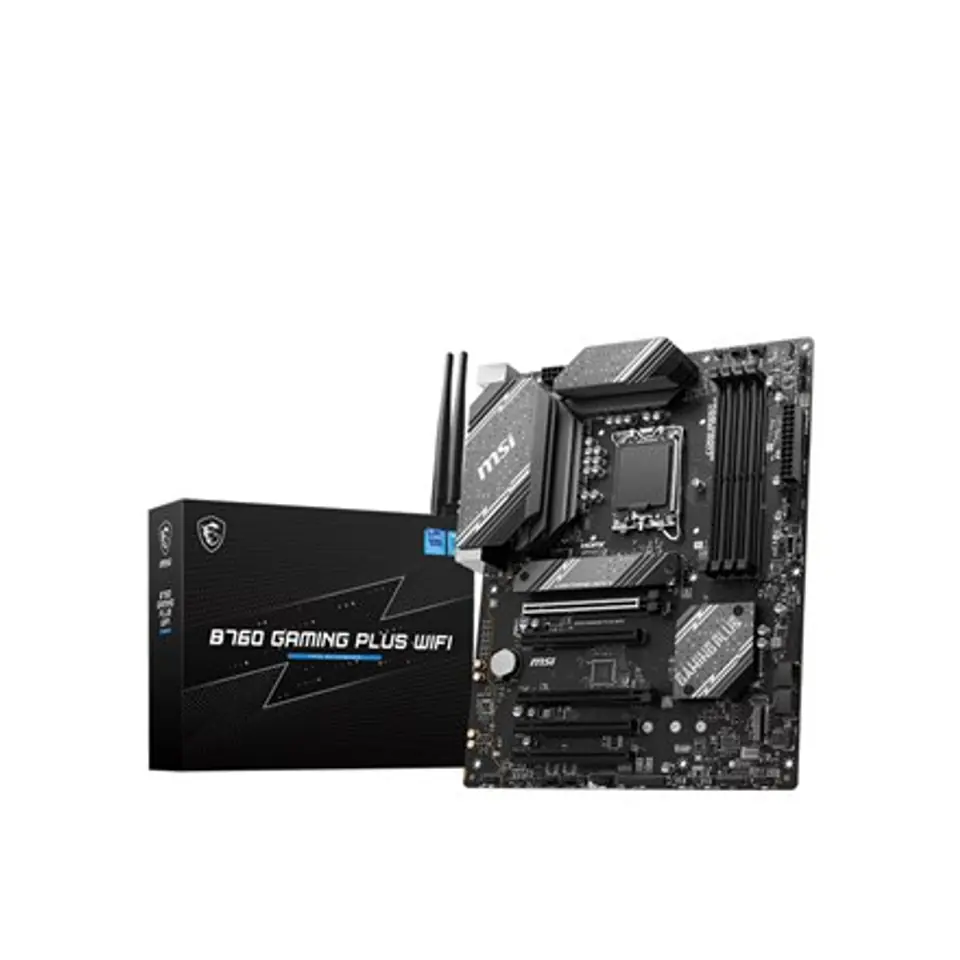

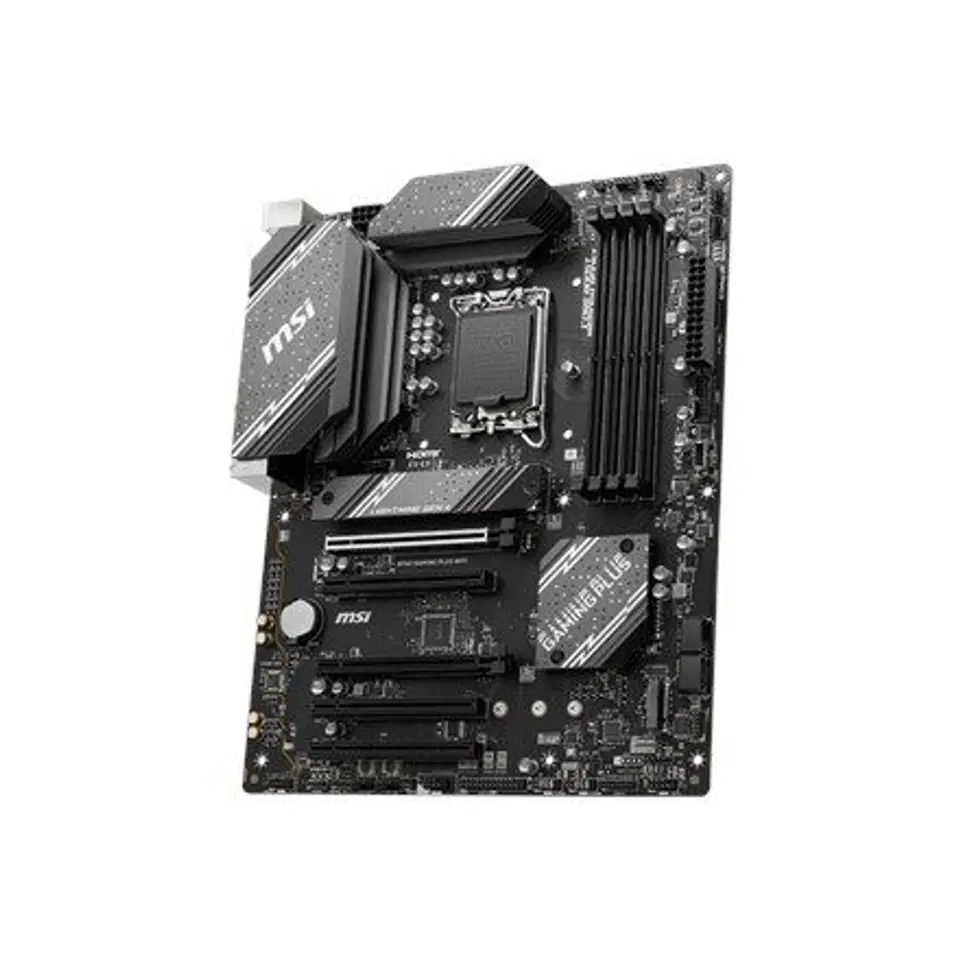

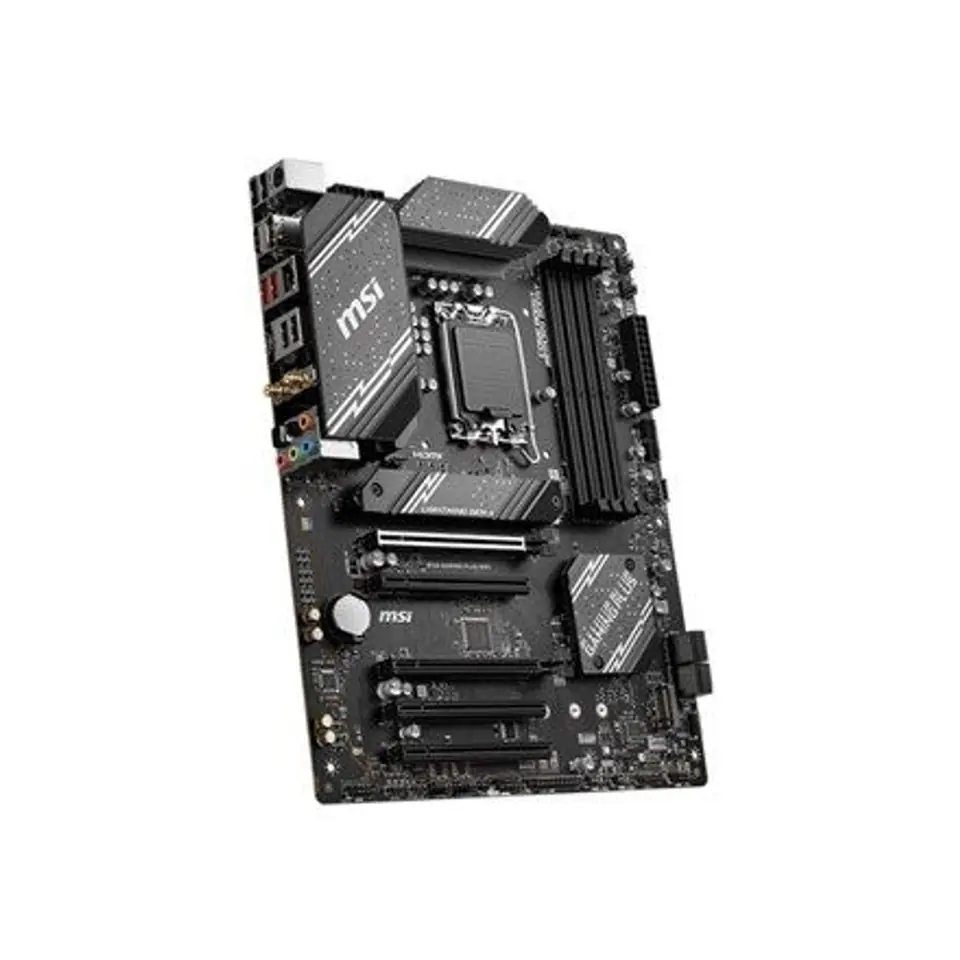

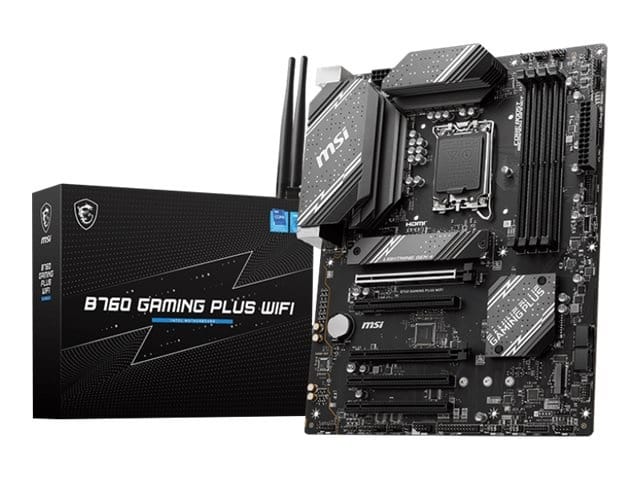

B760 GAMING PLUS WIFI motherboard

  • Supports 12th/13th Intel Core processors generation, Pentium Gold and Celeron for LGA 1700 socket
  • Supports DDR5 memory, dual channel DDR5 6800+MHz (OC)
  • Improved power design: 12+1 Duet Rail power system with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
  • Premium thermal solution: extended heatsink, MOSFET thermal pads rated at 7W/mK, secondary choke thermal pads are built for high system performance and uninterrupted gameplay
  • Lightning-fast gaming: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, Turbo USB 3.2 Gen 2 10G
  • 2.5G LAN with Wi-Fi 6E solution: Enhanced networking solution for professional and multimedia use. It provides a secure, stable and fast network connection
  • High-quality PCB: 6-layer PCB made of thickened 2oz copper
  • Audio Enhancement: Reward your ears with studio-quality sound for the most immersive gaming experience

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
