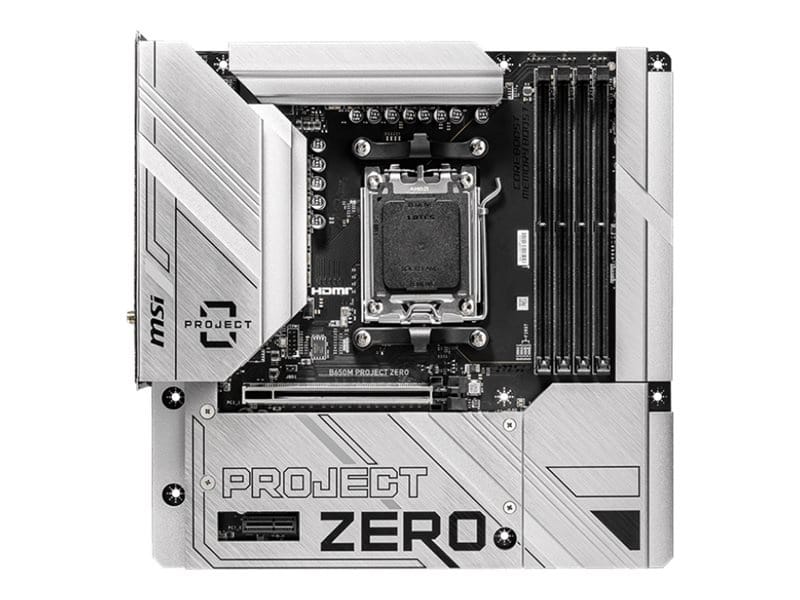

MSI B650M PROJECT ZERO motherboard AMD B650 Socket AM5 micro ATX
€417.01
Shipping from warehouse: K2
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Msi
- Product code:
- B650M PROJECT ZERO / 4711377126649
Share this product:
Specification
| Audio chip: | Realtek ALC897 |
|---|---|
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Bluetooth: | Yes |
| Bluetooth version: | 5.3 |
| Cables included: | SATA |
| Chassis intrusion connector: | Yes |
| Cpu fan connector: | Yes |
| Depth: | 243.8 mm |
| Displayport version: | 1.4 |
| Displayports quantity: | 1 |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.1 |
| Maximum internal memory: | 128 GB |
| Maximum internal memory supported by processor: | 128 GB |
| Memory channels: | Dual-channel |
| Motherboard chipset: | AMD B650 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | micro ATX |
| Number of m.2 (m) slots: | 2 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 4 |
| On-board graphics card: | No |
| Parallel processing technology support: | Not supported |
| Pci express x1 slots: | 1 |
| Pci express x16 slots: | 1 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Product colour: | White |
| Raid levels: | 10, 0, 5 |
| Raid support: | Yes |
| Rgb led pin header: | Yes |
| S/pdif out port: | Yes |
| Supported memory clock speed (max): | 7600 MHz |
| Supported memory clock speeds: | 7400, 5200, 6200, 6600, 4800, 5000, 6000, 5800, 5400, 6400, 6800, 7600 MHz, 5600, 7000 |
| Supported memory types: | DDR5-SDRAM |
| Supported processor sockets: | Socket AM5 |
| Supported storage drive interfaces: | M.2, PCI Express |
| Supported storage drive types: | HDD & SSD |
| Top wi-fi standard: | Wi-Fi 6E (802.11ax) |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 4 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 2 |
| Usb 3.2 gen 2 (3.1 gen 2) connectors: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 3 |
| Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity: | 1 |
| Usb 3.2 gen 2x2 type-c ports quantity: | 1 |
| Wi-fi: | Yes |
| Wi-fi standards: | 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Width: | 243.8 mm |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
